Makita JR3020 Electric Saw Parts

Makita JR3020 Electric Saw Parts Image

Makita JR3020 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

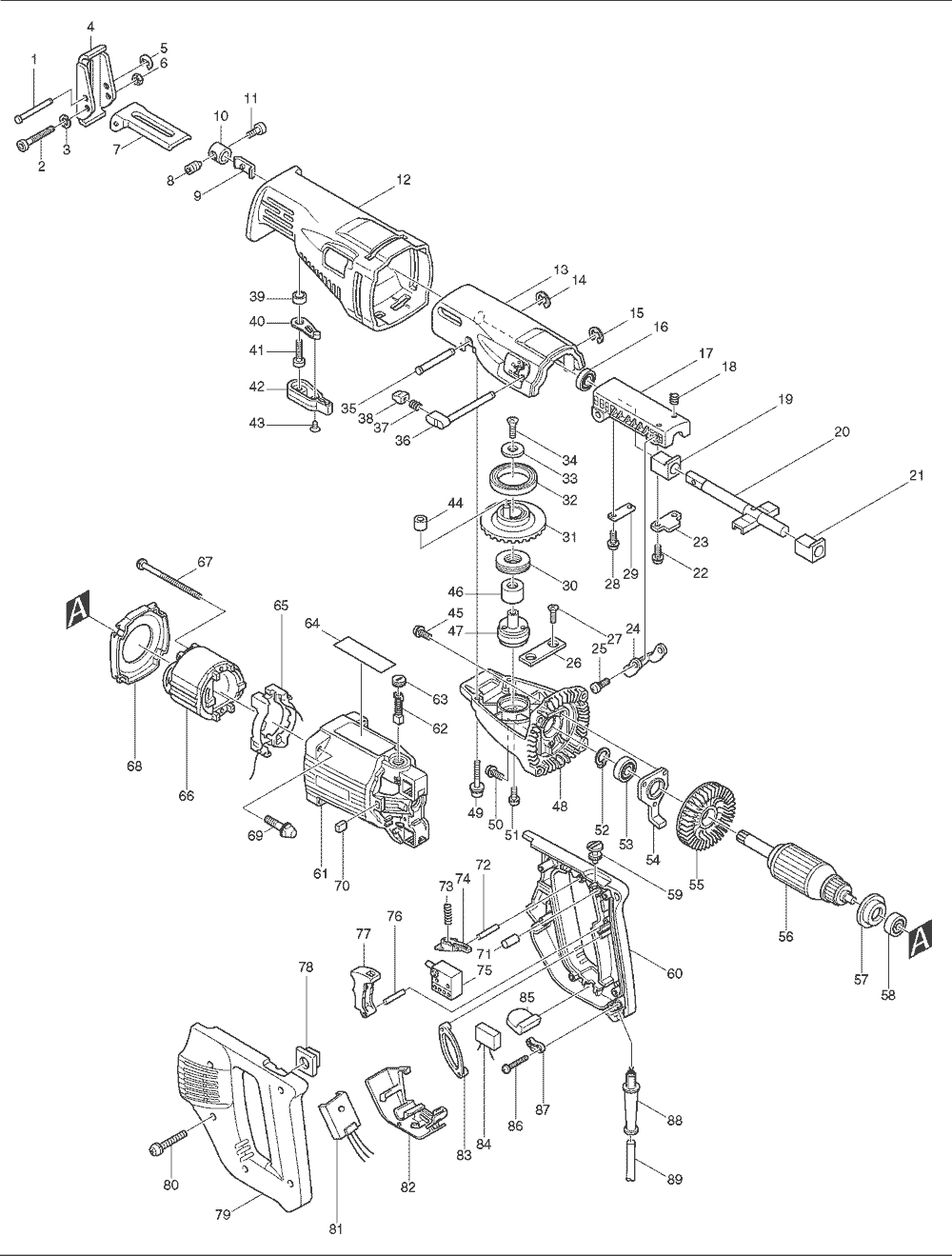

Makita JR3020 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 256654-3 PIN 4, 4390DW $3.61
56 516166-1 ARMATURE ASS'Y, JR3020 $102.83
2 266242-8 H.S.H. BOLT M5X45, JR3020 $1.96
56 516166-1 ARMATURE ASS'Y, JR3020 $102.83
3 942101-7 SPRING WASHER 5, 9005B $0.90
4 344095-6 SHOE PLATE, JR3020 $5.92
5 961017-7 STOP RING E-3, 4304, SH01 $0.53
6 252103-8 HEX. LOCK NUT M5-8, 5007FK $2.29
7 344096-4 SHOE SUPPORTER, JR3020 $10.32
8 265836-6 SET SCREW M8X9,JR3000V $1.48
9 232165-2 LEAF SPRING. JR3020 $2.07
10 313075-3 BLADE CLAMP, JR3020 $7.46
11 266090-5 H.S.H.SCREW M5X15, JR3000V-T2 $1.96
12 421451-8 INSULATION COVER, JR3020 $23.19
13 159614-3 GEAR HOUSING COVER, JR3020 $27.59
14 961012-7 STOP RING E-6, 2030S $0.53
15 961012-7 STOP RING E-6, 2030S $0.53
16 213171-6 DUST SEAL 12.7, JR3020 $5.92
17 316765-7 SLIDER SUPPORT, JR3020 $32.23
18 231342-3 COMP. SPRING 4, 6920B, JR3020 $1.48
19 214167-0 PLANE BEARING 12.7, JR3000V,T2 $3.06
19 214161-2 PLANE BEARING 12.7, JR3020,T1 $1.34
21 214161-2 PLANE BEARING 12.7, JR3020,T1 $1.34
22 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
22 911621-2 PAN HEAD SCREW M5X16, JR3020 $1.48
23 343980-0 PLATE (B), JR3020 $3.06
24 343983-4 ARM, JR3020 $7.46
25 265011-4 BINDING HEAD SCREW M5, JR3020 $1.48
26 343981-8 PLATE (C), JR3030 $3.06
27 251969-3 C.H. BOLT M5X12, JR3020 $1.08
28 266086-6 H.S.H.BOLT M5X16,DA4031 $1.48
28 911621-2 PAN HEAD SCREW M5X16, JR3020 $1.48
29 341462-6 PLATE, JR3000V $0.97
30 212308-2 T.N. BEARING 2035, 6920B $13.29
31 153218-3 GEAR, JR3020 $74.10
32 211519-6 BALL BEARING 6808, JR3020 $47.53
33 253816-4 F. WASHER 6, JR3000V $4.16
34 251969-3 C.H. BOLT M5X12, JR3020 $1.08
35 268012-1 PIN 7, JR3020 $5.37
36 272228-2 LEVER 20, JR3020 $17.47
37 231309-1 .COMP. SPRING 5, AF502 $2.07
38 415173-0 STOPPER, JR3020 $1.63
39 257106-7 RING 8, DA391DW $1.63
40 343982-6 LEVER PLATE, JR3020 $3.06
41 921432-7 HEX BOLT M8X20, 5177B $1.34
42 272227-4 LEVER 50, JR3020,T1 $3.61
42 272235-5 LEVER 50, JR3020 $3.06
43 912202-5 C.S.H. SCREW M5X8, 4110C $0.53
43 922201-9 H.S. BOLT M5X8, 4110C $3.06
44 212038-5 NEEDLE BEARING 710, JR3020 $16.04
45 911601-8 PAN HEAD SCREW M5X8, JR3020 $1.48
46 212115-3 N. BEARING 1216, JR3000V $8.78
47 321263-8 GEAR SHAFT, JR3000V $22.75
48 316464-1 GEAR HOUSING, JR3020 $27.59
49 911243-8 P.H. SCREW M5X25, GA7911 $1.19
50 911621-2 PAN HEAD SCREW M5X16, JR3020 $1.48
51 911213-7 P.H. SCREW M5X12, LS1040 $0.86
52 961052-5 RETAINING RING S-12, 9218PBL $0.86
53 211131-2 BALL BEARING 6001DDW,BO4556 $13.07
54 285675-8 BEARING RETAINER, JR3020 $5.48
55 241863-7 FAN 70, JR3050T $11.75
56 516166-1 ARMATURE ASS'Y, JR3020 $102.83
57 681625-5 INS. WASHER, 5007NK $1.63
58 210005-4 BALL BEARING 608DDW, 9031 $13.07
59 415174-8 SPEED CONTROL KNOB, JR3020 $4.49
60 182806-9 HANDLE SET, JR3020 $14.61
61 159840-4 MOTOR HOUSING, JR3020 $18.57
62 194994-0 CARBON BRUSH CB-253 JR3020 $4.71
63 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
64 857206-9 NAME PLATE,JR3020 $1.36
65 632461-2 SUPPORT COMPLETE $4.71
66 599028-8 FIELD ASS'Y, JR3020 $28.05
67 266029-8 T. SCREW FLANGE PT 5X65,JR3020 $1.96
67 911686-4 P.H.SCREW M5X65, RD1100/1101 $1.48
68 415157-8 BAFFLE PLATE, JR3020 $4.49
69 911253-5 P.H. SCREW M5X30, 2030S $1.19
70 421447-9 RUBBER BLOCK (B), JR3020 $1.26
71 263002-9 RUBBER PIN 4, 5007NK $0.86
72 256221-4 PIN 3, JR3020 $1.19
73 233024-3 COMPRESSION SPRING 4, 6702DW $1.63
74 415160-9 LOCK BUTTON, JR3020 $3.06
75 651920-7 SWITCH, JR3020 $45.49
76 256221-4 PIN 3, JR3020 $1.19
77 415158-6 SWITCH LEVER, JR3020 $4.49
78 421446-1 RUBBER BLOCK (A), JR3020 $1.63
79 182806-9 HANDLE SET, JR3020 $14.61
80 911158-9 P.H. SCREW M4X30, 9045B $0.86
81 631149-1 TRIAC, JR3020 $26.16
82 415156-0 CONTROLLER CASE, JR3020 $5.92
83 421448-7 RUBBER BAND, JR3020 $2.51
85 421452-6 RUBBER PLATE, JR3020 $2.84
86 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
87 687063-9 STRAIN RELIEF, 4323K $1.26
88 682503-2 CORD GUARD 8-90, 9005B $2.51
88 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
89 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
89 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
91 343657-7 RETAINER, JR3000V $1.26
1004 783202-0 HEX WRENCH 4, JR3000V $3.24
1005 410048-8 WRENCH HOLDER, JR3000V $1.26
