Makita JR3000V Electric Saw Parts

Makita JR3000V Parts

6 Amp Variable Speed Reciprocating Saw

Download Schematic

Time to buy a new tool?

Makita JR3000V

6 Amp Variable Speed...

$94.99

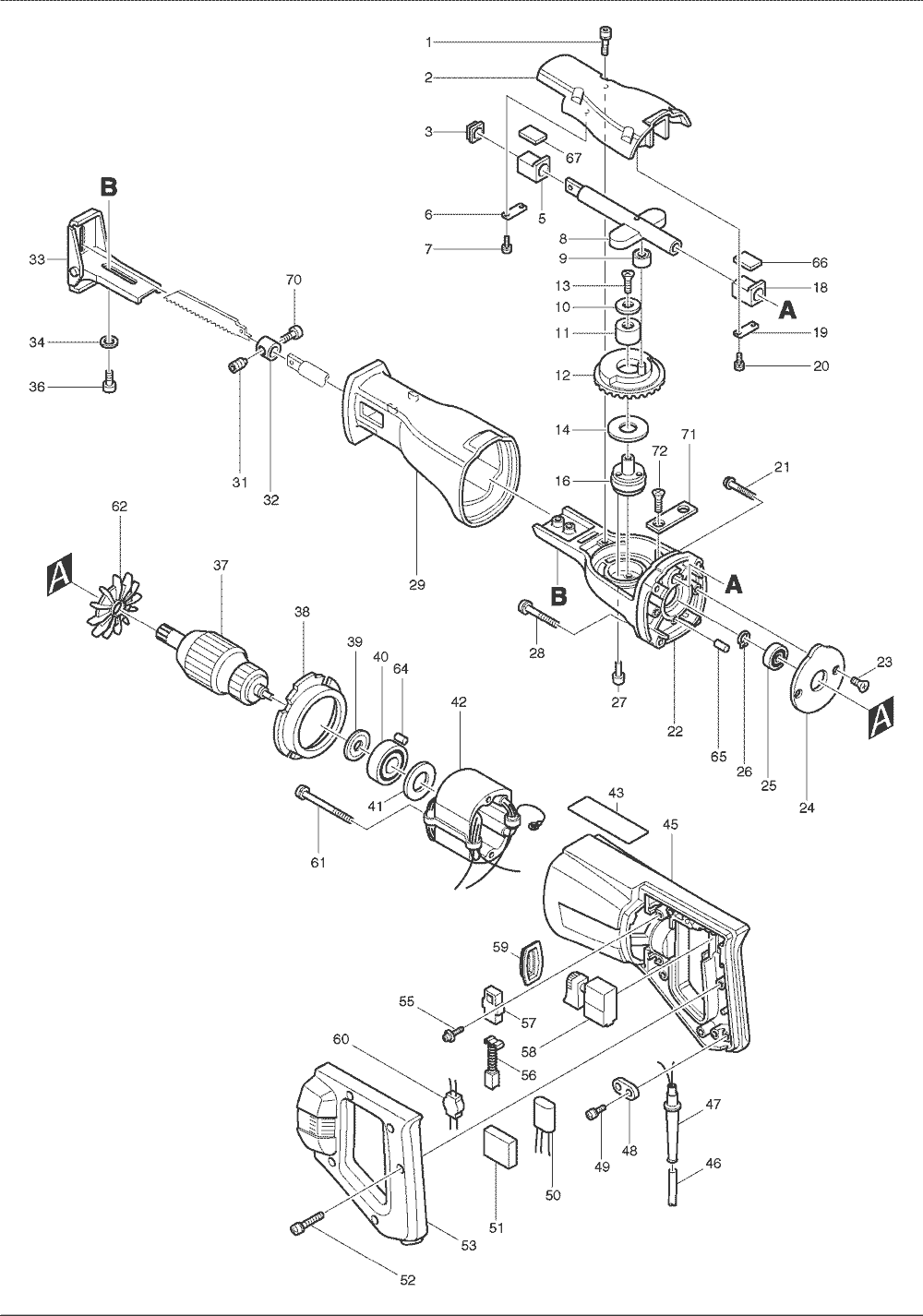

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	911241-2	P.H. SCREW M5X25, 9005B	$0.86
12	133244-8B	GEAR, JR3000V	$46.30
2	317503-0	GEAR HOUSING COVER, JR3000V	$9.77
12	133244-8B	GEAR, JR3000V	$46.30
3	155896-5	SEAL,JR3000V	$3.06
33	163258-3	SHOE,JR3000V	$8.78
2	159679-5	GEAR HOUSING, JR3000V, T2	$19.45
6	341462-6	PLATE, JR3000V	$0.97
2	317503-0	GEAR HOUSING COVER, JR3000V	$9.77
7	911225-0	PAN HEAD SCREW M5X16, JR3050T	$1.19
37	516456-2	ARMATURE ASSEMBLY, JR3000V	$61.00
29	421476-2	INSULATION COVER, JR3000V	$14.94
8	163357-1	SLIDER, JR3000V,T3	$23.96
8	163392-9	SLIDER, JR3000V-T4	$33.55
9	212001-8	N. BEARING 708, JR3000V	$14.61
56	191956-9	CARBON BRUSH 75, JR3000V	$8.99
56	K28	Carbon Brush Set	$8.50
13	251969-3	C.H. BOLT M5X12, JR3020	$1.08
10	253816-4	F. WASHER 6, JR3000V	$4.16
11	212115-3	N. BEARING 1216, JR3000V	$8.78
00	A00188-3	CASE LATCH, LARGE, JR3000V	$1.26
12	133244-8	GEAR JR3000 (TYPE 1)	$43.35
13	251372-8	C.SCREW M5X12, 9035, 9035SB	$1.48
13	251969-3	C.H. BOLT M5X12, JR3020	$1.08
14	253805-9	F. WASHER 18, JR3000V	$5.92
16	321263-8	GEAR SHAFT, JR3000V	$22.75
17	421162-5	SPACE BLOCK, JR3000V,T1	$3.72
18	214167-0	PLANE BEARING 12.7, JR3000V,T2	$3.06
19	341462-6	PLATE, JR3000V	$0.97
19	343526-2	PLATE, JR3000V	$3.06
20	911225-0	PAN HEAD SCREW M5X16, JR3050T	$1.19
21	911251-9	P.H. SCREW M5X30, 2040	$0.86
21	266012-5	TAPPING SCREW 5X35, HR160DH	$1.48
22	152924-7	GEAR HOUSING COMPLETE, JR300V	$11.53
23	912122-3	C.S.H SCREW M4X14,5005BA	$0.53
23	251295-0	F.H. SCREW M4X14, 3612BRA	$1.19
24	285650-4	BEARING RETAINER 54, JR3000V	$3.06
26	961006-2	RETAINING RING S-10, N9501B	$0.86
27	911215-3	PAN HEAD SCREW M4X10, JR3000VT	$0.86
28	266012-5	TAPPING SCREW 5X35, HR160DH	$1.48
28	911256-9	P.H. SCREW M5X35, 6300LR	$0.86
29	421476-2	INSULATION COVER, JR3000V	$14.94
29	421801-7	INSULATION COVER, JR3000V	$11.97
31	265836-6	SET SCREW M8X9,JR3000V	$1.48
32	313075-3	BLADE CLAMP, JR3020	$7.46
33	163258-3	SHOE,JR3000V	$8.78
34	941101-4	F. WASHER 5, 5007NK	$0.75
36	922216-6	H.S.H. BOLT M5X14, 5077B	$1.34
37	516456-2	ARMATURE ASSEMBLY, JR3000V	$61.00
38	411612-8	BAFFLE PLATE, JR3000V	$3.94
38	417613-4	BAFFLE PLATE, JR3000VT	$1.26
39	681613-2	INS. WASHER, JN3200	$1.63
40	211033-2	B. BEARING 608LB, 5091D	$8.78
41	253192-6	F. WASHER 14, HR2400	$1.63
43	854810-5	NAME PLATE, JR3000V	$1.36
45	151986-2	MOTOR HOUSING CPL., JR3000VT	$10.43
45	183351-7	MOTOR HOUSING CPL,JR3000V	$17.25
45	150900-5	MOTOR HOUSING ASS'Y, JR3000V-T2	$17.69
46	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
46	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
47	682502-4	CORD GUARD 8-85, HP2010N	$2.51
47	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
48	687063-9	STRAIN RELIEF, 4323K	$1.26
49	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
53	415240-1	HANDLE COVER, JR3000V,T2	$7.68
53	417611-8	HANDLE COVER, JR3000VT	$5.48
55	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
57	643551-6	BRUSH HOLDER, JR3000V	$1.63
58	650206-6	SWITCH, JR3000V	$23.96
59	411852-8	SWITCH COVER, 6805BV	$1.63
61	266044-2	T. SCREW FLANGE 5X60, 5037NB	$1.96
61	266095-5	TAPPING SCREW 5X55, KP0810	$3.61
62	241631-8	FAN, JR3000V	$5.92
63	258018-7	SPRING PIN 2.5-9, JR3000V-T2	$0.86
65	263002-9	RUBBER PIN 4, 5007NK	$0.86
66	443070-0	FELT PAD, JR3000V	$1.26
67	443070-0	FELT PAD, JR3000V	$1.26
68	256701-0	PIN 3, JR3000V,T1	$1.48
70	266090-5	H.S.H.SCREW M5X15, JR3000V-T2	$1.96
71	343981-8	PLATE (C), JR3030	$3.06
72	251969-3	C.H. BOLT M5X12, JR3020	$1.08
403	783202-0	HEX WRENCH 4, JR3000V	$3.24
404	410048-8	WRENCH HOLDER, JR3000V	$1.26
902	343657-7	RETAINER, JR3000V	$1.26
