Makita HR5210C Rotary Hammer Parts

Makita HR5210C Rotary Hammer Parts Image

Makita HR5210C Parts
2 Inch SDS-Max Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR5210C
2 Inch SDS-Max Rota...
$1,015.99
Tool Diagram    (Click image to Zoom in) View larger Image

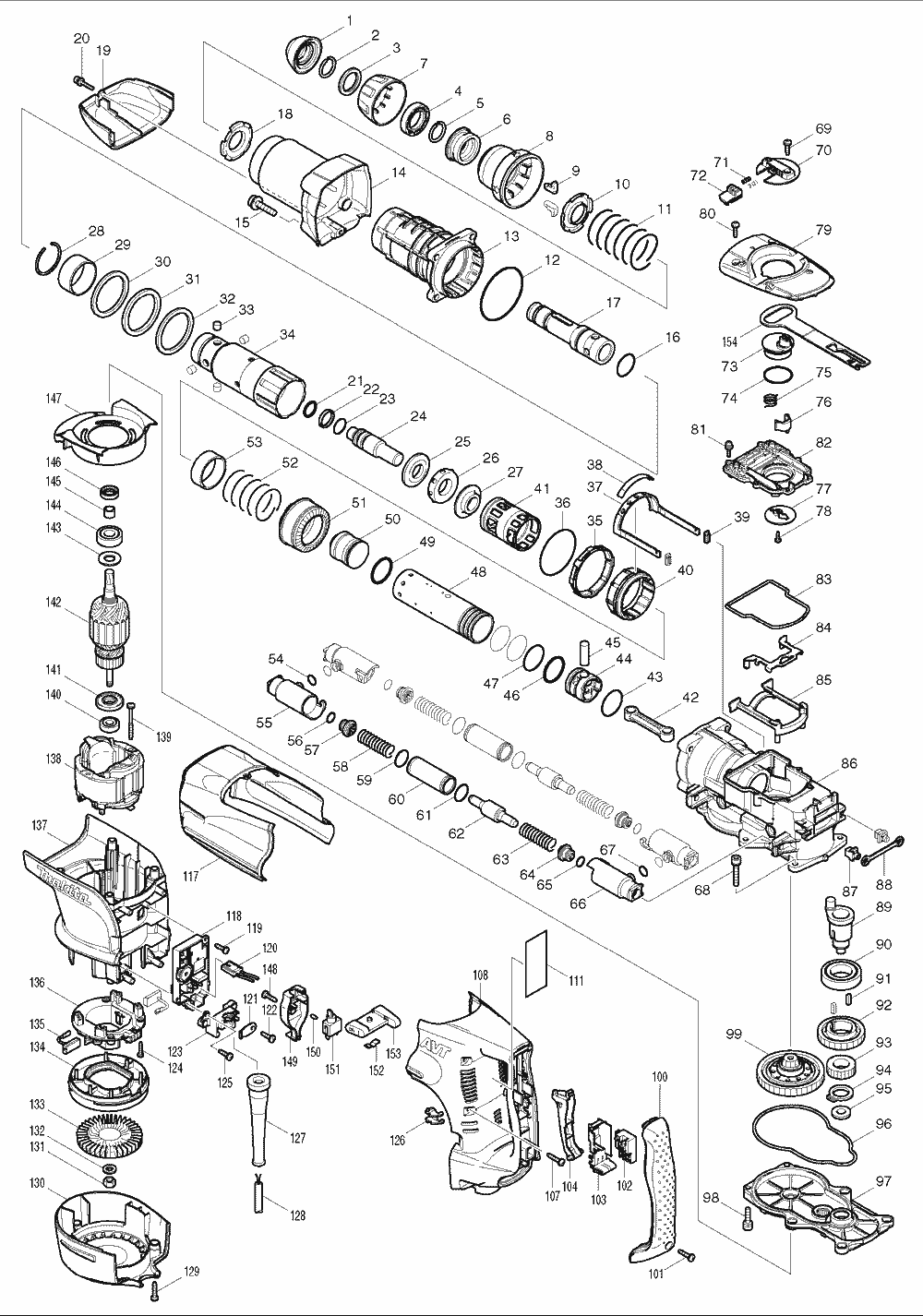

Makita HR5210C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

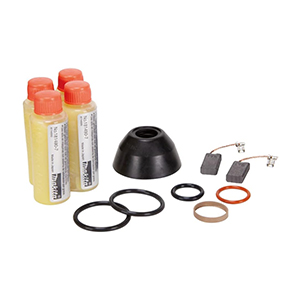

Fig.Part #ImgPart NamePriceQty.
1 286272-3 TOOL HOLDER CAP, HR4002 $2.84
1 286285-4 TOOL HOLDER CAP, HR4001C $2.84
2 233948-3 RING SPRING 25, HR5210C $1.96
3 257280-1 RING 29, HR5210C $4.93
4 419002-9 SPACER, HR4001C $2.84
5 233948-3 RING SPRING 25, HR5210C $1.96
6 324752-2 CHUCK RING, HR5210C $13.84
7 419778-8 CHACK COVER, HR5210C $2.84
8 419779-6 RELEASE COVER, HR5210C $4.16
9 310178-4 TOOL RETAINER, HR5210C $6.80
10 345804-6 SPRING GUIDE, HR5210C $3.06
11 233496-2 COMPRESSION SPRING 49, HR5210C $3.61
12 213766-5 O-RING 78, HR5210C $3.28
13 158175-0 BARREL CPL., HR5210C $43.24
14 158179-2 BARREL COVER CPL., HR5210C $11.53
15 922456-6 H.S.H. BOLT M8X35, 2107F $1.48
16 213492-6 O-RING 32, HR5210C $3.28
17 324740-9 TOOL HOLDER A, HR5210C $80.20
18 345804-6 SPRING GUIDE, HR5210C $3.06
19 419791-6 GEAR HOUSING COVER, HR5210C $4.27
20 922148-7 H.S.H. BOLT M4X25, 6922NB $1.34
21 213274-6 O RING 18, HR3000C $1.19
22 213392-0 FLUORIDE RING 25, HR4000C $7.46
23 213317-4 O RING 20, HR4000C $1.48
24 324753-0 IMPACT BOLT, HR5210C $8.78
25 324756-4 RING 20, HR5210C $6.47
26 424000-0 RUBBER RING 24, HR5210C $4.93
27 324757-2 COLLAR SLEEVE 20, HR5210C $6.80
28 233949-1 RING SPRING 44, HR5210C $1.48
29 257282-7 RING 47, HR5210C $27.74
30 267287-9 FLAT WASHER 57, HR5210C $2.18
31 262122-6 URETHAN RING 57, HR5210C $11.09
32 267287-9 FLAT WASHER 57, HR5210C $2.18
33 256265-4 PIN 10, HR5001C $3.61
34 324741-7 TOOL HOLDER B, HR5210C $117.57
35 419776-2 LOCK SLEEVE, HR5210C $2.84
36 213654-6 O RING 60, HR3851 $1.96
37 165459-9 RINK ARM, HR5210C $16.04
38 419775-4 LINK ARM GUIDE, HR5210C $1.52
39 424024-6 SEAL PLATE, HR5210C $1.26
40 313138-5 DRIVING SLEEVE, HR5210C $18.57
41 419780-1 SLIDE SLEEVE, HR5210C $3.61
42 419772-0 CONNECTING ROD, HR5210C $2.84
42 451516-2 CONNECTING ROD, HR5210C $2.74
43 213460-9 O RING 35, HM1500 $1.19
44 419771-2 PISTON, HR5210C $2.84
45 268121-6 PIN 12, HR5210C $1.48
46 213296-6 O-RING 34, HR5210C $1.87
46 213482-9 O RING 34, HR5001C $1.96
47 213510-0 O RING 36, BO4556 $1.48
48 331748-6 CYLINDER 40, HR5210C $54.90
49 213296-6 O-RING 34, HR5210C $1.87
49 213482-9 O RING 34, HR5001C $1.96
50 324754-8 STRIKER, HR5210C $9.33
51 227511-2 STRAIGHT BEVEL GEAR 33, HR5210C $39.57
52 233498-8 COMPRESSION SPRING 46, HR5210C $4.93
53 257281-9 RING 45, HR5210C $6.47
54 213118-0 O-RING 12, 5277NB $0.86
55 318124-1 PIPE HOLDER, HR5210C $11.97
56 213118-0 O-RING 12, 5277NB $0.86
57 419773-8 SPRING GUIDE, HR5210C $1.63
58 233497-0 COMPRESSION SPRING 15, HR5210C $3.61
59 213953-6 O RING 24, HR2431 $1.48
60 331745-2 PIPE 22, HR5210C $4.16
61 213953-6 O RING 24, HR2431 $1.48
62 324755-6 COUNTER WEIGHT, HR5210C $14.61
63 233497-0 COMPRESSION SPRING 15, HR5210C $3.61
64 419773-8 SPRING GUIDE, HR5210C $1.63
65 213118-0 O-RING 12, 5277NB $0.86
66 318124-1 PIPE HOLDER, HR5210C $11.97
67 213118-0 O-RING 12, 5277NB $0.86
68 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
69 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
70 419020-7 CHANGE LEVER, HR4001C $4.71
71 233436-0 COMP. SPRING 3, HR4001C $0.79
72 419777-0 LOCK BUTTON, HR5210C $1.52
73 419784-3 CRANK LEVER, HR5210C $2.84
74 213515-0 O RING 36, 9040L $1.74
74 213534-6 O RING 36, HR4510C $1.19
75 233506-5 TORSION SPRING 16, HR5210C $1.96
76 310207-3 LINK LEVER, HR5210C $6.80
77 345778-1 RETAINER PLATE, HR5210C $4.16
78 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
78 265014-8 P.H. SCREW M4X12, AF501 $2.95
79 318130-6 CRANK CAP COVER, HR5210C $14.61
80 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
81 911133-5 P.H. SCREW M4X18, N9501B $0.86
82 419789-3 CRANK CAP, HR5210C $4.16
83 421998-2 SEAL RING, HR5210C $2.84
84 345779-9 LINK PLATE, HR5210C $4.16
85 419781-9 LINK PLATE GUIDE, HR5210C $2.84
86 158176-8 CRANK HOUSING CPL., HR5210C $69.20
87 419008-7 FIX GUIDE, HR4001C $1.26
88 423366-5 CUSHION PLATE, HR5210C $1.26
89 324739-4 CRANK SHAFT, HR5210C $20.55
90 211418-2 BALL BEARING 6006LLU, HR4500C $15.82
91 254229-2 KEY 5, HR4000C $1.63
92 226646-6 HELICAL GEAR 47, HR5210C $17.36
93 227176-0 SPUR GEAR 24, HR5210C $8.45
94 961102-6 RETAINING RING S-22, HR5210C $3.28
95 253843-1 F. WASHER 12, 2030N $3.72
96 421999-0 SEAL RING, HR5210C $2.84
97 158178-4 GEAR HOUSING CPL., HR5210C $39.57
98 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
99 125374-9 TORQUE LIMITER ASS'Y, HR5210C $94.20
100 419796-6 HANDLE COVER, HR5210C $13.84
101 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
102 650567-4 SWITCH, HR4010C $27.37
103 154626-1 SWITCH HOLDER CPL.,HR4001 $2.84
104 419028-1 SWITCH LEVER, HR4001C $2.84
107 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
108 419800-1 HANDLE, HR5210C $28.15
111 863365-9 NAME PLATE, HR5210C $1.21
117 419793-2 CRANK HOUSING COVER, HR5210C $11.53
118 631726-9 CONTROLLER, HR5210C $51.20
119 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
120 638510-3 LEAD UNIT, HR5210C $2.84
121 687169-3 STRAIN RELIEF, HP1621F $0.97
122 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
123 419024-9 CORD LAMP BASE, HR4001C $2.84
124 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
125 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
126 419774-6 LENS, HR5210C $1.52
127 682560-0 CORD GUARD 10, HM1202C $4.16
127 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
128 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
128 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
129 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
130 419790-8 REAR COVER, HR5210C $13.29
131 252178-7 HEX NUT M8-12, 4112H $1.34
132 253165-9 F. WASHER 8, 4303C $1.63
133 240016-5 FAN 90, HR4510C $7.46
134 419782-7 FAN GUIDE, HR5210C $2.84
136 638447-4 BRUSH HOLDER UNIT, HR5210C $6.80
137 419795-8 MOTOR HOUSING, HR5210C $27.70
138 636301-6 FIELD 115V, HR5210C $27.74
139 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
140 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
141 681642-5 INSULATION WASHER, LS1016L $10.32
142 516991-0 ARMATURE ASS'Y 115V, HR5210C $87.80
143 267025-9 F. WASHER 15, HR4500C $2.18
144 211238-4 BALL BEARING 6202LLU, HR4500C $9.99
145 331596-3 SLEEVE 12, HR4041C $5.48
146 213231-4 OIL SEAL 15, HR4500C $5.48
147 419788-5 BAFFLE PLATE, HR5210C $2.84
148 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
149 419786-9 SWITCH BOX, HR5210C $2.84
150 263027-3 RUBBER PIN 4, HM0860C $1.19
151 651418-4 SWITCH, 9564CV $17.25
152 232209-8 LEAF SPRING, HM0860C $1.96
153 154635-0 SLIDE LEVER CPL.,HR4001C $5.48
154 419785-1 CONTROL PLATE, HR5210C $2.84
155 819362-3 CLEAR LABEL, HR4510C $2.40
1001 158131-0 GRIP 36 CPL.,HR4010C $11.97
1003 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1004 135269-8 SIDE HANDLE 82 ASS'Y, HM1203C $45.39
1005 265701-9 SCREW M6X14, 5177B $1.96
1006 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
1007 321248-4 DEPTH GAUGE, HR3851 $7.46
1008 344492-6 PLATE, HR4002 $1.63
1009 345780-4 GRIP SPRING 82, HR5210C $8.12
1010 419792-4 SIDE GRIP BASE 82, HR5210C $4.16
1012 931302-2 HEX NUT M6, HR2400 $0.79
1013 805250-0 MODEL NO. LABEL, HR5210C $0.96
1014 135380-6 GRIP ASS'Y, HR5210C $27.74
