Makita HR5001C Rotary Hammer Parts

Makita HR5001C Rotary Hammer Parts Image

Makita HR5001C Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image
Makita HR5001C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286250-3 TOOL HOLDER CAP, HM1202C $3.06

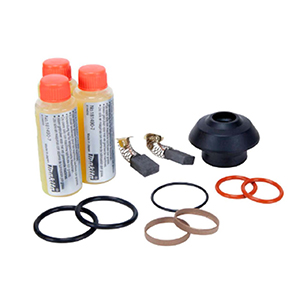

00 193392-5 HAMMER SERVICE KIT, HR5001C $34.17
2 416568-0 CHUCK COVER, HR5001C $5.92
00 256264-6 PIN 12, HR5001C $5.37
3 150836-8 CRANK HOUSING COVER CPL., HR5001C $25.06
00 643661-9 BRUSH HOLDER, HR5001C $9.33
4 233217-2 COMPRESSION SPRING 51, HR5001C $2.07
54 416561-4 CRANK CAP, HM1304B $5.48
5 231984-3 RING SPRING 25, HR5001C $2.07
93 323973-3 CRANK PIN 4,HR5001C $2.84
6 961232-3 RETAINING RING WR-45, HR5001C $3.61
7 267735-8 CUP WASHER 45, HR5001C $5.92
8 232180-6 LEAD SPRING 41, HR5001C $5.37
9 323767-6 PIN 8, HR5001C $4.49
10 323773-1 CHUCK RING, HR5001C $45.08
11 233218-0 COMPRESSION SPRING 55, HR5001C $3.61
12 323772-3 TOOL HOLDERB, HR5001C $89.40
13 256265-4 PIN 10, HR5001C $3.61
14 416572-9 LOCK SLEEVE A, HR5001C $5.92
15 233216-4 COMPRESSION SPRING 58, HR5001C $4.16
16 416573-7 LOCK SLEEVE B, HR5001C $4.49
17 267180-7 FLAT WASHER 50, HR5001C $5.92
18 262543-2 URETHANE SLEEVE 50, HR5001C $6.80
19 267180-7 FLAT WASHER 50, HR5001C $5.92
20 211751-2 BALL BEARING 6910, HR5001C $41.20
21 962351-8 RETAINING RING R-72, HR5001C $4.93
22 961234-9 RETAINING RING WR-50, HR5001C $3.61
23 213618-0 OIL SEAL 48, HR5001C $4.49
24 213715-2 O RING 67, HR5001C $1.96
25 416565-6 SEAL CASE, HR5001C $4.49
26 323768-4 IMPACT BOLT, HR5001C $15.93
27 213394-6 O RING 23, HR5001C $1.48
28 213394-6 O RING 23, HR5001C $1.48
29 213522-3 O RING 36, HR5001C $3.61
30 323771-5 TOOL HOLDER A, HR5001C $56.50
31 322908-1 ROLLER 8, HM1100C $3.06
32 267734-0 CUP WASHER 45, HR5001C $2.18
33 213431-6 FLUORIDE RING 28, HR5001C $11.97
34 213431-6 FLUORIDE RING 28, HR5001C $11.97
35 323817-7 RING 22, HR5001C $6.80
36 421623-5 RUBBER RING 24, HR3850 $7.46
37 331530-3 COLLAR SLEEVE 22, HR5001C $18.02
38 416566-4 SLIDE SLEEVE, HR5001C $4.49
39 331531-1 RING 45, HR5001C $10.32
40 233215-6 COMP. SPRING 45, HR5001C $4.16
41 267736-6 WASHER 45, HR5001C $4.16
42 323769-2 STRIKER, HR5001C $11.97
43 213482-9 O RING 34, HR5001C $1.96
44 231985-1 RING SPRING 43, HR5001C $1.48
45 331534-5 CYLINDER 40, HR5001C $40.29
46 256295-5 PIN 10, HR5001C $3.61
46 331532-9 PIPE 10, HR5001C $3.06
47 213510-0 O RING 36, BO4556 $1.48
48 213482-9 O RING 34, HR5001C $1.96
49 416563-0 PISTON, HR5001C $6.80
50 213460-9 O RING 35, HM1500 $1.19
50 213459-4 O RING 32, HK1810 $1.19
51 416564-8 ROD, HR5001C $4.49
52 226761-6 SPIRAL BEVEL GEAR 41, HR5001C $47.12
53 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
54 416561-4 CRANK CAP, HM1304B $5.48
55 213510-0 O RING 36, BO4556 $1.48
56 150831-8 CRANK HOUSING COMPLETE, HR5001C $96.60
57 323774-9 CRANKSHAFT, HR5001C $33.55
58 267181-5 FLAT WASHER 56, HR5001C $5.92
59 254229-2 KEY 5, HR4000C $1.63
60 211470-0 BALL BEARING 62/32 2RS, HR5001C $23.74
61 254202-2 KEY 4, 9924DB $1.26
62 962303-9 RETAINING RING R-65, HR5001C $3.61
63 226493-5 HELICAL GEAR 50, HR5001C $27.37
64 226490-1 HELICAL GEAR 20A, HR5001C $11.64
65 961054-1 RETAINING RING S-14, 6302 $0.86
66 961052-5 RETAINING RING S-12, 9218PBL $0.86
67 253744-3 F. WASHER 12, HR2410 $1.34
68 150835-0 HELICAL GEAR, HR5001C $10.21
69 253744-3 F. WASHER 12, HR2410 $1.34
70 421622-7 SEAL RING ,HR5001C $3.06
71 150832-6 GEAR HOUSING COMPLETE, HR5001C $40.80
72 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
73 213160-1 OIL SEAL 14, HR3851 $20.33
75 911223-4 P.H. SCREW M5X16, 5007NK $0.86
76 256286-6 PIN 7, HR5001C $1.48
77 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
78 322951-0 CHANGE KEY, HR4000C $5.92
79 253314-8 THIN WASHER 15, 6906 $1.63
80 416571-1 CHANGE LINK, HR5001C $4.16
81 253810-6 F. WASHER 12, HR4000C $2.18
82 256263-8 PIN 5, HR5001C $1.74
83 322963-3 GUIDE PIN 2, HR4000C $0.75
84 233180-9 COMPRESSION SPRING 3, HR4000C $0.86
85 416289-4 SLIDE PLATE, HR4000C $1.26
86 961052-5 RETAINING RING S-12, 9218PBL $0.86
87 267113-2 FLAT WASHER 12, GA4030 $1.63
88 150986-9 TORQUE LIMITER CPL., HR5001C $85.10
89 267113-2 FLAT WASHER 12, GA4030 $1.63
90 211109-5 BALL BEARING 6201, HR3851 $13.07
91 226760-8 SPIRAL BEVEL GEAR 12, HR5001C $24.29
92 256122-6 PIN 4, HR1821 $1.19
93 323973-3 CRANK PIN 4,HR5001C $2.84
94 213304-3 O RING 20, 6904VH $1.19
95 416287-8 CHANGE LEVER, HR4000C $3.06
96 816329-2 INDICATION LABEL, HR4000C $1.61
97 233188-3 COMPRESSION SPRING 2.4, HR4000C $0.86
98 417340-3 LOCK BUTTON,HR4040C $1.52
99 417167-1 HANDLE COVER, HR5001C-T2 $21.10
100 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
101 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
102 687052-4 STRAIN RELIEF, HM1500B $1.26
103 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
104 416126-2 LEAD GUIDE, HR4000C $3.06
105 421583-1 SPONGE SHEET, HR5001C $0.75
106 651922-3 SWITCH, HM1303B $19.45
107 416284-4 SWITCH LEVER, HR4000C $3.06
108 417166-3 HANDLE, HR5001C-T2 $26.92
109 682505-8 CORD GUARD, 2711 $2.51
109 682560-0 CORD GUARD 10, HM1202C $4.16
109 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
109 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
110 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
110 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
111 416285-2 ACRYLIC PIN 5, HR4000C $1.26
112 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
113 416562-2 FIX ROD, HR5001C $3.06
114 240016-5 FAN 90, HR4510C $7.46
115 253165-9 F. WASHER 8, 4303C $1.63
116 931402-8 HEX NUT M8, 5037NB $1.34
117 416570-3 REAR COVER, HR5001C $11.75
118 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
119 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
120 416292-5 BRUSH HOLDER COVER, HR4000C $3.06
121 263002-9 RUBBER PIN 4, 5007NK $0.86
122 643650-4 BRUSH HOLDER CAP, 5007NK $1.63
123 194987-7 CARBON BRUSH 155, HR5000 $14.94
124 859584-3 NAME PLATE, HR5001C $2.51
125 911223-4 P.H. SCREW M5X16, 5007NK $0.86
126 416575-3 GEAR HOUSING COVER, HR5001C $9.22
127 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
128 416569-8 BAFFLE PLATE, HR5001C $4.49
129 516776-4 ARMATURE ASS'Y 115V, HR5001C $130.08
130 626076-5 FIELD 115V, HR5001C $48.96
131 416567-2 DUST GUIDE, HR5001C $4.49
132 681642-5 INSULATION WASHER, LS1016L $10.32
133 211088-7 BALL BEARING 6000DDW, 9005B $13.07
134 150833-4 MOTOR HOUSING COMPLETE, HR5001C $51.40
135 631274-8 CONTROLLER, HR5001C $71.60
136 265439-6 HEX BOLT M8X150, HM1100C $3.61
137 416009-6 SIDE HANDLE, HM1100C $17.69
137 417003-1 SIDE HANDLE, HM1214C & HM1203C $13.18
138 252640-2 WING NUT M8, HM1214C & HM1203C $7.02
143 417002-3 SIDE HANDLE CAM, HM1214C & HM1203C $3.06
1001 152554-4 GRIP 36 COMPLETE, HR4000C $13.18
1002 265701-9 SCREW M6X14, 5177B $1.96
1003 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
1004 344492-6 PLATE, HR4002 $1.63
1005 344635-0 GRIP SPRING 87, HR5001C $16.04
1006 416580-0 SIDE GRIP BASE 87, HR5001C $11.97
1007 931302-2 HEX NUT M6, HR2400 $0.79
1009 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
2002 134882-9 SIDE HANDLE 87 ASS'Y, HR5001C $37.02
5001 810134-9 CAUTION LABEL, 3709 $0.93
