Makita HR4010C Rotary Hammer Parts

Makita HR4010C Rotary Hammer Parts Image

Makita HR4010C Parts
1-9/16 Inch SDS-MAX Rotary Hammer with AVT Technology

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR4010C
1-9/16 Inch SDS-MAX ...
$632.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

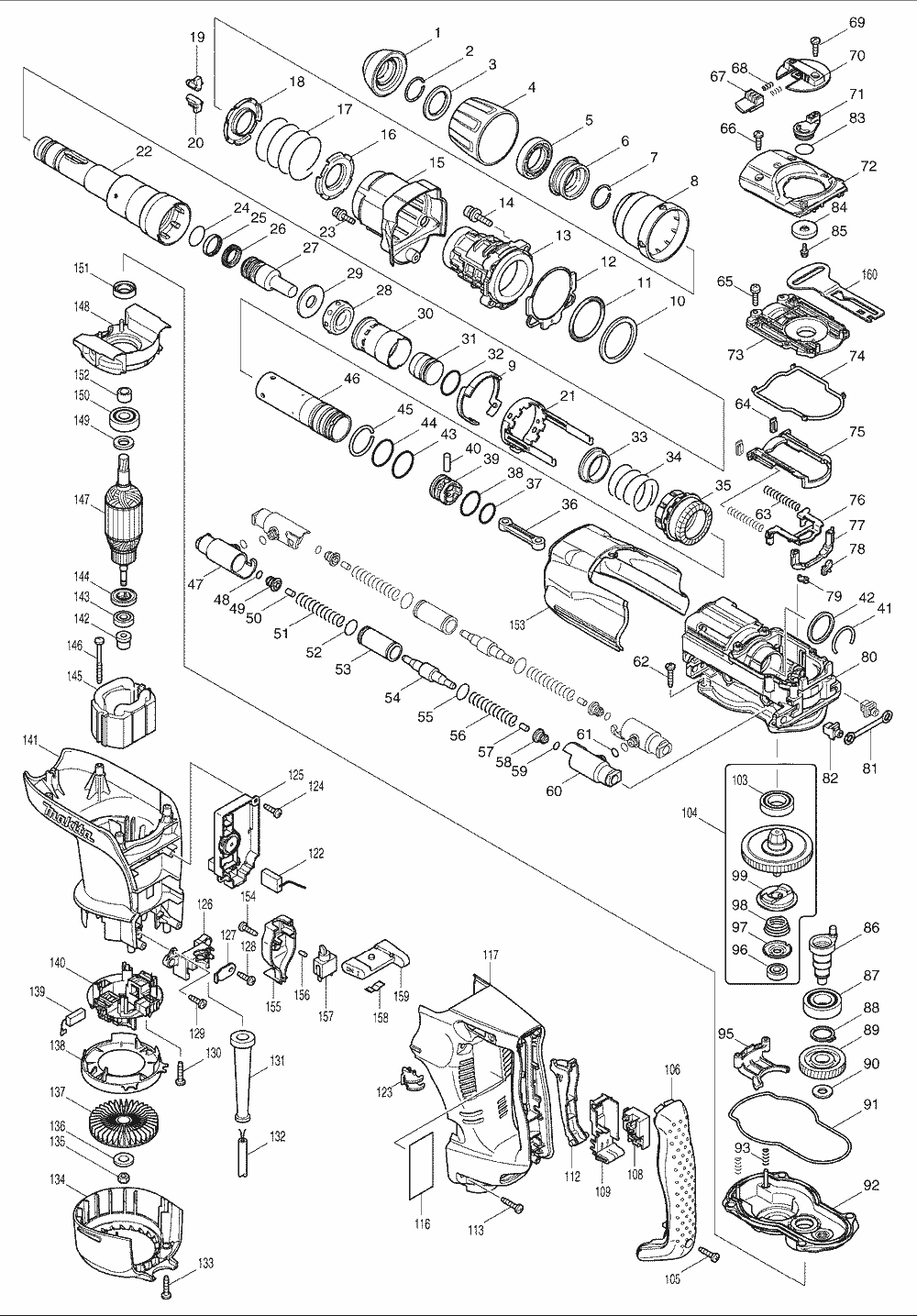

Makita HR4010C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286272-3 TOOL HOLDER CAP, HR4002 $2.84
1 286285-4 TOOL HOLDER CAP, HR4001C $2.84

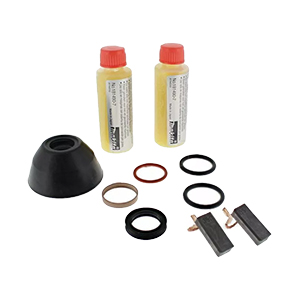

00 195195-3 HAMMER SERVICE KIT, HR4010C $20.55
2 231984-3 RING SPRING 25, HR5001C $2.07
00 195195-3 HAMMER SERVICE KIT, HR4010C $20.55
3 267272-2 FLAT WASHER 28, HM0860C $5.26
00 267456-2 THIN WASHER 38, HR4010C $1.30
4 419015-0 CHUCK COVER, HR4001C $5.92
00 345650-7 WASHER PLATE, HR4010C $3.06
5 419002-9 SPACER, HR4001C $2.84
6 324548-1 CHUCK RING, HR4001C $4.16
7 231984-3 RING SPRING 25, HR5001C $2.07
8 419016-8 RELEASE COVER, HR4001C $2.84
9 419017-6 LOCK SLEEVE GUIDE, HR4001C $2.62
9 419760-7 LOCK SLEEVE GUIDE, HR4001C $2.95
10 267298-4 FLAT WASHER 45, HR4001C $3.72
10 267336-2 FLAT WASHER 45, HR4001C $3.72
11 262116-1 URETHAN RING 45, HR4001C $6.47
12 421911-0 SEAL SHEET, HR4010C $2.84
13 154621-1 BARREL CPL., HR4001C $42.63
14 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
15 154624-5 BARREL COVER CPL.,HR4001C $5.48
16 345579-7 SPRING GUIDE, HR4001C $1.96
17 233431-0 COMP. SPRING 48, HR4001C $1.63
18 345579-7 SPRING GUIDE, HR4001C $1.96
19 310161-1 TOOL RETAINER, HR4001C $8.01
20 310161-1 TOOL RETAINER, HR4001C $8.01
21 165633-9 LOCK SLEEVE, HR4002 $18.35
22 324542-3 TOOL HOLDER, HR4002 $112.43
23 922128-3 H.S. HEAD BOLT M4X16, HR2811F $1.34
23 266437-3 H.S.H. BOLT M4X16, HR4001C $1.34
24 213317-4 O RING 20, HR4000C $1.48
25 213392-0 FLUORIDE RING 25, HR4000C $7.46
26 213281-9 X-RING 18, HR4001C $4.93
27 324569-3 IMPACT BOLT, HR4001C $4.49
28 421901-3 RUBBER RING 17, HR4010C $5.48
29 324573-2 RING 17, HR4001C $5.92
30 419003-7 SLIDE SLEEVE, HR4001C $2.84
31 324571-6 STRIKER, HR4010C $2.84
32 213962-5 O RING 22, HR4002 $3.28
33 331709-6 RING 33, HR4001C $5.48
34 233448-3 COMP. SPRING 37, HR4002 $1.96
35 227509-9 STRAIGHT BEVEL GEAR, HR4001C $28.15
36 419005-3 CONNECTING ROD, HR4001C $1.52
37 213379-2 O RING 21, HR4041C $0.82
38 213962-5 O RING 22, HR4002 $3.28
39 419004-5 PISTON, HR4041C $2.84
40 256197-5 PIN 7, JR3020 $1.96
41 233937-8 RING SPRING 31, HR4001C $0.86
42 257268-1 RING 33, HR4001C $4.16
43 213406-5 O RING 30, HR5000 $1.19
44 213406-5 O RING 30, HR5000 $1.19
45 233935-2 RING SPRING 32, HR4001C $0.86
46 324570-8 CYLINDER 28.5, HR4001C $36.61
47 317923-8 PIPE HOLDER, HR4010C $19.45
48 213030-4 O RING 8, AN451 $0.82
49 419011-8 SPRING GUIDE, HR4010C $1.48
50 263005-3 RUBBER PIN 6, BHP452 $0.86
51 233435-2 COMP. SPRING 11, HR4010C $1.96
52 213275-4 O RING 18, BFL400FZ $0.86
53 324572-4 PIPE 16, HR4010C $5.48
54 324574-0 COUNTER WEIGHT, HR4010C $4.16
55 213275-4 O RING 18, BFL400FZ $0.86
56 233435-2 COMP. SPRING 11, HR4010C $1.96
57 263005-3 RUBBER PIN 6, BHP452 $0.86
58 419011-8 SPRING GUIDE, HR4010C $1.48
59 213030-4 O RING 8, AN451 $0.82
60 317923-8 PIPE HOLDER, HR4010C $19.45
61 213030-4 O RING 8, AN451 $0.82
62 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
63 233432-8 COMP. SPRING 7, HR4001C $1.48
64 421910-2 SEAL PLATE, HR4010C $1.26
65 911133-5 P.H. SCREW M4X18, N9501B $0.86
66 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
67 419009-5 LOCK BUTTON, HR4001C $1.52
68 233436-0 COMP. SPRING 3, HR4001C $0.79
69 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
70 419020-7 CHANGE LEVER, HR4001C $4.71
71 419007-9 CRANK LEVER, HR4001C $2.84
72 317925-4 CRANK CAP COVER, HR4001C $10.65
73 419030-4 CRANK CAP, HR4001C $4.16
74 421908-9 SEAL RING, HR4001C $2.84
75 419019-2 LINK PLATE GUIDE, HR4001C $2.84
76 345582-8 LINK PLATE, HR4001C $4.16
77 419012-6 AIR PIPE, HR4010C $1.52
78 421909-7 AIR PIPE SEAL, HR4010C $1.26
79 421909-7 AIR PIPE SEAL, HR4010C $1.26
80 154622-9 CRANK HOUSING CPL.,HR4010C $73.60
81 423345-3 CUSHION PLATE, HR4001C $1.26
82 419008-7 FIX GUIDE, HR4001C $1.26
83 213262-3 O RING 18, 5005BA $1.96
84 419006-1 LINK LEVER, HR4001C $2.84
85 911511-9 P.H. SCREW M4X10, HR4001C $1.19
86 324550-4 CRANK SHAFT, HR4001C $8.12
87 211332-2 BALL BEARING 6004LLU, HR4002 $9.99
88 961060-6 RETAINING RING S-20, 2708 $1.19
89 226605-0 HELICAL GEAR 38, HR4001C $15.93
90 253180-3 F. WASHER 10, 6906 $1.63
91 421907-1 SEAL RING, HR4010C $2.84
92 154623-7 GEAR HOUSING CPL., HR4001C $57.40
93 233433-6 COMP. SPRING 5, HR4001C $0.86
95 419018-4 CHANGE PLATE, HR4001C $2.84
96 210005-4 BALL BEARING 608DDW, 9031 $13.07
97 345581-0 CUP WASHER 8, HR4001C $1.63
98 233936-0 CONICAL COMP. SPR. 19-27,HR4001C $1.19
99 324549-9 DRIVING FLANGE, HR4001C $5.48
103 211323-3 BALL BEARING 6904LLU, HR2420 $17.80
104 135508-6 'TORQUE LIMITER ASS''Y HR4001C ' $124.46
105 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
106 419036-2 HANDLE COVER, HR4001C $15.93
108 650567-4 SWITCH, HR4010C $27.37
109 154626-1 SWITCH HOLDER CPL.,HR4001 $2.84
112 419028-1 SWITCH LEVER, HR4001C $2.84
113 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
116 861492-6 NAME PLATE, HR4010C $1.12
117 419040-1 HANDLE, HR4010C $21.76
122 638407-6 LEAD UNIT, HR4001C $2.84
123 419010-0 LENS, HR4001C $1.52
124 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
125 631656-4 CONTROLLER, HR4001C $51.20
126 419024-9 CORD LAMP BASE, HR4001C $2.84
127 687169-3 STRAIN RELIEF, HP1621F $0.97
128 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
129 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
130 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
131 682560-0 CORD GUARD 10, HM1202C $4.16
131 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
132 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
132 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
133 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
134 419032-0 REAR COVER, HR4001C $6.80
135 931303-0 HEX NUT M6, 2012 $0.79
136 253047-5 F. WASHER 6, 2708 $1.01
137 241876-8 FAN 76, HM1100C $4.49
138 419022-3 FAN GUIDE, HR4001C $1.52
139 195004-6 CARBON BRUSH CB-350 HR4001C $5.92
140 638393-1 BRUSH HOLDER UNIT, HR4002 $6.80
140 638715-5 BRUSH HOLDER UNIT, HR4010C $6.58
141 154619-8 MOTOR HOUSING CPL., HR4001C $25.17
142 324390-0 SHOULDER SLEEVE 6, HR4001C $2.84
143 210005-4 BALL BEARING 608DDW, 9031 $13.07
144 681650-6 INSULATION WASHER, HR4000C $11.75
145 625756-0 FIELD 115V, HR4041C $22.86
146 266095-5 TAPPING SCREW 5X55, KP0810 $3.61
147 513631-1 ARMATURE ASS'Y 115V, HR4001C $77.00
148 419021-5 BAFFLE PLATE, HR4001C $2.84
149 253084-9 F. WASHER 12, 5014NB $1.63
150 211137-0 BALL BEARING 6201LLU,4140 $9.99
151 213231-4 OIL SEAL 15, HR4500C $5.48
152 331596-3 SLEEVE 12, HR4041C $5.48
153 419033-8 CRANK HSG. COVER, HR4010C $6.80
154 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
155 419026-5 SWITCH BOX, HR4001C $2.84
156 263027-3 RUBBER PIN 4, HM0860C $1.19
157 651418-4 SWITCH, 9564CV $17.25
158 232209-8 LEAF SPRING, HM0860C $1.96
159 154635-0 SLIDE LEVER CPL.,HR4001C $5.48
160 419027-3 CONTROL PLATE, HR4001C $2.84
161 421939-8 SPONGE SHEET, HR4001C $0.97
1001 134890-0 SIDE HANDLE 68 ASS'Y,HR4000C $34.88
1002 134803-1 GRIP 36 ASS'Y, HR4040C $29.58
1002 135209-6 GRIP ASS'Y, HR4010C $26.72
1004 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
5001 810134-9 CAUTION LABEL, 3709 $0.93
