Makita HR4002 Rotary Hammer Parts

Makita HR4002 Rotary Hammer Parts Image

Makita HR4002 Parts
1-9/16 Inch SDS-Max, 2-mode, SDS-Max Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR4002
1-9/16 Inch SDS-Max...
$363.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

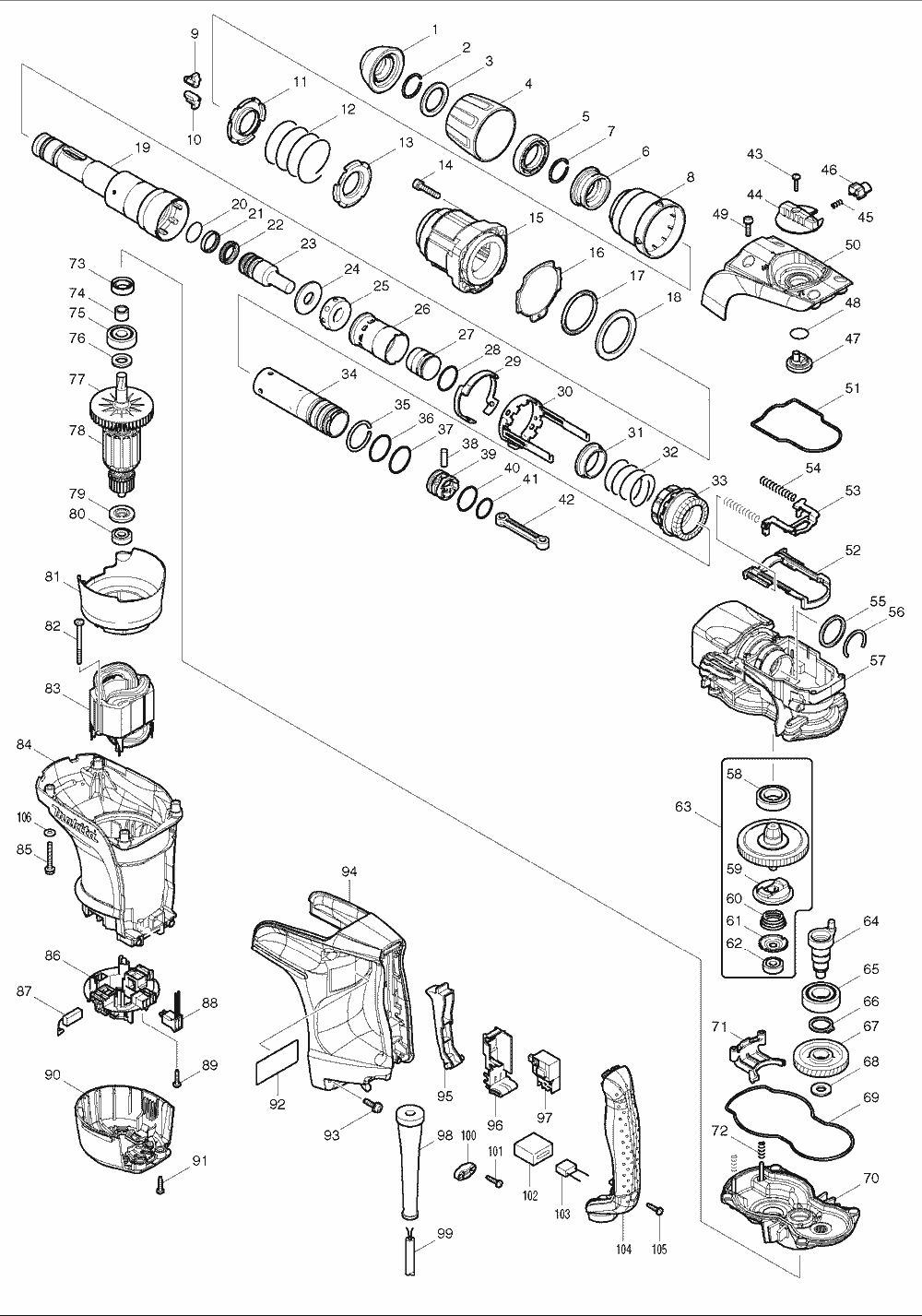

Makita HR4002 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286272-3 TOOL HOLDER CAP, HR4002 $2.84
50 419919-6 CRANK CAP COVER, HR4002 $1.52
2 231984-3 RING SPRING 25, HR5001C $2.07

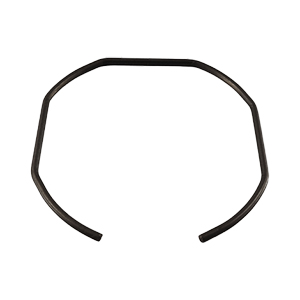

00 233963-7 RING SPRING 45, HR4002 $4.93
3 267272-2 FLAT WASHER 28, HM0860C $5.26

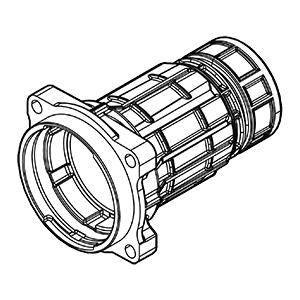

00 213490-0 OIL SEAL 32, HR4002 $4.16
4 419015-0 CHUCK COVER, HR4001C $5.92
5 419002-9 SPACER, HR4001C $2.84
6 324548-1 CHUCK RING, HR4001C $4.16
7 231984-3 RING SPRING 25, HR5001C $2.07
8 419016-8 RELEASE COVER, HR4001C $2.84
9 310161-1 TOOL RETAINER, HR4001C $8.01
10 310161-1 TOOL RETAINER, HR4001C $8.01
11 345579-7 SPRING GUIDE, HR4001C $1.96
12 233431-0 COMP. SPRING 48, HR4001C $1.63
13 345579-7 SPRING GUIDE, HR4001C $1.96
15 158568-1 BARREL CPL., HR4002 $19.78
16 424021-2 SEAL SHEET, HR4002 $1.26
17 262116-1 URETHAN RING 45, HR4001C $6.47
18 267336-2 FLAT WASHER 45, HR4001C $3.72
19 324542-3 TOOL HOLDER, HR4002 $112.43
20 213317-4 O RING 20, HR4000C $1.48
21 213392-0 FLUORIDE RING 25, HR4000C $7.46
22 213281-9 X-RING 18, HR4001C $4.93
23 324569-3 IMPACT BOLT, HR4001C $4.49
24 324573-2 RING 17, HR4001C $5.92
25 421901-3 RUBBER RING 17, HR4010C $5.48
26 419003-7 SLIDE SLEEVE, HR4001C $2.84
27 324571-6 STRIKER, HR4010C $2.84
28 213962-5 O RING 22, HR4002 $3.28
29 419760-7 LOCK SLEEVE GUIDE, HR4001C $2.95
30 165633-9 LOCK SLEEVE, HR4002 $18.35
31 331709-6 RING 33, HR4001C $5.48
32 233448-3 COMP. SPRING 37, HR4002 $1.96
33 227509-9 STRAIGHT BEVEL GEAR, HR4001C $28.15
34 324570-8 CYLINDER 28.5, HR4001C $36.61
35 233935-2 RING SPRING 32, HR4001C $0.86
36 213406-5 O RING 30, HR5000 $1.19
37 213406-5 O RING 30, HR5000 $1.19
38 256197-5 PIN 7, JR3020 $1.96
39 419004-5 PISTON, HR4041C $2.84
40 213962-5 O RING 22, HR4002 $3.28
41 213379-2 O RING 21, HR4041C $0.82
42 419875-0 CONNECTING ROD, HR4002 $1.26
43 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
44 450428-6 CHANGE LEVER, HR4002 $1.52
45 233436-0 COMP. SPRING 3, HR4001C $0.79
46 419873-4 LOCK BUTTON, HR4002 $1.26
47 450427-8 LINK LEVER, HR4002 $1.26
48 213265-7 O RING 17, HR4002 $0.86
49 911231-5 P.H. SCREW M5X20, HR4002 $0.86
50 168456-4 CRANK CAP COVER CPL., HR4002 $8.12
51 424084-8 SEAL RING, HR4002 $1.12
52 419874-2 LINK PLATE GUIDE, HR4002 $1.52
53 345582-8 LINK PLATE, HR4001C $4.16
54 233432-8 COMP. SPRING 7, HR4001C $1.48
55 257268-1 RING 33, HR4001C $4.16
56 233937-8 RING SPRING 31, HR4001C $0.86
57 158231-6 CRANK HOUSING CPL., HR4002 $25.06
58 211323-3 BALL BEARING 6904LLU, HR2420 $17.80
59 324549-9 DRIVING FLANGE, HR4001C $5.48
60 233936-0 CONICAL COMP. SPR. 19-27,HR4001C $1.19
61 345581-0 CUP WASHER 8, HR4001C $1.63
62 210005-4 BALL BEARING 608DDW, 9031 $13.07
63 135508-6 'TORQUE LIMITER ASS''Y HR4001C ' $124.46
64 324550-4 CRANK SHAFT, HR4001C $8.12
65 211332-2 BALL BEARING 6004LLU, HR4002 $9.99
66 961060-6 RETAINING RING S-20, 2708 $1.19
67 226648-2 HELICAL GEAR 46, HR4002 $7.35
68 253180-3 F. WASHER 10, 6906 $1.63
69 424019-9 SEAL RING, HR4002 $1.26
70 158232-4 GEAR HOUSING CPL., HR4002 $12.52
71 419018-4 CHANGE PLATE, HR4001C $2.84
72 233433-6 COMP. SPRING 5, HR4001C $0.86
73 213231-4 OIL SEAL 15, HR4500C $5.48
74 331596-3 SLEEVE 12, HR4041C $5.48
75 211137-0 BALL BEARING 6201LLU,4140 $9.99
76 253084-9 F. WASHER 12, 5014NB $1.63
77 241863-7 FAN 70, JR3050T $11.75
78 513696-3 ARMATURE ASS'Y 115V, HR4002 $40.80
79 681644-1 INSULATED WASHER, 9227C $1.63
80 210005-4 BALL BEARING 608DDW, 9031 $13.07
81 419870-0 BAFFLE PLATE, HR4002 $2.84
82 266418-7 TAPPING SCREW 5X55, HR4002 $0.86
83 625775-6 FIELD, HR4002 $19.01
84 419866-1 MOTOR HOUSING, HR4002 $10.43
85 922256-4 H.S.H. BOLT M5X35, 2012 $2.40
86 638393-1 BRUSH HOLDER UNIT, HR4002 $6.80
87 195004-6 CARBON BRUSH CB-350 HR4001C $5.92
88 638508-0 LEAD UNIT, HR4002 $1.52
89 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
90 419867-9 REAR COVER, HR4002 $4.16
91 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
92 863632-2 NAME PLATE, HR4002 $1.21
93 911233-1 P.H. SCREW M5X20, TW1000 $0.86
94 419868-7 HANDLE, HR4002 $8.12
95 419025-7 SWITCH LEVER, HR4002 $1.52
96 154626-1 SWITCH HOLDER CPL.,HR4001 $2.84
97 651922-3 SWITCH, HM1303B $19.45
98 682560-0 CORD GUARD 10, HM1202C $4.16
98 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
100 687123-7 STRAIN RELIEF, JV0600K $0.75
101 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
104 419869-5 HANDLE COVER, HR4002 $5.92
105 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
106 941101-4 F. WASHER 5, 5007NK $0.75
1001 158131-0 GRIP 36 CPL.,HR4010C $11.97
1002 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1003 265701-9 SCREW M6X14, 5177B $1.96
1004 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
1005 321248-4 DEPTH GAUGE, HR3851 $7.46
1006 344491-8 GRIP SPRING 68, HR4002 $6.47
1007 344492-6 PLATE, HR4002 $1.63
1008 416299-1 SIDE GRIP BASE 68, HR4000C $10.32
1009 931302-2 HEX NUT M6, HR2400 $0.79
1011 805512-6 MODEL NO. LABEL, HR4002 $0.45
