Makita HR3210C Rotary Hammer Parts

Makita HR3210C Rotary Hammer Parts Image

Makita HR3210C Parts
1-1/4 Inch AVT Rotary Hammer, SDS-PLUS

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR3210C
1-1/4 Inch AVT Rotar...
$484.99
Tool Diagram    (Click image to Zoom in) View larger Image

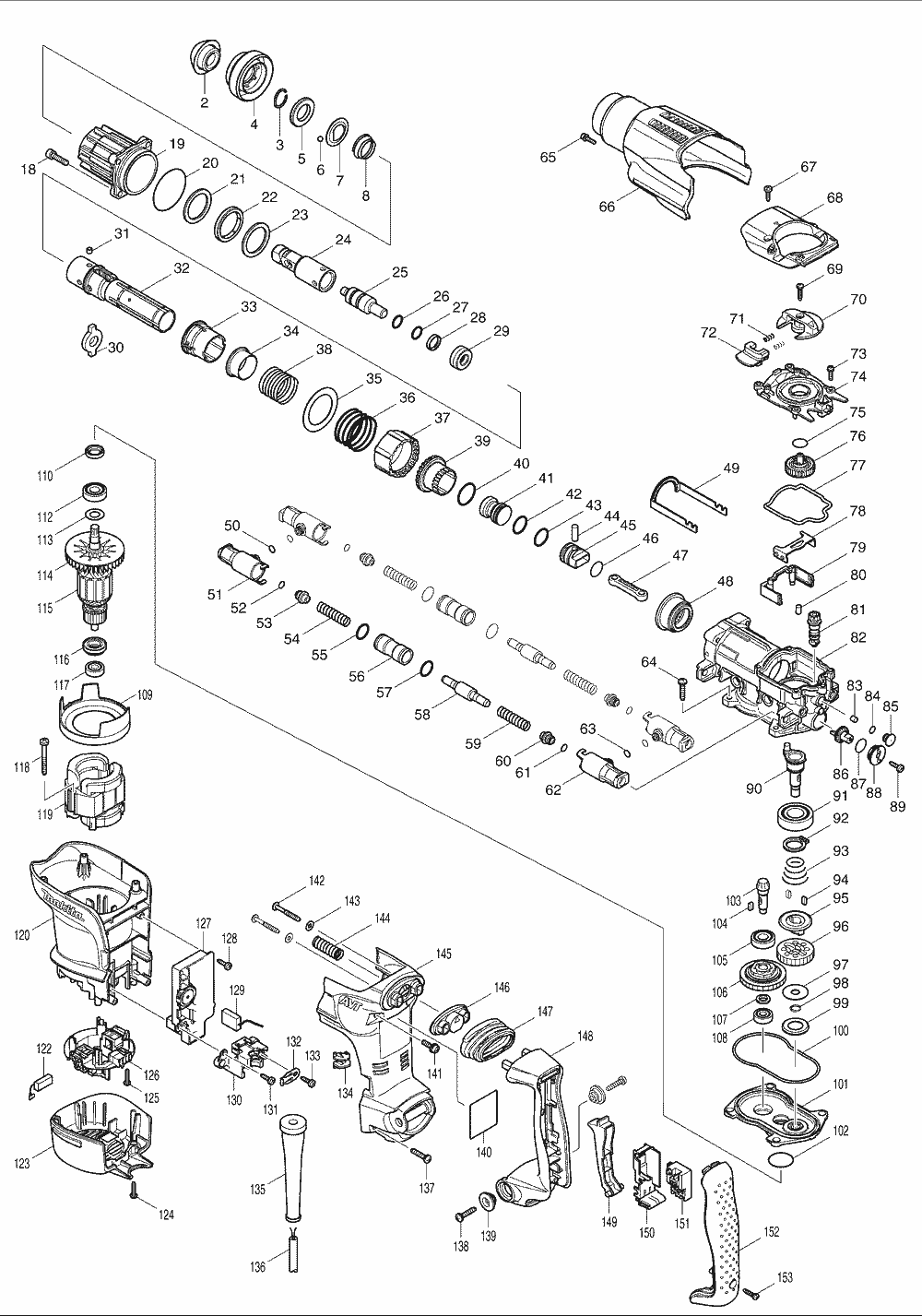

Makita HR3210C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 213516-8 O RING 36,HR3210C $4.16
2 286282-0 TOOL HOLDER CAP, HR3210C $2.73
3 233940-9 RING SPRING 19, HR2450F $0.86
4 450245-4 CHUCK COVER, HR3210C $5.92
5 257288-5 RING 21, HR3210C $8.01
6 216022-2 STEEL BALL 7.0, HR2400 $0.86
7 345873-7 GUIDE WASHER,HR3210C $1.63
8 234049-0 CONICAL COMP. SPRING 22-32, HR321 $1.34
18 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
19 158533-0 BARREL CPL. HR3210C $20.11
20 213656-2 O RING 53, AN451 $1.85
21 267810-0 FLAT WASHER 34,HR3210C $5.92
22 262138-1 URETHAN RING 34, HR3210C $2.84
23 267810-0 FLAT WASHER 34,HR3210C $5.92
24 324840-5 TOOL HOLDER, HR3210C $25.17
25 324849-7 IMPACT BOLT, HR3210C $7.02
26 213228-3 O RING 15, HR3000C $1.19
27 213228-3 O RING 15, HR3000C $1.19
28 213321-3 FLUORO CARBON RESIN RING,HR3000C $8.01
29 424062-8 RUBBER RING 13, HR3210C $5.92
30 324838-2 SLIDE PLATE, HR3210C $2.73
31 256266-2 PIN 6, HR4041C $1.19
32 331794-9 CYLINDER 25,HR3210C $62.00
33 450243-8 SLIDE SLEEVE, HR3210C $2.73
34 331805-0 RING 29,HR3210C $6.69
35 267360-5 FLAT WASHER 40,HR3210C $3.06
36 234052-1 COMPRESSION SPRING 42, HR3210C $2.84
37 450236-5 LOCK SLEEVE,HR3210C $2.73
38 234050-5 COMPRESSION SPRING 34, HR3210C $1.96
39 331795-7 DRIVING SLEEVE, HR3210C $22.20
40 213434-0 O - RING 26, 5630DWA $1.19
41 324858-6 STRIKER, HR3210C $4.71
42 213283-5 O RING 18, HR3210C $2.84
43 213283-5 O RING 18, HR3210C $2.84
44 256087-2 PIN 7, HR3210C $1.26
45 324918-4 PISTON, HR3210C $16.04
46 213262-3 O RING 18, 5005BA $1.96
47 450235-7 CONECTING ROD, HR3210C $1.48
48 227531-6 SPIRAL BEVEL GEAR 37,HR3210C $26.82
49 345867-2 LINK ARM, HR3210C $5.37
50 213030-4 O RING 8, AN451 $0.82
51 450248-8 PIPE HOLDER, HR3210C $2.73
52 213030-4 O RING 8, AN451 $0.82
53 450239-9 SPRING GUIDE,HR3210C $1.48
54 234048-2 COMPRESSION SPRING 10,HR3210C $1.63
55 213275-4 O RING 18, BFL400FZ $0.86
56 331800-0 PIPE 15, HR3210C $3.94
57 213275-4 O RING 18, BFL400FZ $0.86
58 324862-5 COUNTER WEIGHT, HR3210C $11.42
59 234048-2 COMPRESSION SPRING 10,HR3210C $1.63
60 450239-9 SPRING GUIDE,HR3210C $1.48
61 213030-4 O RING 8, AN451 $0.82
62 450248-8 PIPE HOLDER, HR3210C $2.73
63 213030-4 O RING 8, AN451 $0.82
64 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
65 922123-3 H.S.H. BOLT M4X14, 6922NB $1.34
66 450254-3 CRANK HOUSING COVER, HR3210C $8.12
67 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
68 318201-9 CRANK CAP COVER ,HR3210C $10.21
69 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
70 450249-6 CHANGE LEVER. HR3210C $3.94
71 233436-0 COMP. SPRING 3, HR4001C $0.79
72 450250-1 LOCK BUTTON, HR3210C $2.73
73 911128-8 P.H. SCREW M4X16, 1902 $1.48
74 450241-2 CRANK CAP,HR3210C $3.94
75 213223-3 O RING 16, AF502 $0.82
76 158437-6 SPUR GEAR 33 CPL,HR3210C $2.84
77 424064-4 SEAL RING B, HR3210C $1.52
78 345868-0 LINK PLATE, HR3210C $2.73
80 263005-3 RUBBER PIN 6, BHP452 $0.86
81 452126-8 GEAR SHAFT HR3210C $2.84
82 158531-4 CRANK HOUSING CPL,HR3210C $39.06
83 443138-2 FILTER, HR3210C $0.75
84 213030-4 O RING 8, AN451 $0.82
85 450238-1 FILTER CAP, HR3210C $1.48
86 450244-6 CRANK GEAR, HR3210C $2.84
87 213176-6 O RING 14, AN922 $0.82
87 213223-3 O RING 16, AF502 $0.82
88 450237-3 CAP HOLDER, HR3210C $1.48
89 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
90 324839-0 CRANKSHAFT, HR3210C $8.89
91 211332-2 BALL BEARING 6004LLU, HR4002 $9.99
92 961060-6 RETAINING RING S-20, 2708 $1.19
93 231991-6 CONICAL COMP SPRING 21-31,HR3000C $1.63
94 254239-9 KEY 4, HR3000C $1.52
95 324848-9 CLUTCH, HR3210C $3.94
96 227188-3 SPUR GEAR 33, HR3210C $9.77
97 253197-6 FLAT WASHER 10, 7104L $1.63
98 961036-3 RETAINING RING WR-10, HR3210C $0.97
100 424063-6 SEAL RING A, HR3210C $1.52
101 158534-8 GEAR HOUSING CPL., HR3210C $10.65
102 213415-4 O RING 28, 5005BA $1.96
103 227533-2 SPIRAL BEVEL GEAR 9, HR3210C $14.94
104 254239-9 KEY 4, HR3000C $1.52
105 210105-0 BALL BEARING 6001LLU, PW5001C $8.01
106 125421-6 TORQUE LIMITER ASS'Y,HR3210C $41.82
107 257291-6 RING 10, HR3210C $1.52
108 210005-4 BALL BEARING 608DDW, 9031 $13.07
109 450251-9 BAFFLE PLATE, HR3210C $2.73
110 213133-4 OIL SEAL 12, HR2811F $5.48
112 210105-0 BALL BEARING 6001LLU, PW5001C $8.01
113 253084-9 F. WASHER 12, 5014NB $1.63
114 241863-7 FAN 70, JR3050T $11.75
115 513746-4 ARMATURE ASS'Y 115V, HR3210C $50.59
116 681650-6 INSULATION WASHER, HR4000C $11.75
117 210005-4 BALL BEARING 608DDW, 9031 $13.07
118 266056-5 T. SCREW FLANGE PT5X45,9046 $3.28
119 625810-0 FIELD 115V, HR3210C $15.82
120 450252-7 MOTOR HOUSING, HR3210C $20.55
122 195004-6 CARBON BRUSH CB-350 HR4001C $5.92
123 450253-5 REAR COVER. HR3210C $5.15
124 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
125 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
126 638519-5 BRUSH HOLDER UNIT, HR3210C $7.68
127 631782-9 CONTROLLER, HR3210C $48.75
128 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
129 638406-8 LEAD UNIT, HR3210C $2.73
130 450246-2 CORD CLAMP BASE, HR3210C $2.73
131 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
132 687169-3 STRAIN RELIEF, HP1621F $0.97
133 266192-7 TAPPING SCREW 4X14, 2012NB $1.19
134 450240-4 LENS, HR3210C $2.73
135 682560-0 CORD GUARD 10, HM1202C $4.16
135 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
136 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
136 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
137 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
138 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
139 450352-3 SHOULDER SLEEVE 6, HR3210C $1.48
140 864538-7 NAME PLATE, HR3210C $1.17
141 911233-1 P.H. SCREW M5X20, TW1000 $0.86
142 266211-9 TAPPING SCREW 5X40, DS4011 $1.19
143 267066-5 FLAT WASHER 5, HR3210C $1.34
144 234051-3 COMPRESSION SPRING 11, HR3210C $1.63
145 450255-1 HANDLE BASE, HR3210C $14.94
146 419014-2 DUST COVER SUPPORT, HR3210C $2.73
147 421912-8 DUST COVER, HR3210C $3.94
148 450256-9 HANDLE, HR3210C $7.02
149 419025-7 SWITCH LEVER, HR4002 $1.52
150 154626-1 SWITCH HOLDER CPL.,HR4001 $2.84
151 650567-4 SWITCH, HR4010C $27.37
152 450257-7 HANDLE COVER, HR3210C $12.41
153 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
154 267383-3 FLAT WASHER 22, HR3210C $2.40
155 267721-9 WAVE WASHER 15, 6812 $1.01
1001 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1002 135197-7 GRIP 36 ASS'Y,HR3210C $23.85
1004 810409-6 CAUTION CARD,HR3210C $1.19
1005 806480-6 MODEL NO. LABEL, HR3210C $0.93
