Makita HR3000C Rotary Hammer Parts

Makita HR3000C Rotary Hammer Parts Image

Makita HR3000C Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

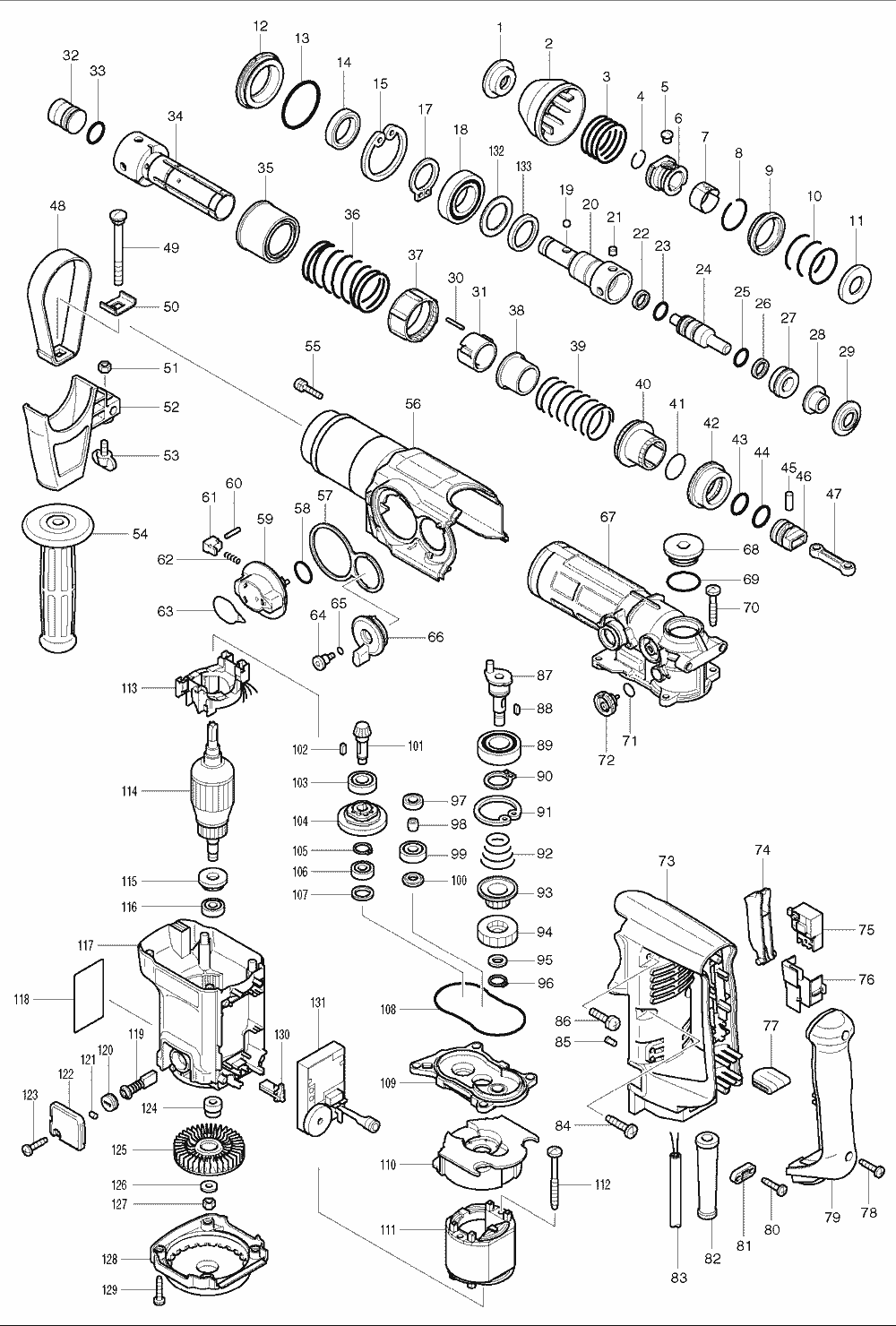

Makita HR3000C Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286253-7 CAP 40, HR3000C $1.52
2 417027-7 CHUCK COVER, HR3000C $5.92
2 417027-7 CHUCK COVER, HR3000C $5.92
3 233203-3 COMPRESSION SPRING 38, HR2400 $2.07
4 231979-6 RING SPRING 16, HR2400 $0.86
5 256447-8 PIN 8, HR2420 $3.61
6 323820-8 CHUCK RING, HR2410 $14.61
7 232190-3 LEAF SPRING 26, HR2410 $4.16
8 231936-4 RING SPRING 30.5, HR2000 $1.48
9 323819-3 SPRING GUIDE, HR2410 $3.61
10 233234-2 COMP. SPRING 35, HR2410 $1.48
11 344841-7 GUIDE WASHER, HR3000C $1.63
12 417015-4 SEAL CASE, HR3000C $2.84
13 213615-6 O RING 46, AN611 $1.41
14 213436-6 OIL SEAL 28, HR3000C $4.16
15 962251-2 RETAINING RING R-52, HR5000 $3.61
17 961108-4 RETAINING S-28, HR3000C $1.74
18 211422-1 BALL BEARING 60/28LLU, HR3000C $15.82
19 216022-2 STEEL BALL 7.0, HR2400 $0.86
20 323912-3 TOOL HOLDER, HR3000C $37.84
21 256293-9 PIN 8, HR3000C $1.48
22 213321-3 FLUORO CARBON RESIN RING,HR3000C $8.01
23 213228-3 O RING 15, HR3000C $1.19
24 323913-1 IMPACT BOLT, HR3000C $11.64
25 213228-3 O RING 15, HR3000C $1.19
26 213321-3 FLUORO CARBON RESIN RING,HR3000C $8.01
27 421703-7 RUBBER RING 13, HR3000C $5.92
27 421830-0 RUBBER RING 13, HR3000C $6.80
28 331555-7 SLEEVER 12, HR3000C $5.48
29 267753-6 WASHER 19, HR3000C $7.02
30 256176-3 PIN 2.5, T220DW $1.19
31 417023-5 PIN HOLDER, HR3000C $1.34
31 418023-8 PIN HOLDER, HR3000C $2.84
32 323936-9 STRIKER, HR3000C $6.80
33 213274-6 O RING 18, HR3000C $1.19
34 331559-9 CYLINDER 25, HR3000C $83.50
35 331563-8 SLEEVE 50, HR3000C $12.63
36 233253-8 COMPRESSION SPRING 40, HR3000C $3.61
37 417020-1 LOCK SLEEVE, HR3000C $2.84
38 331557-3 RING 29, HR3000C $10.65
39 233254-6 COMPRESSION SPRING 34, HR3000C $3.61
40 331558-1 DRIVING SLEEVE, HR3000C $25.06
41 213435-8 O RING 26, SH01W $1.19
42 226783-6 SPIRAL BEVEL GEAR 37, HR3000C $28.15
43 213274-6 O RING 18, HR3000C $1.19
44 213274-6 O RING 18, HR3000C $1.19
45 256292-1 PIN 7, HR3000C $1.48
46 417021-9 PISTON, HR3000C $4.16
47 417016-2 ROD, HR3000C $2.84
48 344811-6 GRIP SPRING 63, HR3000C $5.92
49 266163-4 C.S.N.BOLT M8X80, HR4041C $3.61
50 344492-6 PLATE, HR4002 $1.63
51 931302-2 HEX NUT M6, HR2400 $0.79
52 417026-9 SIDE BRIP BASE 63, HR3000C $5.48
53 265701-9 SCREW M6X14, 5177B $1.96
54 152554-4 GRIP 36 COMPLETE, HR4000C $13.18
55 911118-1 P.H. SCREW M4X12, 6221D $0.86
56 151697-9 CRANK HOUSING COVER , HR3000C $18.57
57 421704-5 DUSTPROOF WASHER, HR3000C $4.38
58 213304-3 O RING 20, 6904VH $1.19
59 151693-7 CHANGE LEVER COMPLETE, HR3000C $4.16
60 256219-1 PIN 4, HM1500 $1.19
61 417018-8 LOCK BUTTON, HR3000C $1.52
62 233188-3 COMPRESSION SPRING 2.4, HR4000C $0.86
63 816329-2 INDICATION LABEL, HR4000C $1.61
64 265077-4 H.S.F.HEAD SCREW,HR3000C $4.93
65 213023-1 O RING 4, AF501 $0.82
66 151694-5 SHIFT LEVER COMPLETE, HR3000C $4.16
67 151709-8 CRANK HOUSING COMPLETE, HR3000C $58.50
68 416124-6 CRANK CAP, HR4000C $3.06
69 213406-5 O RING 30, HR5000 $1.19
70 266173-1 T. SCREW FLANGE PT5X3, GA7011c $1.19
71 213070-2 O RING 10, AG125 $0.82
72 151758-5 SPUR GEAR 21 COMPLETE, HR3000C $4.27
73 417014-6 HANDLE, HR3000C $17.25
74 416284-4 SWITCH LEVER, HR4000C $3.06
75 651922-3 SWITCH, HM1303B $19.45
76 416126-2 LEAD GUIDE, HR4000C $3.06
77 421583-1 SPONGE SHEET, HR5001C $0.75
78 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
79 417028-5 HANDLE COVER, HR3000C $21.10
80 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
81 687063-9 STRAIN RELIEF, 4323K $1.26
82 682560-0 CORD GUARD 10, HM1202C $4.16
82 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
83 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
83 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
84 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
85 416285-2 ACRYLIC PIN 5, HR4000C $1.26
86 911233-1 P.H. SCREW M5X20, TW1000 $0.86
87 323915-7 CRANK SHAFT, HR3000C $28.15
88 254239-9 KEY 4, HR3000C $1.52
89 211332-2 BALL BEARING 6004LLU, HR4002 $9.99
90 961060-6 RETAINING RING S-20, 2708 $1.19
91 962211-4 RETAINING RING R-42, GA7021 $3.28
92 231991-6 CONICAL COMP SPRING 21-31,HR3000C $1.63
93 223130-2 CLUTCH, HR3000C $18.90
94 226514-3 HELICAL GEAR 34, HR3000C $18.79
95 253878-2 F. WASHER 10, 4301BV $1.63
96 961006-2 RETAINING RING S-10, N9501B $0.86
97 213071-0 OIL SEAL 10,HR3000C $5.92
98 331564-6 SLEEVE 10, HR3000C $6.80
99 210058-3 BALL BEARING 6000LU, HR3000C $6.03
100 253171-4 F. WASHER 10, T220DW $1.34
101 226782-8 SPIRAL BEVEL GEAR 10, HR3000C $15.27
102 254202-2 KEY 4, 9924DB $1.26
103 211138-8 BALL BEARING 6001LLU, HR3000C $8.01
104 152955-6 TORQUE LIMITER CPL., HR3000C-T2 $52.50
105 961006-2 RETAINING RING S-10, N9501B $0.86
106 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
107 253314-8 THIN WASHER 15, 6906 $1.63
108 421702-9 SEAL RING, HR3000C $2.84
109 151695-3 GEAR HOUSING CPL,HR3000C $28.15
110 417010-4 BAFFLE PLATE, HR3000C $2.84
111 634345-0 FIELD 100-115V, HR3000C $22.75
112 266046-8 T. SCREW FLANGE PT5X50,HR2010 $1.96
113 632933-7 SUPPORT COMPLETE, HR3000C $5.48
114 513516-1 ARMATURE ASSEMBLY, HR3000C $77.50
114 516381-7 ARMATURE ASS'Y, 115V, HR3000C $56.90
115 681650-6 INSULATION WASHER, HR4000C $11.75
116 210005-4 BALL BEARING 608DDW, 9031 $13.07
117 151840-0 MOTOR HOUSING COMPLETE, HR3000C $36.61
118 851772-8 NAME PLATE, HR3000C $2.51
119 194997-4 A.C. CARBON BRUSH CB-304 HM1100C $12.63
120 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
121 263002-9 RUBBER PIN 4, 5007NK $0.86
122 417024-3 BRUSH HOLDER COVER,HR3000C $1.52
123 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
124 323937-7 SHOULDER SLEEVE 7, HR3000C $2.51
124 324261-1 SHOULDER SLEEVE 7, HR3000C $2.84
125 241863-7 FAN 70, JR3050T $11.75
126 941151-9 F. WASHER 6, 5007NB $0.75
126 253047-5 F. WASHER 6, 2708 $1.01
127 931302-2 HEX NUT M6, HR2400 $0.79
127 252153-3 HEX NUT M6-10, 9910 $1.96
128 417012-0 REAR COVER, HR3000C $5.48
129 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
130 417017-0 FIX ROD, HR3000C $2.84
132 267088-5 FLAT WASHER 28, 6911D $5.92
133 262088-0 URETHANE RING 28, HR3000C $4.93
134 253133-2 F. WASHER 7, DP4000 $1.34
1001 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
1002 321248-4 DEPTH GAUGE, HR3851 $7.46
5001 819001-5 MAKITA LABEL, 9005B $0.96
5002 810134-9 CAUTION LABEL, 3709 $0.93
