Makita HR2811F Rotary Hammer Parts

Makita HR2811F Rotary Hammer Parts Image

Makita HR2811F Parts
1-1/8 Inch SDS-plus Rotary Hammer w/ L.E.D. Light

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR2811F
1-1/8 Inch SDS-plus ...
$279.00
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

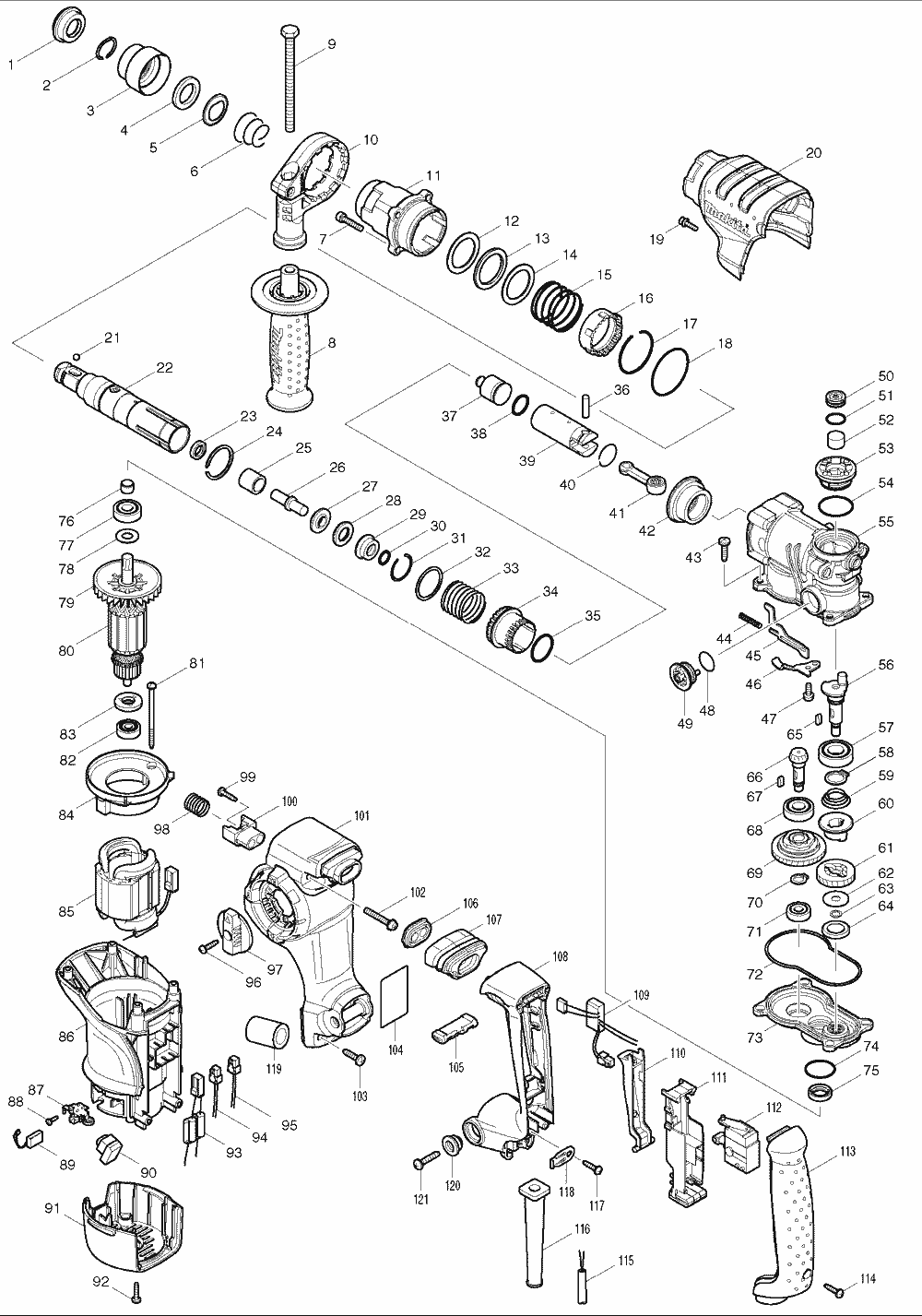

Makita HR2811F Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
1 286263-4 CAP 35, HR2450F $1.52
00 654283-0 CONTACT, HR2811F $0.75
2 233940-9 RING SPRING 19, HR2450F $0.86
00 686044-0 CONNECTOR HOUSING, HR2811F $0.97
3 417629-9 CHUCK COVER,HR2450F $5.92
00 212403-8 NEEDLE BEARING 3012, HR2811F $4.71
4 257241-1 RING 21, HR2450F $1.52
5 345187-4 GUIDE WASHER, HR2450F $1.63
6 233916-6 CONICAL COMP. SPRING 21-29, HR2450F $1.96
7 922241-7 H.S.H. BOLT M5X25, AN451-T2 $1.41
8 158057-6 GRIP 36 CPL., HR2811F $5.48
9 921919-9 BOLT M8X10, HP2030 $3.61
10 419975-6 GRIP BASE 20, HR2811F $2.84
11 158288-7 BARREL CPL., HR2811F $10.65
12 267354-0 FLAT WASHER 31, HR2811F $1.34
13 262133-1 URETHANE RING 31, HR2811F $4.93
14 267354-0 FLAT WASHER 31, HR2811F $1.34
15 234020-4 COMPRESSION SPRING 37, HR2811F $1.48
16 419986-1 LOCK SLEEVE, HR2811F $1.26
17 233952-2 RING SPRING 41, HR2811F $0.86
18 213620-3 O-RING 46, BSS730SH $1.48
19 922128-3 H.S. HEAD BOLT M4X16, HR2811F $1.34
20 419984-5 CRANK HOUSING COVER, HR2811F $4.16
21 216022-2 STEEL BALL 7.0, HR2400 $0.86
22 158285-3 TOOL HOLDER CPL., HR2811F $52.50
23 213344-1 OIL SEAL 9, HR2811F $4.16
24 961140-8 RETAINING RING, HR2811F $1.48
25 331769-8 SLEEVE 9, HR2470F $2.84
26 324669-9 IMPACT BOLT, BHR240 $3.06
27 324402-9 RING 10, BHR240 $1.52
28 421955-0 CUSHION RING 13, BHR240 $2.84
29 324216-6 O RING CASE, HR2455 $5.48
30 213073-6 O RING 9,HR2455 $1.74
31 233917-4 RING SPRING 28, HR2450F $0.86
32 267105-1 FLAT WASHER 29, HR2400 $5.26
33 234021-2 COMPRESSION SPRING 30, HR2811F $1.48
34 331770-3 DRIVING SLEEVE, HR2811F $22.86
35 213435-8 O RING 26, SH01W $1.19
36 256099-5 PIN 6, HR2811F $1.96
37 324733-6 STRIKER, HR2470F $2.84
38 213227-5 O RING 16M, HR2455 $3.61
39 331776-1 PISTON CYLINDER, HR2811F $14.61
40 233954-8 RING SPRING 12, HR2811F $0.79
41 158282-9 CONNECTING ROD CPL., HR2811F $4.16
42 227532-4 SPIRAL BEVEL GEAR 31, HR2811F $26.82
43 266420-0 TAPPING SCREW 5X20, HR2811F $0.86
44 234019-9 COMPRESSION SPRING4, HR2811F $0.86
45 345814-3 LINK PLATE, HR2811F $1.26
46 345815-1 GUIDE PLATE, HR2811F $0.97
47 911118-1 P.H. SCREW M4X12, 6221D $0.86
48 213262-3 O RING 18, 5005BA $1.96
49 162256-4 LINK LEVER COMPLETE, HR2811F $1.52
50 419988-7 FILTER CAP, HR2811F $0.97
51 213218-6 O RING 16, AF502,HR2811F $0.82
52 443129-3 FILTER, HR2811F $1.26
53 419987-9 CRANK CAP, HR2811F $1.52
54 213406-5 O RING 30, HR5000 $1.19
55 158289-5 CRANK HOUSING CPL., HR2811F $25.06
56 324793-8 CRANK SHAFT, HR2811F $8.12
57 211232-6 BALL BEARING 6002LLU, HK0500 $11.97
58 961055-9 RETAINING RING S-15, 5007F $1.19
59 233951-4 C.C. SPRING 16-26, HR2811F $1.48
60 223167-9 CLUTCH, HR2811F $4.16
61 226653-9 HELICAL HEAR 29, HR2811F $7.35
62 267353-2 FLAT WASHER 8, HR2811F $1.34
63 961034-7 RETAINING RING, HR2811F $1.19
64 345818-5 CUP WASHER 8, HR2811F $1.01
65 254239-9 KEY 4, HR3000C $1.52
66 227524-3 SPIRAL BEVEL GEAR 9, HR2811F $15.27
67 254239-9 KEY 4, HR3000C $1.52
68 210105-0 BALL BEARING 6001LLU, PW5001C $8.01
69 125386-2 TORQUE LIMITER ASS'Y, HR2811F $36.61
70 961006-2 RETAINING RING S-10, N9501B $0.86
71 210024-0 BALL BEARING 608 2RS, HR2811F $6.69
72 424028-8 SEAL RING, HR2811F $0.97
73 158287-9 GEAR HOUSING CPL., HR2811F $8.45
74 213445-5 O-RING 26,9557NB $0.86
75 213133-4 OIL SEAL 12, HR2811F $5.48
76 331775-3 SLEEVE 10, HR2811F $1.52
77 210054-1 BALL BEARING 6000LLU, HM1100C $8.78
78 253171-4 F. WASHER 10, T220DW $1.34
79 240095-3 FAN 64, HR2811F $1.52
80 515291-5 ARMATURE ASS'Y 115V, HR2811F $36.41
81 266325-4 TAPPING SCREW 4X70, GA4030 $0.86
82 210023-2 BALL BEARING 627DDW, 9910 $6.69
83 681656-4 INSULATION WASHER, GD0800C $1.34
84 419989-5 BAFFLE PLATE, HR2811F $1.52
85 526581-1 FIELD ASS'Y 115V, HR2811F $20.55
86 419982-9 MOTOR HOUSING, HR2811F $7.02
87 643766-5 BRUSH HOLDER, HR2811F $2.84
88 266421-8 TAPPING SCREW 3X10, HR2811F $0.53
89 195001-2 CARBON BRUSH CB325,9553NB $4.71
90 631754-4 LED CIRCUIT, HR2811F $5.48
91 419983-7 REAR COVER, HR2811F $2.84
92 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
93 638565-8 LEAD UNIT, HR2811F $2.84
94 638567-4 LEAD UNIT, HR2811F $1.52
95 638566-6 LEAD UNIT, HR2811F $1.52
96 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
97 158284-5 CHANGE LEVER CPL., HR2811F $1.52
98 234022-0 COMPRESSION SPRING 14, HR2811F $1.48
99 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
100 419995-0 SPRING GUIDE, HR2811F $1.63
101 419979-8 HANDLE BASE, HR2811F $13.29
102 911258-5 P.H. SCREW M5X35, 9045N $1.19
103 266420-0 TAPPING SCREW 5X20, HR2811F $0.86
104 863925-7 NAME PLATE, HR2811F $1.21
105 419992-6 F/R CHANGE LEVER, HR2811F $1.26
106 419994-2 DUST COVER SUPPORT, HR2811F $1.52
107 424029-6 DUST COVER, HR2811F $1.52
108 419978-0 HANDLE, HR2811F $5.48
109 631752-8 POWER SUPPLY CIRCUIT, HR2811F $5.48
110 419990-0 SWITCH LEVER, HR2811F $1.26
111 158281-1 SWITCH HOLDER CPL., HR2811F $1.52
112 650591-7 SWITCH, HR2811F $25.17
113 419980-3 HANDLE COVER, HR2811F $6.80
114 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
116 682572-3 CORD GUARD, 6304LR $2.51
116 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
117 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
118 687169-3 STRAIN RELIEF, HP1621F $0.97
120 313139-3 SHOULDER SLEEVE 6, HR2811F $1.52
121 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
122 819355-0 CLEAR LABEL, HR2811F $2.40
1001 324219-0 DEPTH GAUGE,HP2050F $4.40
1003 805776-2 PLASTIC CASE LABEL, HR2811F $0.96
