Makita HR2511 Rotary Hammer Parts

Makita HR2511 Rotary Hammer Parts Image

Makita HR2511 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

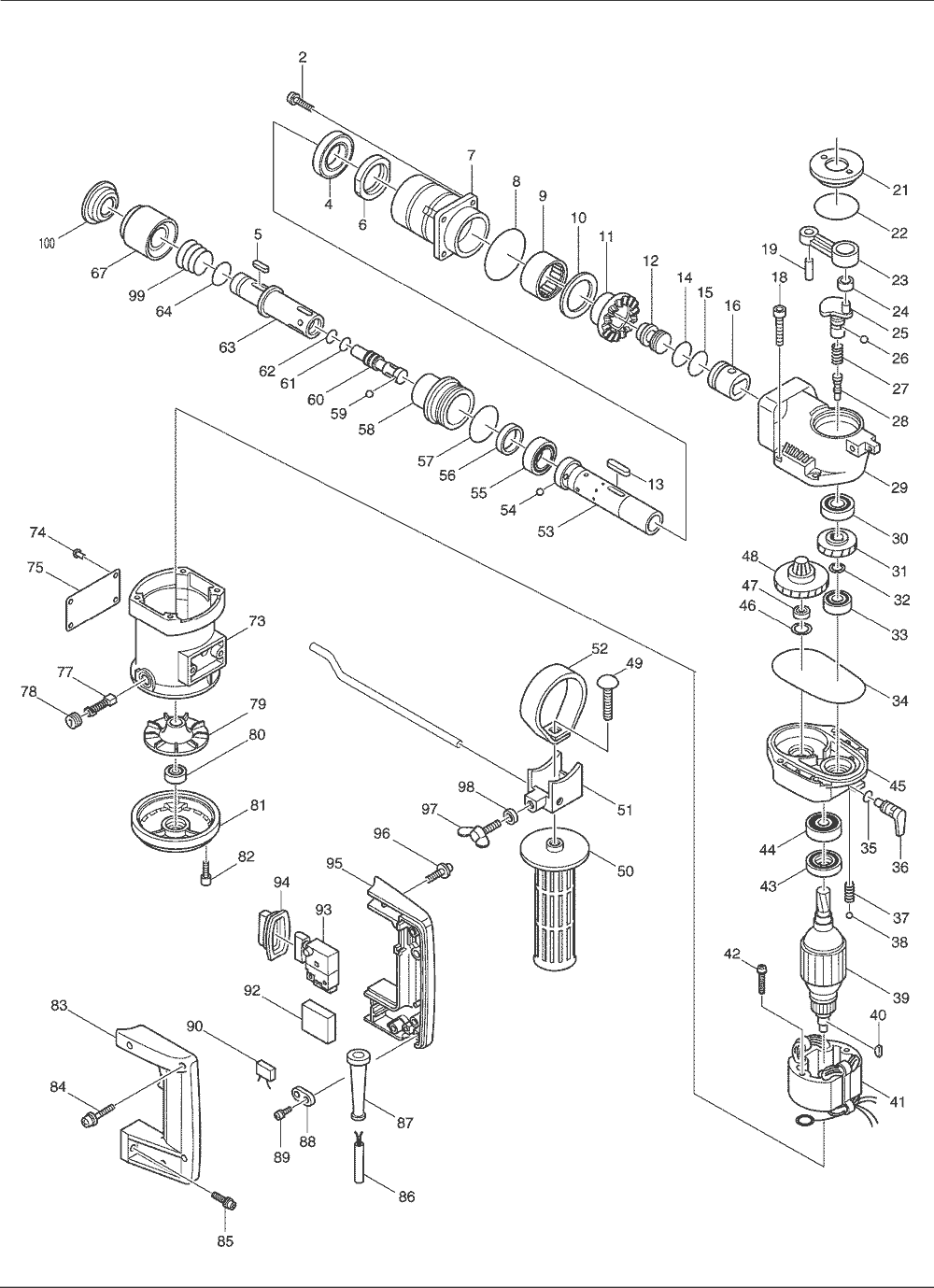

Makita HR2511 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 216002-8 STEEL BALL 4.8, NHP1310 $0.53
13 254231-5 KEY 4, HR3851 $1.52
2 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
60 321616-1 IMPACT BOLT, HR2511 $39.57
50 273496-0 GRIP 32, HR2000 $21.76
4 211441-7 BALL BEARING 3009, 6906 $28.15
67 414425-6 CHANGE RING, HR1821 (TYPE 3) $21.76
18 922366-7 HEX SOCKET HEAD BOLT, HM1810 $1.48
5 322255-0 ROLLER 6.5, HR1821 $4.49
6 252214-9 NUT M30.3-36, HR2511 $21.21
7 315606-4 BARREL, HR2511 $52.50
8 213606-7 O RING 48, HR2511 $1.96
9 212455-9 N. BEARING 3516, HR2511 $18.90
10 253802-5 F. WASHER 35, HR2511 $9.22
11 221333-2 SPIRAL B. GEAR, HR2511 $44.88
12 322505-3 STRIKER, HR2511 (T2) $13.18
13 254231-5 KEY 4, HR3851 $1.52
14 213308-5 O RING 19, HK1810 $7.13
15 213308-5 O RING 19, HK1810 $7.13
16 321685-2 PISTON, HR2511 $11.75
18 922366-7 HEX SOCKET HEAD BOLT, HM1810 $1.48
19 256099-5 PIN 6, HR2811F $1.96
20 813002-5 MAKITA LABEL, 4014B $0.66
21 411662-3 CRANK CAP, HR2511 $5.92
22 213554-0 O RING, HR2511 $1.96
23 315146-2 ROD, HR2511 $20.33
24 212025-4 .N. BEARING 810, HR2511 $10.32
25 321615-3 CRANKSHAFT, HR2511 $40.29
26 216011-7 STEEL BALL 5.6, 6222DWE $0.86
27 231327-9 COMP. SPRING 6, HR2511 $1.48
28 321618-7 CHANGE PIN 8, HR2511 $4.49
29 157409-8 CRANK HOUSING, HR2511 $64.30
30 211204-1 BALL BEARING 6002, HR2511 $15.27
31 221719-0 H. GEAR 36, HR2511 $21.32
32 253147-1 F. WASHER 15, 5037NB $1.63
33 211221-1 BALL BEARING 6902,HR2511 $26.21
34 213806-9 O RING 90, HM1500 $3.61
35 213011-8 O RING 7, HR2511,LS1214FL $0.86
36 321614-5 CHANGE LEVER, HR2511 $21.76
37 231328-7 COMP. SPRING 2, HR2511 $1.48
38 216008-6 STEEL BALL 4.0, 5007NK $0.53
39 612796-7 ARMATURE, HR2511 $118.54
40 254031-3 WOODRUFF KEY 3, 6801DBV $1.26
41 522576-2 FIELD ASS'Y 115V,HR2511 $52.80
42 265347-1 HEX BOLT M5X45, HR3851 $3.28
43 213157-0 OIL SEAL, HR2511 $18.90
44 211069-1 BALL BEARING 6200, HR1812 $10.98
45 157166-8 GEAR HOUSING, HR2511 $42.02
46 253314-8 THIN WASHER 15, 6906 $1.63
47 211034-0 BALL BEARING 608, 2106 $13.07
48 151162-8 TORQUE LIMITER, HR2511 $120.77
49 923456-9 C.S.N. BOLT M8X35, HR2511 $1.74
50 273496-0 GRIP 32, HR2000 $21.76
51 315145-4 GRIP BASE, HR2511 $5.92
52 342633-8 GRIP ASSEMBLY BELT, HR2511 $4.49
53 331407-2 CYLINDER LINER, HR2511 (T2) $89.40
54 216007-8 STEEL BALL 6.4, 6905B $0.86
55 213377-6 OIL SEAL 21, HR2511 $14.61
56 443061-1 FELT RING 20, HR2511 $0.97
57 213554-0 O RING, HR2511 $1.96
58 322096-4 SEAL HOLDER, HR2511 (TYPE 2) $44.26
59 216007-8 STEEL BALL 6.4, 6905B $0.86
60 321616-1 IMPACT BOLT, HR2511 $39.57
61 213058-2 O RING 10, HR2511 $3.61
62 213058-2 O RING 10, HR2511 $3.61
63 322254-2 DRILL HOLDER, HR1821 (T3) $98.30
64 213064-7 O RING 10, HR2511 $5.37
65 213058-2 O RING 10, HR2511 $3.61
66 213309-3 O RING 19, HK1800 $5.37
67 414425-6 CHANGE RING, HR1821 (TYPE 3) $21.76
69 213309-3 O RING 19, HK1800 $5.37
70 253164-1 F. WASHER 20, HR2511,T1 $1.63
71 257913-8 SPIRO LOCK WASHER, HR2511-T1 $3.61
72 421274-4 CHUCK COVER, HR2511 (TYPE 1) $5.92
73 157523-0 MOTOR HOUSING, HR2511 $43.35
74 953106-2 RIVET 0-5, HM1500 $0.49
76 818057-5 LABEL, 4301BV $0.64
77 194975-4 A.C.CARBON BRUSH CB-105 HM0810B $13.84
78 643600-9 BRUSH CAP 6-10, 9005B $1.63
79 241819-0 FAN 65, HR2511 $8.78
80 210001-2 BALL BEARING LB, HR2511 $13.07
81 152229-5 HOUSING W/O BEARING, HR2511 $20.33
82 911246-2 P.H. SCREW M5X28, 6013BR $0.86
83 181562-8 HANDLE SET, HR2511 $23.74
84 911243-8 P.H. SCREW M5X25, GA7911 $1.19
85 911343-4 P.H. SCREW M6X25, HR2511 $1.19
87 682503-2 CORD GUARD 8-90, 9005B $2.51
87 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
88 687001-1 STRAIN RELIEF, 6013BR $0.97
89 911133-5 P.H. SCREW M4X18, N9501B $0.86
94 421145-5 DUST COVER, HR2511 $3.06
95 181562-8 HANDLE SET, HR2511 $23.74
96 911328-0 P.H. SCREW M6X18, HR2511 $1.19
97 924216-2 THUMB SCREW M5X15, 9030 $1.48
98 261042-1 WASHER 4.5,HR2000 $1.34
100 286220-2 CAP 34, HR1821 $4.49
101 253928-3 LOCK WASHER 5, 9000BL $0.66
102 253792-2 F. WASHER 26, 4304 $1.63
401 765009-6 BLOW-OUT BULB HR2410 $6.40
402 783203-8 HEX WRENCH 5, 2708 $3.24
