Makita HR2445 Rotary Hammer Parts

Makita HR2445 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

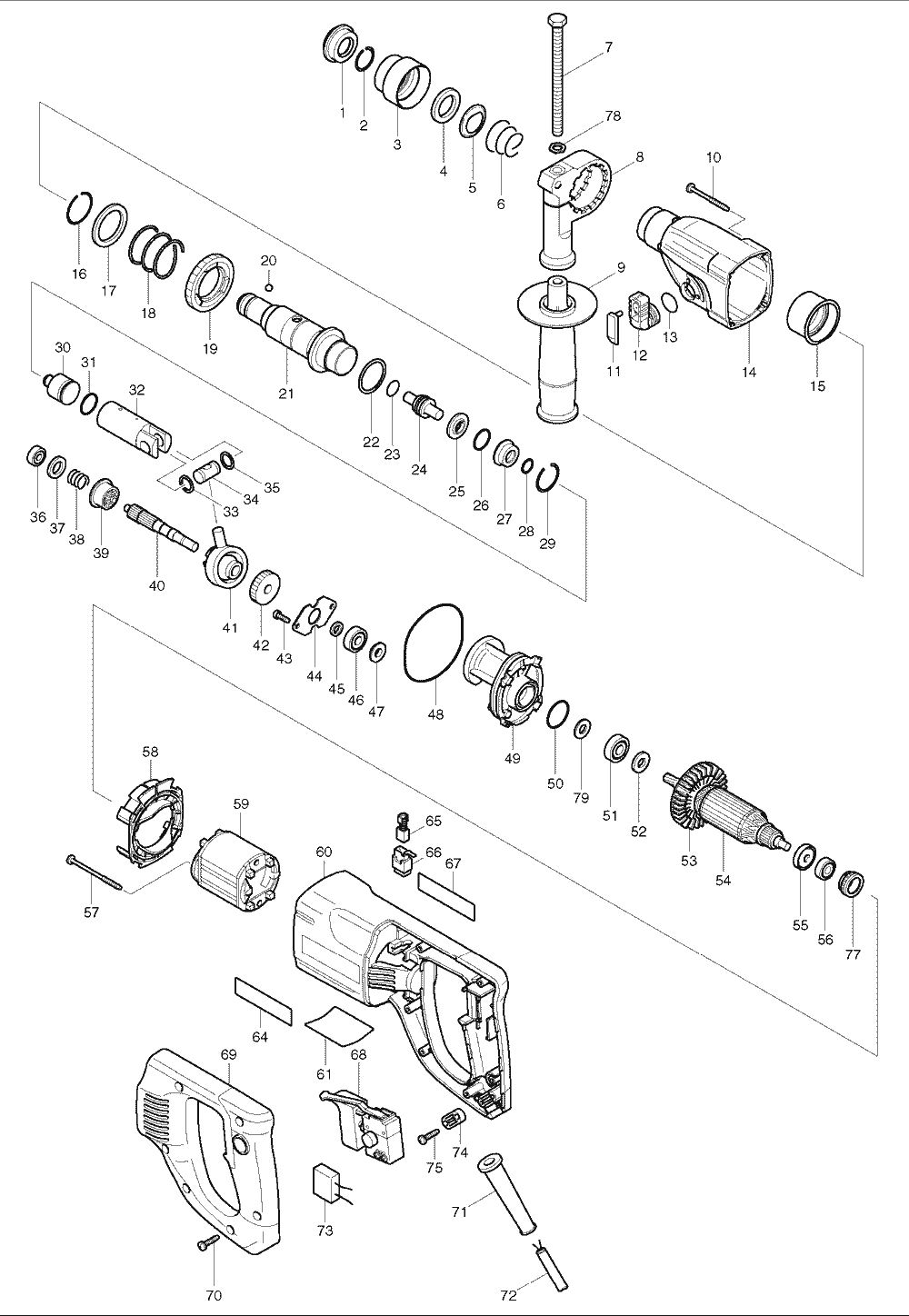

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	286263-4	CAP 35, HR2450F	$1.52
2	233940-9	RING SPRING 19, HR2450F	$0.86
3	417629-9	CHUCK COVER,HR2450F	$5.92
4	257241-1	RING 21, HR2450F	$1.52
5	345187-4	GUIDE WASHER, HR2450F	$1.63
6	233916-6	CONICAL COMP. SPRING 21-29, HR2450F	$1.96
7	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
8	417630-4	GRIP BASE, HP1640	$2.84
9	135302-6	GRIP 36 ASS'Y, HR2450F	$4.16
10	266069-6	T. SCREW FLANGE PT4X45 HR2410	$1.74
11	417628-1	CAP, HR2445	$1.52
12	153289-0	CHANGE LEVER CPL., HR2445	$2.84
12	184678-8	CHANGE LEVER ASS'Y, HR2445	$23.74
13	213278-8	O RING 17,HR2450F	$0.86
14	183442-4	GEAR HOUSING SET,HR2445	$17.25
15	153290-5	NEEDLE BEARING CPL., HR2450F	$7.02
16	233918-2	RING SPRING 28, HR2450F	$0.86
17	267228-5	WASHER 30, HR2450F	$2.18
18	233328-3	COMP. SPRING 31, HR2450F	$1.96
19	227019-6	SPUR GEAR 51, HR2445	$7.02
20	216022-2	STEEL BALL 7.0, HR2400	$0.86
21	153288-2	TOOL HOLDER CPL., HR2445	$37.84
22	267229-3	FLAT WASHER 28, BHR240	$1.34
23	213128-7	O RING 12,HR2450F	$1.74
24	324278-4	IMPACT BOLT, HR2445	$4.49
25	324218-2	RING 9, HR2450F	$1.52
26	213232-2	O RING 15,HR2450F	$3.28
27	324216-6	O RING CASE, HR2455	$5.48
28	213073-6	O RING 9,HR2455	$1.74
29	233917-4	RING SPRING 28, HR2450F	$0.86
30	324214-0	STRIKER, HR2450F	$4.16
31	213227-5	O RING 16M, HR2455	$3.61
32	317517-9	PISTON CYLINDER, HR2445	$10.65
33	267104-3	FLAT WASHER 12, HR2400	$2.16
34	324215-8	PISTON JOINT, HR2450F	$2.84
35	267104-3	FLAT WASHER 12, HR2400	$2.16
36	211012-0	BALL BEARING 606ZZ, HR2410	$15.27
37	253744-3	F. WASHER 12, HR2410	$1.34
38	233347-9	COMP. SPRING 12, HR2445	$0.86
39	324469-7	CLUTCH CAM, HR2445	$19.78
40	227029-3	SPUR GEAR 10, HR2445	$9.77
41	219014-0	SWASH BEARING 10, HR2455	$34.17
42	226550-9	HELICAL GEAR 26,HR2450F	$7.35
43	266273-7	H.S.H. BOLT M4X12, HR2450F	$1.34
44	345179-3	BEARING RETAINER, HR2450F	$0.97
45	267234-0	FLAT WASHER 8, HM1304B	$1.01
46	211032-4	B. BEARING 608ZZ, N1900B	$8.78
47	324212-4	RING 8, HR2450F	$4.16
48	213725-9	O RING 68,HR2450F	$1.74
49	153611-1	INNER HOUSING CPL.,HR2445	$9.77
49	153686-0	INNER HOUSING CPLT., HR2445	$8.01
50	213380-7	O RING 24, 6805BV	$1.96
51	210060-6	BALL BEARING 609LLU, HR2431	$6.03
52	267231-6	FLAT WASHER 9, HR2450F	$1.01
53	240047-4	FAN 60, HR2450F	$1.52
54	515666-8	ARMATURE ASS'Y, HR2450F	$29.78
55	681636-0	INSULATION WASHER, GA4030	$3.72
56	211021-9	BALL BEARING 607LLB, LS1013	$8.78
58	418085-6	BAFFLE PLATE, HR2445	$1.52
59	633556-4	FIELD 115V, HR2445	$12.63
60	183580-2	MOTOR HOUSING,HR2445	$13.29
61	850413-3	NAME PLATE, HR2445	$1.21
64	819064-1	MAKITA MARK, 5402NA	$1.26
65	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
66	643936-6	BRUSH HOLDER, 6821	$4.16
67	819064-1	MAKITA MARK, 5402NA	$1.26
68	650508-0	SWITCH, HR2450F	$27.37
69	418086-4	HANDLE COVER, HR2445	$5.48
70	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
71	682559-5	CORD GUARD 8, 6824	$2.51
71	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
74	687063-9	STRAIN RELIEF, 4323K	$1.26
75	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
77	421494-0	LABYRINTH RUBBER RING,HR2455, DA3010F	$4.49
78	345280-4	HEX. WASHER, HP2050F	$1.01
79	267271-4	FLAT WASHER 9, HR2445	$1.34
80	345519-5	STOPPER PLATE, HR2445	$1.26
81	233388-5	COMPRESSION SPRING 5, HR2445	$0.79
82	961011-9	STOP RING E-4, 4301BV	$1.48
1001	324219-0	DEPTH GAUGE,HP2050F	$4.40
5001	810134-9	CAUTION LABEL, 3709	$0.93
