Makita HR2431 Rotary Hammer Parts

Makita HR2431 Rotary Hammer Parts Image

Makita HR2431 Parts
1 Inch SDS, Variable Speed, Reversible Rotary Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HR2431
1 Inch SDS, Variable...
$234.99
Tool Diagram    (Click image to Zoom in) View larger Image

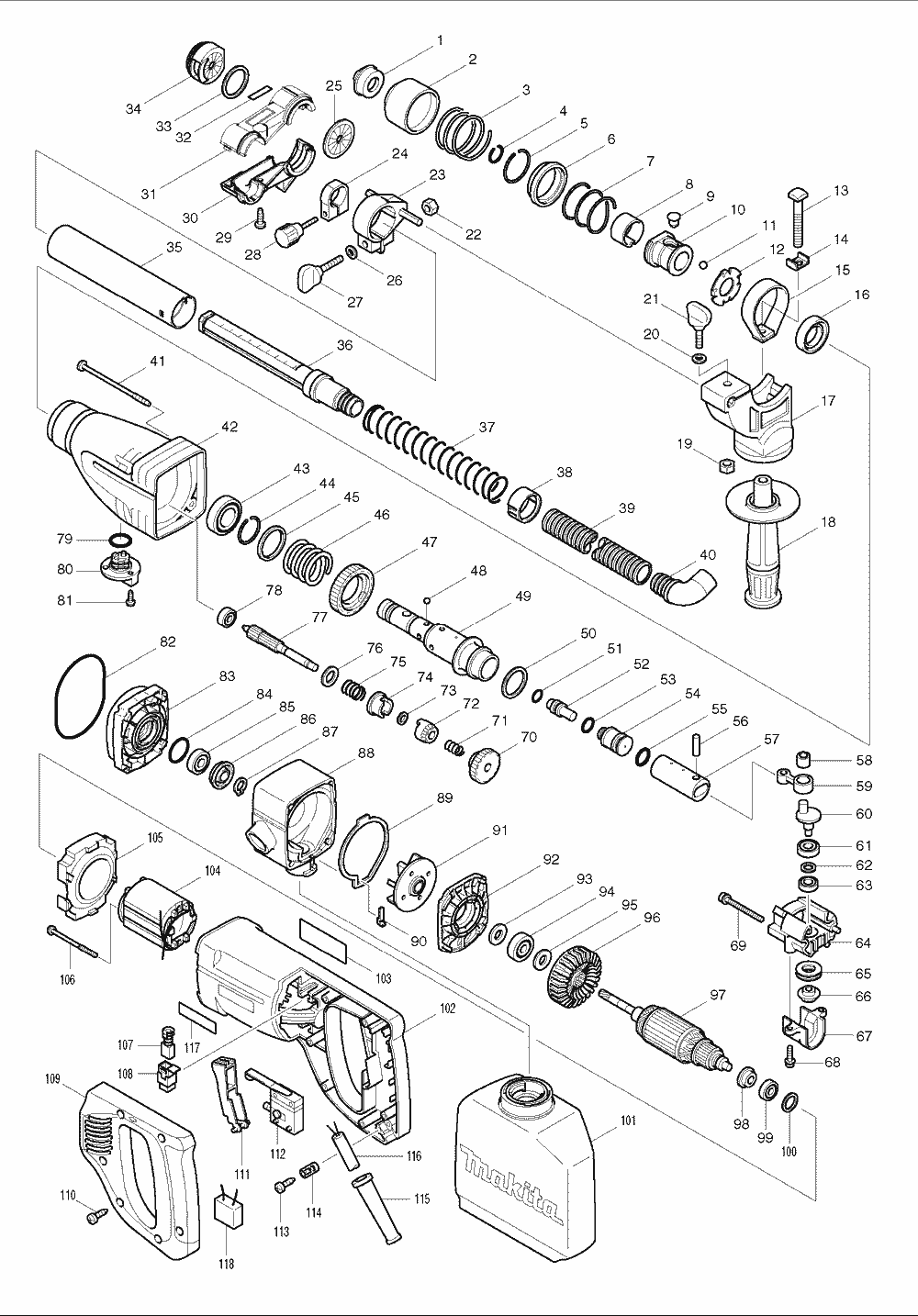

Makita HR2431 Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286265-0 CAP 31, HR2400,T2 $1.26
00 193388-6 HAMMER SERVICE KIT, HR2431 $16.04
2 416410-5 CHUCK COVER, HR2400 $5.92
3 233203-3 COMPRESSION SPRING 38, HR2400 $2.07
4 231979-6 RING SPRING 16, HR2400 $0.86
5 231936-4 RING SPRING 30.5, HR2000 $1.48
6 323819-3 SPRING GUIDE, HR2410 $3.61
7 233234-2 COMP. SPRING 35, HR2410 $1.48
8 232190-3 LEAF SPRING 26, HR2410 $4.16
9 256447-8 PIN 8, HR2420 $3.61
10 323820-8 CHUCK RING, HR2410 $14.61
11 216022-2 STEEL BALL 7.0, HR2400 $0.86
12 344690-2 GUIDE WASHER, HR2410 $2.18
13 266092-1 SQUARE BOLT M8X60, HR2410 $1.48
14 267719-6 SQUARE WASHER 9, HR2410 $1.63
15 344205-5 BELT, HR2410 $3.06
16 213313-2 OIL SEAL 20, HM1214C $7.46
17 417157-4 GRIP BASE, HR2431 $5.48
18 152521-9 GRIP 36 CPL., DP4002 $4.49
19 931202-6 HEX NUT M5, HR2410 $0.79
20 941101-4 F. WASHER 5, 5007NK $0.75
21 251878-6 SCREW M5X20, UM140D $3.50
22 931302-2 HEX NUT M6, HR2400 $0.79
23 417156-6 PIPE HOLDER, HR2431 $6.80
24 414795-3 STOPPER RING, HR2431 $6.80
25 421384-7 SEALING CAP 40, HR2431 $2.84
26 941151-9 F. WASHER 6, 5007NB $0.75
27 265705-1 THUMB SCREW M6X30, HR2431 $3.28
28 265706-9 THUMB SCREW M4X24, HR2431 $4.93
29 265926-5 TAPPING SCREW 4X16, 420S $1.48
30 414800-6 COLLECTOR 25L, HR2431 $8.01
31 414799-5 COLLECTOR 25R, HR2431 $8.01
32 819071-4 MAKITA LABEL, HR2431 $0.89
33 267091-6 FLAT WASHER 28, HR2431 $3.72
34 421726-5 FITTING RUBBER, HR2431 $2.84
35 414797-9 SUPPORT PIPE, HR2431 $6.80
36 417309-7 SLIDE PIPE, HR2431 $8.01
37 233015-4 COMPRESSION SPRING 25, HR2431 $4.93
38 414794-5 SPRING STOPPER, HR2431 $7.02
39 414898-3 HOSE 19, HR2431 $4.16
40 417153-2 CUFF 19-22, HR2431 $4.16
41 266243-6 TAPPING SCREW 4X90, HR2431 $3.28
42 150965-7 GEAR HOUSING CPL.,HR2410,T2 $13.73
43 211323-3 BALL BEARING 6904LLU, HR2420 $17.80
44 231962-3 RING SPRING 26, HR2410 $0.86
45 267132-8 FLAT WASHER 29, HR2410 $4.16
46 233109-5 COMPRESSION SPRING 29, HR2410 $4.16
47 226290-9 SPUR GEAR 48, HR2410 $22.75
48 216011-7 STEEL BALL 5.6, 6222DWE $0.86
49 323822-4 TOOL HOLDER, HR2410 $55.20
50 267129-7 FLAT WASHER 27, HR2410 $2.18
51 213063-9 O RING 10, HR2400 $3.61
52 323818-5 IMPACT BOLT, HR2410 $4.93
53 213117-2 O RING 11, HR2410 $3.61
54 322740-3 STRIKER, HR2410 $7.46
55 213214-4 O RING 16, HR2400 $5.37
56 256099-5 PIN 6, HR2811F $1.96
57 331446-2 PISTON CYLINDER, HR2410 $18.90
58 212005-0 N. BEARING 810, HR2410 $5.92
59 331447-0 CONNECTING ROD, HR2410 $8.78
60 322741-1 CRANK SHAFT, HR2410 $13.18
61 211098-4 BALL BEARING 699ZZ, HR2431 $13.95
62 267130-2 FLAT WASHER 9, HR2410 $1.34
63 211099-2 BALL BEARING 689ZZ, HR2431 $13.95
64 159761-0 CRANK HOUSING COMPLETE, HR2410 $26.92
65 212110-3 T.N. BEARING 1224, HR2410 $11.75
66 226726-8 STRAIGHT BEVEL GEAR 12, HR2410 $18.24
67 415630-8 GEAR COVER, HR2410 $1.74
68 911526-6 P.H. SCREW M4X16, HR2410 $1.48
69 911576-1 P.H. SCREW M4X50, HR2410 $1.48
70 226434-1 HELICAL GEAR 31, HR2410 $12.74
71 233110-0 COMPRESSION SPRING 8, HR2410 $0.86
72 226725-0 STRAIGHT BEVEL GEAR 14, HR2410 $29.47
73 267131-0 FLAT WASHER 8, HR2410 $1.34
74 322743-7 CLUTCH CAM, HR2431 $13.18
75 233089-5 COMP. SPRING 12, 6832 $1.48
76 253744-3 F. WASHER 12, HR2410 $1.34
77 226293-3 SPUR GEAR 10, HR2410 $24.29
78 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
79 213261-5 O RING 17, AN451 $3.50
80 152471-8 CHANGE LEVER COMPLETE, HR2410 $3.06
81 251392-2 PAN HEAD SCREW M4, HR2400 $0.86
82 213720-9 O RING 67, HR2400 $1.96
83 152616-8 INNER HOUSING CPL., HR2431 $22.42
84 213953-6 O RING 24, HR2431 $1.48
85 210060-6 BALL BEARING 609LLU, HR2431 $6.03
86 317332-1 DUST GUARD, HR2431 $9.33
87 961006-2 RETAINING RING S-10, N9501B $0.86
88 417158-2 FAN HOUSING, HR2431 $11.97
89 421725-7 DUSTPROFF SHEET, HR2431 $5.48
90 344853-0 PLATE, HR2431 $1.52
91 241664-3 FAN 56, HR2431 $12.63
92 317334-7 DUST COVER, HR2431 $14.61
93 267213-8 FLAT WASHER 10, HR2431 $1.63
94 210054-1 BALL BEARING 6000LLU, HM1100C $8.78
95 267213-8 FLAT WASHER 10, HR2431 $1.63
96 240032-7 FAN 60, HR2431 $4.16
97 518841-5 ARMATURE ASS'Y 115V, HR2431 $75.20
98 681600-1 INS. WASHER, HR2410 $1.63
99 211021-9 BALL BEARING 607LLB, LS1013 $8.78
100 253842-3 F. WASHER 14, HR2410 $1.34
101 122614-6 'DUST BAG ASS''Y HR2431 ' $50.20
102 416926-0 MOTOR HOUSING, HR2420 $26.92
103 852336-1 NAME PLATE, HR2431 $1.12
104 639342-1 FIELD 115V, HR2431 $24.62
105 415628-5 BAFFLE PLATE, HR2410 $2.84
107 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.99
107 K38 This item will be shipped Free Carbon Brush Set Replaces Makita (CB407), CB-419... $8.50
108 643923-5 BRUSH HOLDER, HR2410 $1.63
109 416248-8 HANDLE COVER, HR2420 $11.75
110 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
111 415629-3 SWITCH LEVER, HR2410 $3.06
112 650514-5 SWITCH, HR2431 $27.37
113 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
114 687063-9 STRAIN RELIEF, 4323K $1.26
115 682502-4 CORD GUARD 8-85, HP2010N $2.51
115 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
116 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
116 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
117 819063-3 MAKITA LABEL, DA3010F $0.96
1002 421727-3 CAP HR2431 $2.20
5001 534023-1 LEAD WIRE (ORANGE), HR2400 $3.06
5002 534024-9 LEAD WIRE (PURPLE), HR2400 $2.84
