Makita HR2410 Rotary Hammer Parts

Makita HR2410 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

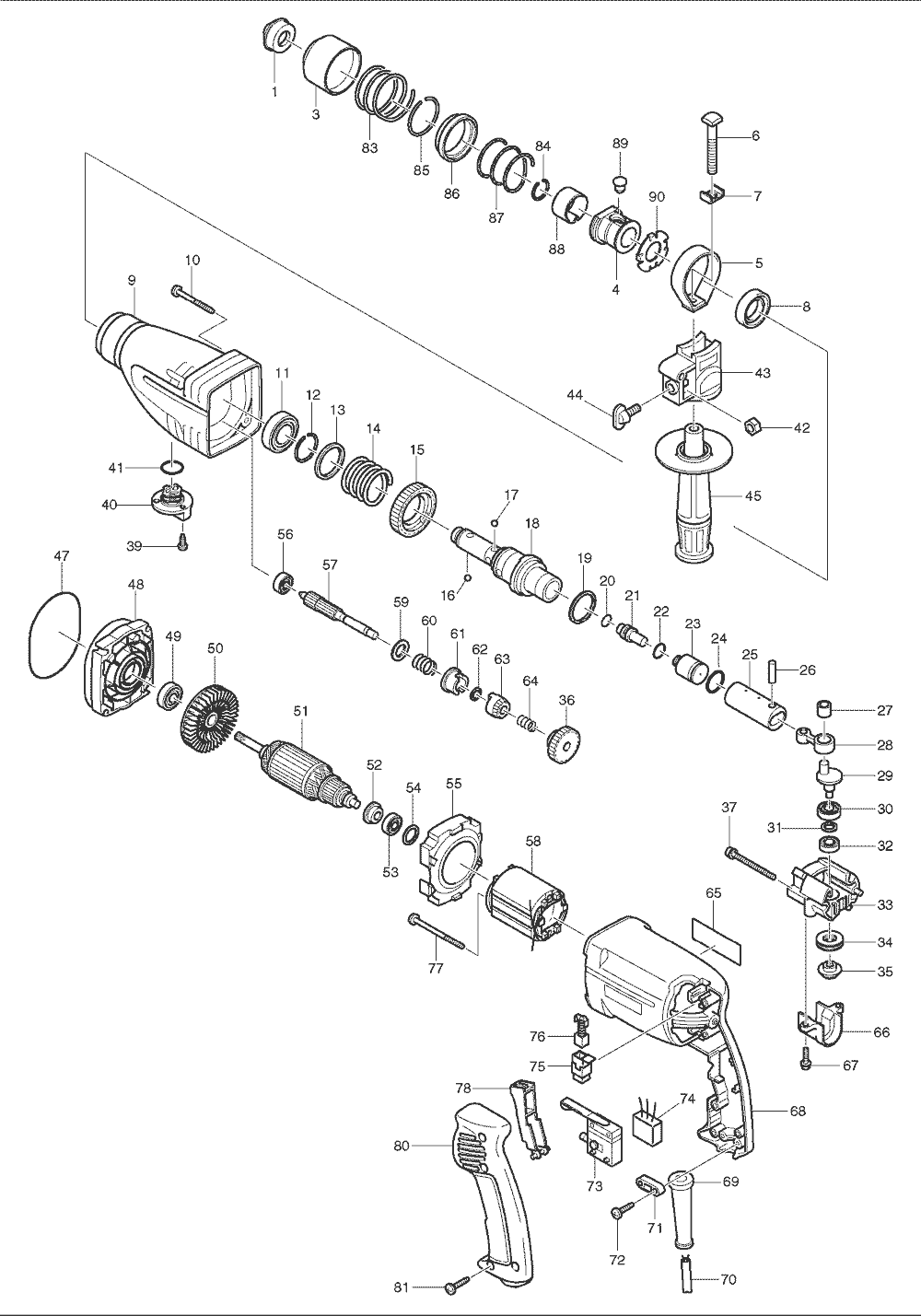

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	286265-0	CAP 31, HR2400,T2	$1.26
1	286251-1	CAP 37, HR2410,T2	$3.94
3	416410-5	CHUCK COVER, HR2400	$5.92
3	415076-8	CHANGE RING COVER, HR2400	$4.49
4	323820-8	CHUCK RING, HR2410	$14.61
4	152470-0	CHANGE RING COMPLETE, HR2410	$21.76
5	344205-5	BELT, HR2410	$3.06
6	266092-1	SQUARE BOLT M8X60, HR2410	$1.48
7	267719-6	SQUARE WASHER 9, HR2410	$1.63
8	213313-2	OIL SEAL 20, HM1214C	$7.46
9	150965-7	GEAR HOUSING CPL.,HR2410,T2	$13.73
9	159759-7	GEAR HOUSING COMPLETE, HR2410	$17.25
10	266069-6	T. SCREW FLANGE PT4X45 HR2410	$1.74
11	211323-3	BALL BEARING 6904LLU, HR2420	$17.80
12	231962-3	RING SPRING 26, HR2410	$0.86
13	267132-8	FLAT WASHER 29, HR2410	$4.16
14	233109-5	COMPRESSION SPRING 29, HR2410	$4.16
15	226290-9	SPUR GEAR 48, HR2410	$22.75
16	216009-4	STEEL BALL 7.1, HR2400	$0.86
16	216022-2	STEEL BALL 7.0, HR2400	$0.86
17	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
18	323822-4	TOOL HOLDER, HR2410	$55.20
18	322744-5	TOOL HOLDER, HR2410	$50.70
19	267129-7	FLAT WASHER 27, HR2410	$2.18
20	213063-9	O RING 10, HR2400	$3.61
21	323818-5	IMPACT BOLT, HR2410	$4.93
21	322739-8	IMPACT BOLT, HR2410	$3.61
22	213117-2	O RING 11, HR2410	$3.61
23	322740-3	STRIKER, HR2410	$7.46
24	213214-4	O RING 16, HR2400	$5.37
25	331446-2	PISTON CYLINDER, HR2410	$18.90
26	256099-5	PIN 6, HR2811F	$1.96
27	212005-0	N. BEARING 810, HR2410	$5.92
28	331447-0	CONNECTING ROD, HR2410	$8.78
29	322741-1	CRANK SHAFT, HR2410	$13.18
30	211098-4	BALL BEARING 699ZZ, HR2431	$13.95
31	267130-2	FLAT WASHER 9, HR2410	$1.34
32	211099-2	BALL BEARING 689ZZ, HR2431	$13.95
33	159761-0	CRANK HOUSING COMPLETE, HR2410	$26.92
34	212110-3	T.N. BEARING 1224, HR2410	$11.75
35	226726-8	STRAIGHT BEVEL GEAR 12, HR2410	$18.24
36	226434-1	HELICAL GEAR 31, HR2410	$12.74
37	911576-1	P.H. SCREW M4X50, HR2410	$1.48
39	251392-2	PAN HEAD SCREW M4, HR2400	$0.86
40	152471-8	CHANGE LEVER COMPLETE, HR2410	$3.06
41	213261-5	O RING 17, AN451	$3.50
42	931202-6	HEX NUT M5, HR2410	$0.79
43	415658-6	GRIP BASE, HR2410	$3.06
44	265720-5	THUMB SCREW M5X14, HR2410	$3.61
45	134777-6	GRIP 36 ASS'Y, HR2420	$5.92
47	213720-9	O RING 67, HR2400	$1.96
48	159760-2	INNER HOUSING COMPLETE, HR2410	$26.92
49	211051-0	BALL BEARING 609LLB HR2400	$15.27
50	241883-1	FAN 60, HR2420	$2.84
51	517141-0	ARMATURE ASS'Y, HR2410	$79.00
52	681600-1	INS. WASHER, HR2410	$1.63
52	681661-1	INSULATION WASHER, MT951	$1.01
53	211021-9	BALL BEARING 607LLB, LS1013	$8.78
54	253842-3	F. WASHER 14, HR2410	$1.34
55	415628-5	BAFFLE PLATE, HR2410	$2.84
56	211012-0	BALL BEARING 606ZZ, HR2410	$15.27
57	226293-3	SPUR GEAR 10, HR2410	$24.29
58	633311-4	FIELD 115V, HR2410	$25.17
59	253744-3	F. WASHER 12, HR2410	$1.34
60	233089-5	COMP. SPRING 12, 6832	$1.48
61	322743-7	CLUTCH CAM, HR2431	$13.18
62	267131-0	FLAT WASHER 8, HR2410	$1.34
63	226725-0	STRAIGHT BEVEL GEAR 14, HR2410	$29.47
64	233110-0	COMPRESSION SPRING 8, HR2410	$0.86
65	857630-6	NAME PLATE, HR2410	$1.12
66	415630-8	GEAR COVER, HR2410	$1.74
67	911526-6	P.H. SCREW M4X16, HR2410	$1.48
68	416970-7	MOTOR HOUSING, HR2410	$8.01
69	682502-4	CORD GUARD 8-85, HP2010N	$2.51
69	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
70	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
70	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
71	687063-9	STRAIN RELIEF, 4323K	$1.26
72	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
73	650514-5	SWITCH, HR2431	$27.37
73	651932-0	SWITCH, HR2410, T1	$30.70
75	643923-5	BRUSH HOLDER, HR2410	$1.63
76	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
78	415629-3	SWITCH LEVER, HR2410	$3.06
79	819063-3	MAKITA LABEL, DA3010F	$0.96
80	415627-7	HANDLE COVER, HR2410	$10.32
81	266045-0	TAPPING SCREW 4X20, 9046	$1.19
83	233203-3	COMPRESSION SPRING 38, HR2400	$2.07
84	231979-6	RING SPRING 16, HR2400	$0.86
85	231936-4	RING SPRING 30.5, HR2000	$1.48
86	323819-3	SPRING GUIDE, HR2410	$3.61
87	233234-2	COMP. SPRING 35, HR2410	$1.48
88	232190-3	LEAF SPRING 26, HR2410	$4.16
89	256447-8	PIN 8, HR2420	$3.61
90	344690-2	GUIDE WASHER, HR2410	$2.18
