Makita HR2400 Rotary Hammer Parts

Makita HR2400 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

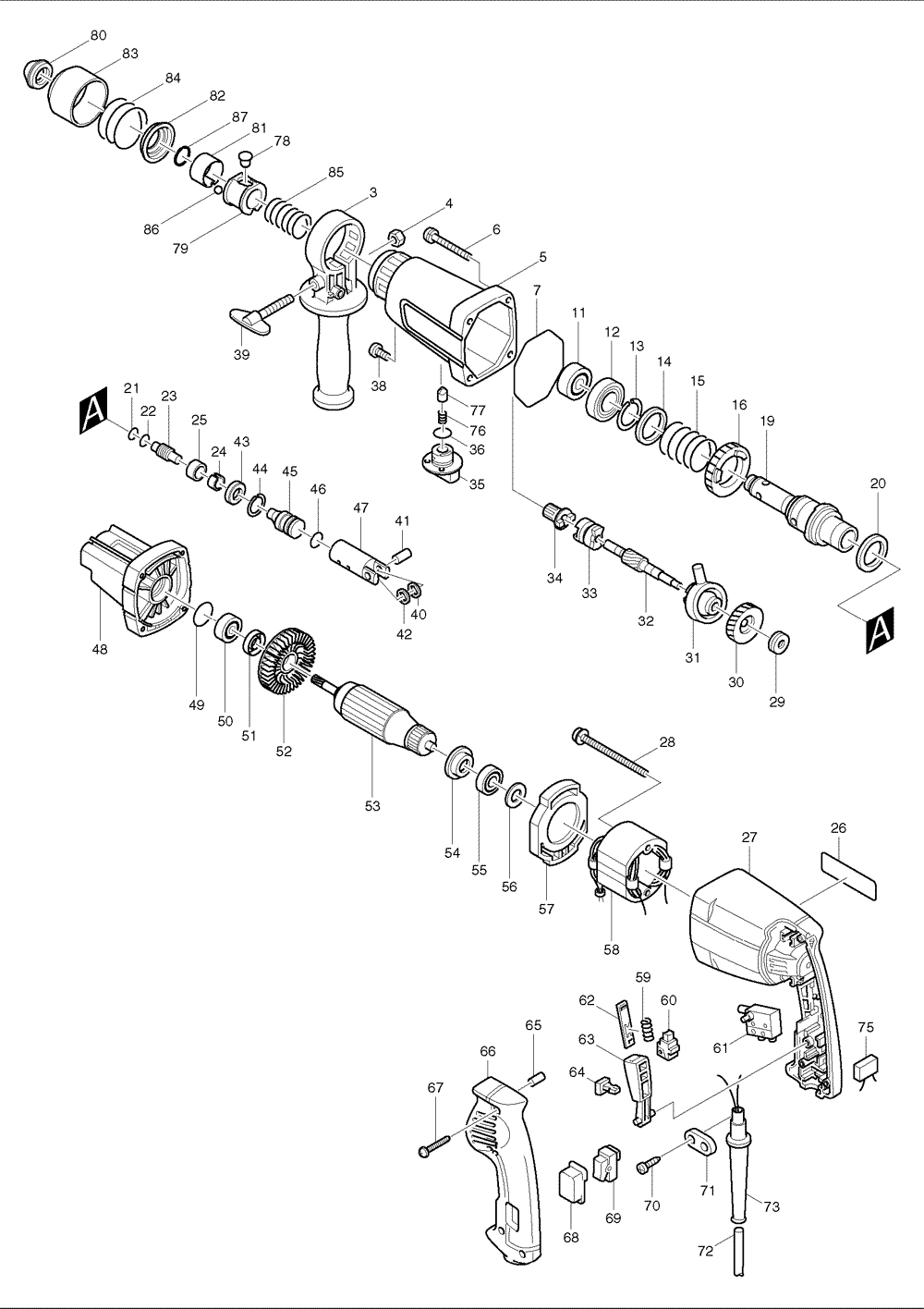

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
11	211323-3	BALL BEARING 6904LLU, HR2420	$17.80
59	231234-6	COMP. SPRING 3.5, HR2400	$2.07
3	134715-8	GRIP ASS'Y, HR2400	$14.61
4	931302-2	HEX NUT M6, HR2400	$0.79
5	150822-9	GEAR HOUSING COMPLETE, HR2400-T2	$34.47
5	159594-3	GEAR HOUSING, HR2400-T1	$48.55
6	911273-9	P.H. SCREW M5X50, HR2400	$1.19
7	213720-9	O RING 67, HR2400	$1.96
11	211323-3	BALL BEARING 6904LLU, HR2420	$17.80
12	213418-8	OIL SEAL 28, HR2400	$7.46
13	231954-2	RING SPRING 28, HR2400	$1.63
14	267110-8	FLAT WASHER 31, HR2400	$5.92
15	233060-9	COMPRESSION SPRING 31, HR2400	$4.93
16	226260-8	SPUR GEAR, HR2400	$26.72
19	322553-2	TOOL HOLDER, HR2400, T1	$77.50
19	323725-2	TOOL HOLDER, HR2400-T2	$59.90
20	267105-1	FLAT WASHER 29, HR2400	$5.26
21	213063-9	O RING 10, HR2400	$3.61
22	213063-9	O RING 10, HR2400	$3.61
23	322586-7	IMPACT BOLT, HR2400, T1	$7.02
23	323723-6	IMPACT BOLT, HR2400-T2	$4.93
24	321915-1	IDLER, HR2400	$11.75
25	262038-5	RUBBER RING 17, HR2400	$3.61
26	857141-1	NAME PLATE, HR2400	$1.27
27	415415-2	MOTOR HOUSING, HR2400	$26.16
28	911581-8	PAN HEAD SCREW M4X55, 6820V	$1.48
29	212040-8	T. N. BEARING 819, HR2400	$13.18
30	226421-0	HELICAL GEAR 31, HR2400	$19.01
31	219007-7	SWASH BEARING 9, HR2400	$50.89
32	322588-3	CAM SHAFT, HR2400	$27.59
33	322652-0	CLUTCH, HR2400	$27.59
34	226259-3	SPUR GEAR 10, HR2400	$26.72
35	415372-4	CHANGE LEVER, HR2400	$4.49
36	213265-7	O RING 17, HR4002	$0.86
38	251392-2	PAN HEAD SCREW M4, HR2400	$0.86
39	265715-8	SCREW 6X40, HR2400	$5.37
40	267104-3	FLAT WASHER 12, HR2400	$2.16
41	321916-9	PISTON JOINT, HR2400	$10.32
42	267104-3	FLAT WASHER 12, HR2400	$2.16
43	267109-3	FLAT WASHER 13.5, HR2400	$5.92
44	231953-4	RING SPRING, HR2400	$1.63
45	322587-5	STRIKER, HR2400	$14.61
46	213214-4	O RING 16, HR2400	$5.37
47	316450-2	PISTON CYLINDER, HR2400	$38.96
48	159653-3	GEAR HOUSING COVER, HR2400	$35.08
49	213385-7	O RING 24, HR2400	$3.61
50	211051-0	BALL BEARING 609LLB HR2400	$15.27
51	213112-2	OIL SEAL 12, HR2400	$8.78
52	241850-6	FAN 60, BTW450	$4.16
53	515161-8	ARMATURE ASS'Y 115V, HR2400	$107.58
54	681625-5	INS. WASHER, 5007NK	$1.63
55	211031-6	BALL BEARING 608LLB, 9227C	$10.98
56	253192-6	F. WASHER 14, HR2400	$1.63
57	415127-7	BAFFLE PLATE, HR2400	$4.49
58	625156-4	FIELD 115V, HR2400	$48.96
59	231457-6	COMP. SPRING 3, HR2400	$2.07
60	195013-5	CARBON BRUSH SET CB416 HR2400	$16.04
61	651918-4	SWITCH, HR2400	$41.20
62	415117-0	LOCK PLATE, HR2400	$2.84
63	415120-1	SWITCH LEVER, HR2400	$3.06
64	415118-8	LOCK BUTTON, HR2400	$2.84
65	263002-9	RUBBER PIN 4, 5007NK	$0.86
66	152416-6	HANDLE COVER, HR2400	$16.04
67	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
68	421460-7	DUST COVER, HR2400	$1.63
69	651556-2	SWITCH, 6905H	$16.04
70	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
71	687063-9	STRAIN RELIEF, 4323K	$1.26
72	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
72	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
73	682502-4	CORD GUARD 8-85, HP2010N	$2.51
73	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
76	231288-3	COMP. SPRING 6, HR2400	$4.16
77	322653-8	PUSH CONE, HR2400	$5.92
78	256447-8	PIN 8, HR2420	$3.61
78	322517-6	ROLLER 7, HR2400	$3.06
79	154404-9	CHANGE RING, HR2400 (T3)	$26.16
79	323724-4	CHUCK RING, HR2400	$18.90
80	286265-0	CAP 31, HR2400,T2	$1.26
80	286234-1	CAP 37, HR2000,T2, HR2400	$8.78
81	232190-3	LEAF SPRING 26, HR2410	$4.16
81	232192-9	LEAF SPRING 26, HR2400	$4.16
82	344574-4	SPRING GUIDE, HR2400	$1.96
83	416410-5	CHUCK COVER, HR2400	$5.92
83	415076-8	CHANGE RING COVER, HR2400	$4.49
84	233203-3	COMPRESSION SPRING 38, HR2400	$2.07
84	213068-9	O RING 10, HR2400	$3.61
85	233202-5	COMPRESSION SPRING 20, HR2400	$1.63
86	216009-4	STEEL BALL 7.1, HR2400	$0.86
86	216022-2	STEEL BALL 7.0, HR2400	$0.86
87	231979-6	RING SPRING 16, HR2400	$0.86
87	257172-4	RING 20, HR2400	$4.49
