Makita HR1821 Rotary Hammer Parts

Makita HR1821 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

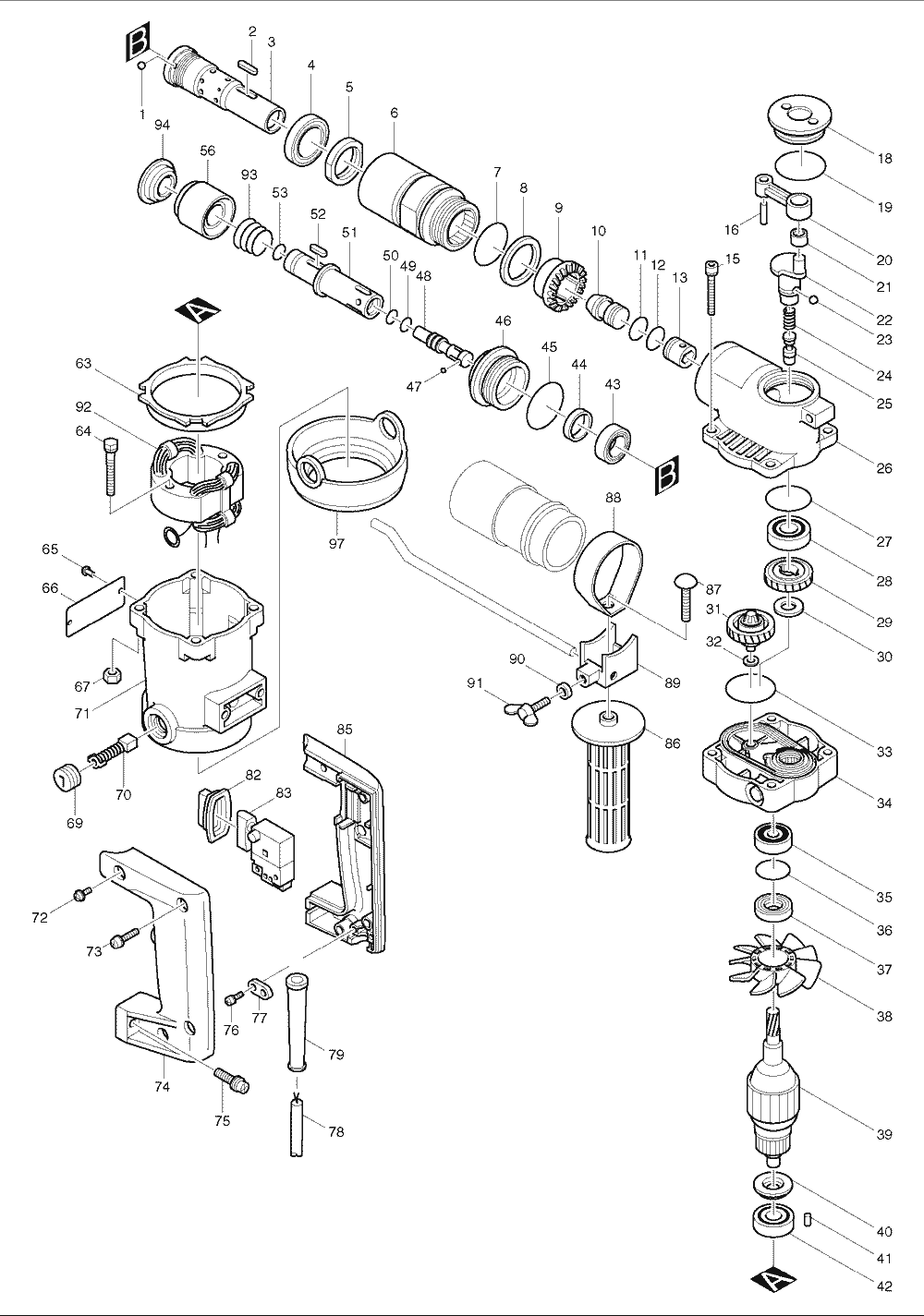

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	216007-8	STEEL BALL 6.4, 6905B	$0.86
15	922371-4	H.S.H. BOLT M6X50, HM1211	$2.40
2	254231-5	KEY 4, HR3851	$1.52
97	421194-2	PROTECTOR, HR1821	$7.46
3	331269-8	CYLINDER LINER 20, HR1821	$98.30
4	211443-3	BALL BEARING 3007, HR1821	$39.06
5	252214-9	NUT M30.3-36, HR2511	$21.21
6	153156-9	BARREL, HR1821	$61.70
7	213507-9	O RING 40, HR1821	$1.96
8	253854-6	F. WASHER 30, HR1821	$7.57
9	221358-6	SPIRAL B. GEAR 26, HR1821	$39.27
10	321814-7	STRIKER, HR1821	$11.75
11	213214-4	O RING 16, HR2400	$5.37
12	213214-4	O RING 16, HR2400	$5.37
13	321483-4	PISTON, HR1821	$10.32
14	942151-2	SPRING WASHER 6, 5007NB	$0.90
15	922371-4	H.S.H. BOLT M6X50, HM1211	$2.40
16	256123-4	PIN 5, HR1821	$4.93
17	813002-5	MAKITA LABEL, 4014B	$0.66
18	410018-7	CRANK CAP, HR1821	$5.92
19	213460-9	O RING 35, HM1500	$1.19
20	321489-2	ROD, HR1821	$18.90
21	212005-0	N. BEARING 810, HR2410	$5.92
22	321485-0	CRANKSHAFT, HR1821	$38.96
23	216011-7	STEEL BALL 5.6, 6222DWE	$0.86
24	231327-9	COMP. SPRING 6, HR2511	$1.48
25	321484-2	CHANGE PIN 8, HR1821	$4.49
26	157473-9	CRANK HOUSING, HR1821	$45.59
27	213459-4	O RING 32, HK1810	$1.19
28	211204-1	BALL BEARING 6002, HR2511	$15.27
29	221705-1	H. GEAR 29, HR1821	$22.75
30	253853-8	F. WASHER 15, LS1211	$1.63
31	151153-9	TORQUE LIMITER, HR1821	$122.03
32	253715-0	F. WASHER 6, NHP1310	$1.34
33	213707-1	O RING 65, HM1100C	$3.61
34	156910-0	GEAR HOUSING, HR1821	$80.90
35	211069-1	BALL BEARING 6200, HR1812	$10.98
36	213406-5	O RING 30, HR5000	$1.19
37	213157-0	OIL SEAL, HR2511	$18.90
38	241820-5	FAN 67, HR1821	$8.78
40	681613-2	INS. WASHER, JN3200	$1.63
41	263014-2	RUBBER PIN 4, 9217SPC	$1.19
42	211033-2	B. BEARING 608LB, 5091D	$8.78
43	213377-6	OIL SEAL 21, HR2511	$14.61
44	443061-1	FELT RING 20, HR2511	$0.97
45	213507-9	O RING 40, HR1821	$1.96
46	322095-6	SEAL HOLDER, HR1821 (T2)	$42.94
47	216007-8	STEEL BALL 6.4, 6905B	$0.86
48	321616-1	IMPACT BOLT, HR2511	$39.57
49	213058-2	O RING 10, HR2511	$3.61
50	213058-2	O RING 10, HR2511	$3.61
51	322254-2	DRILL HOLDER, HR1821 (T3)	$98.30
52	322255-0	ROLLER 6.5, HR1821	$4.49
53	213064-7	O RING 10, HR2511	$5.37
54	213058-2	O RING 10, HR2511	$3.61
55	213309-3	O RING 19, HK1800	$5.37
56	414425-6	CHANGE RING, HR1821 (TYPE 3)	$21.76
57	216002-8	STEEL BALL 4.8, NHP1310	$0.53
59	213309-3	O RING 19, HK1800	$5.37
60	253164-1	F. WASHER 20, HR2511,T1	$1.63
61	257913-8	SPIRO LOCK WASHER, HR2511-T1	$3.61
62	421274-4	CHUCK COVER, HR2511 (TYPE 1)	$5.92
63	410043-8	BAFFLE PLATE, HR1821	$3.61
64	265342-1	HEX BOLT M5X40, HR1821	$3.61
65	953106-2	RIVET 0-5, HM1500	$0.49
66	855105-9	NAME PLATE, HR1821	$1.36
67	931302-2	HEX NUT M6, HR2400	$0.79
68	818057-5	LABEL, 4301BV	$0.64
69	643600-9	BRUSH CAP 6-10, 9005B	$1.63
70	194975-4	A.C.CARBON BRUSH CB-105 HM0810B	$13.84
71	159539-1	MOTOR HOUSING, HR1821, T2	$34.17
72	911323-0	P.H. SCREW M6X16, LS1211	$1.19
73	911238-1	P.H. SCREW M5X22, GA7001L	$0.82
74	181488-4	HANDLE SET, HR1821	$23.74
75	911343-4	P.H. SCREW M6X25, HR2511	$1.19
76	911133-5	P.H. SCREW M4X18, N9501B	$0.86
77	687001-1	STRAIN RELIEF, 6013BR	$0.97
79	682503-2	CORD GUARD 8-90, 9005B	$2.51
79	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
82	421145-5	DUST COVER, HR2511	$3.06
85	181488-4	HANDLE SET, HR1821	$23.74
86	273496-0	GRIP 32, HR2000	$21.76
87	923456-9	C.S.N. BOLT M8X35, HR2511	$1.74
88	341539-7	BELT, HR1821	$4.49
89	315145-4	GRIP BASE, HR2511	$5.92
90	261042-1	WASHER 4.5,HR2000	$1.34
91	924216-2	THUMB SCREW M5X15, 9030	$1.48
94	286220-2	CAP 34, HR1821	$4.49
95	253928-3	LOCK WASHER 5, 9000BL	$0.66
96	253792-2	F. WASHER 26, 4304	$1.63
97	421456-8	PROTECTOR, HR1821	$7.46
403	783203-8	HEX WRENCH 5, 2708	$3.24
404	765009-6	BLOW-OUT BULB HR2410	$6.40
500	134561-9	CHUCK ASSEMBLY, HR1821,T3	$91.80
