Makita HR160D Rotary Hammer Parts

Makita HR160D Rotary Hammer Parts Image

Makita HR160D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

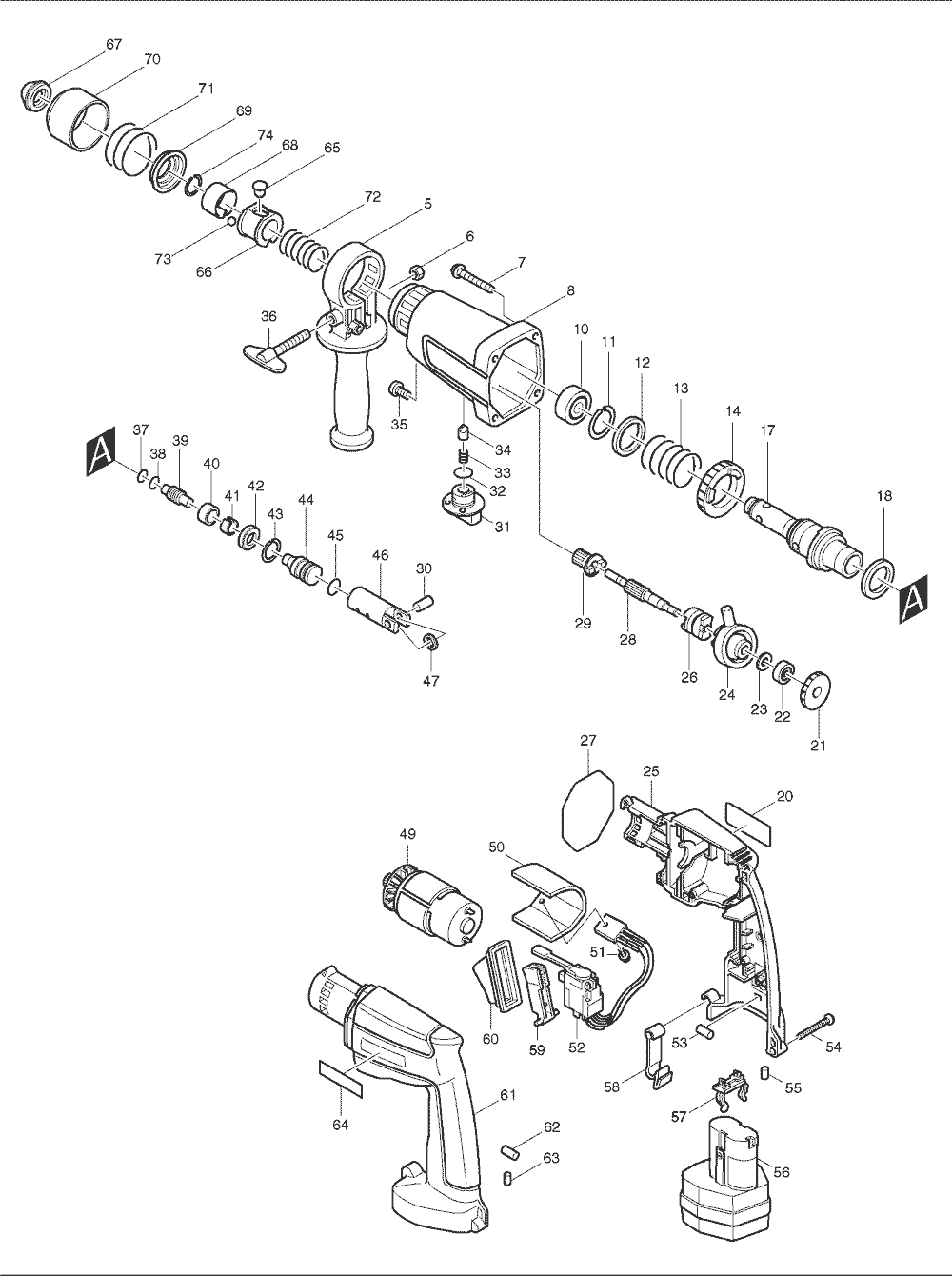

Makita HR160D Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
5 273634-4 GRIP 33, HR160DH . $14.61
6 931302-2 HEX NUT M6, HR2400 $0.79
7 266012-5 TAPPING SCREW 5X35, HR160DH $1.48
8 150822-9 GEAR HOUSING COMPLETE, HR2400-T2 $34.47
8 159594-3 GEAR HOUSING, HR2400-T1 $48.55
10 211323-3 BALL BEARING 6904LLU, HR2420 $17.80
11 231954-2 RING SPRING 28, HR2400 $1.63
12 267110-8 FLAT WASHER 31, HR2400 $5.92
13 233123-1 COMPRESSION SPRING 32, HR160DH $4.93
14 226260-8 SPUR GEAR, HR2400 $26.72
17 322553-2 TOOL HOLDER, HR2400, T1 $77.50
17 323725-2 TOOL HOLDER, HR2400-T2 $59.90
18 267105-1 FLAT WASHER 29, HR2400 $5.26
19 267105-1 FLAT WASHER 29, HR2400 $5.26
20 857521-1 NAME PLATE, HR160DWA $1.36
21 226288-6 SPUR GEAR 49, HR160DH $22.09
22 211022-7 BALL BEARING 607ZZ, HR160DH $11.97
23 253186-1 F. WASHER 7, JR3010 $1.34
24 219007-7 SWASH BEARING 9, HR2400 $50.89
25 182672-4 MOTOR HOUSING SET, HR160DH $37.02
26 322652-0 CLUTCH, HR2400 $27.59
27 213720-9 O RING 67, HR2400 $1.96
28 322721-7 CAM SHAFT, HR160DH $29.58
29 226259-3 SPUR GEAR 10, HR2400 $26.72
30 321916-9 PISTON JOINT, HR2400 $10.32
31 415372-4 CHANGE LEVER, HR2400 $4.49
32 213265-7 O RING 17, HR4002 $0.86
33 231288-3 COMP. SPRING 6, HR2400 $4.16
34 322653-8 PUSH CONE, HR2400 $5.92
35 251392-2 PAN HEAD SCREW M4, HR2400 $0.86
36 265715-8 SCREW 6X40, HR2400 $5.37
37 213063-9 O RING 10, HR2400 $3.61
38 213063-9 O RING 10, HR2400 $3.61
39 322586-7 IMPACT BOLT, HR2400, T1 $7.02
39 323723-6 IMPACT BOLT, HR2400-T2 $4.93
40 262038-5 RUBBER RING 17, HR2400 $3.61
41 321915-1 IDLER, HR2400 $11.75
42 267109-3 FLAT WASHER 13.5, HR2400 $5.92
43 231953-4 RING SPRING, HR2400 $1.63
44 322720-9 STRIKER, HR160DH $17.25
45 213214-4 O RING 16, HR2400 $5.37
46 316450-2 PISTON CYLINDER, HR2400 $38.96
47 267104-3 FLAT WASHER 12, HR2400 $2.16
48 267104-3 FLAT WASHER 12, HR2400 $2.16
49 629685-9 DC MOTOR 12V, HR160DH $160.06
50 689028-7 RADIATING PLATE, HR160DH $5.48
51 911013-5 P.H. SCREW M3X10, LXFD01CW $0.86
52 651911-8 SWITCH, HR160DH $67.70
53 263024-9 RUBBER PIN 4, 6918DWD $1.48
54 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
55 263014-2 RUBBER PIN 4, 9217SPC $1.19
57 643918-8 BATTERY HOLDER, 6391DWPLE $8.01
58 344121-1 SET PLATE, 6221DW $3.06
59 415499-0 SWITCH LEVER, HR160DH $3.06
60 421495-8 DUST COVER, HR160DH $4.16
61 182672-4 MOTOR HOUSING SET, HR160DH $37.02
62 263024-9 RUBBER PIN 4, 6918DWD $1.48
63 263014-2 RUBBER PIN 4, 9217SPC $1.19
64 819063-3 MAKITA LABEL, DA3010F $0.96
65 256447-8 PIN 8, HR2420 $3.61
65 322517-6 ROLLER 7, HR2400 $3.06
66 154404-9 CHANGE RING, HR2400 (T3) $26.16
66 323724-4 CHUCK RING, HR2400 $18.90
67 286265-0 CAP 31, HR2400,T2 $1.26
67 286234-1 CAP 37, HR2000,T2, HR2400 $8.78
68 232190-3 LEAF SPRING 26, HR2410 $4.16
68 232192-9 LEAF SPRING 26, HR2400 $4.16
69 344574-4 SPRING GUIDE, HR2400 $1.96
70 416410-5 CHUCK COVER, HR2400 $5.92
70 415076-8 CHANGE RING COVER, HR2400 $4.49
71 233203-3 COMPRESSION SPRING 38, HR2400 $2.07
71 213068-9 O RING 10, HR2400 $3.61
72 233202-5 COMPRESSION SPRING 20, HR2400 $1.63
73 216009-4 STEEL BALL 7.1, HR2400 $0.86
73 216022-2 STEEL BALL 7.0, HR2400 $0.86
74 231979-6 RING SPRING 16, HR2400 $0.86
74 257172-4 RING 20, HR2400 $4.49
1002 414938-7 BATTERY COVER, 6222DWE $2.20
