Makita HP2070F Electric Drill Parts

Makita HP2070F Electric Drill Parts Image

Makita HP2070F Parts
3/4 Inch Hammer Drill, Dual Purpose, L.E.D. Light

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HP2070F
3/4 Inch Hammer Dril...
$200.99
Tool Diagram    (Click image to Zoom in) View larger Image

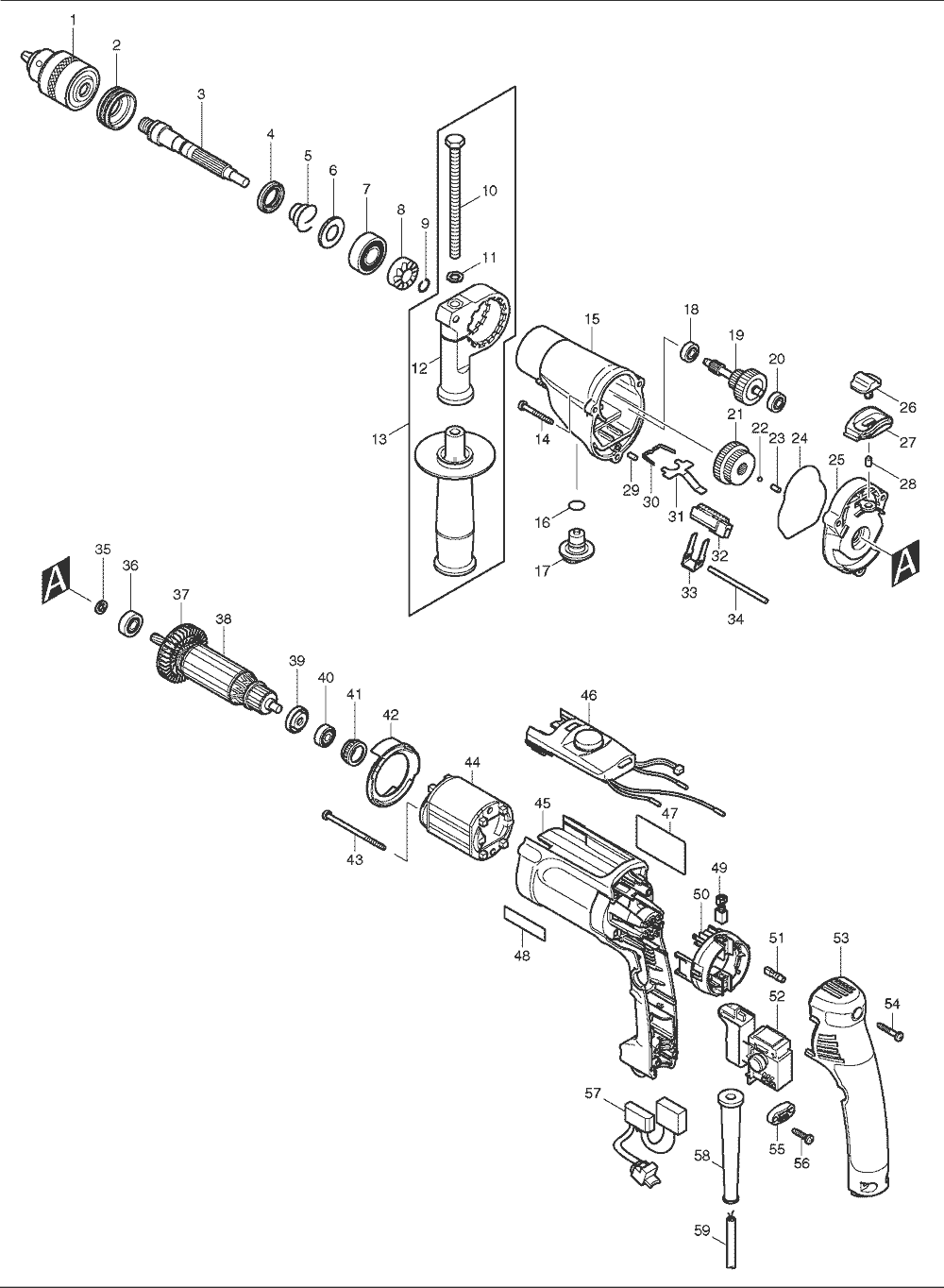

Makita HP2070F Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 193822-6 DRILL CHUCK S13 HP2070F $53.80
00 417724-5 LATCH, HP2070F $1.26
2 285839-4 BEARING RETAINER, HP2050F $2.84
3 324247-5 SPINDLE, HP2050F $10.65
4 213314-0 OIL SEAL 19, HP2030 $5.92
5 233921-3 CONICAL COMP. SPRING, HP2050F $0.86
6 345224-4 CUP WASHER 15, HP2050F $1.34
7 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
8 223141-7 CAM A, HP2070F $2.84
9 233920-5 RING SPRING 11, HP2050F $0.86
10 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
11 345280-4 HEX. WASHER, HP2050F $1.01
12 417630-4 GRIP BASE, HP1640 $2.84
13 135302-6 GRIP 36 ASS'Y, HR2450F $4.16
14 266053-1 P.T. SCREW 4X35, 4304 $1.48
15 153621-8 GEAR HOUSING CPL.,HP2070F $12.52
16 213122-9 O RING 12, AN922 $0.82
17 417805-5 CHANGE LEVER B, HP2050F $1.52
18 211014-6 B. BEARING 606, 6826 $13.07
18 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
19 153622-6 GEAR, HP2070F $17.25
20 211014-6 B. BEARING 606, 6826 $13.07
20 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
21 227030-8 SPUR GEAR 29-37, HP2050F $4.27
21 227119-2 SPUR GEAR 29-37, HP2070F $8.45
22 216001-0 STEEL BALL 3.5, 6800DBV $0.53
23 256251-5 PIN 4, HP2050F $1.19
24 421810-6 SEAL RING, HP2050F $1.52
25 153620-0 GEAR HOUSING COVER CPL., HP2050F $8.45
26 418083-0 CHANGE LEVER A, HP2050F $0.97
27 417802-1 LEVER CASE, HP2050F $1.26
28 263002-9 RUBBER PIN 4, 5007NK $0.86
29 256251-5 PIN 4, HP2050F $1.19
30 232143-2 LEAF SPRING, HP2030 $3.61
31 345225-2 LOCK PLATE, HP2050F $0.97
32 417804-7 RACK 12, HP2050F $1.26
33 345223-6 CHANGE PLATE B, HP2050F $0.97
34 268092-7 PIN 4, HP2050F $0.86
35 262087-2 RING 8, HP2050F $5.37
36 210005-4 BALL BEARING 608DDW, 9031 $13.07
37 240065-2 FAN 52, HP2070F $1.52
38 517461-2 ARMATURE ASS'Y 115V, HP2070F $34.98
39 681636-0 INSULATION WASHER, GA4030 $3.72
40 211021-9 BALL BEARING 607LLB, LS1013 $8.78
41 421494-0 LABYRINTH RUBBER RING,HR2455, DA3010F $4.49
42 418269-6 BAFFLE PLATE, HP2070F $0.75
43 266004-4 TAPPING SCREW 4X70 $1.74
44 633571-8 FIELD 115V, HP2070F $17.03
45 183658-1 MOTOR HOUSING, HP2070F $8.01
46 631533-0 CONTROLLER, HP2070F $54.90
47 850577-3 NAME PLATE, HP2070F $2.40
48 819063-3 MAKITA LABEL, DA3010F $0.96
49 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.99
49 K38 This item will be shipped Free Carbon Brush Set Replaces Makita (CB407), CB-419... $8.50
50 638413-1 BRUSH HOLDER, HP2070F $11.53
51 686038-5 RECEPTACLE SLEEVE, HP2070F $0.75
52 650212-1 SWITCH TG813TB-4, HP2070F $22.86
53 418273-5 HANDLE COVER, HP2070F $6.80
55 687063-9 STRAIN RELIEF, 4323K $1.26
56 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
57 631476-6 LIGHT CIRCUIT, HP2050F $26.38
58 682559-5 CORD GUARD 8, 6824 $2.51
58 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
59 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
59 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
1001 324219-0 DEPTH GAUGE,HP2050F $4.40
1002 410102-8 KEY HOLDER, 6013BR $1.26
1003 763430-3 CHUCK KEY S13 HP2040 $7.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
