Makita HP2050F Electric Drill Parts

Makita HP2050F Electric Drill Parts Image

Makita HP2050F Parts
3/4 Inch Hammer Drill, 6.5 amps, Dual Purpose

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HP2050F
3/4 Inch Hammer Dril...
$147.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

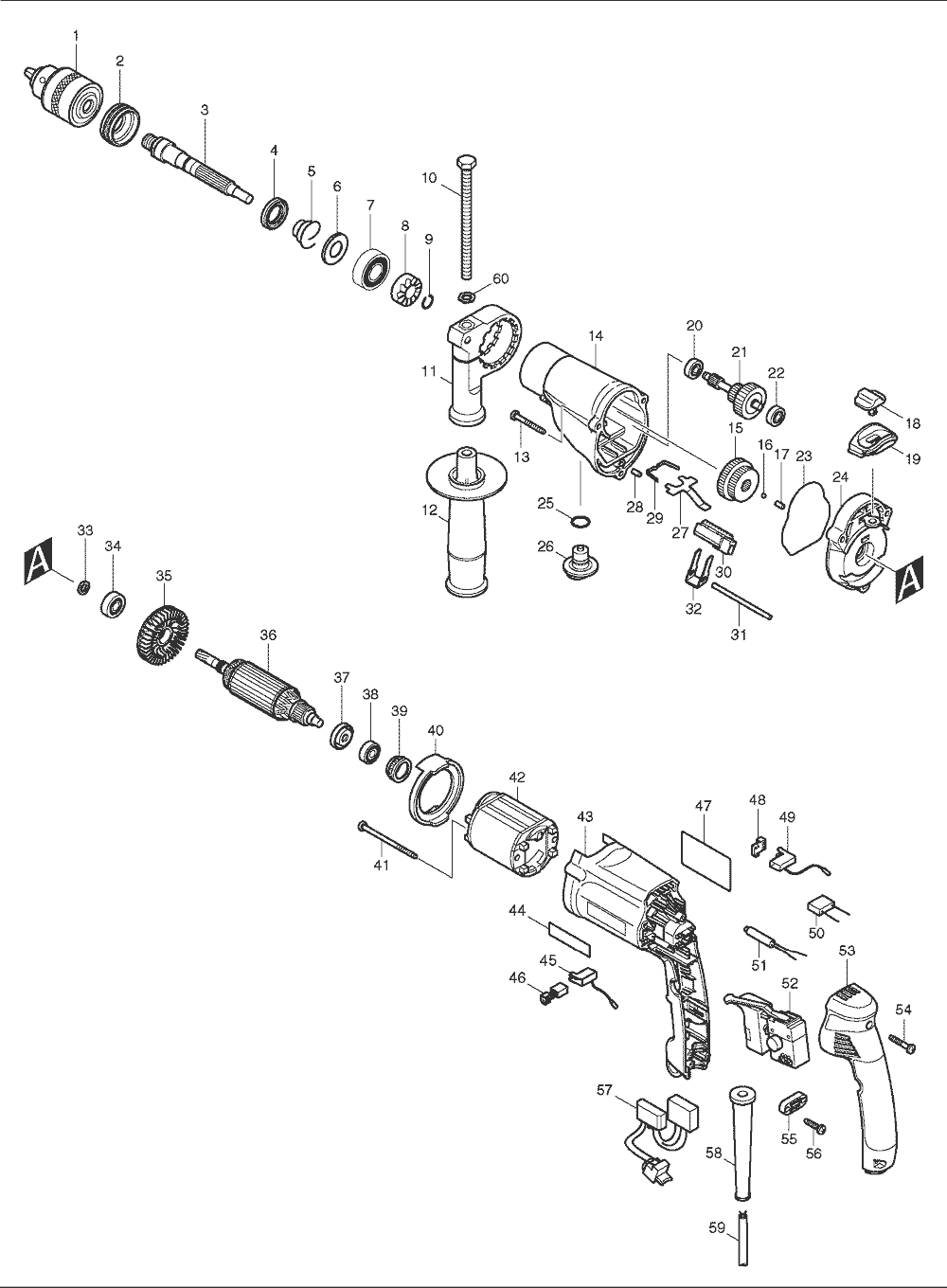

Makita HP2050F Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 654121-6 TAB, HP2050F $0.75
2 285839-4 BEARING RETAINER, HP2050F $2.84
42 633525-5 FIELD 115V, HP2050F $10.43
3 324247-5 SPINDLE, HP2050F $10.65
4 213314-0 OIL SEAL 19, HP2030 $5.92
5 233921-3 CONICAL COMP. SPRING, HP2050F $0.86
6 345224-4 CUP WASHER 15, HP2050F $1.34
7 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
8 223137-8 CAM A HP2050F $2.84
9 233920-5 RING SPRING 11, HP2050F $0.86
10 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
11 417630-4 GRIP BASE, HP1640 $2.84
12 152521-9 GRIP 36 CPL., DP4002 $4.49
12 135302-6 GRIP 36 ASS'Y, HR2450F $4.16
13 266053-1 P.T. SCREW 4X35, 4304 $1.48
14 153379-9 GEAR HOUSING CPL., HP2050F $12.52
15 227030-8 SPUR GEAR 29-37, HP2050F $4.27
16 216001-0 STEEL BALL 3.5, 6800DBV $0.53
17 256251-5 PIN 4, HP2050F $1.19
18 418083-0 CHANGE LEVER A, HP2050F $0.97
19 417802-1 LEVER CASE, HP2050F $1.26
20 211014-6 B. BEARING 606, 6826 $13.07
20 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
21 153622-6 GEAR, HP2070F $17.25
22 211014-6 B. BEARING 606, 6826 $13.07
22 211012-0 BALL BEARING 606ZZ, HR2410 $15.27
23 421810-6 SEAL RING, HP2050F $1.52
24 153620-0 GEAR HOUSING COVER CPL., HP2050F $8.45
25 213162-7 O RING 14, 2414B $0.86
25 213122-9 O RING 12, AN922 $0.82
26 417805-5 CHANGE LEVER B, HP2050F $1.52
27 345225-2 LOCK PLATE, HP2050F $0.97
28 256251-5 PIN 4, HP2050F $1.19
29 232143-2 LEAF SPRING, HP2030 $3.61
30 417804-7 RACK 12, HP2050F $1.26
31 268092-7 PIN 4, HP2050F $0.86
32 345223-6 CHANGE PLATE B, HP2050F $0.97
33 262087-2 RING 8, HP2050F $5.37
34 210005-4 BALL BEARING 608DDW, 9031 $13.07
35 241881-5 FAN 52, 6904VH $4.16
36 517411-7 ARMATURE ASSY 115V, HP2050F $45.49
37 681636-0 INSULATION WASHER, GA4030 $3.72
38 211021-9 BALL BEARING 607LLB, LS1013 $8.78
39 421494-0 LABYRINTH RUBBER RING,HR2455, DA3010F $4.49
40 417803-9 BAFFLE PLATE, HP2050F $1.26
42 633525-5 FIELD 115V, HP2050F $10.43
43 417806-3 HOUSING SET, HP2050F $11.53
44 819063-3 MAKITA LABEL, DA3010F $0.96
45 643989-5 BRUSH HOLDER,HP2050F $2.84
46 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
47 853859-2 NAME PLATE,HP2050F $1.21
48 689111-0 SPACER, HP2050F $1.26
49 643988-7 BRUSH HOLDER, HP2050F $2.84
52 650524-2 SWITCH, HP2050F $29.47
53 153284-0 HANDLE COVER CPL., HP2050F $8.01
55 687063-9 STRAIN RELIEF, 4323K $1.26
56 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
57 631476-6 LIGHT CIRCUIT, HP2050F $26.38
58 682559-5 CORD GUARD 8, 6824 $2.51
58 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
59 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
59 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
60 345280-4 HEX. WASHER, HP2050F $1.01
61 263002-9 RUBBER PIN 4, 5007NK $0.86
1001 324219-0 DEPTH GAUGE,HP2050F $4.40
1002 410102-8 KEY HOLDER, 6013BR $1.26
1004 763430-3 CHUCK KEY S13 HP2040 $7.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
