Makita HP2031 Electric Drill Parts

Makita HP2031 Electric Drill Parts Image

Makita HP2031 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

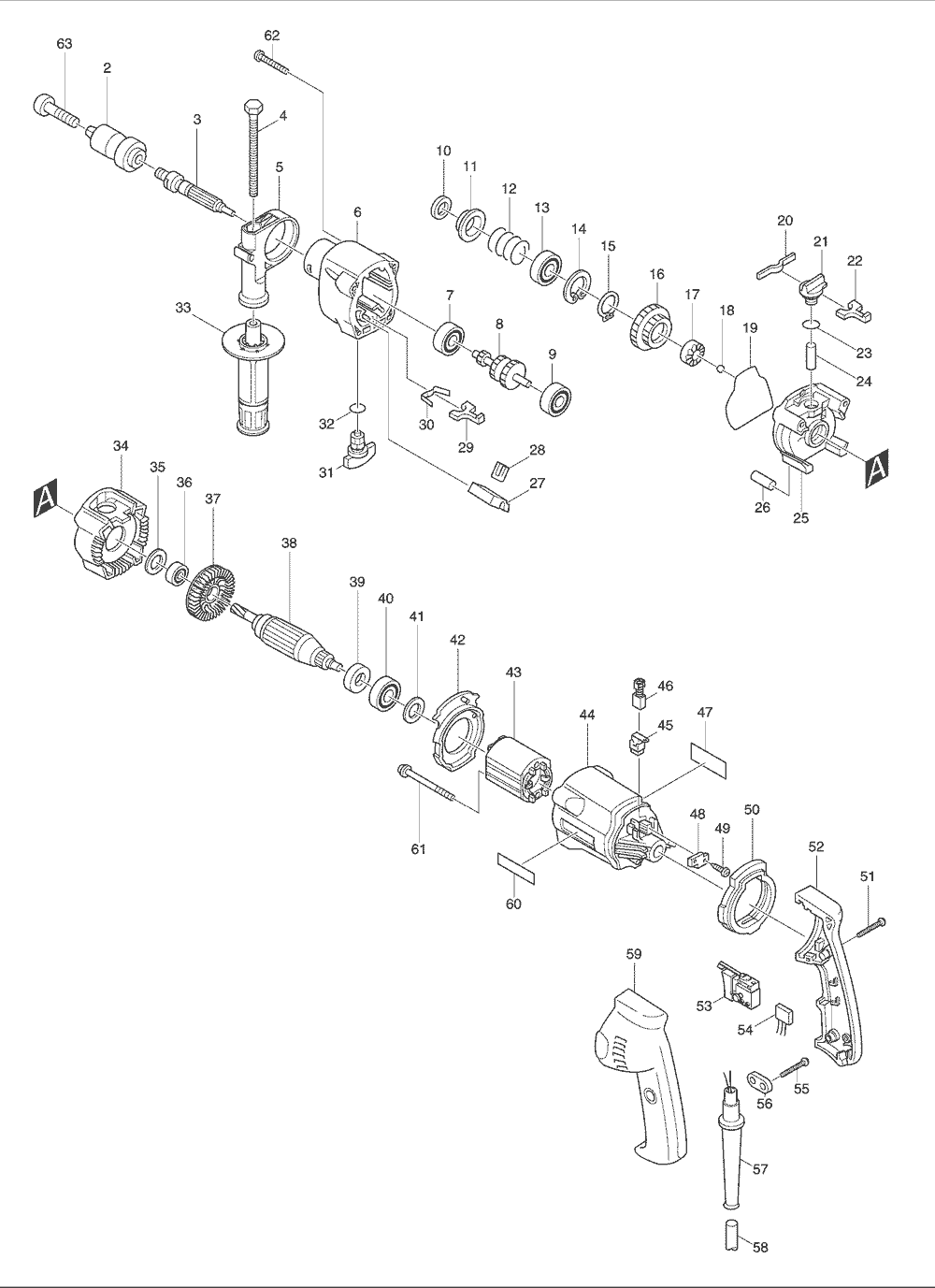

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	323854-1	SPINDLE, HP2032	$21.10
3	322786-9	SPINDLE, HP2030	$26.38
4	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
4	921919-9	BOLT M8X10, HP2030	$3.61
5	415485-1	GRIP BASE, HP2030	$5.92
6	415614-6	GEAR HOUSING, HP2030	$15.27
7	211014-6	B. BEARING 606, 6826	$13.07
8	226818-3	GEAR CPL. 8-19-25, HP2030	$49.06
9	211014-6	B. BEARING 606, 6826	$13.07
10	213314-0	OIL SEAL 19, HP2030	$5.92
11	344177-4	CUP WASHER 26, HP2030	$1.63
12	233091-8	COMP. SPRING 16, HP2030	$0.86
13	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
14	962153-2	RETAINING RING R-35,HP2030	$1.48
15	961055-9	RETAINING RING S-15, 5007F	$1.19
16	226289-4	SPUR GEAR 27-38, HP2030	$26.72
17	223104-3	CAM A, HP2030	$13.18
18	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
18	216018-3	STEEL BALL 5.0,BFT122FZ	$1.96
19	213759-2	O RING 72, HP2030	$3.61
20	232053-3	LEAF SPRING, HP2030	$0.86
21	415619-6	CHANGE LEVER A, HP2030	$3.06
22	344178-2	LOCK PLATE, HP2030	$1.26
23	213162-7	O RING 14, 2414B	$0.86
24	322787-7	CHANGE PIN 8, HP2030	$5.92
25	151764-0	CAM HOUSING COMP., HP2032	$18.57
26	256226-4	PIN 4, 6922NB	$1.19
26	256251-5	PIN 4, HP2050F	$1.19
27	415621-9	RACK 12, HP2030	$1.63
28	344179-0	CHANGE PLATE, HP2030	$0.97
29	344178-2	LOCK PLATE, HP2030	$1.26
30	232143-2	LEAF SPRING, HP2030	$3.61
31	415620-1	CHANGE LEVER B, HP2030	$3.06
32	213162-7	O RING 14, 2414B	$0.86
33	152489-9	GRIP 36, HR2410	$4.49
34	415615-4	CAM HOUSING COVER, HP2030	$9.33
35	253707-9	F. WASHER 16, 6802BV	$1.34
36	210005-4	BALL BEARING 608DDW, 9031	$13.07
37	241850-6	FAN 60, BTW450	$4.16
38	517101-2	ARMATURE, HP2030	$69.60
40	211026-9	B. BEARING 627LLB, N9514B	$8.78
41	253707-9	F. WASHER 16, 6802BV	$1.34
42	415618-8	BAFFLE PLATE, HP2030	$1.26
43	633410-2	FIELD 100/115V, HP2032	$26.49
44	415601-5	MOTOR HOUSING, HP2030	$11.75
45	643923-5	BRUSH HOLDER, HR2410	$1.63
46	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
47	858234-7	NAME PLATE, HP2031	$2.74
48	415622-7	BRUSH HOLDER PLATE, HP2030	$1.26
49	266007-8	TAPPING SCREW 3X10, 9557NB	$0.53
50	421505-1	CUSHION RUBBER, HP2030	$3.06
51	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
52	182724-1	HANDLE SET, HP2030	$10.32
55	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
56	687063-9	STRAIN RELIEF, 4323K	$1.26
57	682502-4	CORD GUARD 8-85, HP2010N	$2.51
57	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
58	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
58	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
59	182724-1	HANDLE SET, HP2030	$10.32
60	819063-3	MAKITA LABEL, DA3010F	$0.96
62	266038-7	TAPPING SCREW 5X70, HP2030	$5.37
63	251464-3	FLAT SCREW M6X22, HP2031	$1.48
64	256251-5	PIN 4, HP2050F	$1.19
1001	415486-9	STOPPER POLE HP2030	$4.20
