Tool Diagram    (Click image to Zoom in) View larger Image

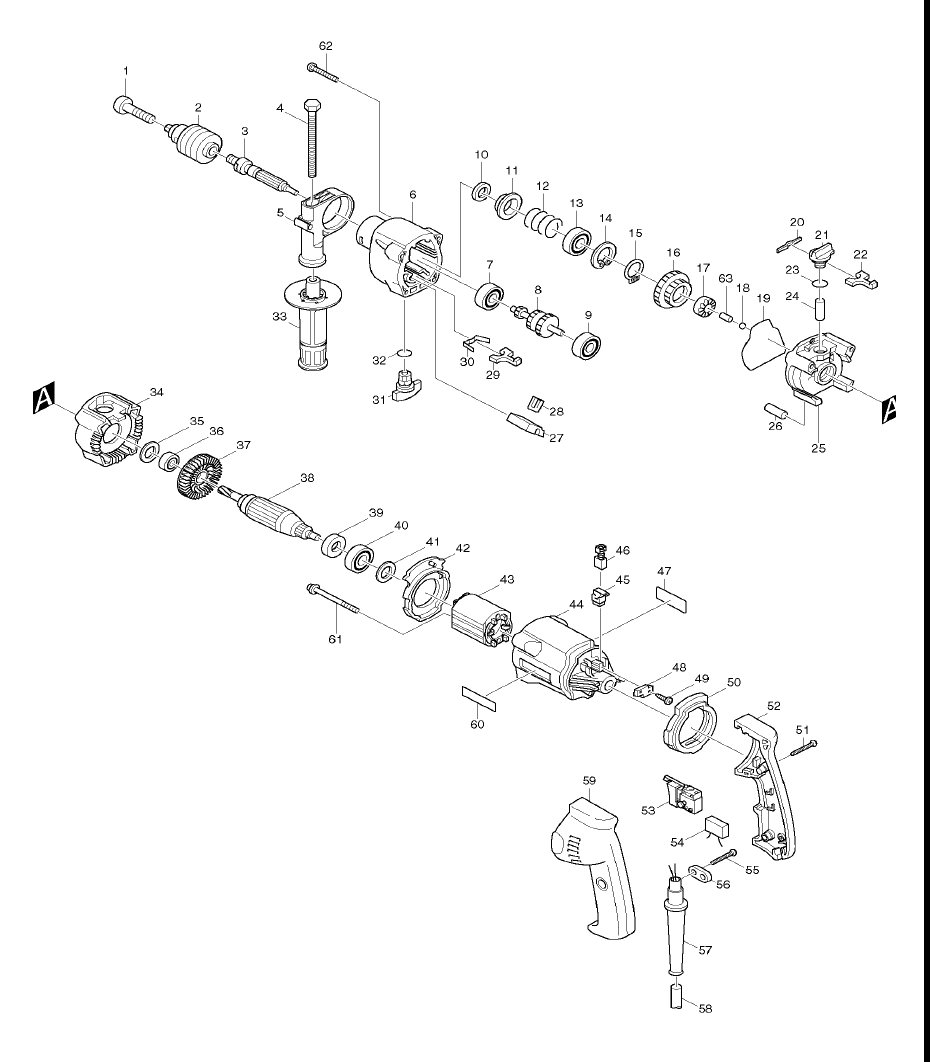

Makita HP2030 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 251469-3 F.H. SCREW 6X25, HP2032 $1.74
1 251469-3 F.H. SCREW 6X25, HP2032 $1.74
3 323854-1 SPINDLE, HP2032 $21.10
3 322786-9 SPINDLE, HP2030 $26.38
4 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
4 921919-9 BOLT M8X10, HP2030 $3.61
5 415485-1 GRIP BASE, HP2030 $5.92
3 322786-9 SPINDLE, HP2030 $26.38
3 323854-1 SPINDLE, HP2032 $21.10
6 415614-6 GEAR HOUSING, HP2030 $15.27
7 211014-6 B. BEARING 606, 6826 $13.07
4 921919-9 BOLT M8X10, HP2030 $3.61
4 921923-8 HEX. BOLT M8 X 120, HP2050F $1.96
8 226818-3 GEAR CPL. 8-19-25, HP2030 $49.06
9 211014-6 B. BEARING 606, 6826 $13.07
5 415485-1 GRIP BASE, HP2030 $5.92
10 213314-0 OIL SEAL 19, HP2030 $5.92
6 415614-6 GEAR HOUSING, HP2030 $15.27
11 344177-4 CUP WASHER 26, HP2030 $1.63
6 415614-6 GEAR HOUSING, HP2030 $15.27
7 211014-6 B. BEARING 606, 6826 $13.07
12 233091-8 COMP. SPRING 16, HP2030 $0.86
13 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
8 226818-3 GEAR CPL. 8-19-25, HP2030 $49.06
9 211014-6 B. BEARING 606, 6826 $13.07
14 962153-2 RETAINING RING R-35,HP2030 $1.48
15 961055-9 RETAINING RING S-15, 5007F $1.19
10 213314-0 OIL SEAL 19, HP2030 $5.92
16 226289-4 SPUR GEAR 27-38, HP2030 $26.72
11 344177-4 CUP WASHER 26, HP2030 $1.63
12 233091-8 COMP. SPRING 16, HP2030 $0.86
17 223104-3 CAM A, HP2030 $13.18
18 216001-0 STEEL BALL 3.5, 6800DBV $0.53
13 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
18 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
14 962153-2 RETAINING RING R-35,HP2030 $1.48
19 213759-2 O RING 72, HP2030 $3.61
15 961055-9 RETAINING RING S-15, 5007F $1.19
20 232053-3 LEAF SPRING, HP2030 $0.86
16 226289-4 SPUR GEAR 27-38, HP2030 $26.72
21 415619-6 CHANGE LEVER A, HP2030 $3.06
22 344178-2 LOCK PLATE, HP2030 $1.26
17 223104-3 CAM A, HP2030 $13.18
18 216001-0 STEEL BALL 3.5, 6800DBV $0.53
23 213162-7 O RING 14, 2414B $0.86
18 216018-3 STEEL BALL 5.0,BFT122FZ $1.96
24 322787-7 CHANGE PIN 8, HP2030 $5.92
19 213759-2 O RING 72, HP2030 $3.61
25 151764-0 CAM HOUSING COMP., HP2032 $18.57
26 256226-4 PIN 4, 6922NB $1.19
26 256251-5 PIN 4, HP2050F $1.19
20 232053-3 LEAF SPRING, HP2030 $0.86
27 415621-9 RACK 12, HP2030 $1.63
21 415619-6 CHANGE LEVER A, HP2030 $3.06
28 344179-0 CHANGE PLATE, HP2030 $0.97
22 344178-2 LOCK PLATE, HP2030 $1.26
23 213162-7 O RING 14, 2414B $0.86
29 344178-2 LOCK PLATE, HP2030 $1.26
30 232143-2 LEAF SPRING, HP2030 $3.61
24 322787-7 CHANGE PIN 8, HP2030 $5.92
31 415620-1 CHANGE LEVER B, HP2030 $3.06
25 151764-0 CAM HOUSING COMP., HP2032 $18.57
32 213162-7 O RING 14, 2414B $0.86
26 256226-4 PIN 4, 6922NB $1.19
33 152489-9 GRIP 36, HR2410 $4.49
26 256251-5 PIN 4, HP2050F $1.19
34 415615-4 CAM HOUSING COVER, HP2030 $9.33
35 253707-9 F. WASHER 16, 6802BV $1.34
27 415621-9 RACK 12, HP2030 $1.63
36 210005-4 BALL BEARING 608DDW, 9031 $13.07
28 344179-0 CHANGE PLATE, HP2030 $0.97
37 241850-6 FAN 60, BTW450 $4.16
29 344178-2 LOCK PLATE, HP2030 $1.26
30 232143-2 LEAF SPRING, HP2030 $3.61
38 517101-2 ARMATURE, HP2030 $69.60
31 415620-1 CHANGE LEVER B, HP2030 $3.06
40 211026-9 B. BEARING 627LLB, N9514B $8.78
32 213162-7 O RING 14, 2414B $0.86
41 253707-9 F. WASHER 16, 6802BV $1.34
33 152489-9 GRIP 36, HR2410 $4.49
42 415618-8 BAFFLE PLATE, HP2030 $1.26
34 415615-4 CAM HOUSING COVER, HP2030 $9.33
35 253707-9 F. WASHER 16, 6802BV $1.34
43 633410-2 FIELD 100/115V, HP2032 $26.49
36 210005-4 BALL BEARING 608DDW, 9031 $13.07
44 415601-5 MOTOR HOUSING, HP2030 $11.75
37 241850-6 FAN 60, BTW450 $4.16
45 643923-5 BRUSH HOLDER, HR2410 $1.63
46 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
38 517101-2 ARMATURE, HP2030 $69.60
47 857769-5 NAME PLATE, HP2030 $1.12
39 681614-0 INS. WASHER, 9031 $1.63
48 415622-7 BRUSH HOLDER PLATE, HP2030 $1.26
40 210025-8 BALL BEARING 627LLB, 4324 $6.69
49 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
40 211026-9 B. BEARING 627LLB, N9514B $8.78
41 253707-9 F. WASHER 16, 6802BV $1.34
50 421505-1 CUSHION RUBBER, HP2030 $3.06
51 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
42 415618-8 BAFFLE PLATE, HP2030 $1.26
52 182724-1 HANDLE SET, HP2030 $10.32
43 633410-2 FIELD 100/115V, HP2032 $26.49
44 415601-5 MOTOR HOUSING, HP2030 $11.75
55 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
45 643923-5 BRUSH HOLDER, HR2410 $1.63
56 687063-9 STRAIN RELIEF, 4323K $1.26
46 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.12
57 682549-8 CORD GUARD 8, HP2030 $2.51
58 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
47 857769-5 NAME PLATE, HP2030 $1.12
58 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
48 415622-7 BRUSH HOLDER PLATE, HP2030 $1.26
59 182724-1 HANDLE SET, HP2030 $10.32
60 819063-3 MAKITA LABEL, DA3010F $0.96
49 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
50 421505-1 CUSHION RUBBER, HP2030 $3.06
51 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
62 266038-7 TAPPING SCREW 5X70, HP2030 $5.37
63 256251-5 PIN 4, HP2050F $1.19
52 182724-1 HANDLE SET, HP2030 $10.32
52 182724-1 HANDLE SET, HP2030 $10.32
53 651986-7 SWITCH, 6410 REPLACES 651935-4 and 651987-5 $26.05
55 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
56 687063-9 STRAIN RELIEF, 4323K $1.26
57 682549-8 CORD GUARD 8, HP2030 $2.51
59 182724-1 HANDLE SET, HP2030 $10.32
59 182724-1 HANDLE SET, HP2030 $10.32
60 819063-3 MAKITA LABEL, DA3010F $0.96
61 266060-4 TAPPING SCREW 4X65, HP2030 $3.61
62 266038-7 TAPPING SCREW 5X70, HP2030 $5.37
63 256251-5 PIN 4, HP2050F $1.19
1001 415486-9 STOPPER POLE HP2030 $4.20
1002 763430-3 CHUCK KEY S13 HP2040 $7.20
1002 763440-0 CHUCK KEY S13 HP1640 $6.40
1003 410102-8 KEY HOLDER, 6013BR $1.26
1004 824474-9 PLASTIC TOOL CASE HP2031 $22.36
1001 415486-9 STOPPER POLE HP2030 $4.20
1002 763430-3 CHUCK KEY S13 HP2040 $7.20
1002 763440-0 CHUCK KEY S13 HP1640 $6.40
1003 410102-8 KEY HOLDER, 6013BR $1.26
1004 824474-9 PLASTIC TOOL CASE HP2031 $22.36
