Makita HP1620F Electric Drill Parts

Makita HP1620F Electric Drill Parts Image

Makita HP1620F Parts

5/8 Inch Hammer Drill with L.E.D. Light

Download Schematic

Time to buy a new tool?

Makita HP1620F

5/8 Inch Hammer Dril...

$95.99

Free Shipping

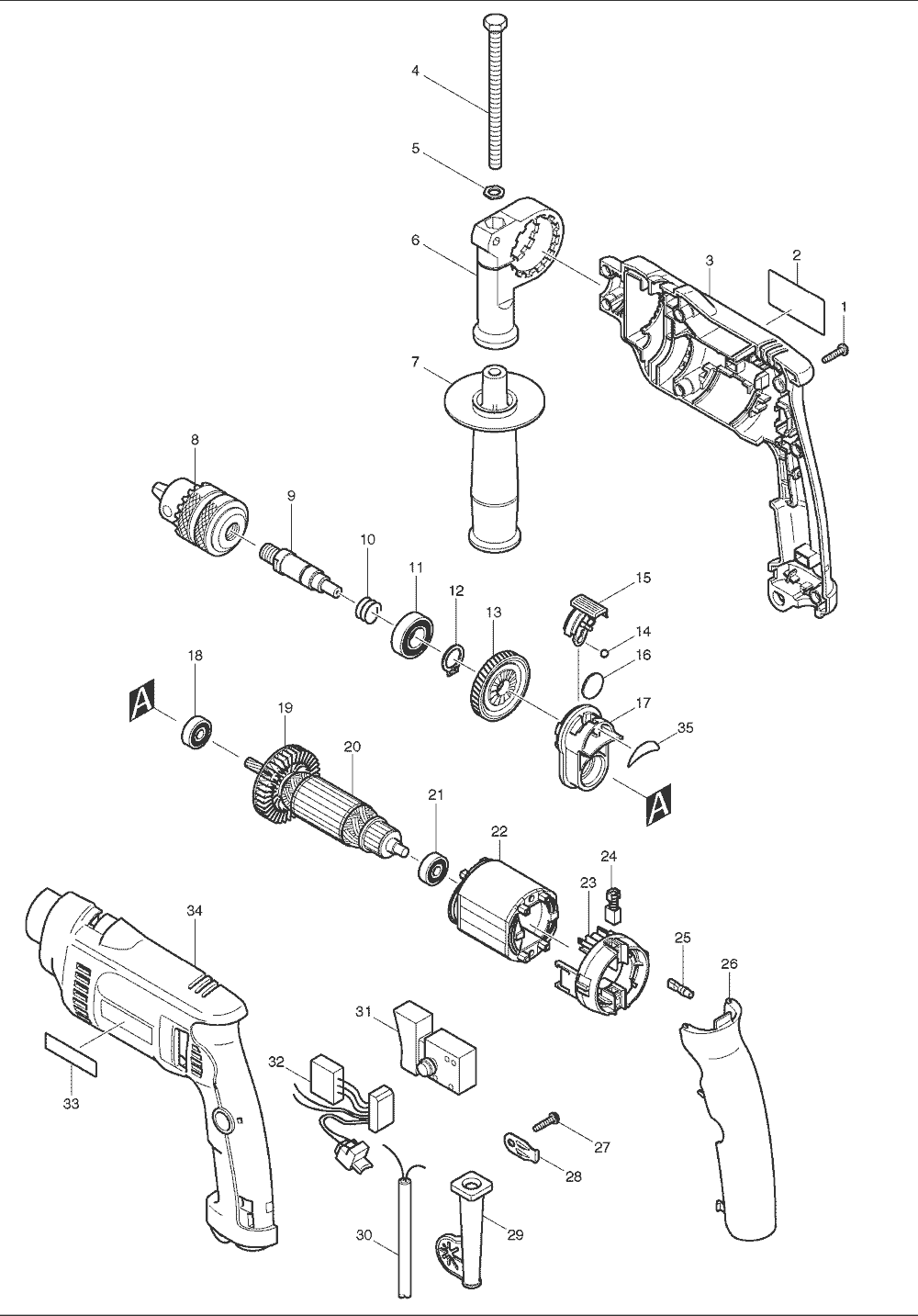

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
00	654556-1	CONNECTOR, HP1620F	$0.49
2	850768-6	NAME PLATE, HP1620F	$1.21
00	654593-5	SPLICE, HP1620F	$0.49
3	183712-1	HOUSING SET, HP1621F	$13.62
4	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
5	345280-4	HEX. WASHER, HP2050F	$1.01
6	417630-4	GRIP BASE, HP1640	$2.84
7	152489-9	GRIP 36, HR2410	$4.49
8	192541-1	DRILL CHUCK S13 HP1620F	$31.20
9	324397-6	SPINDLE, HP1621F	$4.16
10	233389-3	COMPRESSION SPRING 15, HP1621F	$0.86
11	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
12	961055-9	RETAINING RING S-15, 5007F	$1.19
13	226579-5	HELICAL GEAR 45, HP1621F	$5.92
14	216018-3	STEEL BALL 5.0,BFT122FZ	$1.96
15	418319-7	CHANGE LEVER, HP1640	$1.26
16	345354-1	PLATE 19, HP1621F	$2.84
17	141165-0	CAM HOLDER CPL., HP1640	$9.10
18	210023-2	BALL BEARING 627DDW, 9910	$6.69
19	240067-8	FAN 55, HP1621F	$1.52
20	517456-5	ARMATURE ASS'Y 115V, HP1621F	$61.00
21	211028-5	B. BEARING 627LB, 6510LVR	$8.78
21	210023-2	BALL BEARING 627DDW, 9910	$6.69
22	633566-1	FIELD 115V, HP1641K	$19.01
23	638237-5	BRUSH HOLDER UNIT, HP1621F	$11.53
24	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
25	686038-5	RECEPTACLE SLEEVE, HP2070F	$0.75
26	418320-2	HANDLE COVER, HP1621F	$4.16
27	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
28	687169-3	STRAIN RELIEF, HP1621F	$0.97
29	682549-8	CORD GUARD 8, HP2030	$2.51
30	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
30	664881-2	CORD	$10.43
30	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
31	650543-8	SWITCH, HP1621F	$20.55
32	631570-4	LIGHT CIRCUIT, HR1830F	$23.74
33	819063-3	MAKITA LABEL, DA3010F	$0.96
34	183712-1	HOUSING SET, HP1621F	$13.62
1001	763430-3	CHUCK KEY S13 HP2040	$7.20
1001	763440-0	CHUCK KEY S13 HP1640	$6.40
1002	324219-0	DEPTH GAUGE,HP2050F	$4.40
5001	810134-9	CAUTION LABEL, 3709	$0.93
