Makita HP1500 Electric Drill Parts

Makita HP1500 Parts

9/16-Inch 5 Amp Hammer Drill

Download Schematic

Time to buy a new tool?

Makita HP1500

9/16-Inch 5 Amp Hamm...

$89.99

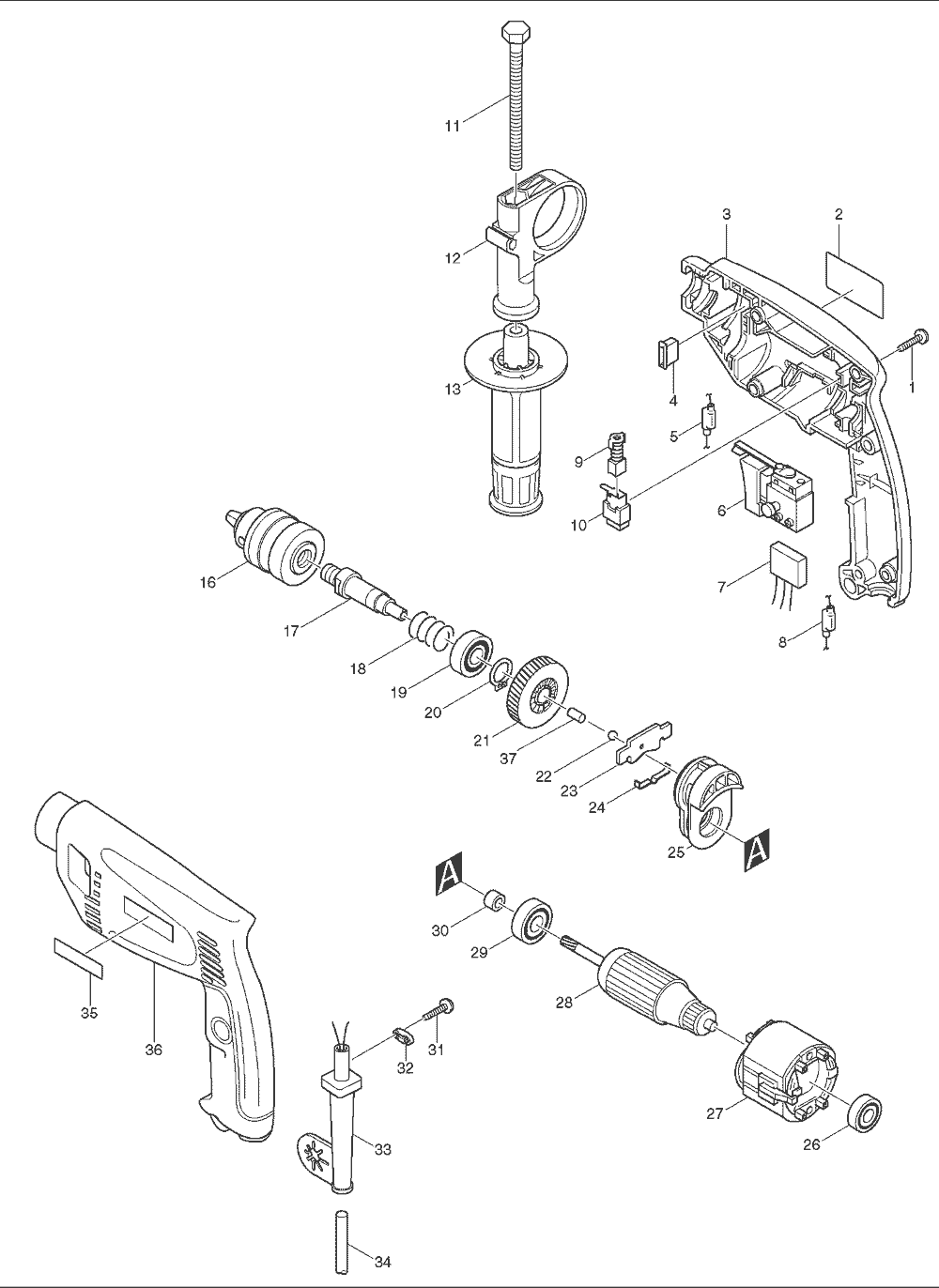

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
2	858216-9	NAME PLATE, HP1500	$0.42
3	182841-7	HOUSING SET, HP1501	$21.76
4	415453-4	CHANGE BUTTON, HP1501	$2.84
9	195007-0	CARBON BRUSH SET CB-407, BO5030K	$8.12
10	643923-5	BRUSH HOLDER, HR2410	$1.63
10	643936-6	BRUSH HOLDER, 6821	$4.16
11	921923-8	HEX. BOLT M8 X 120, HP2050F	$1.96
11	921919-9	BOLT M8X10, HP2030	$3.61
12	415485-1	GRIP BASE, HP2030	$5.92
13	152489-9	GRIP 36, HR2410	$4.49
16	763114-3	DRILL CHUCK S13 HP2040	$45.60
17	323757-9	SPINDLE, HP1500	$21.76
18	233091-8	COMP. SPRING 16, HP2030	$0.86
19	211201-7	B. BEARING 6002LLB, 6510LVR	$13.07
20	961055-9	RETAINING RING S-15, 5007F	$1.19
21	226423-6	HELICAL GEAR 41, HP1501	$9.66
22	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
22	216002-8	STEEL BALL 4.8, NHP1310	$0.53
23	344419-6	CHANGE PLATE, HP1501	$1.63
24	232134-3	LEAF SPRING, HP1501	$1.48
25	152529-3	CAM HOLDER CPL.,HP1501	$7.46
26	211028-5	B. BEARING 627LB, 6510LVR	$8.78
27	633301-7	FIELD 115V, HP1501	$33.25
28	517106-2	ARMATURE ASS'Y 115V, HP1501	$67.20
29	211033-2	B. BEARING 608LB, 5091D	$8.78
30	262528-8	SLEEVE 7, HP1501	$0.75
31	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
32	687063-9	STRAIN RELIEF, 4323K	$1.26
33	682549-8	CORD GUARD 8, HP2030	$2.51
34	664881-2	CORD	$10.43
34	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
35	819063-3	MAKITA LABEL, DA3010F	$0.96
36	182841-7	HOUSING SET, HP1501	$21.76
37	256251-5	PIN 4, HP2050F	$1.19
1001	763430-3	CHUCK KEY S13 HP2040	$7.20
1001	763440-0	CHUCK KEY S13 HP1640	$6.40
1002	415486-9	STOPPER POLE HP2030	$4.20
