Makita HP1310 Electric Drill Parts

Makita HP1310 Electric Drill Parts Image

Makita HP1310 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

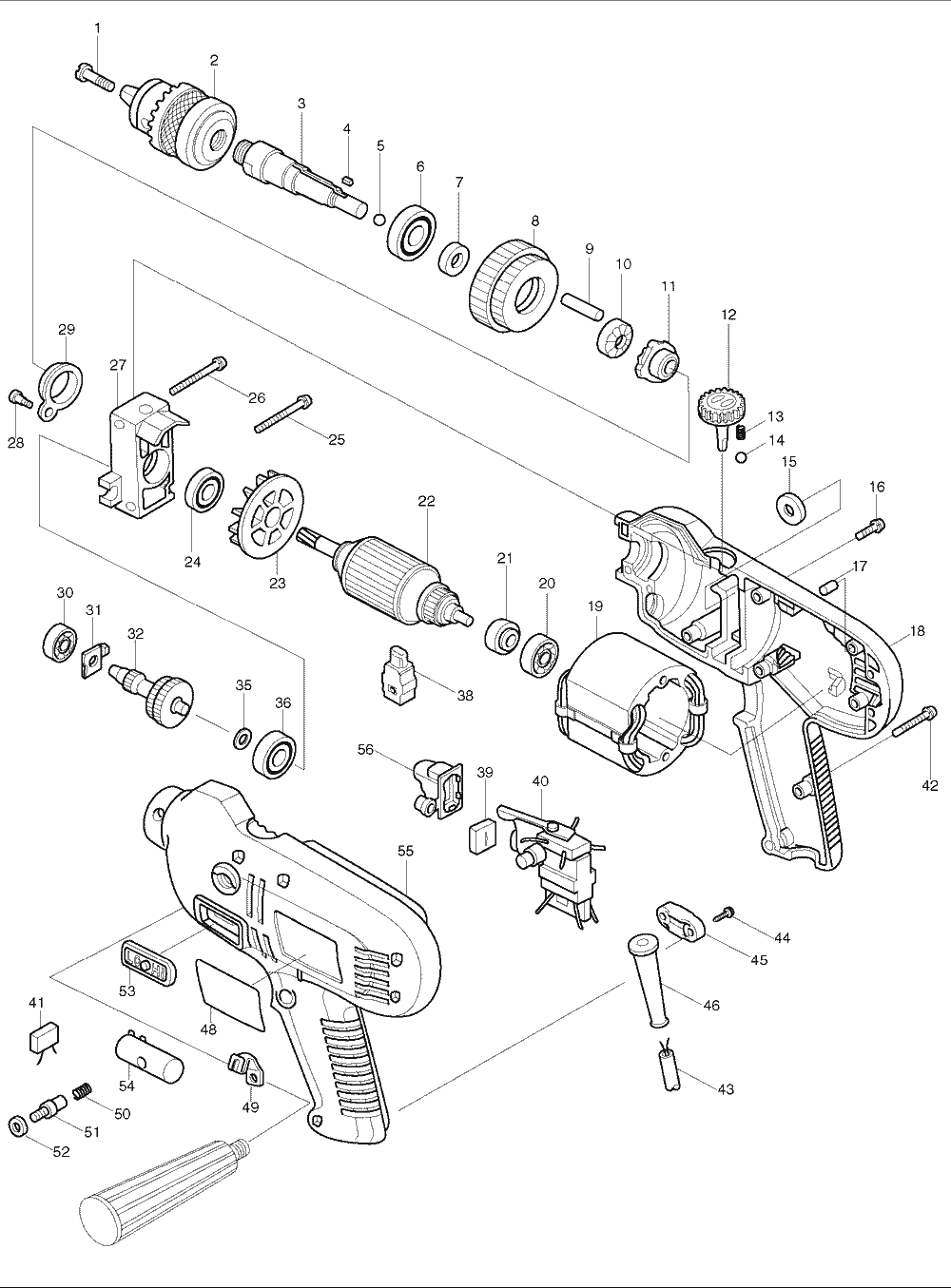

Makita HP1310 Electric Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 251425-3 FLAT SCREW M6X22, NHP1310 $1.48
22 511996-5 ARMATURE, NHP1310 $92.10
56 421167-5 DUST COVER, HP1310 $3.06
3 321333-3 SPINDLE,NHP1310 $27.59
4 254011-9 WOODRUFF KEY 4, 9557PB $1.26
5 216002-8 STEEL BALL 4.8, NHP1310 $0.53
6 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
7 257074-4 RING 13,NHP1310 $3.06
8 226050-9 GEAR 47-57,NHP1310 $44.88
9 256103-0 PIN 4,NHP1310 $3.28
10 223056-8 CAM (B),NHP1310 $13.18
11 153129-2 CAM COMPLETE,NHP1310 $24.62
12 271407-9 SCREW 23,NHP1310 $10.54
13 231282-5 COMP. SPRING 2.4,NHP1310 $1.48
14 216001-0 STEEL BALL 3.5, 6800DBV $0.53
15 261046-3 WASHER 4,NHP1310 $1.01
16 911113-1 P.H. SCREW M4X10, 4301BV $0.86
17 263002-9 RUBBER PIN 4, 5007NK $0.86
18 182800-1 HOUSING SET, NHP1310 $42.94
19 633216-8 FIELD, NHP1310 $30.80
20 211028-5 B. BEARING 627LB, 6510LVR $8.78
22 511996-5 ARMATURE, NHP1310 $92.10
23 241814-0 FAN 62,NHP1310 $30.60
24 211028-5 B. BEARING 627LB, 6510LVR $8.78
25 911166-0 P.H. SCREW M4X40, 9218PBL $1.48
26 911161-0 P.H. SCREW M4X35, 9218SB $0.86
27 315219-1 HOUSING W/O BEARING, NHP1310 $33.55
28 911106-8 P.H. SCREW M4X8, NHP1310 $0.53
29 341628-8 CAM RETAINER,NHP1310 $3.06
30 211020-1 BALL BEARING 626Z, NHP1310 $10.98
31 341658-9 GREASE WIPER,NHP1310 $1.63
32 153166-6 GEAR 11-21-38,NHP1310 $49.06
35 253715-0 F. WASHER 6, NHP1310 $1.34
36 211020-1 BALL BEARING 626Z, NHP1310 $10.98
38 195005-4 CARBON BRUSH 401, NHP1310 $11.53
40 651955-8 SWITCH, NHP1310 $35.90
42 911148-2 P.H. SCREW M4X25, 5057KB $0.86
43 664002-6 CORD $9.22
43 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
44 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
44 265941-9 TAPPING SCREW M4X18, N1900B $0.86
45 687063-9 STRAIN RELIEF, 4323K $1.26
46 682502-4 CORD GUARD 8-85, HP2010N $2.51
46 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
49 342965-3 SHIFTER ROD RETAINER,NHP1310 $1.63
50 231283-3 COMP. SPRING 5,NHP1310 $1.48
51 321222-2 SCREW,NHP1310 $3.61
52 253821-1 F. WASHER 3, NHP1310 $1.34
53 411720-5 CHANGE BUTTON,NHP1310 $3.06
54 154269-9 SHIFTER ROD,NHP1310 $10.32
55 182800-1 HOUSING SET, NHP1310 $42.94
56 421564-5 DUST COVER, NHP1310 $3.06
57 654069-2 RECEPTACLE, BO4556 $0.75
58 686015-7 RECEPTACLE SLEEVE, 6820V $0.75
59 687051-6 STRAIN RELIEF, NHP1310 $1.26
401 164549-5 STOPPER HOLDER, NHP1030 $8.20
402 251851-6 KNOB, NHP1030 $4.20
403 763432-9 CHUCK KEY S13, NHP1310-T2 $5.80
404 152491-2 GRIP, GV5000 $4.49
406 410102-8 KEY HOLDER, 6013BR $1.26
