Makita HP1030 Electric Drill Parts

Makita HP1030 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

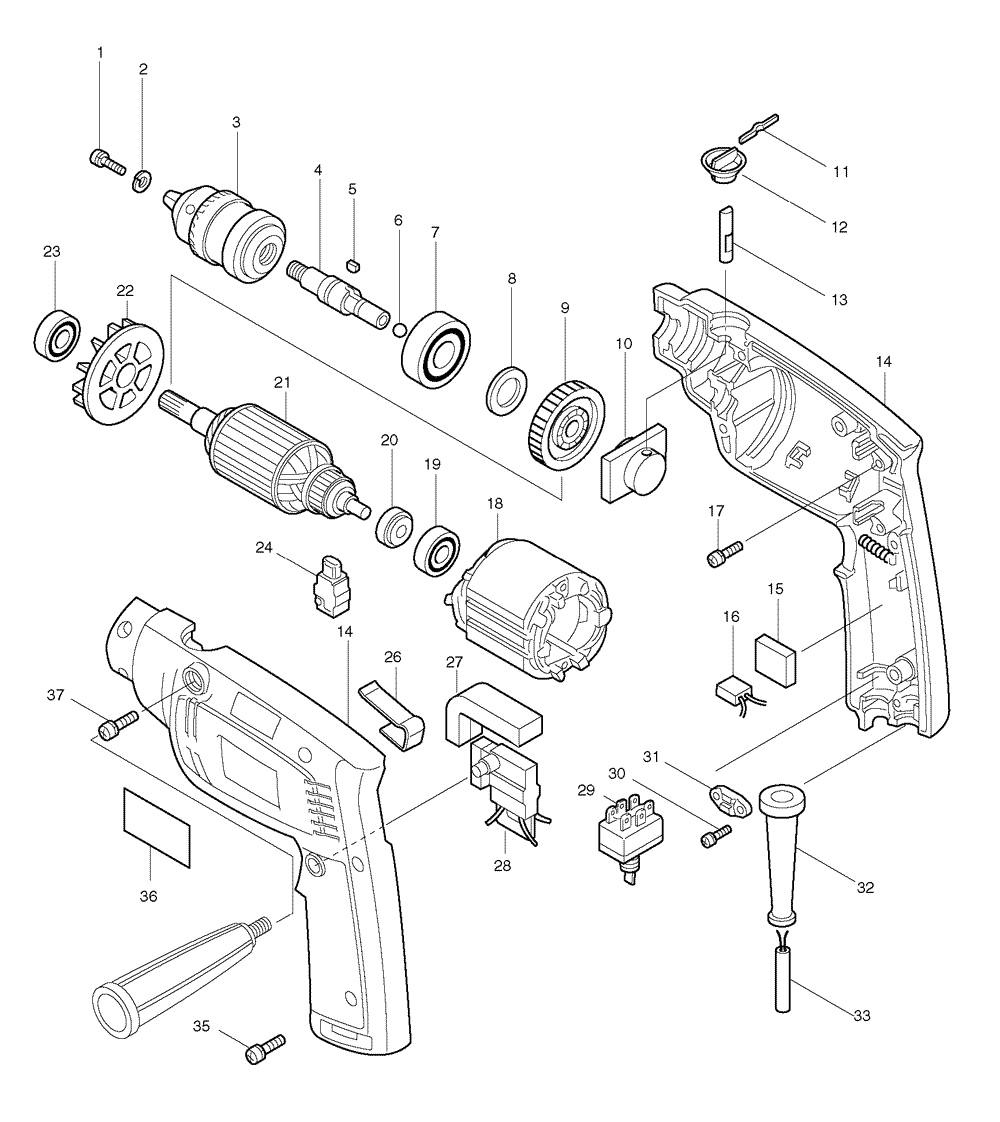

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	251448-1	SCREW M5X18, NHP1030	$1.48
21	511951-7	ARMATURE, NHP1030	$80.90
1	251448-1	SCREW M5X18, NHP1030	$1.48
3	192879-4	DRILL CHUCK, HP1030	$35.70
4	323786-2	SPINDLE, NHP1030	$13.29
6	216002-8	STEEL BALL 4.8, NHP1310	$0.53
7	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
8	253070-0	F. WASHER 15, NHP1030	$1.34
9	226495-1	H.GEAR, NHP1030	$20.77
10	153120-0	CAM, NHP1030	$29.58
11	232053-3	LEAF SPRING, HP2030	$0.86
12	411623-3	KNOB, NHP1030	$1.63
13	321111-1	SHIFTER PIN, NHP1030	$7.46
14	182799-0	HOUSING SET, NHP1030	$38.96
17	911124-6	P.H. SCREW M4X14, 6402	$0.86
18	633181-1	FIELD, NHP1030	$28.86
19	211028-5	B. BEARING 627LB, 6510LVR	$8.78
21	511951-7	ARMATURE, NHP1030	$80.90
22	241812-4	FAN 58, NHP1030	$5.92
23	211033-2	B. BEARING 608LB, 5091D	$8.78
24	195005-4	CARBON BRUSH 401, NHP1310	$11.53
26	342460-3	CLIP, NHP1030	$3.61
28	650207-4	SWITCH,HP2010N	$17.47
29	651478-6	SWITCH, REVERSING, 6302H	$13.84
33	664424-0	CORD (2X18X8 SJT), 3621	$16.04
35	911143-2	P.H. SCREW M4X22, 6211D	$0.86
36	856929-6	NAME PLATE, NHP1030	$1.12
37	911143-2	P.H. SCREW M4X22, 6211D	$0.86
39	182799-0	HOUSING SET, NHP1030	$38.96
400	763415-9	CHUCK KEY, DA301DW	$6.80
404	411780-7	KEY HOLDER,6402	$1.26
901	164549-5	STOPPER HOLDER, NHP1030	$8.20
902	251851-6	KNOB, NHP1030	$4.20
