Makita HM1810 Digger & Brute Breaker Parts

Makita HM1810 Digger & Brute Breaker Parts Image

Makita HM1810 Parts
1-1/8 Inch Hex, 15 Amp, 70 lbs. AVT Breaker Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1810
1-1/8 Inch Hex, 15 A...
$1,606.99
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

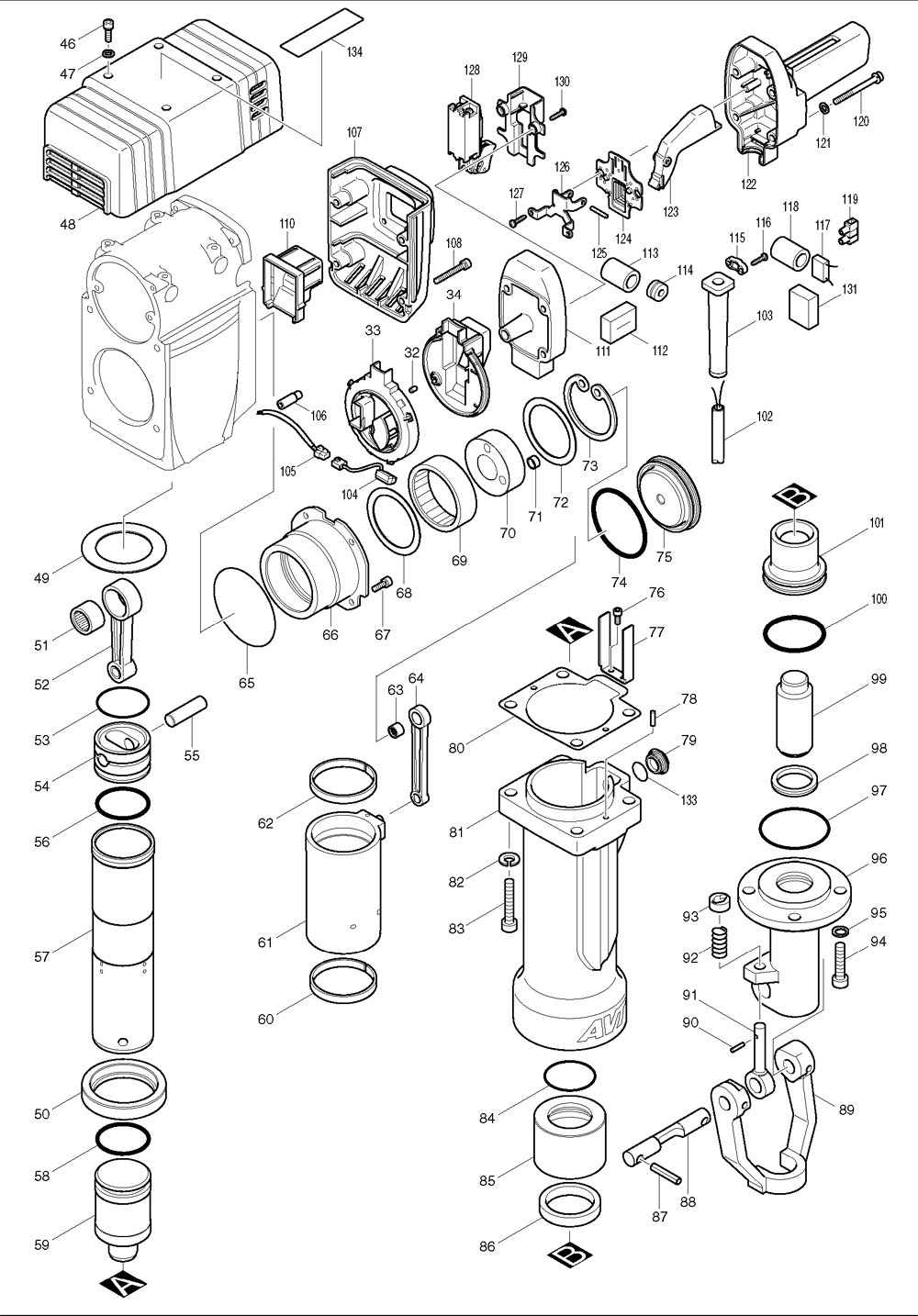

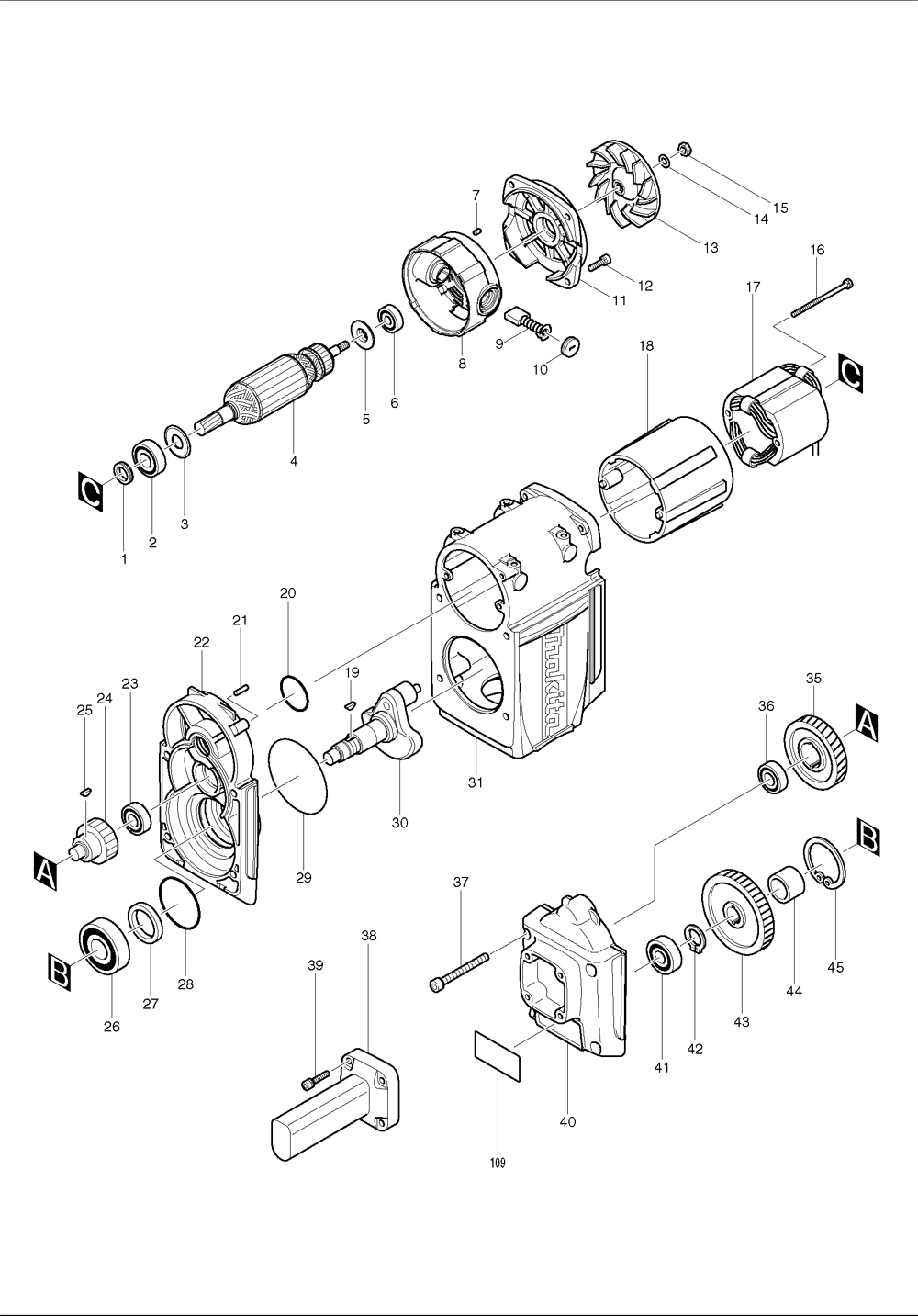

Makita HM1810 Digger & Brute Breaker Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 322566-3 SCREW SEAL, HM1800 $7.46
00 195205-6 HAMMER SERVICE KIT, HM1810 $34.17
2 211256-2 B. BEARING 6203LLB, GA7001L $10.98
00 195205-6 HAMMER SERVICE KIT, HM1810 $34.17
3 267706-5 WASHER 17, HM1800 $5.26
64 154946-3 CONNECTING ROD CPL., HM1810 $19.78
4 516921-1 ARMATURE ASS'Y, HM1810 $120.09
00 654192-3 RECEPTACLE, HM1810 $0.97
5 681646-7 INSULATION WASHER, HM1810 $7.02
6 211066-7 B. BEARING 6200LLB, BO4552 $10.98
7 263002-9 RUBBER PIN 4, 5007NK $0.86
8 154586-7 MOTOR HOUSING B COMPLETE, HM1810 $32.94
9 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
10 643710-2 BRUSH HOLDER CAP, HM1800 $2.84
11 317899-9 BEARING BOX W/O BEARING, HM1810 $28.56
12 265366-7 H.S.H.BOLT M6X22, HM1500 $3.28
13 240024-6 FAN 100, HM1800 $13.18
14 253165-9 F. WASHER 8, 4303C $1.63
15 931402-8 HEX NUT M8, 5037NB $1.34
16 265344-7 HEX BOLT M5X85, HM1800 $4.93
17 626151-7 FIELD, HM1810 $70.10
18 414787-2 MOTOR HOUSING A, HM1800 $23.19
19 254001-2 WOODRUFF KEY 4, HM1810 $1.26
20 213507-9 O RING 40, HR1821 $1.96
21 256151-9 PIN 5, HM1800 $3.28
22 154585-9 GEAR HOUSING COMPLETE, HM1810 $56.20
23 211209-1 BALL BEARING 6202, HM1211 $15.27
24 226251-9 SPUR GEAR 22, HM1800 $54.90
25 254001-2 WOODRUFF KEY 4, HM1810 $1.26
26 211361-5 BALL BEARING 6305LLB, HM1800 $30.19
27 213476-4 OIL SEAL 35, HM1800 $7.46
28 213721-7 O RING 61, HM1800 $3.61
29 213806-9 O RING 90, HM1500 $3.61
30 154588-3 CRANK SHAFT COMPLETE, HM1810 $26.92
31 317903-4 CRANK HOUSING, HM1810 $227.86
31 318027-9 CRANK HOUSING, HM1810 $274.61
32 263002-9 RUBBER PIN 4, 5007NK $0.86
33 418955-9 CRANK HOUSING CAP, HM1810 $7.02
33 419262-3 CRANK HOUSING CAP, HM1810 $6.80
34 418953-3 CAP COVER, HM1810 $7.90
34 419263-1 CAP COVER, HM1810 $8.01
35 221793-8 HELICAL GEAR 50, HM1800 $69.00
36 211209-1 BALL BEARING 6202, HM1211 $15.27
37 922496-4 H.S.H. BOLT M8X75, HM1800 $5.37
38 418415-1 SIDE HANDLE, HM1810 $13.29
39 922353-6 H. S. H. BOLT M6X30,HR5001C $1.96
40 317902-6 GEAR HOUSING COVER, HM1810 $49.67
41 211214-8 BALL BEARING 6302, HM1810 $17.47
42 961060-6 RETAINING RING S-20, 2708 $1.19
43 226242-0 SPUR GEAR 47, HM1800 $72.30
44 331416-1 SLEEVE 25, HM1800 $6.80
45 962301-3 RETAINING RING R-62, HM1800 $4.93
46 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
47 941152-7 F. WASHER 6, HM1500 $0.75
49 267296-8 GLAT WASHER, HM1810 $5.26
50 324580-5 SPACER, HM1810 $22.42
51 212358-7 NEEDLE BEARING 2520, HM1800 $17.47
52 322476-4 CONNECTING ROD, HM1800 $41.61
53 213662-7 O-RING 55, HM1810 $1.48
54 324536-8 PISTON, HM1810 $40.29
55 268130-5 PIN 15, HM1810 $4.93
56 213666-9 O RING 52, HM1800 $12.19
57 331694-3 CYLINDER LINER 62, HM1810 $217.96
58 213666-9 O RING 52, HM1800 $12.19
59 324546-5 STRIKER, HM1810 $48.75
60 418949-4 SPACER 68, HM1810 $4.16
61 154589-1 BALLANCER COMPLETE, HM1810 $114.47
62 418949-4 SPACER 68, HM1810 $4.16
63 212075-9 NEEDLE ROLLER BEARING 1010, HM1810 $3.61
64 154946-3 CONNECTING ROD CPL., HM1810 $19.78
64 324535-0 CONNECTING ROD, HM1810 $13.84
65 213855-6 O RING 95, TW1000 $3.28
66 318028-7 CRANK BOX, HM1810 $28.56
67 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
68 267297-6 FLAT WASHER 65, HM1810 $5.26
69 212701-0 NEEDLE BEARING 7025, HM1810 $27.54
70 154587-5 CRANK COMPLETE, HM1810 $46.30
71 257267-3 RING 10, HM1810 $3.61
71 331718-5 SPACER, HM1810 $5.48
72 267297-6 FLAT WASHER 65, HM1810 $5.26
73 962354-2 RETAINING RING R-80, HM1810 $4.93
74 213765-7 O-RING, HM1810 $3.28
75 418952-5 STOPPER, HM1810 $8.01
76 265908-7 H.S.H. BOLT M5X16, JR3010 $1.96
77 345569-0 PLATE, HM1810 $8.01
78 256151-9 PIN 5, HM1800 $3.28
79 324606-3 CAP, HM1810 $6.80
79 450347-6 CAP, HM1810 $5.92
80 162241-7 GASKET, HM1810 $10.65
81 154692-8 BARREL COMPLETE, HM1810 $245.71
82 942301-9 SPRING WASHER 12, HM1800 $1.34
83 922677-0 H.S.H.BOLT M12X55, HM1800 $3.61
84 213660-1 O RING 53, HM1500 $3.61
85 322548-5 CYLINDER B, HM1800 $68.30
86 262050-5 RUBBER RING 54, HM1810 $7.13
87 951272-9 SPRING PIN 8-40, HM1500B $2.07
88 324238-6 TOOL RETAINER SHAFT, HM1810 $22.42
89 324236-0 TOOL RETAINER, HM1810 $110.97
90 256219-1 PIN 4, HM1500 $1.19
91 322477-2 TOOL RETAINER POLE, HM1500B $33.55
92 233083-7 COMP. SPRING 12, HM1800 $4.16
93 322560-5 RETAINER RING, HM1800 $8.78
94 265989-1 H.S.BOLT M12X45, HM1800 $3.61
95 253989-3 SPRING WASHER 12, HM1500 $2.18
96 324539-2 TOOL HOLDER, HM1810 $203.32
97 213755-0 O RING 75, HM1500 $3.61
98 213517-6 X RING 40, HM1500 $30.49
99 324545-7 IMPACT BOLT, HM1810 $26.72
100 213667-7 O RING 61, HM1800 $15.71
101 324541-5 IMPACT BOLT HOLDER, HM1810 $87.20
102 664290-5 CORD (2X14X16), HM1800 $99.14
103 682547-2 CORD GUARD 15, HM1800 $5.92
104 631670-0 PILOT LAMP, HM1810 $9.33
105 638378-7 LEAD UNIT, HM1810 $4.16
106 418951-7 LENS, HM1810 $4.16
107 317901-8 REAR CASE, HM1810 $39.06
108 922366-7 HEX SOCKET HEAD BOLT, HM1810 $1.48
109 861399-6 NAME PLATE, HM1810 $0.96
110 418954-1 TOP COVER, HM1810 $4.16
111 419044-3 HANDLE SUB BASE, HM1800 $9.33
115 687066-3 STRAIN RELIEF HM1800 $3.06
119 654554-5 TERMINAL, HM1810 $5.48
120 265535-0 H.S.H. BOLT M6X65, HM1810 $1.74
121 941152-7 F. WASHER 6, HM1500 $0.75
122 418333-3 HANDLE, HM1800 $17.25
123 418332-5 SWITCH LEVER, HM1810 $4.16
124 421850-4 DUST PLATE, HM1810 $5.48
125 256206-0 PIN 4, T220DW $1.48
126 345355-9 SUPPORT, HM1800 $6.80
127 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
128 651131-4 SWITCH, HM1810 $28.56
129 419045-1 SWITCH COVER, HM1810 $5.48
130 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
133 213373-4 O RING 22, GEO600 $1.19
133 213953-6 O RING 24, HR2431 $1.48
134 819213-0 MAKITA LOGO LABEL, HM1810 $3.50
135 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
136 424132-3 CAP RUBBER, HM1810 $1.12
1001 783203-8 HEX WRENCH 5, 2708 $3.24
5001 810307-4 CAUTION LABEL, HM1810 $1.21
