Makita HM1800 Digger & Brute Breaker Parts

Makita HM1800 Digger & Brute Breaker Parts Image

Makita HM1800 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

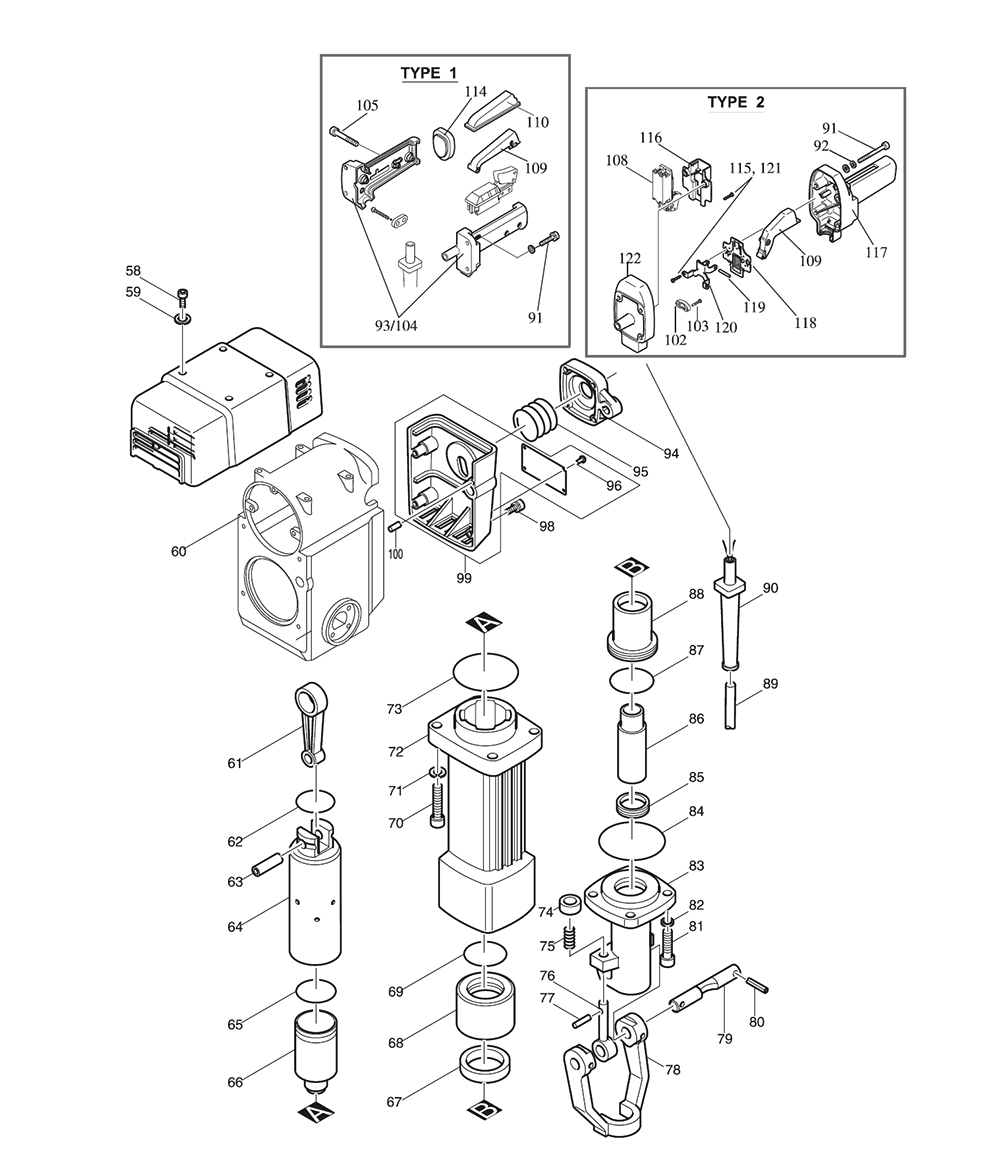

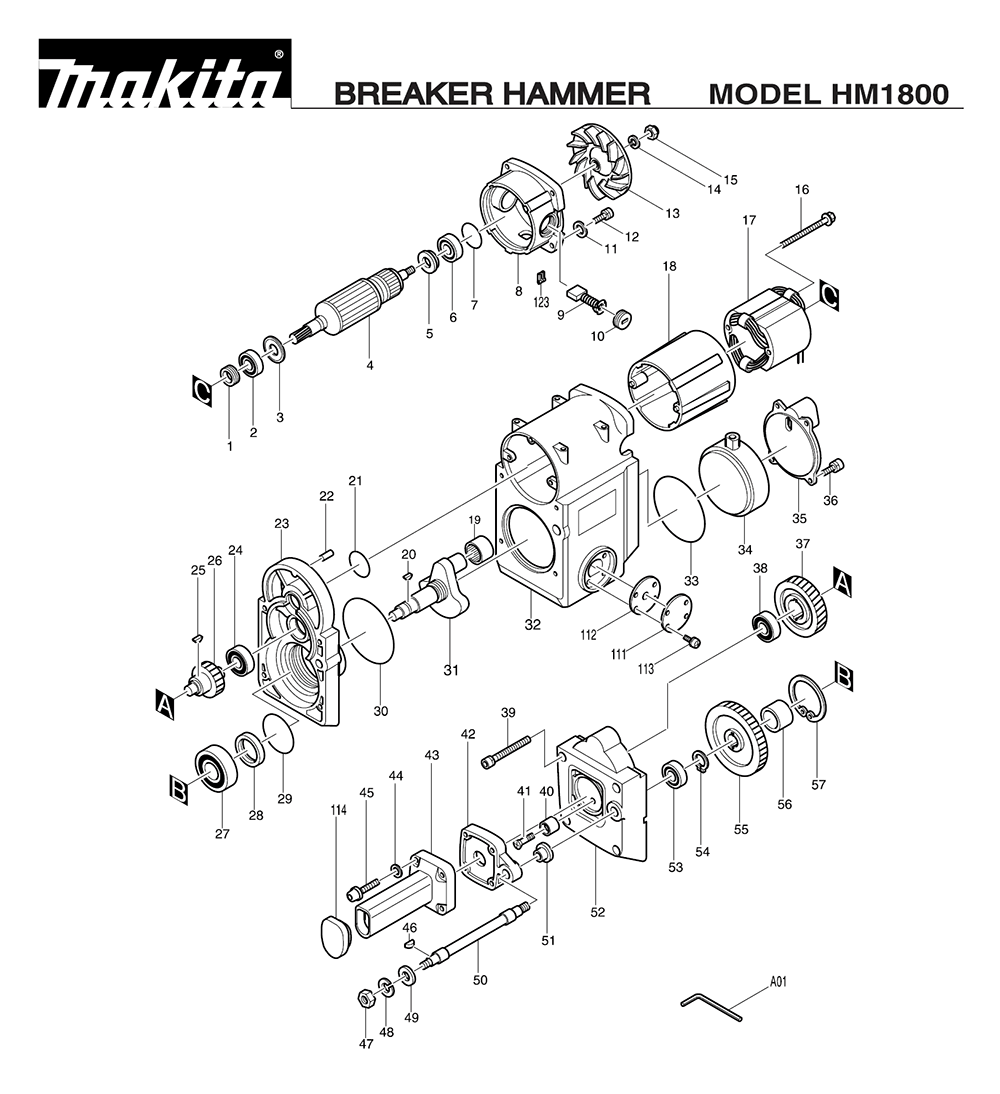

Makita HM1800 Digger & Brute Breaker Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 322566-3 SCREW SEAL, HM1800 $7.46
00 643711-0 BRUSH HOLDER, HM1304B $9.33
2 211256-2 B. BEARING 6203LLB, GA7001L $10.98
108 651131-4 SWITCH, HM1810 $28.56
3 267706-5 WASHER 17, HM1800 $5.26
00 193402-8 HAMMER SERVICE KIT, HM1800 $32.94
4 514990-6 ARMATURE ASS'Y 115V, HM1800 $195.07
00 216104-0 INNER RACE 2020, HM1800 $11.75
5 681646-7 INSULATION WASHER, HM1810 $7.02
83 322551-6 TOOL HOLDER 29,HM1800 $265.59
6 211066-7 B. BEARING 6200LLB, BO4552 $10.98
7 213406-5 O RING 30, HR5000 $1.19
8 159530-9 MOTOR HSG. B COMP., HM1800 $51.20
9 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
10 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
10 643710-2 BRUSH HOLDER CAP, HM1800 $2.84
11 941151-9 F. WASHER 6, 5007NB $0.75
12 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
12 265914-2 H.S.H.BOLT M6X25, HM1211B $2.40
13 240024-6 FAN 100, HM1800 $13.18
13 241854-8 FAN 100, HM1800, T1 $10.43
14 942201-3 SPRING WASHER 8, 2414NB $0.90
14 253165-9 F. WASHER 8, 4303C $1.63
15 252105-4 HEX LOCK NUT M8-13, HM1800 $1.96
15 931402-8 HEX NUT M8, 5037NB $1.34
16 265344-7 HEX BOLT M5X85, HM1800 $4.93
17 624951-9 FIELD 115V, HM1800 $84.60
18 414787-2 MOTOR HOUSING A, HM1800 $23.19
19 212358-7 NEEDLE BEARING 2520, HM1800 $17.47
20 254001-2 WOODRUFF KEY 4, HM1810 $1.26
21 213507-9 O RING 40, HR1821 $1.96
22 256151-9 PIN 5, HM1800 $3.28
23 159531-7 GEAR HSG. COMP., HM1800 $109.03
24 211209-1 BALL BEARING 6202, HM1211 $15.27
25 254001-2 WOODRUFF KEY 4, HM1810 $1.26
26 226251-9 SPUR GEAR 22, HM1800 $54.90
27 211361-5 BALL BEARING 6305LLB, HM1800 $30.19
28 213476-4 OIL SEAL 35, HM1800 $7.46
29 213721-7 O RING 61, HM1800 $3.61
30 213806-9 O RING 90, HM1500 $3.61
31 152414-0 CRANKSHAFT COMP., HM1800 $85.90
32 316550-8 CRANK HOUSING, HM1800 $249.98
33 213806-9 O RING 90, HM1500 $3.61
34 414785-6 CRANK HOUSING CAP, HM1800 $11.75
35 414786-4 CAP COVER, HM1800 $11.75
36 251390-6 P.H.SCREW M5X18, HM1800 $1.96
37 221793-8 HELICAL GEAR 50, HM1800 $69.00
38 211209-1 BALL BEARING 6202, HM1211 $15.27
39 922496-4 H.S.H. BOLT M8X75, HM1800 $5.37
40 262526-2 RUBBER SLEEVE 8, HM1800,T1 $3.61
40 262538-5 RUBBER SLEEVE 8, HM1800 (T2) $4.49
41 251389-1 C.H.SCREW M8, HM1800 $3.61
42 322481-1 HANDLE BASE, HM1800,T1 $58.90
42 324062-7 HANDLE BASE, HM1800(T3) $53.70
43 418415-1 SIDE HANDLE, HM1810 $13.29
44 941152-7 F. WASHER 6, HM1500 $0.75
45 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
46 254001-2 WOODRUFF KEY 4, HM1810 $1.26
47 931602-0 HEX NUT M12, 2708 $1.34
48 942301-9 SPRING WASHER 12, HM1800 $1.34
49 941301-6 F. WASHER 12, HM1800 $1.01
50 322565-5 HANDLE SHAFT, HM1800 $51.20
51 415148-9 NYLON BUSH 15, HM1800 $3.06
52 316311-6 GEAR HSG. COVER, HM1800,T1 $100.11
52 316792-4 GEAR HOUSING COVER, HM1800 (T2) $91.90
53 211214-8 BALL BEARING 6302, HM1810 $17.47
54 961060-6 RETAINING RING S-20, 2708 $1.19
55 226242-0 SPUR GEAR 47, HM1800 $72.30
56 331416-1 SLEEVE 25, HM1800 $6.80
57 962301-3 RETAINING RING R-62, HM1800 $4.93
58 922331-6 H.S.H. BOLT M6X20, LS1013 $1.34
59 941152-7 F. WASHER 6, HM1500 $0.75
61 322476-4 CONNECTING ROD, HM1800 $41.61
62 213469-1 O RING 35, HM1800 $8.78
63 268061-8 PIN 15, HM1800 $4.93
64 322480-3 PISTON CYLINDER, HM1800 $266.76
65 213666-9 O RING 52, HM1800 $12.19
66 322563-9 STRIKER, HM1800 $73.50
67 262050-5 RUBBER RING 54, HM1810 $7.13
68 322548-5 CYLINDER B, HM1800 $68.30
69 213660-1 O RING 53, HM1500 $3.61
70 922677-0 H.S.H.BOLT M12X55, HM1800 $3.61
71 942301-9 SPRING WASHER 12, HM1800 $1.34
72 316313-2 CYLINDER A, HM1800 $235.04
73 213805-1 O RING 85, HM1800 $3.61
74 322560-5 RETAINER RING, HM1800 $8.78
75 233083-7 COMP. SPRING 12, HM1800 $4.16
76 322477-2 TOOL RETAINER POLE, HM1500B $33.55
77 256219-1 PIN 4, HM1500 $1.19
78 324236-0 TOOL RETAINER, HM1810 $110.97
78 322478-0 TOOL RETAINER, HM1500B $228.73
79 324238-6 TOOL RETAINER SHAFT, HM1810 $22.42
79 322550-8 TOOL RETAINER SHAFT, HM1500B $26.92
80 951272-9 SPRING PIN 8-40, HM1500B $2.07
81 265989-1 H.S.BOLT M12X45, HM1800 $3.61
82 253989-3 SPRING WASHER 12, HM1500 $2.18
83 322551-6 TOOL HOLDER 29,HM1800 $265.59
84 213755-0 O RING 75, HM1500 $3.61
85 213517-6 X RING 40, HM1500 $30.49
86 322564-7 IMPACT BOLT, HM1800 $48.24
87 213667-7 O RING 61, HM1800 $15.71
88 322549-3 IMPACT BOLT HOLDER, HM1800 $74.40
89 664290-5 CORD (2X14X16), HM1800 $99.14
90 682547-2 CORD GUARD 15, HM1800 $5.92
91 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
91 922381-1 H.S.H. BOLT M6X60, HR4041C $3.61
92 941152-7 F. WASHER 6, HM1500 $0.75
93 182553-2 HANDLE SET, HM1800,T1 $20.55
94 322481-1 HANDLE BASE, HM1800,T1 $58.90
94 324062-7 HANDLE BASE, HM1800(T3) $53.70
95 233051-0 COMP. SPRING 46, HM1800,T1 $8.12
95 233149-3 COMPRESSION SPRING 12, HM1800 (T2) $4.16
96 953106-2 RIVET 0-5, HM1500 $0.49
97 857090-2 NAME PLATE, HM1800 $3.67
98 922356-0 H.S.H.BOLT M6X35, HM1500 $1.96
99 316312-4 REAR CASE, HM1800 $72.20
100 256151-9 PIN 5, HM1800 $3.28
102 687066-3 STRAIN RELIEF HM1800 $3.06
104 182553-2 HANDLE SET, HM1800,T1 $20.55
105 911248-8 P.H. SCREW M5X28, HM1500 $1.19
108 651131-4 SWITCH, HM1810 $28.56
109 414046-4 SWITCH LEVER, 9627 $4.49
109 418332-5 SWITCH LEVER, HM1810 $4.16
110 421330-0 DUST COVER, 9627 $5.92
111 153666-6 PLATE 50 COMPLETE, HM1800 $2.84
111 341397-1 PLATE 50, HM1303B $1.63
112 442009-0 PACKING 50, HM1303B $1.26
113 911211-1 P.H. SCREW M5X12, HM1500B $0.86
114 421484-3 CUSHION RUBBER, HM1800 $8.89
115 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
116 418331-7 SWITCH COVER, HM1800 $4.16
117 418333-3 HANDLE, HM1800 $17.25
118 421850-4 DUST PLATE, HM1810 $5.48
119 256206-0 PIN 4, T220DW $1.48
120 345355-9 SUPPORT, HM1800 $6.80
121 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
122 419044-3 HANDLE SUB BASE, HM1800 $9.33
1001 783203-8 HEX WRENCH 5, 2708 $3.24
