Makita HM1500B Demolition Hammer Parts

Makita HM1500B Demolition Hammer Parts Image

Makita HM1500B Parts
Demolition Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1500B
Demolition Hammer
$1,032.99
Tool Diagram    (Click image to Zoom in) View larger Image

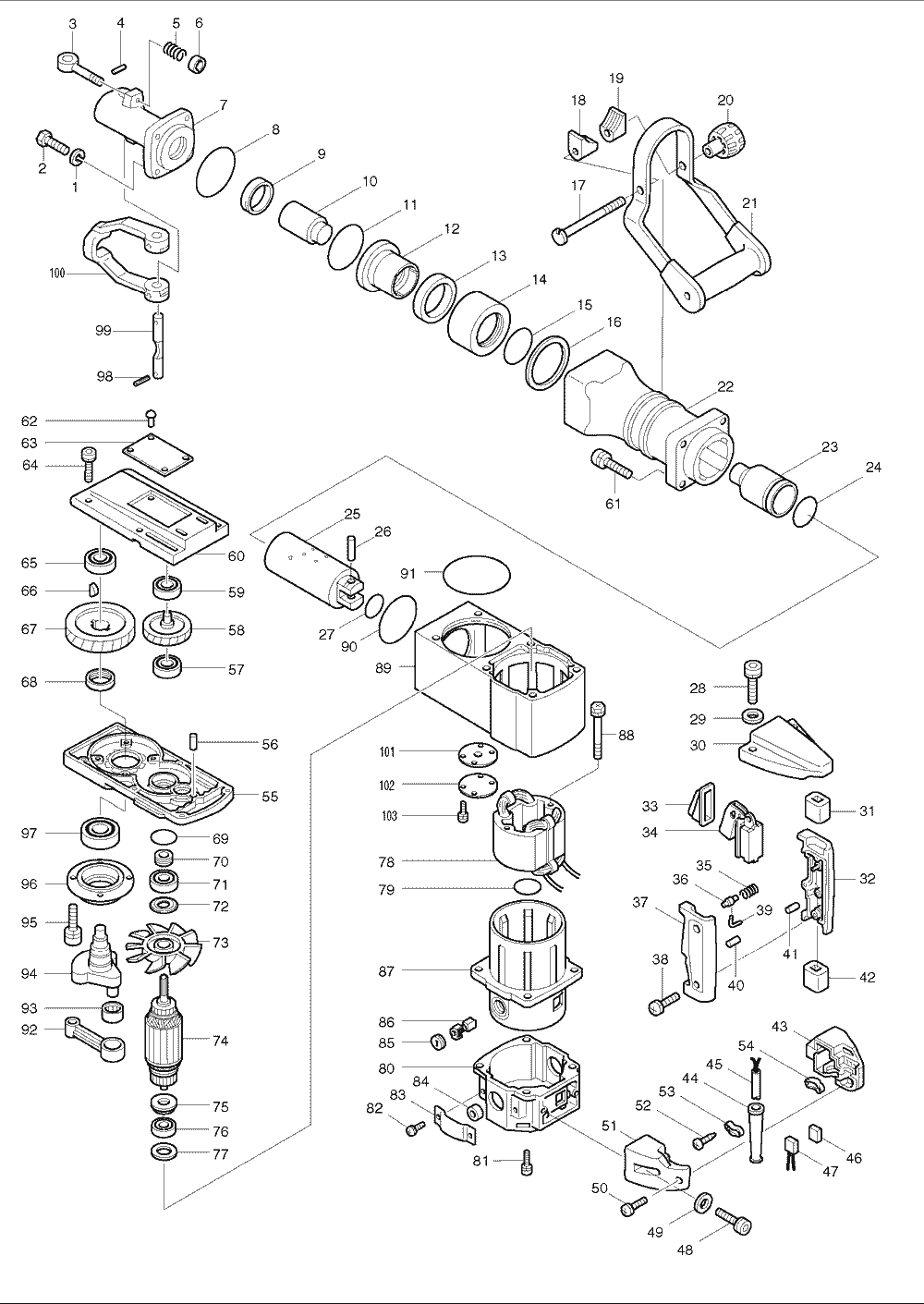

Makita HM1500B Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
5 233083-7 COMP. SPRING 12, HM1800 $4.16
1 253989-3 SPRING WASHER 12, HM1500 $2.18
2 265997-2 H.S.H. BOLT M12X40, HM1500B $3.61

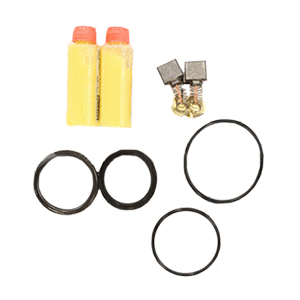

00 195202-2 HAMMER SERVICE KIT, HM1500B $30.49
3 322477-2 TOOL RETAINER POLE, HM1500B $33.55
00 195202-2 HAMMER SERVICE KIT, HM1500B $30.49
4 256219-1 PIN 4, HM1500 $1.19
5 233083-7 COMP. SPRING 12, HM1800 $4.16
6 322560-5 RETAINER RING, HM1800 $8.78
7 322573-6 TOOL HOLDER, HM1500B $298.47
8 213755-0 O RING 75, HM1500 $3.61
9 213517-6 X RING 40, HM1500 $30.49
10 322572-8 IMPACT BOLT, HM1500B $39.57
11 213717-8 O RING 63, HM1500 $1.96
12 322931-6 IMPACT BOLT HOLDER, HM1500B $60.20
13 262050-5 RUBBER RING 54, HM1810 $7.13
14 322930-8 CYLINDER B, HM1500 $50.89
15 213660-1 O RING 53, HM1500 $3.61
16 261084-5 RUBBER WASHER 63, HM1500 $5.92
17 265956-6 SET BOLT M10X120, HM1500B $15.71
18 414819-5 HANDLE BASE, HM1500 $3.06
19 414819-5 HANDLE BASE, HM1500 $3.06
20 252633-9 KNOB, HM1500 $8.78
21 421386-3 SIDE HANDLE, HM1500 $68.30
22 318558-8 BARREL, HM1500 $165.20
23 322383-1 STRIKER, HM1500 $51.20
24 213564-7 O RING 45, HM1500 $12.19
25 322387-3 PISTON CYLINDER, HM1500 $146.18
26 256209-4 PIN 10, HM1500 $3.61
27 213473-0 O RING 33, HM1500 $1.48
28 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
29 941152-7 F. WASHER 6, HM1500 $0.75
30 414646-0 UPPER HANDLE, HM1500 $18.90
31 421373-2 RUBBER, HM1500 $3.06
32 182429-3 HANDLE SET,HM1500 $18.90
33 421265-5 DUST COVER, HR3851 $3.06
34 651145-3 SWITCH, HM1211B $32.74
35 231298-0 COMP. SPRING 6, HM1500 $1.48
36 414885-2 LOCK BUTTON, HM1500 $3.06
37 182429-3 HANDLE SET,HM1500 $18.90
38 911248-8 P.H. SCREW M5X28, HM1500 $1.19
39 322464-1 LOCK PIN, HM1500 $3.06
40 263002-9 RUBBER PIN 4, 5007NK $0.86
41 263002-9 RUBBER PIN 4, 5007NK $0.86
42 421373-2 RUBBER, HM1500 $3.06
43 182405-7 LOWER HANDLE SET, HM1500 $18.90
44 682505-8 CORD GUARD, 2711 $2.51
44 682568-4 CORD GUARD, HR5000 $4.16
44 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
45 664471-1 CORD, 2X14X16;SJ, HM1500 $49.47
45 EC142 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 14... $16.19
48 922356-0 H.S.H.BOLT M6X35, HM1500 $1.96
49 941152-7 F. WASHER 6, HM1500 $0.75
50 911248-8 P.H. SCREW M5X28, HM1500 $1.19
51 182405-7 LOWER HANDLE SET, HM1500 $18.90
52 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
52 265941-9 TAPPING SCREW M4X18, N1900B $0.86
53 687052-4 STRAIN RELIEF, HM1500B $1.26
54 687051-6 STRAIN RELIEF, NHP1310 $1.26
55 159189-2 GEAR HOUSING COMP.,HM1500 $70.00
56 256111-1 PIN 6, HM1500 $1.96
57 211109-5 BALL BEARING 6201, HR3851 $13.07
58 221781-5 HELICAL GEAR 37, HM1500 $55.90
59 211109-5 BALL BEARING 6201, HR3851 $13.07
60 316271-2 GEAR HOUSING COVER, HM1500-T1 $46.41
60 316995-0 GEAR HOUSING COVER,HM1500B $34.47
61 265367-5 H.S.H.BOLT M8X40, HM1500 $3.61
62 953106-2 RIVET 0-5, HM1500 $0.49
63 857321-9 NAME PLATE, HM1500B $3.67
63 859196-2 NAME PLATE, HM1500B $2.74
64 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
65 211214-8 BALL BEARING 6302, HM1810 $17.47
66 254001-2 WOODRUFF KEY 4, HM1810 $1.26
67 221782-3 HELICAL GEAR 55, HM1500 $61.60
68 213354-8 OIL SEAL 25, HM1500 $5.92
69 213460-9 O RING 35, HM1500 $1.19
70 331367-8 SEALING SCREW, HM1500 $5.92
71 211206-7 B. BEARING 6202LLB, NHP1310 $10.98
72 213202-1 DUST SEAL 15, 5402A $3.06
73 241648-1 FAN 104, HM1500 $12.63
74 514956-6 ARMATURE ASS'Y 115V, HM1500 $165.10
76 211066-7 B. BEARING 6200LLB, BO4552 $10.98
77 253794-8 F. WASHER 18, 6905B $1.63
78 624901-4 FIELD 115V, HM1500 $75.20
79 213406-5 O RING 30, HR5000 $1.19
80 316268-1 REAR CASE, HM1500 $51.20
81 922356-0 H.S.H.BOLT M6X35, HM1500 $1.96
82 911211-1 P.H. SCREW M5X12, HM1500B $0.86
83 343748-4 HOLDER CAP PLATE, HM1500 $3.06
84 262044-0 RUBBER RING 12, HM1500 $1.96
85 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
86 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
86 191957-7 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
86 K29 This item will be shipped Free Carbon Brush Set $8.50
87 159631-3 MOTOR HOUSING, HM1500, T2 $64.30
88 265341-3 HEX BOLT M5X75, HM1500 $3.61
89 316498-4 CRANK HOUSING, HM1500B $147.93
90 213755-0 O RING 75, HM1500 $3.61
91 213806-9 O RING 90, HM1500 $3.61
92 322381-5 CONNECTING ROD, HM1500 $33.55
93 212309-0 NEEDLE BEARING 2016, HM1500 $13.18
94 152373-8 CRANKSHAFT COMP., HM1500 $65.60
95 265366-7 H.S.H.BOLT M6X22, HM1500 $3.28
96 316267-3 HOUSING W/O BEARING, HM1500 $29.37
97 211359-2 BALL BEARING 6205, HM1500 $19.56
98 951272-9 SPRING PIN 8-40, HM1500B $2.07
99 322550-8 TOOL RETAINER SHAFT, HM1500B $26.92
100 322478-0 TOOL RETAINER, HM1500B $228.73
101 442009-0 PACKING 50, HM1303B $1.26
102 153666-6 PLATE 50 COMPLETE, HM1800 $2.84
102 341397-1 PLATE 50, HM1303B $1.63
103 911211-1 P.H. SCREW M5X12, HM1500B $0.86
104 261105-3 NYLON WASHER, HM1500 $4.16
