Makita HM1307CB Rotary Hammer Parts

Makita HM1307CB Rotary Hammer Parts Image

Makita HM1307CB Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1307CB
35 lb. Demolition Ha...
$917.99
Tool Diagram    (Click image to Zoom in) View larger Image

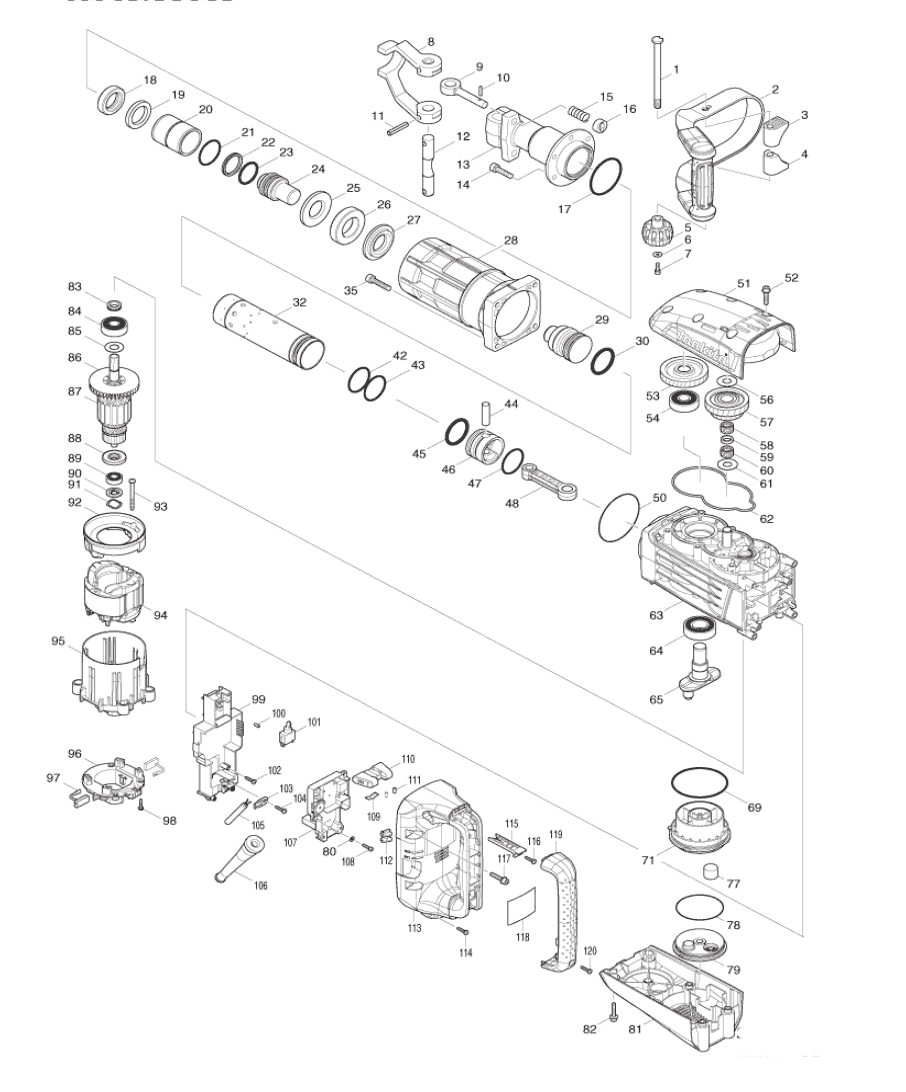

Makita HM1307CB Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 266512-5 SET BOLT M10X142, HM1317CB $5.92
2 163506-0 SIDE HANDLE, HM1317CB $23.96
3 451331-4 HANDLE BASE, HM1317CB $2.51
4 451331-4 HANDLE BASE, HM1317CB $2.51
5 252654-1 THUMB NUTM10, HM1317CB $3.61
6 253194-2 F. WASHER 5, HM1303B $1.63
7 922221-3 HEX BOLT M5X16, 6906 $1.34
8 325895-3 TOOL RETAINER, HM1317CB $122.13
9 322477-2 TOOL RETAINER POLE, HM1500B $33.55
10 256219-1 PIN 4, HM1500 $1.19
11 951272-9 SPRING PIN 8-40, HM1500B $2.07
12 324238-6 TOOL RETAINER SHAFT, HM1810 $22.42
13 331872-5 TOOL HOLDER, HM1317CB $202.06
14 266011-7 HEX. SOCKET HEAD BOLT M8X35, HM1317CB $2.51
15 233083-7 COMP. SPRING 12, HM1800 $4.16
16 322560-5 RETAINER RING, HM1800 $8.78
17 213720-9 O RING 67, HR2400 $1.96
18 262151-9 URETHAN RING 32, HM1317CB $5.92
19 257301-9 RING 35, HM1317CB $9.22
20 257788-5 SLEEVE 43, HM1317CB $18.35
21 213569-7 O RING 45, AN611 $1.41
22 213192-8 X-RING 36, HM1317CB $3.50
23 213150-4 O-RING 36, HM1317CB $2.51
24 325687-0 IMPACT BOLT, HM1317CB $28.56
25 325683-8 WASHER 30, HM1317CB $10.43
26 424206-0 RUBBER RING 36, HM1317CB $10.43
27 325684-6 SHOULDER RING 32, HM1317CB $12.63
28 318458-2 BARREL, HM1317CB $59.90
29 325685-4 STRIKER, HM1317CB $14.94
029-1 325685-4 STRIKER, HM1317CB $14.94
30 213193-6 O-RING 42, HM1317CB $3.61
32 331870-9 CYLINDER 52, HM1317CB $104.09
35 265367-5 H.S.H.BOLT M8X40, HM1500 $3.61
42 213569-7 O RING 45, AN611 $1.41
43 213569-7 O RING 45, AN611 $1.41
44 256238-7 PIN 12, HM1307CB $5.37
45 213193-6 O-RING 42, HM1317CB $3.61
46 318459-0 PISTON, HM1317CB $26.27
47 213569-7 O RING 45, AN611 $1.41
48 451164-7 CONNECTING ROD, HM1317CB $4.71
50 213806-9 O RING 90, HM1500 $3.61
51 318462-1 GEAR COVER, HM1317CB $35.90
52 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
53 227709-1 HELICAL GEAR 47, HM1317CB $31.72
54 211306-3 B. BEARING 6204LLB, 2711 $15.27
56 267166-1 FLAT WASHER, HM0860C $2.18
57 226156-3 GEAR CPL., HM1317CB $61.00
58 212159-3 NEEDLE CAGE 1412, HM1214C $4.71
59 262157-7 NYLON RING 14, HM1317CB $1.34
60 212159-3 NEEDLE CAGE 1412, HM1214C $4.71
61 267166-1 FLAT WASHER, HM0860C $2.18
62 424207-8 SEAL RING, HM1317CB $2.51
63 140060-1 CRANK HOUSING CPL., HM1307CB $196.04
64 211373-8 BALL BEARING 6205LLU, HM1304B $17.47
65 331871-7 CRANK SHAFT, HM1317CB $13.84
69 213809-3 O RING 87, HM1307CB $5.15
71 451170-2 CRANK CAP, HM1307CB $7.02
77 443127-7 FILTER, HR4041C $1.26
78 213758-4 O RING 74, AN8300 $5.15
79 451166-3 CRANK CAP COVER, HM1317CB $3.61
80 941051-3 F. WASHER 4, 2107F $0.75
81 451171-0 REAR COVER, HM1307CB $13.84
82 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
83 331855-5 SEALING SCREW, HM1214C $2.51
84 211249-9 BALL BEARING 6302LLU, HM1214C $8.12
85 267397-2 FLAT WASHER 15, HM1214C $1.34
86 240003-4 FAN 80, 5007NK $4.16
87 517785-6 ARMATURE ASS'Y, HM1317CB $96.00
88 681642-5 INSULATION WASHER, LS1016L $10.32
89 210059-1 BALL BEARING 6000DDW, HR4040C $6.69
90 451107-9 WASHER GUIDE, HM1214C $2.51
91 267809-5 WAVE WASHER, HM1202C $0.90
92 451111-8 BAFFLE PLATE, HM1214C $3.61
93 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
94 636331-7 FIELD, HM1317CB $28.56
95 451117-6 MOTOR HOUSING, HM1214C $14.94
96 638447-4 BRUSH HOLDER UNIT, HR5210C $6.80
98 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
99 158986-3 CONTROLLER COVER CPL., HM1214C $9.22
100 263027-3 RUBBER PIN 4, HM0860C $1.19
101 651423-1 SWITCH, RD1100/1101 $13.84
102 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
103 687683-9 STRAIN RELIF, HM1317CB $3.61
104 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
105 664290-5 CORD (2X14X16), HM1800 $99.14
106 682578-1 CORD GUARD, HM1317CB $2.51
107 631916-4 CONTROLLER, HM1307CB $51.70
108 265490-6 HEX BOLT M4 X 16, 9560CV $1.08
109 232209-8 LEAF SPRING, HM0860C $1.96
110 451112-6 SLIDE LEVER, HM1214C $3.61
111 263027-3 RUBBER PIN 4, HM0860C $1.19
112 451105-3 LENS, HM1214C $2.51
113 451118-4 HANDLE, HM1214C $26.52
114 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
115 451106-1 SWITCH LEVER, HM1214C $3.61
116 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
117 266499-1 H.S. HEAD BOLT M6X30 W/GM, HM1307CB $1.34
118 867316-4 NAME PLATE, HM1307CB $1.30
119 451119-2 HANDLE COVER, HM1214C $14.94
120 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
A01-1 D-21353 BULL POINT (1-1/8 HEX) HM1304B $35.20
A02 162271-8 LATCH, HM1214C $2.51
A03 809559-2 PLASTIC CASE LABEL, HM1307CB $1.30
