Makita HM1304B Demolition Hammer Parts

Makita HM1304B Demolition Hammer Parts Image

Makita HM1304B Parts
1-1/8 Inch Hex 35 lbs. Demolition Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM1304B
1-1/8 Inch Hex 35 lb...
$835.99
Tool Diagram    (Click image to Zoom in) View larger Image

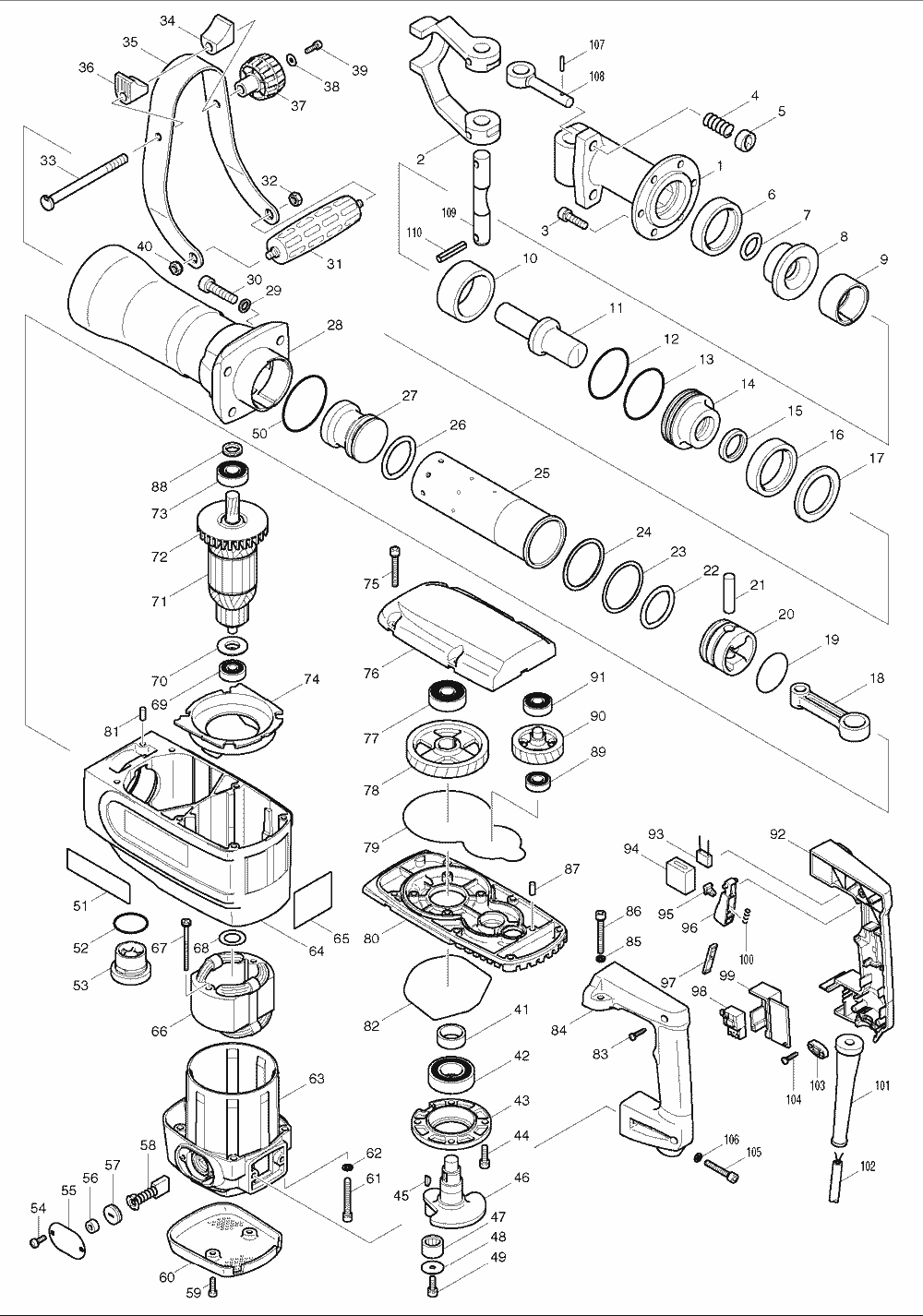

Makita HM1304B Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 324345-5 TOOL HOLDER, HM1304B $152.49
00 643711-0 BRUSH HOLDER, HM1304B $9.33
2 322478-0 TOOL RETAINER, HM1500B $228.73
00 414665-6 SET RING, HM1304B $3.06
3 266010-9 H.S.H.BOLT M8X30, HM1303B $2.40
4 233083-7 COMP. SPRING 12, HM1800 $4.16
5 322560-5 RETAINER RING, HM1800 $8.78
6 262098-7 URETHAN RING 48, HM1303B $12.74
7 213388-1 O RING 24,HM1304B $4.93
8 324346-3 TOOL GUIDE, HM1304B $21.10
9 324166-5 IDLER, HM1304B $17.25
10 262099-5 RUBBER RING 52, HM1304B $4.93
11 324347-1 IMPACT BOLT, HM1304B $31.92
12 213721-7 O RING 61, HM1800 $3.61
12 421975-4 SEAL RING, HM1304B $10.43
13 213721-7 O RING 61, HM1800 $3.61
14 324165-7 SEAL HOLDER, HM1304B $20.55
14 324738-6 SEAL HOLDER, HM1304B $23.96
15 213443-9 X-RING 30,HM1304B $11.09
16 262098-7 URETHAN RING 48, HM1303B $12.74
17 267232-4 FLAT WASHER 48, HR2450F $11.09
18 317448-2 CONNECTING ROD, HM1304B $26.92
19 213617-2 O RING 47, AN8300 $1.85
20 317447-4 PISTON, HM1304B $26.38
21 268066-8 PIN 12, HM1304B $4.93
22 213572-8 O-RING 44,HM1304B $4.93
23 267233-2 FLAT WASHER 55, HM1304B $5.26
24 261121-5 NYLON WASHER 55, HM1304B $2.18
25 331600-8 CYLINDER LINER, HM1304B $72.30
26 213572-8 O-RING 44,HM1304B $4.93
27 324102-1 STRIKER, HM1304B $22.42
28 317444-0 BARREL, HM1304B $105.25
29 941252-3 F. WASHER 10, LS1020 $1.01
30 266276-1 H.S.H. BOLT M10X40, HM1304B $1.74
31 273518-6 GRIP 37, HM1304B $10.65
32 252005-8 U-NUT M8-13, HM1301 $4.16
33 266298-1 SET BOLT M10X122, HM1304B $6.47
34 416228-4 HANDLE BASE, HM1303B $3.06
35 345279-9 SIDE HANDLE, HM1304B $17.80
36 416228-4 HANDLE BASE, HM1303B $3.06
37 252633-9 KNOB, HM1500 $8.78
38 253194-2 F. WASHER 5, HM1303B $1.63
39 922221-3 HEX BOLT M5X16, 6906 $1.34
40 252005-8 U-NUT M8-13, HM1301 $4.16
41 257196-0 RING 25, HM1303B $4.49
42 211373-8 BALL BEARING 6205LLU, HM1304B $17.47
43 316730-6 HOUSING W/O BEARING, HM1303B $8.78
44 265366-7 H.S.H.BOLT M6X22, HM1500 $3.28
45 254001-2 WOODRUFF KEY 4, HM1810 $1.26
46 324100-5 CRANK SHAFT, HM1304B $41.41
47 212261-2 NEEDLE BEARING 1715,HM1304B $6.80
48 253196-8 F. WASHER 6, 2012 $2.18
49 922326-9 H.S.H. BOLT M6X18, HM1301 $1.96
50 213720-9 O RING 67, HR2400 $1.96
51 819084-5 MAKITA LABEL, HR5001C $1.48
52 213510-0 O RING 36, BO4556 $1.48
53 416561-4 CRANK CAP, HM1304B $5.48
54 911221-8 P.H. SCREW M5X16, JR3000V $0.86
55 345278-1 HOLDER CAP PLATE, HM1304B $1.52
56 262003-4 RUBBER RING 6, LS1013 $1.48
57 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
58 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
59 922227-1 H.S.H. BOLT M5X18, 2030N $1.08
60 345319-3 REAR COVER, HM1304B $10.65
61 922371-4 H.S.H. BOLT M6X50, HM1211 $2.40
62 941151-9 F. WASHER 6, 5007NB $0.75
63 153627-6 MOTOR HOUSING,HM1304B $49.98
64 183557-7 CRANK HOUSING,HM1304B $81.10
64 317623-0 CRANK HOUSING, HM1304B $83.60
65 850406-0 NAME PLATE, HM1304B $1.48
66 628935-9 FIELD, HM1304B $51.40
67 265428-1 HEX. BOLT M5X65, HM1303B $3.61
68 253794-8 F. WASHER 18, 6905B $1.63
71 518710-0 ARMATURE ASS'Y 115V, HM1304B $157.34
72 241870-0 FAN 80, HM1304B $8.01
73 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
74 418000-0 BAFFLE PLATE, HM1304B $4.16
75 266310-7 H.S.H. BOLT M6X45, HM1304B $1.74
76 317446-6 GEAR HOUSING COVER, HM1403B $31.92
77 211214-8 BALL BEARING 6302, HM1810 $17.47
78 226450-3 HELICAL GEAR 57, HM1303B $42.43
79 421780-9 SEAL RING B, HM1304B $4.16
80 317445-8 GEAR HOUSING, HM1304B $40.80
81 256111-1 PIN 6, HM1500 $1.96
82 421779-4 SEAL RING A, HM1304B $2.84
83 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
84 183546-2 HANDLE SET,HM1304B $25.06
85 941152-7 F. WASHER 6, HM1500 $0.75
86 922371-4 H.S.H. BOLT M6X50, HM1211 $2.40
87 256111-1 PIN 6, HM1500 $1.96
88 331212-7 SEAL, HM1303B $4.49
89 211104-5 BALL BEARING 6001, HM1303 $13.07
90 226449-8 HELICAL GEAR 34, HM1303B $38.04
91 211109-5 BALL BEARING 6201, HR3851 $13.07
92 183546-2 HANDLE SET,HM1304B $25.06
95 415805-9 LOCK BUTTON, HM1304B $1.63
96 417544-7 SWITCH LEVER, HM1304B $4.16
97 415806-7 LOCK PLATE, HM1304B $1.63
98 651922-3 SWITCH, HM1303B $19.45
99 421778-6 SWITCH BOX, HM1304B $4.16
100 231457-6 COMP. SPRING 3, HR2400 $2.07
101 682560-0 CORD GUARD 10, HM1202C $4.16
101 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
102 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
102 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
103 687063-9 STRAIN RELIEF, 4323K $1.26
104 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
105 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
106 941152-7 F. WASHER 6, HM1500 $0.75
107 256219-1 PIN 4, HM1500 $1.19
108 322477-2 TOOL RETAINER POLE, HM1500B $33.55
109 322550-8 TOOL RETAINER SHAFT, HM1500B $26.92
110 951272-9 SPRING PIN 8-40, HM1500B $2.07
1002 D-21353 BULL POINT (1-1/8 HEX) HM1304B $35.20
