Makita HM1303 Demolition Hammer Parts

Makita HM1303 Demolition Hammer Parts Image

Makita HM1303 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

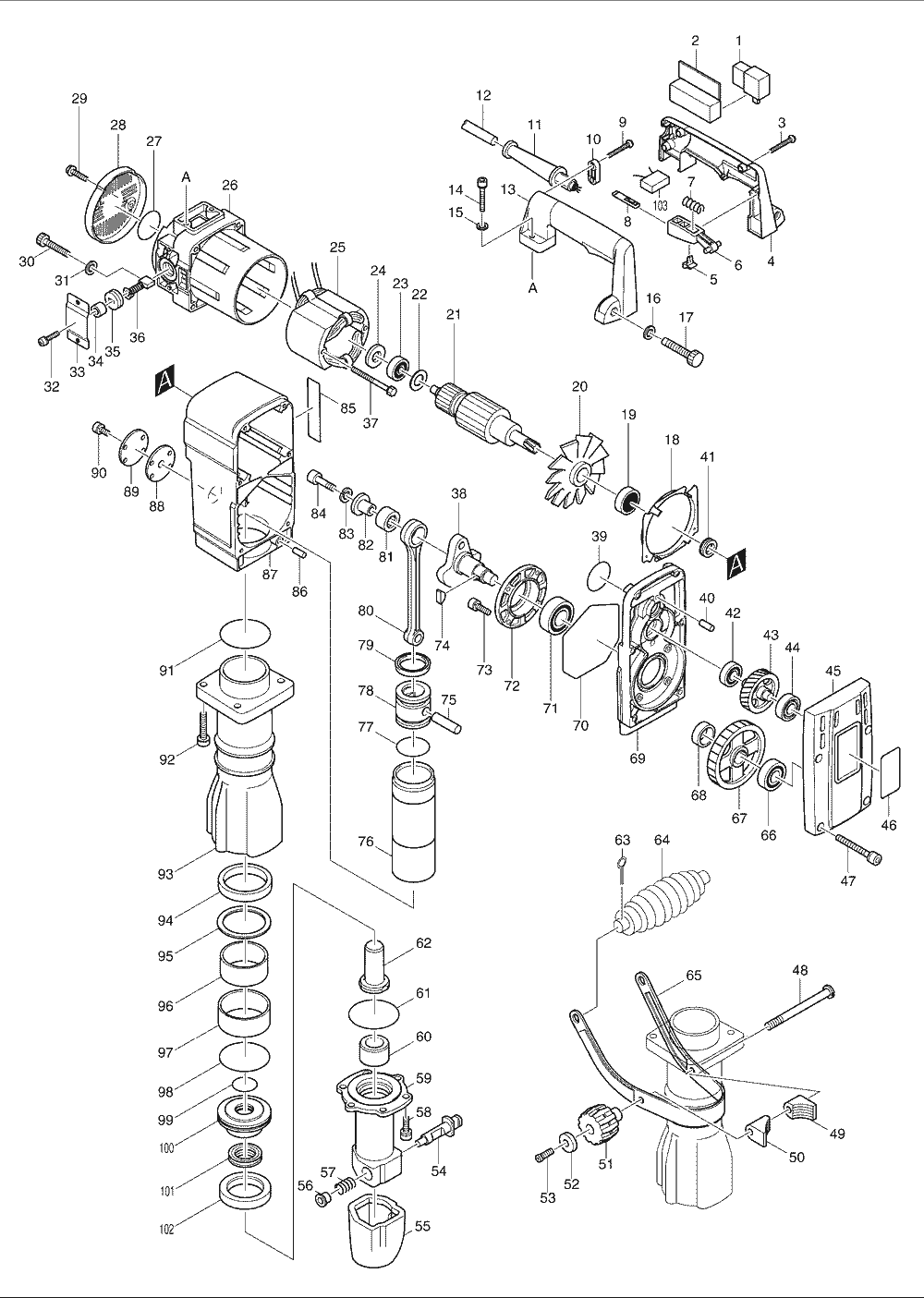

Makita HM1303 Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 651922-3 SWITCH, HM1303B $19.45
2 421529-7 SWITCH BOX, HM1303B $4.49
3 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
4 182844-1 HANDLE SET, HM1303B $41.61
5 415805-9 LOCK BUTTON, HM1304B $1.63
6 415120-1 SWITCH LEVER, HR2400 $3.06
7 231457-6 COMP. SPRING 3, HR2400 $2.07
8 415806-7 LOCK PLATE, HM1304B $1.63
9 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
10 687063-9 STRAIN RELIEF, 4323K $1.26
11 682505-8 CORD GUARD, 2711 $2.51
11 682568-4 CORD GUARD, HR5000 $4.16
11 Boot-A This item will be shipped Free Strain Relief fits 14/3 AWG only $4.19
12 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
12 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
13 182844-1 HANDLE SET, HM1303B $41.61
14 922361-7 H.S.H. BOLT M6X40, HM1303B $1.48
15 941152-7 F. WASHER 6, HM1500 $0.75
16 941152-7 F. WASHER 6, HM1500 $0.75
17 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
18 344273-8 BAFFLE PLATE, HM1303B $4.49
19 211228-7 BALL BEARING 6202DDW, HM1303B $15.27
20 241128-7 FAN $5.70
21 516701-5 ARMATURE ASS'Y 115V, HM1303B $160.06
24 253794-8 F. WASHER 18, 6905B $1.63
25 626041-4 FIELD 115V, HM1303B $67.70
26 159904-4 MOTOR HOUSING CPL.,HM1303B $63.00
27 213406-5 O RING 30, HR5000 $1.19
28 284069-4 REAR COVER, HM1303B $7.46
29 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
30 922376-4 H.S.H. BOLT M6X55, HR5000 $3.61
31 941151-9 F. WASHER 6, 5007NB $0.75
32 911221-8 P.H. SCREW M5X16, JR3000V $0.86
33 344384-9 HOLDER CAP PLATE, HM1303B $3.06
34 262049-0 RUBBER RING 6, HM1303B $1.19
35 643700-5 BRUSH HOLDER CAP, GA7021 $1.63
36 194992-4 A.C.CARBON BR.SET,CB-204,HM1800 $19.45
37 265428-1 HEX. BOLT M5X65, HM1303B $3.61
38 322894-6 CRANKSHAFT, HM1303B $49.57
39 213460-9 O RING 35, HM1500 $1.19
40 256111-1 PIN 6, HM1500 $1.96
41 331212-7 SEAL, HM1303B $4.49
42 211104-5 BALL BEARING 6001, HM1303 $13.07
43 226449-8 HELICAL GEAR 34, HM1303B $38.04
44 211109-5 BALL BEARING 6201, HR3851 $13.07
45 316732-2 GEAR HOUSING COVER, HM1303B $42.02
46 858309-2 NAME PLATE, HM1303 $2.51
47 922371-4 H.S.H. BOLT M6X50, HM1211 $2.40
47 266304-2 H.S.H. BOLT 6X50, HM1303 $1.74
48 266140-6 SET BOLT M10X113, HM1303B $10.54
49 416228-4 HANDLE BASE, HM1303B $3.06
50 416228-4 HANDLE BASE, HM1303B $3.06
51 252633-9 KNOB, HM1500 $8.78
52 253194-2 F. WASHER 5, HM1303B $1.63
53 922221-3 HEX BOLT M5X16, 6906 $1.34
54 322986-1 TOOL RETAINER, HM1303 $26.16
55 421567-9 DUST COVER, HM1303 $14.61
56 322987-9 RETAINER SLEEVE, HM1303 $5.92
57 233142-7 COMP. SPRING 14, HM1303 $2.07
58 266010-9 H.S.H.BOLT M8X30, HM1303B $2.40
59 322875-0 TOOL HOLDER, HM1303 $114.47
60 322874-2 GUIDE SLEEVE, HM1303 $10.32
61 213707-1 O RING 65, HM1100C $3.61
62 322873-4 IMPACT BOLT, HM1303B $20.66
63 952257-8 SPLIT PIN 3-20, HM1303B $0.86
64 273492-8 GRIP 38, HM1303B $13.18
65 345233-3 SIDE HANDLE, HM1303 $11.97
66 211214-8 BALL BEARING 6302, HM1810 $17.47
67 226450-3 HELICAL GEAR 57, HM1303B $42.43
68 257196-0 RING 25, HM1303B $4.49
69 159806-4 GEAR HOUSING CPL.,HM1303B $63.10
70 421731-2 SEAL RING, HM1302 $2.84
71 211373-8 BALL BEARING 6205LLU, HM1304B $17.47
72 316730-6 HOUSING W/O BEARING, HM1303B $8.78
73 265366-7 H.S.H.BOLT M6X22, HM1500 $3.28
74 254001-2 WOODRUFF KEY 4, HM1810 $1.26
75 256238-7 PIN 12, HM1307CB $5.37
76 322919-6 HAMMER, HM1303B $97.00
77 213519-2 O RING 36, HM1303B $7.13
78 322871-8 PISTON, HM1303B $57.80
79 213520-7 Y RING 36, HM1303B $8.78
80 322812-4 CONNECTING ROD, HM1303B $26.92
81 212260-4 N. BEARING 1716, HM1303B $21.76
82 321825-2 CRANK SLEEVE, HM1303B $10.32
83 942251-8 SPRING WASHER 10, 2711 $1.34
84 922557-0 H.S.H. BOLT M10X35, HM1303B $1.74
85 819084-5 MAKITA LABEL, HR5001C $1.48
86 256111-1 PIN 6, HM1500 $1.96
87 159971-9 CRANK HOUSING CPL.,HM1303B $81.30
88 442009-0 PACKING 50, HM1303B $1.26
89 341397-1 PLATE 50, HM1303B $1.63
90 911211-1 P.H. SCREW M5X12, HM1500B $0.86
91 213707-1 O RING 65, HM1100C $3.61
92 265367-5 H.S.H.BOLT M8X40, HM1500 $3.61
93 316831-0 BARREL, HM1303B $114.47
94 262068-6 URETHANE RING 59, HM1303B $12.19
95 267146-7 FLAT WASHER 58, HM1303B $5.92
96 322815-8 IDLER, HM1303B $49.57
97 262536-9 RUBBER SLEEVE 64, HM1303B $4.49
98 213707-1 O RING 65, HM1100C $3.61
99 213390-4 O RING 25, HM1303B $5.37
100 322872-6 SEAL HOLDER, HM1303B $30.90
101 213383-1 X RING 25, HM1303B $24.29
102 262072-5 URETHANE RING 49, HM1303B $13.95
1001 798029-5 BULL POINT 30-410 HM1500 $70.20
