Makita HM1300 Demolition Hammer Parts

Makita HM1300 Demolition Hammer Parts Image

Makita HM1300 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

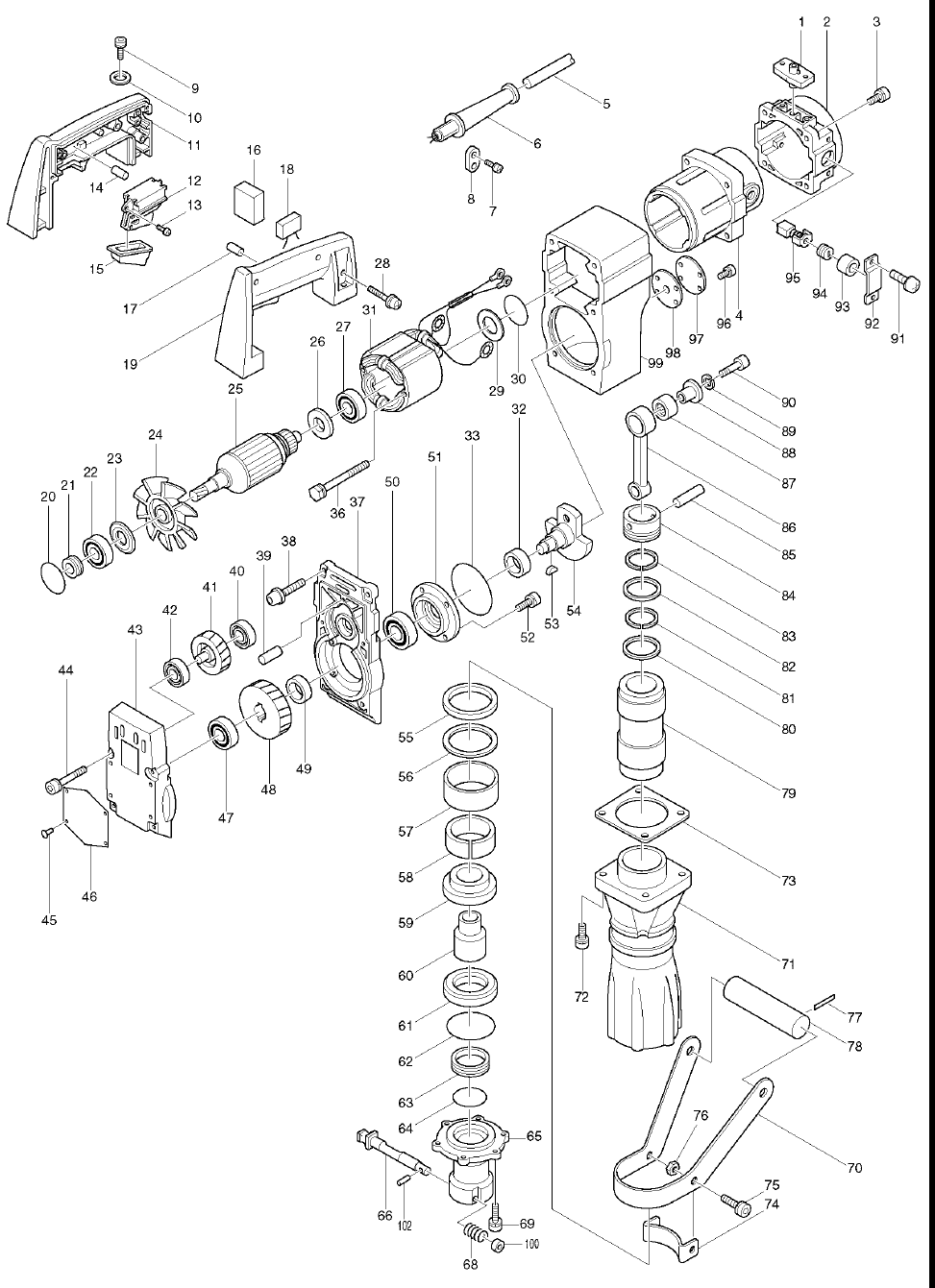

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
4	159421-4	MOTOR HOUSING, HM1300	$94.70
6	682505-8	CORD GUARD, 2711	$2.51
6	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
6	682506-6	CORD GUARD, 6922NB	$2.51
6	682540-6	CORD GUARD 9.3-90,9040L	$4.16
7	911133-5	P.H. SCREW M4X18, N9501B	$0.86
8	687031-2	STRAIN RELIEF, UH4510A	$1.41
9	922356-0	H.S.H.BOLT M6X35, HM1500	$1.96
10	941152-7	F. WASHER 6, HM1500	$0.75
12	651145-3	SWITCH, HM1211B	$32.74
13	911129-6	P.H. SCREW M4X16, HR5000	$0.86
15	421265-5	DUST COVER, HR3851	$3.06
17	263002-9	RUBBER PIN 4, 5007NK	$0.86
18	645105-5	NOISE SUPPRESSOR, HK1800	$2.95
18	645200-1	NISE SURPRESSOR	$3.61
19	181702-8	HANDLE SET, HM1301	$23.74
20	213469-1	O RING 35, HM1800	$8.78
21	331271-1	SEAL, HM1301	$5.92
22	211206-7	B. BEARING 6202LLB, NHP1310	$10.98
23	213202-1	DUST SEAL 15, 5402A	$3.06
24	241648-1	FAN 104, HM1500	$12.63
25	513401-8	ARMATURE ASS'Y 115V FOR HM1300	$193.23
26	681635-2	INSULATION WASHER, HM1211B	$1.63
27	211066-7	B. BEARING 6200LLB, BO4552	$10.98
28	911243-8	P.H. SCREW M5X25, GA7911	$1.19
29	253794-8	F. WASHER 18, 6905B	$1.63
30	213406-5	O RING 30, HR5000	$1.19
32	213408-1	OIL SEAL 30, HM1301	$5.92
33	213806-9	O RING 90, HM1500	$3.61
36	265341-3	HEX BOLT M5X75, HM1500	$3.61
38	922341-3	H.S.H. BOLT M6X25, HM1100C	$1.34
39	256111-1	PIN 6, HM1500	$1.96
41	221740-9	H. GEAR 43, HM1301	$50.49
42	211109-5	BALL BEARING 6201, HR3851	$13.07
44	922381-1	H.S.H. BOLT M6X60, HR4041C	$3.61
45	953106-2	RIVET 0-5, HM1500	$0.49
47	211214-8	BALL BEARING 6302, HM1810	$17.47
48	221739-4	H. GEAR 68, HM1301	$57.70
49	257111-4	RING 25, HM1301	$4.49
50	211359-2	BALL BEARING 6205, HM1500	$19.56
51	315782-4	HOUSING W/O BEARING, HM1301	$26.92
52	266009-4	HEX SOCKET HEAD BOLT M6X18,2517N	$1.74
53	254001-2	WOODRUFF KEY 4, HM1810	$1.26
54	321829-4	CRANKSHAFT, HM1301	$77.40
55	262035-1	NYLON RING 60, HM1301	$3.61
56	267006-3	F. WASHER 60, HM1301	$7.57
57	421291-4	RUBBER RING 68, HM1301	$5.92
61	421292-2	URETHANE RING 44, HM1301	$20.33
62	213707-1	O RING 65, HM1100C	$3.61
63	213517-6	X RING 40, HM1500	$30.49
64	213504-5	O RING, 9820-2	$1.96
66	322567-1	TOOL RETAINER, HM1500	$32.23
68	231281-7	COMP. SPRING 15, HM1500	$1.48
69	266010-9	H.S.H.BOLT M8X30, HM1303B	$2.40
70	342855-0	SIDE HANDLE, HM1301	$20.33
71	315780-8	CYLINDER, HM1301	$177.90
72	266011-7	HEX. SOCKET HEAD BOLT M8X35, HM1317CB	$2.51
73	442085-4	CYLINDER PACKING, HM1301	$3.06
74	342852-6	SIDE HANDLE PLATE, HM1301	$4.49
75	922441-9	H.S.H. BOLT M8X25, SC190DWDE	$1.96
76	252005-8	U-NUT M8-13, HM1301	$4.16
77	952257-8	SPLIT PIN 3-20, HM1303B	$0.86
78	273492-8	GRIP 38, HM1303B	$13.18
82	412067-0	PISTON RING 46, HM1301	$26.16
83	342853-4	INNER RING 42, HM1301	$4.49
84	321824-4	PISTON, HM1301	$29.58
86	321826-0	CONNECTING ROD, HM1301	$30.90
87	212260-4	N. BEARING 1716, HM1303B	$21.76
88	321825-2	CRANK SLEEVE, HM1303B	$10.32
89	942251-8	SPRING WASHER 10, 2711	$1.34
90	922557-0	H.S.H. BOLT M10X35, HM1303B	$1.74
91	911206-4	P.H. SCREW M5X10, 1806B	$0.53
92	342998-8	COVER,HM1300	$1.63
93	262049-0	RUBBER RING 6, HM1303B	$1.19
94	643650-4	BRUSH HOLDER CAP, 5007NK	$1.63
95	181048-2	CARBON BRUSH 155, HR5000	$14.94
95	K21	Carbon Brush Set	$8.19
96	911211-1	P.H. SCREW M5X12, HM1500B	$0.86
97	341397-1	PLATE 50, HM1303B	$1.63
98	442009-0	PACKING 50, HM1303B	$1.26
100	322560-5	RETAINER RING, HM1800	$8.78
100	322699-4	RETAINING RING, HM1500	$5.92
102	256219-1	PIN 4, HM1500	$1.19
402	798029-5	BULL POINT 30-410 HM1500	$70.20
