Makita HM0860C Demolition Hammer Parts

Makita HM0860C Demolition Hammer Parts Image

Makita HM0860C Parts
11 lb. Demolition Hammer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HM0860C
11 lb. Demolition Ha...
$441.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

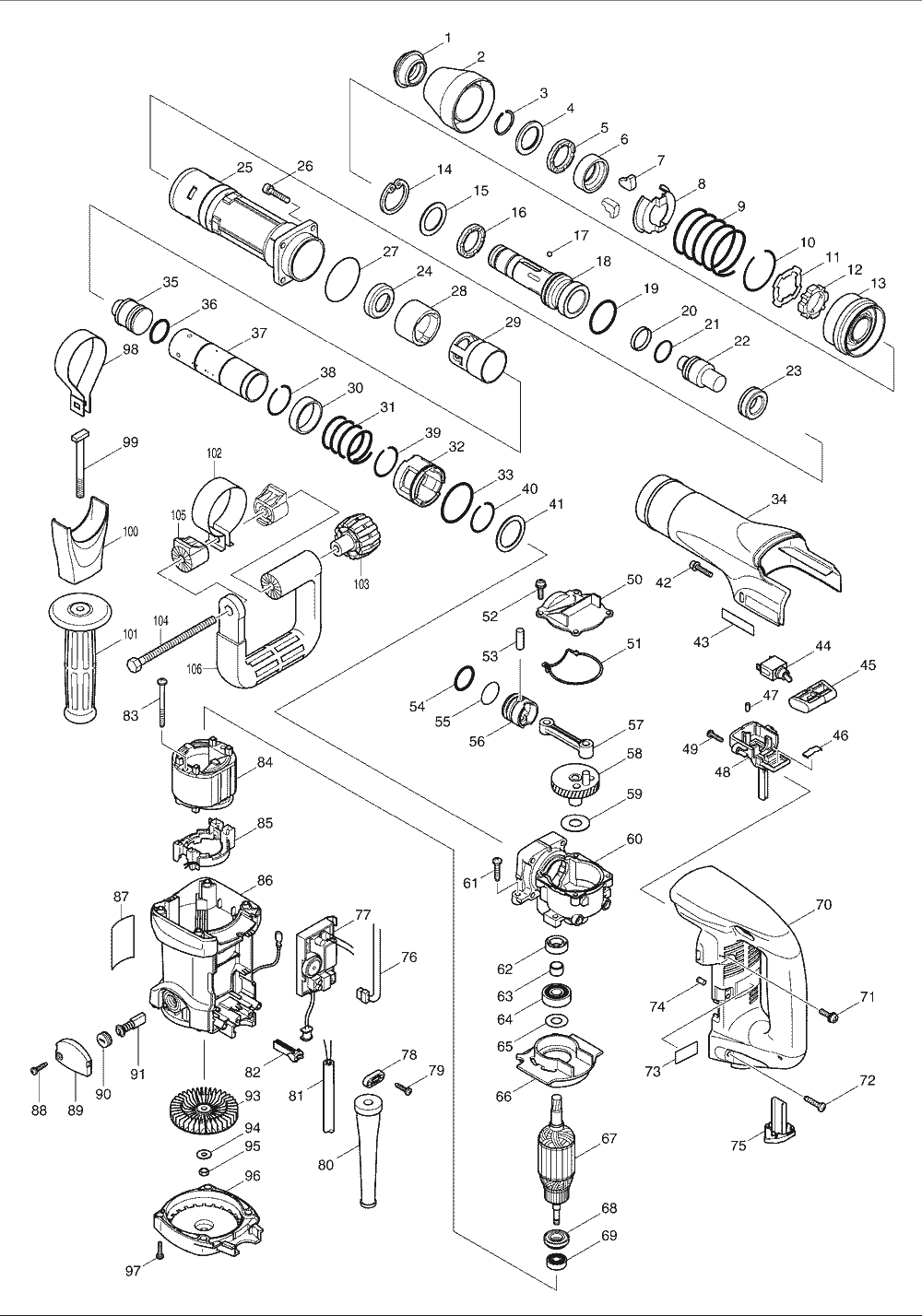

Makita HM0860C Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286269-2 TOOL HOLDER CAP, HM0860C $2.84
76 638295-1 LEAD UNIT, HM0860C $1.52
2 418351-1 CHUCK COVER, HM0860C $5.92
70 416549-4 HANDLE, HM0860C $4.16
3 231984-3 RING SPRING 25, HR5001C $2.07
2 416556-7 COVER, HM0860C $2.84
4 267272-2 FLAT WASHER 28, HM0860C $5.26
00 162202-7 LATCH, HM0860C $2.84
5 262110-3 URETHAN RING 28, HM0860C $6.47
5 424261-2 RUBBER RING 28, HM0870C $2.51
6 331659-5 CHUCK RING, HM0860C $5.48
7 310108-5 TOOL RETAINER, HM0860C $6.80
8 345360-6 SPRING GUIDE, HM0860C $5.92
9 233387-7 COMPRESSION SPRING 52, HM0860C $1.96
10 233928-9 RING SPRING 50, HM0860C $1.63
11 345371-1 PLATE, HM0860C $2.84
11 346141-1 PLATE, HM0870C $2.51
12 310145-9 LOCK RING, HM0860C $10.65
13 418357-9 CHANGE RING, HM0860C $4.16
14 962211-4 RETAINING RING R-42, GA7021 $3.28
14 257960-9 RETAINING RING (INT) ROUND R-42, HM0870C $3.61
15 267273-0 FLAT WASHER 29, HM0860C $2.18
16 262110-3 URETHAN RING 28, HM0860C $6.47
16 424261-2 RUBBER RING 28, HM0870C $2.51
17 216002-8 STEEL BALL 4.8, NHP1310 $0.53
18 324387-9 TOOL HOLDER, HM0860C $64.40
19 213527-3 O RING 38, HM0860C $1.74
20 213431-6 FLUORIDE RING 28, HR5001C $11.97
21 213394-6 O RING 23, HR5001C $1.48
22 324389-5 IMPACT BOLT, HM0860C $10.21
23 421852-0 RUBBER RING 20, HM0860C $6.80
24 267780-3 CUP WASHER 23, HM0860C $3.72
25 318052-0 BARREL, HM0860C $53.80
27 213656-2 O RING 53, AN451 $1.85
28 418352-9 GUIDE RING, HM0860C $2.84
28 451639-6 GUIDE RING HM0860C $2.84
29 419202-1 SLIDE SLEEVE, HM0860C $3.72
29 450098-1 SLIDE SLEEVE, HM0860C $4.16
30 331660-0 RING 36, HM0860C $8.01
31 233386-9 COMPRESSION SPRING 37, HM0860C $1.96
32 317719-7 CYLINDER GUIDE, HM0860C $9.33
33 213611-4 O RING 46, GD0810C $3.28
34 183719-7 CRANK HOUSING COVER, HM0860C $13.29
35 324388-7 STRINKER, HM0860C $9.33
36 213958-6 O RING 24, HM0860C $3.28
37 331658-7 CYLINDER 32, HM0860C $39.06
38 233927-1 RING SPRING 34, HM0860C $0.79
39 233927-1 RING SPRING 34, HM0860C $0.79
40 233927-1 RING SPRING 34, HM0860C $0.79
41 267079-6 FLAT WASHER 34, 6905H $4.16
42 922243-3 H. S. H. BOLT M5X25,2702 $1.96
43 819063-3 MAKITA LABEL, DA3010F $0.96
44 651423-1 SWITCH, RD1100/1101 $13.84
45 418360-0 SWITCH LEVER, HM0860C $2.84
46 232209-8 LEAF SPRING, HM0860C $1.96
47 263027-3 RUBBER PIN 4, HM0860C $1.19
48 418361-8 SWITCH BOX, HM0860C $4.16
49 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
50 418358-7 CRANK CAP, HM0860C $2.84
51 421851-2 SEAL RING, HM0860C $1.26
52 911233-1 P.H. SCREW M5X20, TW1000 $0.86
53 268104-6 PIN 8, HM0860C $1.74
54 213958-6 O RING 24, HM0860C $3.28
55 213432-4 O RING 26, HM0860C $1.19
56 418349-8 PISTON, HM0860C $2.84
57 418350-3 CONNECTING ROD, HM0860C $2.84
58 153676-3 CRANK SHAFT CPL., HM0860C $23.74
59 267166-1 FLAT WASHER, HM0860C $2.18
60 153678-9 CRANK HOUSING CPL., HM0860C $68.00
61 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
62 213231-4 OIL SEAL 15, HR4500C $5.48
63 331596-3 SLEEVE 12, HR4041C $5.48
64 211137-0 BALL BEARING 6201LLU,4140 $9.99
65 253759-0 WASHER 12, JS3200 $1.63
66 418355-3 BAFFLE PLATE, HM0860C $2.84
67 513561-6 ARMATURE ASS'Y 115V, HM0860C $88.90
68 681650-6 INSULATION WASHER, HR4000C $11.75
69 210005-4 BALL BEARING 608DDW, 9031 $13.07
70 418366-8 HANDLE, HM0860C $23.74
71 911233-1 P.H. SCREW M5X20, TW1000 $0.86
72 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
73 815954-6 HM0860C SERIAL NO. LABEL $0.96
74 416285-2 ACRYLIC PIN 5, HR4000C $1.26
75 418359-5 HANDLE CAP, HM0860C $2.84
76 638294-3 LEAD UNIT, HM0860C $2.84
77 631555-0 CONTROLLER, HM0860C $52.50
78 687063-9 STRAIN RELIEF, 4323K $1.26
79 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
80 682560-0 CORD GUARD 10, HM1202C $4.16
80 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
81 664276-9 CORD (2X16X16 SJ), HR5000 $28.15
81 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
82 418353-7 FIX ROD, HM0860C $1.52
83 266044-2 T. SCREW FLANGE 5X60, 5037NB $1.96
84 634506-2 FIELD 115V, HM0860C $22.75
85 638293-5 SUPPORT COMPLETE, HM0860C $5.48
86 153677-1 MOTOR HOUSING CPL., HM0860C $30.70
87 850965-4 NAME PLATE, HM0860C $1.21
88 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
89 418362-6 BRUSH HOLDER COVER, HM0860C $1.52
90 643750-0 BRUSH HOLDER CAP, HM1100C $1.63
91 194997-4 A.C. CARBON BRUSH CB-304 HM1100C $12.63
93 135058-1 FAN 76 ASS'Y, HM0860C $6.80
94 253047-5 F. WASHER 6, 2708 $1.01
95 931303-0 HEX NUT M6, 2012 $0.79
96 418354-5 REAR COVER, HM0860C $5.48
97 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
98 345361-4 GRIP SPRING 60, HM0860C $5.92
99 266322-0 SQUARE BOLT M8X80, HM0860C $3.28
100 418363-4 SIDE GRIP BASE 60, HM0860C $4.16
101 152554-4 GRIP 36 COMPLETE, HR4000C $13.18
1001 194683-7 GREASE VESSEL (BIT), HM1214C $9.40
