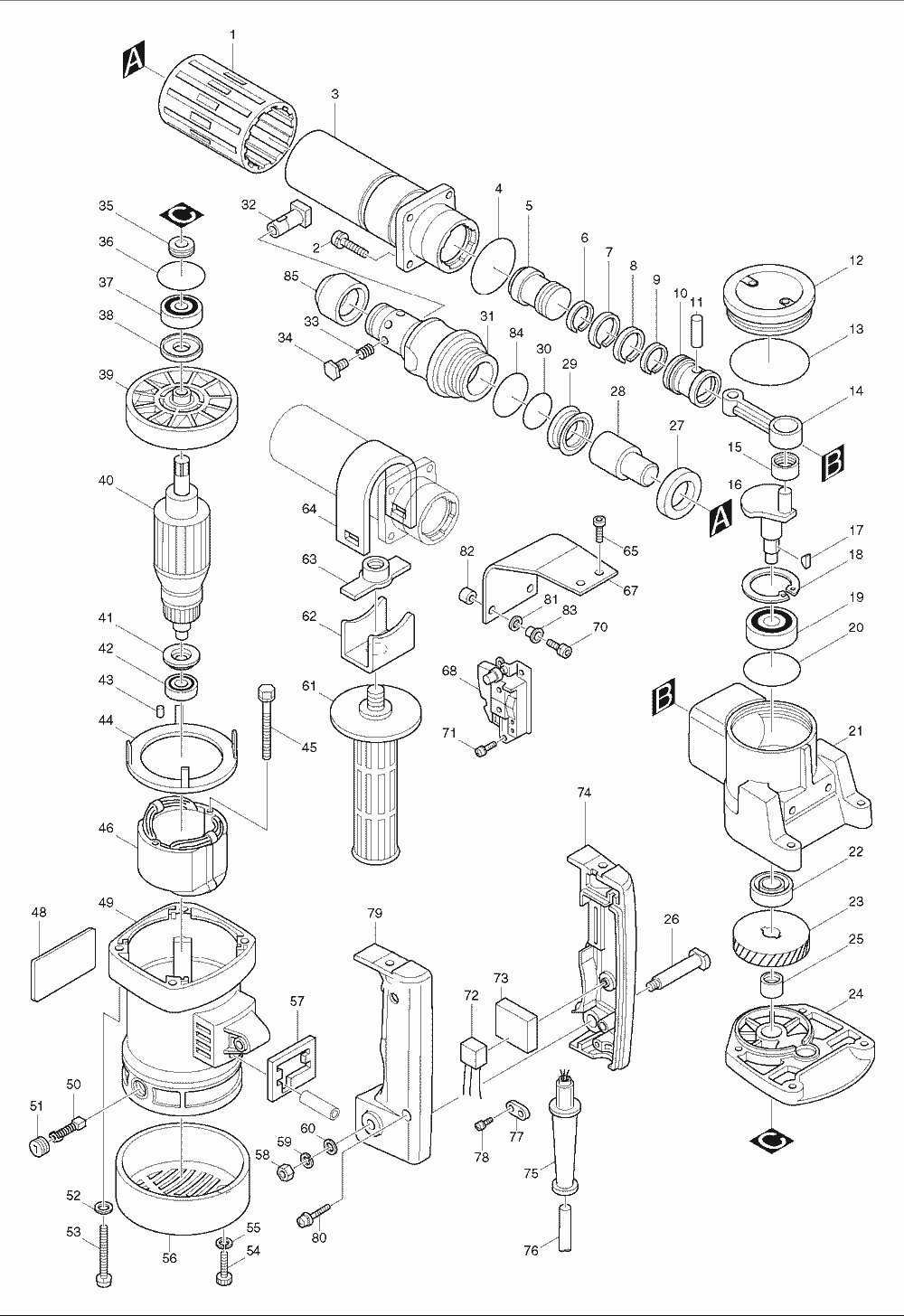

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	421196-8	BARREL COVER, HM0810B,T1	$7.02
1	421541-7	BARREL COVER, HM0810B	$7.46
00	193242-4	HAMMER SERVICE KIT, HM0810B	$27.70
2	922341-3	H.S.H. BOLT M6X25, HM1100C	$1.34
00	045017-6A	THREE BOND 1342, HM0810B	$71.30
34	265321-9	HEX BOLT M8X12, HM0810B-T2	$4.93
3	151457-9	BARREL COMPLETE, HM0810B	$89.20
4	213554-0	O RING, HR2511	$1.96
5	321929-0	STRIKER, HM0810B	$16.04
6	412073-5	INNER RING 26,HM0810B	$13.18
7	412053-1	PISTON RING 30,HM0810B	$13.18
8	412053-1	PISTON RING 30,HM0810B	$13.18
9	321514-9	INNER RING 26, HM0810B	$4.49
10	321958-3	PISTON, HM0810B	$20.33
11	256165-8	PIN 8, HM0810B	$1.96
12	155977-5	CRANK CAP CPL., HM0810B-T2	$6.80
13	213654-6	O RING 60, HR3851	$1.96
14	312956-8	ROD, HR3851	$21.76
15	212108-0	N. BEARING 1212, HR3851	$14.61
16	321954-1	CRANK SHAFT, HM0810B	$24.62
17	254001-2	WOODRUFF KEY 4, HM1810	$1.26
18	962203-3	RETAINING RING R-47, HM0810B	$1.96
19	211279-0	BALL BEARING 6303LLU, HM0810B	$21.76
20	213606-7	O RING 48, HR2511	$1.96
21	157627-8	CRANK H. COMPL, HM0810B	$59.10
22	213260-7	OIL SEAL 17, HM0810B	$4.49
23	221669-9	HELICAL GEAR 41, HM0810B	$19.01
24	157628-6	GEAR HOUSING, HM0810B	$28.15
25	212102-2	N. BEARING 1210, HM0810B	$7.46
26	321210-9	HANDLE SHAFT, HR3851	$3.06
27	253955-0	F. WASHER 24, HM0810B	$15.71
28	324162-3	IMPACT BOLT, HM0810B	$17.36
29	213428-5	X-RING 28, HR5000	$26.05
30	213411-2	O RING 27, HR3851	$3.61
31	193005-8	TOOL HOLDER, HM0810B	$83.90
31	322323-9	TOOL HOLDER, HM0810B, T1	$77.50
31	323790-1	TOOL HOLDER, HM0810B-T2	$66.10
32	331301-8	TOOL RETAINER, HM0810B	$18.90
33	231375-8	COMP. SPRING 15, HR3851	$2.07
34	265321-9	HEX BOLT M8X12, HM0810B-T2	$4.93
35	331194-3	SEAL, HM0810B	$5.92
36	213459-4	O RING 32, HK1810	$1.19
37	211106-1	B. BEARING 6201LLB, 9227C	$13.07
38	213102-5	DUST SEAL 12, 5057KB	$1.63
39	241827-1	FAN 82, HM0810B	$5.48
40	516146-7	ARMATURE ASS'Y, HM0810B	$135.13
41	681625-5	INS. WASHER, 5007NK	$1.63
42	211031-6	BALL BEARING 608LLB, 9227C	$10.98
43	263014-2	RUBBER PIN 4, 9217SPC	$1.19
44	410509-8	BAFFLE PLATE, HM0810B	$4.49
45	265345-5	HEX. BOLT M5X60, HM0810B	$3.61
46	522506-3	FIELD ASS'Y 115V, HM0810B	$62.10
48	856541-2	NAME PLATE, HM0810B	$1.21
49	159634-7	MOTOR HOUSING,HM0810B	$46.92
50	194975-4	A.C.CARBON BRUSH CB-105 HM0810B	$13.84
51	643600-9	BRUSH CAP 6-10, 9005B	$1.63
52	941151-9	F. WASHER 6, 5007NB	$0.75
53	922371-4	H.S.H. BOLT M6X50, HM1211	$2.40
54	922226-3	H. S. H. BOLT M5X18, HM0810B	$1.96
55	942101-7	SPRING WASHER 5, 9005B	$0.90
56	284059-7	REAR COVER, HM0810B	$8.78
57	413020-9	SPONGE 38.5-46, HR3851,T1	$1.34
57	423257-0	SPONGE 38.5-46, HM0810B	$1.63
58	931302-2	HEX NUT M6, HR2400	$0.79
59	942151-2	SPRING WASHER 6, 5007NB	$0.90
60	941151-9	F. WASHER 6, 5007NB	$0.75
61	273457-0	GRIP 32, HM0810B	$20.33
62	341922-8	GRIP BASE, HM0810B	$4.49
63	321497-3	CLAMP NUT, HM0810B	$10.43
64	341914-7	GRIP CLAMP, HM0810B	$7.46
65	922316-2	HEX BOLT M6X14, HR3851	$1.34
67	343753-1	CUSHION PLATE, HM0810B	$6.80
68	651051-2	SWITCH, HM0810B	$29.47
70	265914-2	H.S.H.BOLT M6X25, HM1211B	$2.40
71	911109-2	P.H. SCREW M4X8, HR2210	$0.86
74	182590-6	HANDLE SET, HM0810B	$21.76
75	682503-2	CORD GUARD 8-90, 9005B	$2.51
75	682567-6	CORD GUARD 8, HM0810B	$4.16
75	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
77	687002-9	STRAIN RELIEF, 9217SPC	$0.97
78	911133-5	P.H. SCREW M4X18, N9501B	$0.86
79	182590-6	HANDLE SET, HM0810B	$21.76
80	911243-8	P.H. SCREW M5X25, GA7911	$1.19
81	262051-3	RUBBER RING, HR3851	$1.48
82	262052-1	RUBBER RING 9, HR3851	$1.19
83	257636-8	SLEEVE 6, HR3851	$3.06
84	213508-7	O RING 38, HM0810B	$1.96
85	421596-2	CAP, HM0810B	$2.84
86	267203-1	FLAT WASHER 43, HM0810B	$2.18
1004	783202-0	HEX WRENCH 4, JR3000V	$3.24
