Makita HK1810 Demolition Hammer Parts

Makita HK1810 Demolition Hammer Parts Image

Makita HK1810 Parts
Hex Shank Power Scraper

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HK1810
Hex Shank Power Scra...
$422.99
Tool Diagram    (Click image to Zoom in) View larger Image

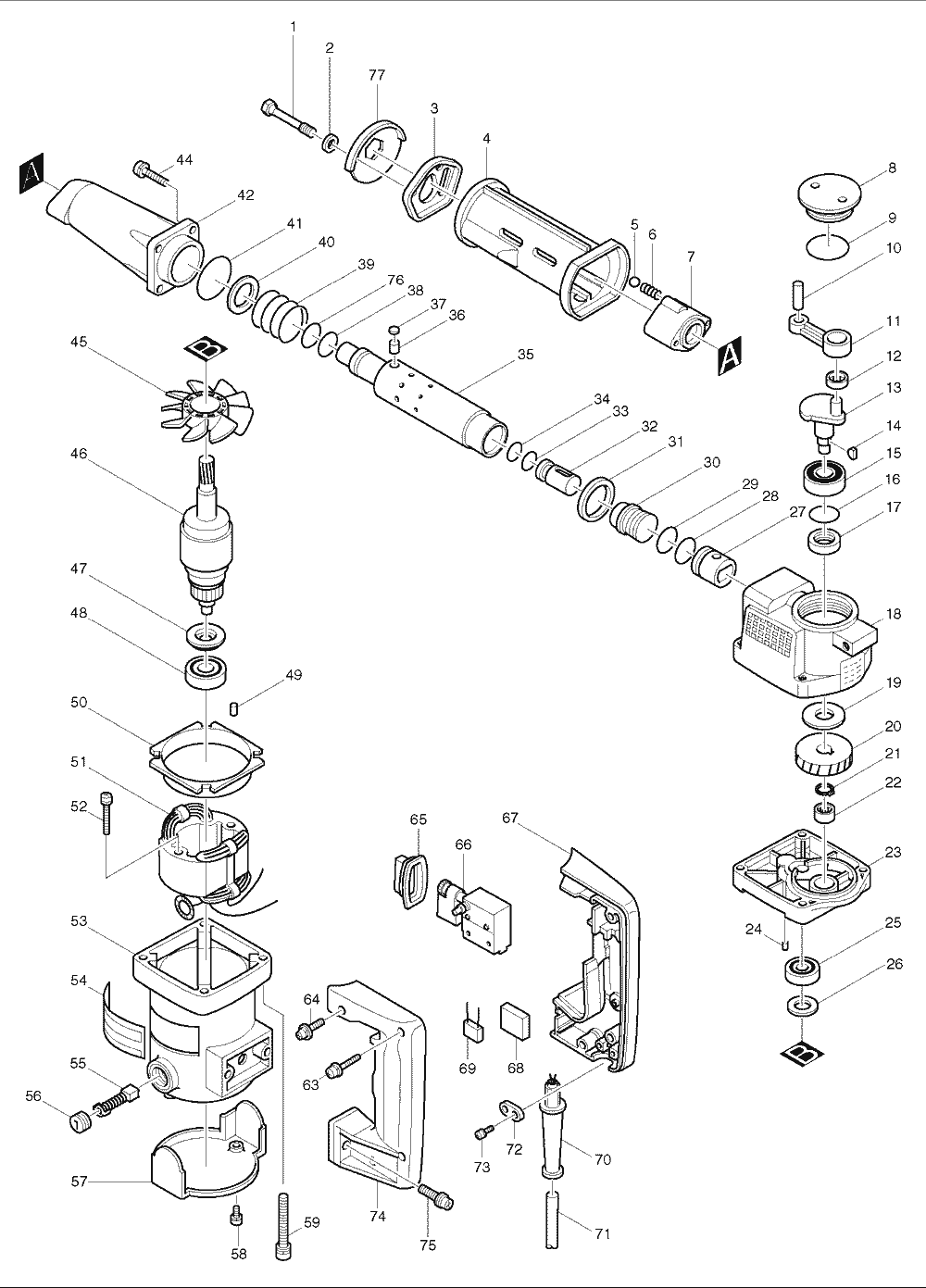

Makita HK1810 Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
00 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
1 265393-4 HEX BOLT M6X49, HK1810 $7.13
46 512851-4 ARMATURE, HK1810 $109.42
2 267017-8 F. WASHER, JS8000 $2.18
405 343518-1 DUST COVER, HK1810 $2.84
3 342910-8 TOOL RETAINER, HK1800 $4.49
57 343390-1 REAR COVER, HK1800 $8.01
1 265393-4 HEX BOLT M6X49, HK1810 $7.13
4 414175-3 BARREL COVER, HK1810 $7.46
5 216011-7 STEEL BALL 5.6, 6222DWE $0.86
42 315838-3A BARREL, HK1810 $34.88
6 231403-9 COMP. SPRING 3, HK1800L $0.86
00 193394-1 HAMMER SERVICE KIT, HK1810 $17.25
7 321859-5 TOOL HOLDER, HK1800L $41.61
8 410734-1 CRANK CAP, HK1810 $4.16
9 213554-0 O RING, HR2511 $1.96
10 256099-5 PIN 6, HR2811F $1.96
11 315146-2 ROD, HR2511 $20.33
12 212025-4 .N. BEARING 810, HR2511 $10.32
12 212017-3 N. BEARING 810, JN1600 $26.16
13 321855-3 CRANKSHAFT, HK1800L $23.19
14 254031-3 WOODRUFF KEY 3, 6801DBV $1.26
15 211201-7 B. BEARING 6002LLB, 6510LVR $13.07
15 211232-6 BALL BEARING 6002LLU, HK0500 $11.97
16 213459-4 O RING 32, HK1810 $1.19
17 213219-4 OIL SEAL 15, HK1800L $4.49
18 157873-3 CRANKHOUSING, HK1800 $65.60
19 253887-1 F. WASHER 15, HK1810 $2.18
20 221745-9 H. GEAR 36, HK1800 $22.75
21 961052-5 RETAINING RING S-12, 9218PBL $0.86
22 212052-1 N. BEARING 1010, HK1810 $7.46
24 263005-3 RUBBER PIN 6, BHP452 $0.86
25 211101-1 BALL BEARING 6001LLB,9218PB $13.07
26 253748-5 F. WASHER 12, HK1810 $1.34
27 321685-2 PISTON, HR2511 $11.75
28 213308-5 O RING 19, HK1810 $7.13
29 213308-5 O RING 19, HK1810 $7.13
30 321854-5 STRIKER, HK1800 $8.78
31 257117-2 RING 28, HK1800 $4.49
32 324680-1 IMPACT BOLT, HK1800 $15.93
33 213111-4 O RING 12, HK1800 $5.37
34 213111-4 O RING 12, HK1800 $5.37
35 321857-9 CYLINDER LINER 24, HK1810 $110.97
36 256156-9 PIN 6, HK1800 $1.48
37 423122-3 CUSHION PLATE, HK1800 $0.97
38 213309-3 O RING 19, HK1800 $5.37
39 231395-2 COMP. SPRING 24, HK1800 $2.07
40 267026-7 F. WASHER 25, HK1800 $2.18
41 213512-6 O RING 39, HK1800 $3.61
42 315838-3 BARREL, HK1800 (T1) $37.02
44 922341-3 H.S.H. BOLT M6X25, HM1100C $1.34
45 241820-5 FAN 67, HR1821 $8.78
46 512851-4 ARMATURE, HK1810 $109.42
47 681625-5 INS. WASHER, 5007NK $1.63
48 211033-2 B. BEARING 608LB, 5091D $8.78
49 263014-2 RUBBER PIN 4, 9217SPC $1.19
50 410578-9 BAFFLE PLATE, HK1810 $2.84
51 622566-6 FIELD, HR1821 $50.90
52 911265-8 P.H. SCREW M5X40, HK1810 $1.48
53 157553-1 MOTOR HOUSING, HK1800 $29.58
54 855557-4 NAME PLATE, HK1810 $1.12
55 194975-4 A.C.CARBON BRUSH CB-105 HM0810B $13.84
56 643600-9 BRUSH CAP 6-10, 9005B $1.63
57 343390-1 REAR COVER, HK1800 $8.01
58 911211-1 P.H. SCREW M5X12, HM1500B $0.86
59 265923-1 H.S.H. BOLT M6X45, HK1810 $2.51
59 266252-5 H.S.H BOLT M6X45, HK1800 $1.74
61 941152-7 F. WASHER 6, HM1500 $0.75
63 911243-8 P.H. SCREW M5X25, GA7911 $1.19
64 911328-0 P.H. SCREW M6X18, HR2511 $1.19
65 421145-5 DUST COVER, HR2511 $3.06
67 181562-8 HANDLE SET, HR2511 $23.74
70 682503-2 CORD GUARD 8-90, 9005B $2.51
70 682567-6 CORD GUARD 8, HM0810B $4.16
70 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
72 687002-9 STRAIN RELIEF, 9217SPC $0.97
73 911133-5 P.H. SCREW M4X18, N9501B $0.86
74 181562-8 HANDLE SET, HR2511 $23.74
75 911343-4 P.H. SCREW M6X25, HR2511 $1.19
76 213309-3 O RING 19, HK1800 $5.37
77 421336-8 DUST COVER, HK1800 $3.06
401 B-07347 2 SCALING CHISEL HK1810 $33.20
402 B-06921 BULL POINT HK1810 $27.00
405 423154-0 DUST COVER HK1810 $2.40
907 819063-3 MAKITA LABEL, DA3010F $0.96
