Makita HK0500 Demolition Hammer Parts

Makita HK0500 Demolition Hammer Parts Image

Makita HK0500 Parts
SDS, Variable Speed, Power Scraper

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita HK0500
SDS, Variable Speed,...
$340.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

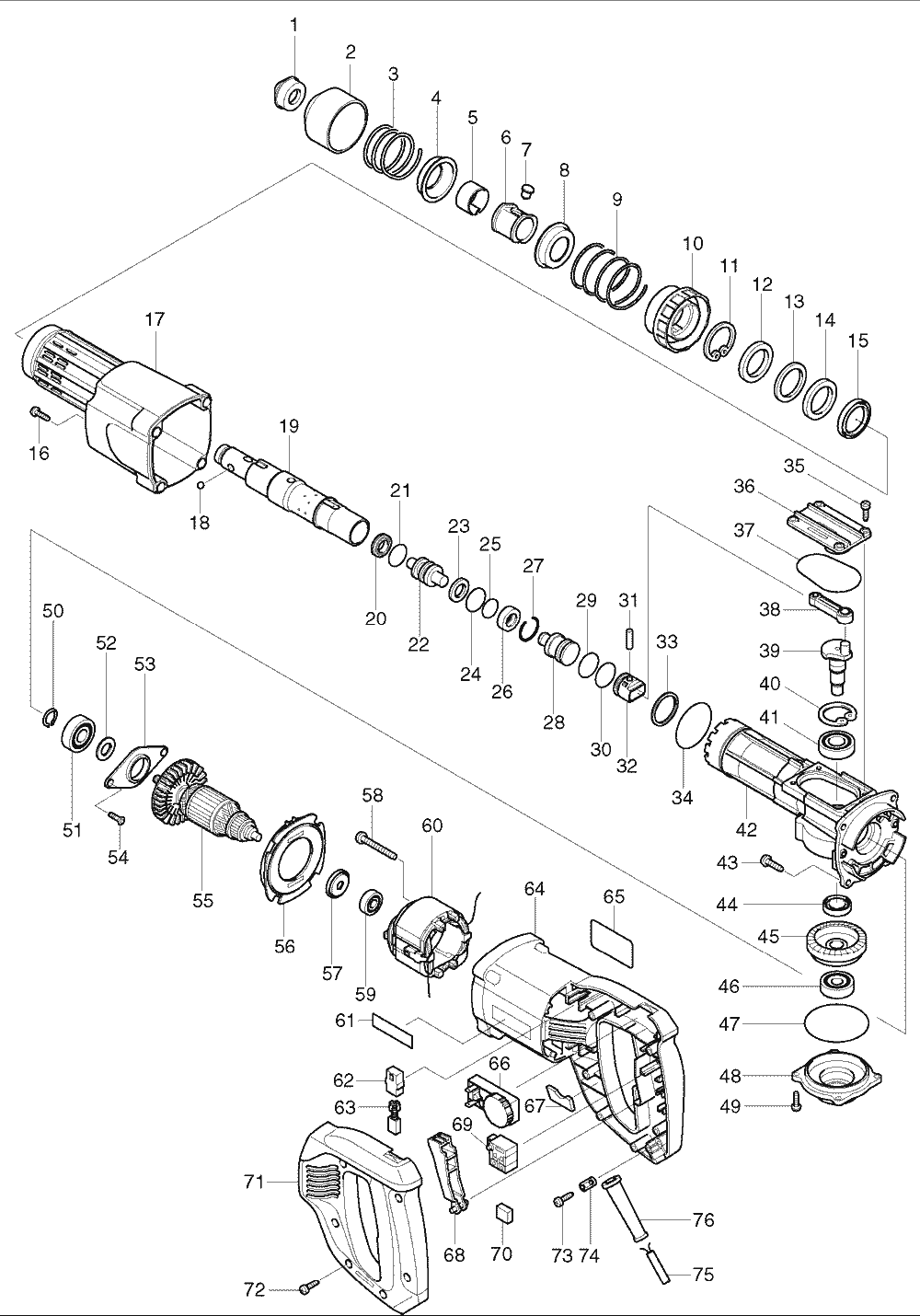

Makita HK0500 Demolition Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 286265-0 CAP 31, HR2400,T2 $1.26

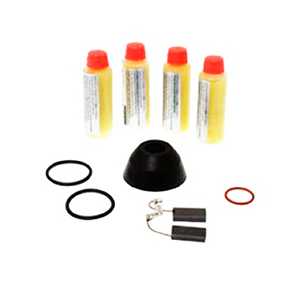

00 193397-5 HAMMER SERVICE KIT, HK0500 $16.04
2 416729-2 CHUCK COVER, HK0500 $4.16
3 233203-3 COMPRESSION SPRING 38, HR2400 $2.07
4 344691-0 SPRING GUIDE, HK0500 $3.61
5 232192-9 LEAF SPRING 26, HR2400 $4.16
6 323724-4 CHUCK RING, HR2400 $18.90
7 256447-8 PIN 8, HR2420 $3.61
8 344691-0 SPRING GUIDE, HK0500 $3.61
9 233238-4 COMPRESSION SPRING 38, HK0500 $2.07
10 416733-1 CHANGE RING, HK0500 $4.49
11 962156-6 RETAINING RING 4-38, HK0500 $1.48
12 257218-6 RING 27, HK0500 $6.80
13 261113-4 URETHANE WASHER 28, HK0500 $5.92
14 257218-6 RING 27, HK0500 $6.80
15 213433-2 OIL SEAL 30, HK0500 $4.49
16 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
17 416734-9 CRANK HOUSING COVER, HK0500 $14.61
18 216022-2 STEEL BALL 7.0, HR2400 $0.86
19 323839-7 TOOL HOLDER, HK0500, T1 $73.80
19 324063-5 TOOL HOLDER, HK0500 $89.40
20 213173-2 X RING 13, HK0500 $5.37
21 213214-4 O RING 16, HR2400 $5.37
22 324012-2 IMPACT BOLT, HK0500 $9.66
23 267192-0 FLAT WASHER 13, HK0500 $4.16
24 213175-8 O RING 14, HK0500 $1.96
25 213117-2 O RING 11, HR2410 $3.61
26 323846-0 O RING CASE, HK0500 $4.49
27 231987-7 RING SPRING 21, HK0500 $1.63
28 323848-6 STRIKER, HK0500 $7.46
29 213227-5 O RING 16M, HR2455 $3.61
30 213227-5 O RING 16M, HR2455 $3.61
31 256123-4 PIN 5, HR1821 $4.93
32 416726-8 PISTON, HK0500 $4.49
33 267129-7 FLAT WASHER 27, HR2410 $2.18
34 213560-5 O RING 44, HK0500 $3.61
35 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
36 416732-3 CRANK CAP, HK0500 $3.06
37 213656-2 O RING 53, AN451 $1.85
38 416727-6 ROD, HK0500 $3.06
39 323826-6 CRANKSHAFT, HK0500 $14.61
40 962151-6 RETAINING RING R-32, 9005B $1.48
41 211232-6 BALL BEARING 6002LLU, HK0500 $11.97
42 151543-6 CRANK HOUSING CPL.,HK0500 $45.59
43 266021-4 TAPPING SCREW PT5X20, BPB180 $1.48
44 213219-4 OIL SEAL 15, HK1800L $4.49
45 226779-7 SPIRAL BEVEL GEAR 41, HK0500 $28.15
46 211066-7 B. BEARING 6200LLB, BO4552 $10.98
47 213656-2 O RING 53, AN451 $1.85
47 213663-5 O RING 55, HR5000 $1.96
48 151579-5 GEAR COVER COMPLETE, HK0500 $4.71
49 266034-5 TAPPING SCREW 4X16, 9524NB $0.53
50 961052-5 RETAINING RING S-12, 9218PBL $0.86
51 211129-9 BALL BEARING 6201DDW, GA4030 $13.07
52 253069-5 F. WASHER 12, 5005BA $1.01
53 285690-2 BEARING RETAINER 68, HK0500 $3.06
54 251304-5 C.H. SCREW M4X12, DA3000R $1.19
55 516356-6 ARMATURE ASS'Y, HK0500 $88.40
56 416730-7 BAFFLE PLATE, HK0500 $3.06
57 681644-1 INSULATED WASHER, 9227C $1.63
58 266211-9 TAPPING SCREW 5X40, DS4011 $1.19
59 210005-4 BALL BEARING 608DDW, 9031 $13.07
60 594316-8 FIELD ASS'Y 115, HK0500 $22.86
61 819063-3 MAKITA LABEL, DA3010F $0.96
62 643605-9 BRUSH HOLDER, HP2010N $1.63
63 194978-8 CARBON BRUSH 113 HK0500 $13.84
64 416736-5 MOTOR HOUSING, HK0500 $23.19
65 851374-0 NAME PLATE, HK0500 $2.51
66 631290-0 CONTROLLER 100-120V,HK0500 $28.25
67 423308-9 SPONGE SHEET 13-33, HK0500 $0.97
68 416728-4 SWITCH LEVER, HK0500 $3.06
69 651969-7 SWITCH, HK0500 $13.84
71 151544-4 HANDLE COVER COMPLETE, HK0500 $11.75
72 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
73 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
74 687063-9 STRAIN RELIEF, 4323K $1.26
76 682503-2 CORD GUARD 8-90, 9005B $2.51
76 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
77 231979-6 RING SPRING 16, HR2400 $0.86
1001 A-30483 SCALING CHISEL 38-200 HK0500 $34.20
5001 810134-9 CAUTION LABEL, 3709 $0.93
5002 654532-5 TERMINAL BLOCK, BO4556 $3.06
5007 654002-4 TERMINAL 1.25-M4, BO5010 $0.75
