Makita HG1100 Heat Gun Parts

Makita HG1100 Parts

Variable Temperature 250 - 1,100 Degrees Heat Gun

Download Schematic

Time to buy a new tool?

Makita HG1100

Variable Temperature...

$89.99

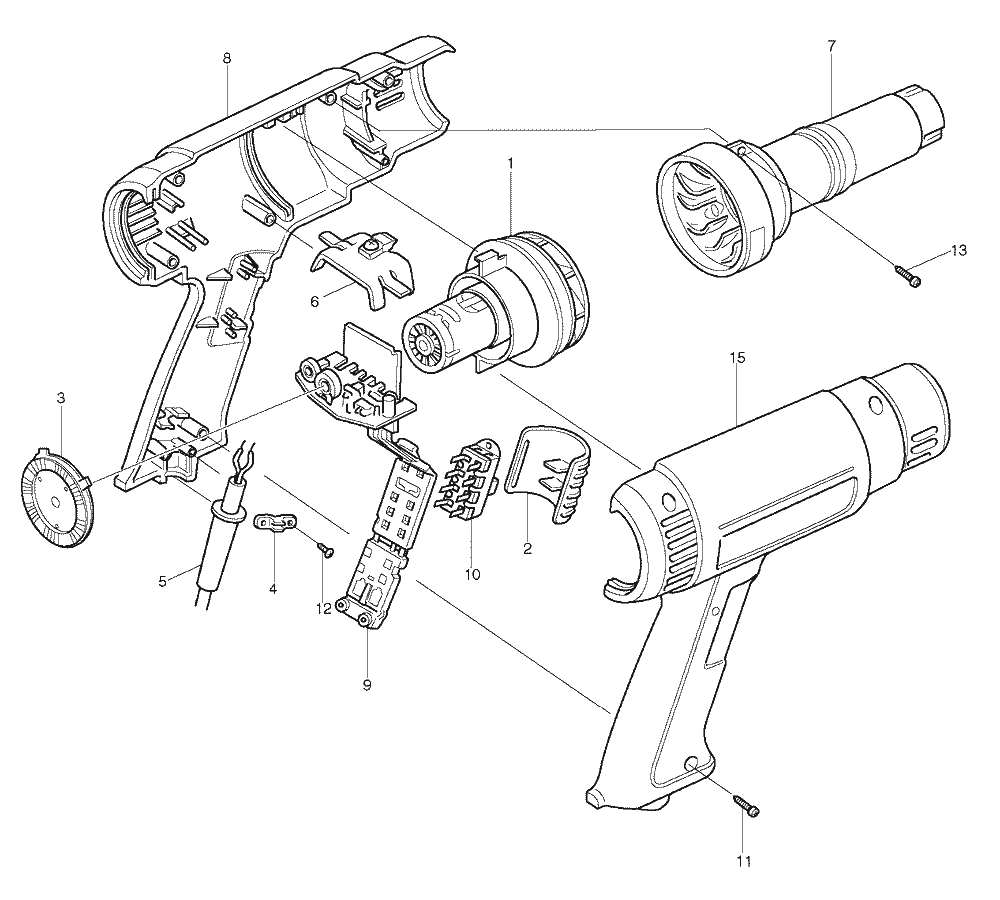

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	119704-H	MOTOR, HG1100	$18.90
2	119760-H	SWITCH ACTUATOR, HG1100	$4.16
3	119762-H	THUMB WHEEL, HG1100	$3.06
4	119765-H	STRAIN RELIEF, HG1100	$1.26
5	120139-H	POWER CORD, HG1100	$17.25
5	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
6	120141-H	COOLING PLATE, HG1100	$9.22
7	120431-H	HEATING ELEMENT, HG1100	$52.50
8	120680-H	HOUSING SET, HG1100	$30.49
9	120681-H	INTERCONNECT BLOCK, HG1100	$56.10
10	121328-H	SWITCH FOR INTERCONN. BLOCK, HG1100	$10.65
11	121400-H	"SCREW 19/32"", HG1100"	$0.75
12	121401-H	PAN HEAD SCREW, HG1100	$0.75
13	121401-H	PAN HEAD SCREW, HG1100	$0.75
15	120680-H	HOUSING SET, HG1100	$30.49
