Makita GV6000 Sander & Polisher Parts

Makita GV6000 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

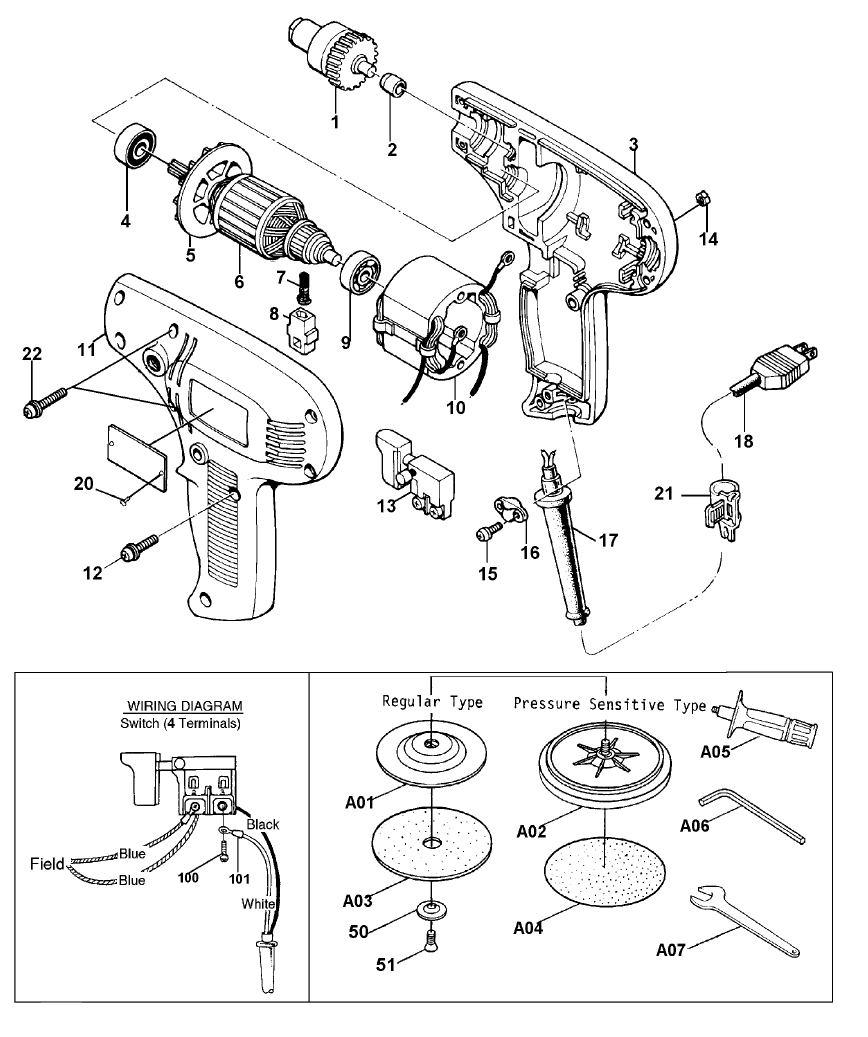

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	153119-5	GEAR, GV5000	$37.84
2	214004-8	P. BEARING 6, GV5010	$1.26
4	211033-2	B. BEARING 608LB, 5091D	$8.78
5	241803-5	FAN, 6801DBV	$5.92
7	191956-9	CARBON BRUSH 75, JR3000V	$5.92
7	K28	Carbon Brush Set	$8.19
8	643552-4	BRUSH HOLDER, BO5012K	$1.63
9	211028-5	B. BEARING 627LB, 6510LVR	$8.78
12	911138-5	P.H. SCREW M4X20, 9218SB	$0.86
13	651232-8	SWITCH, 9218SB	$10.43
14	931102-0	HEX NUT M4, 2711	$0.79
15	911131-9	P.H. SCREW M4X18, HR3851	$0.53
16	687002-9	STRAIN RELIEF, 9217SPC	$0.97
17	682502-4	CORD GUARD 8-85, HP2010N	$2.51
17	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
19	654038-3	INSULATED TERMINAL, 3620A	$0.97
20	953106-2	RIVET 0-5, HM1500	$0.49
21	410047-0	WRENCH HOLDER, GV5000	$1.63
50	253951-8	WASHER 10, GV5010	$2.18
51	265812-0	H.S.H. SCREW M8X20, GV5010	$1.48
100	652008-6	P.H. SCREW M3.5X7, PV7001C	$0.49
101	654037-5	INSULATED TERMINAL, RP0900K	$0.75
A01	743025-8	PLASTIC PAD GV5000	$8.00
A05	152491-2	GRIP, GV5000	$4.49
A06	783203-8	HEX WRENCH 5, 2708	$3.24
