Makita GV5010 Sander & Polisher Parts

Makita GV5010 Parts

5 Inch Disc Sander (Replacement of GV5000)

Download Schematic

Time to buy a new tool?

Makita GV5010

5 Inch Disc Sander (...

$99.00

Free Shipping

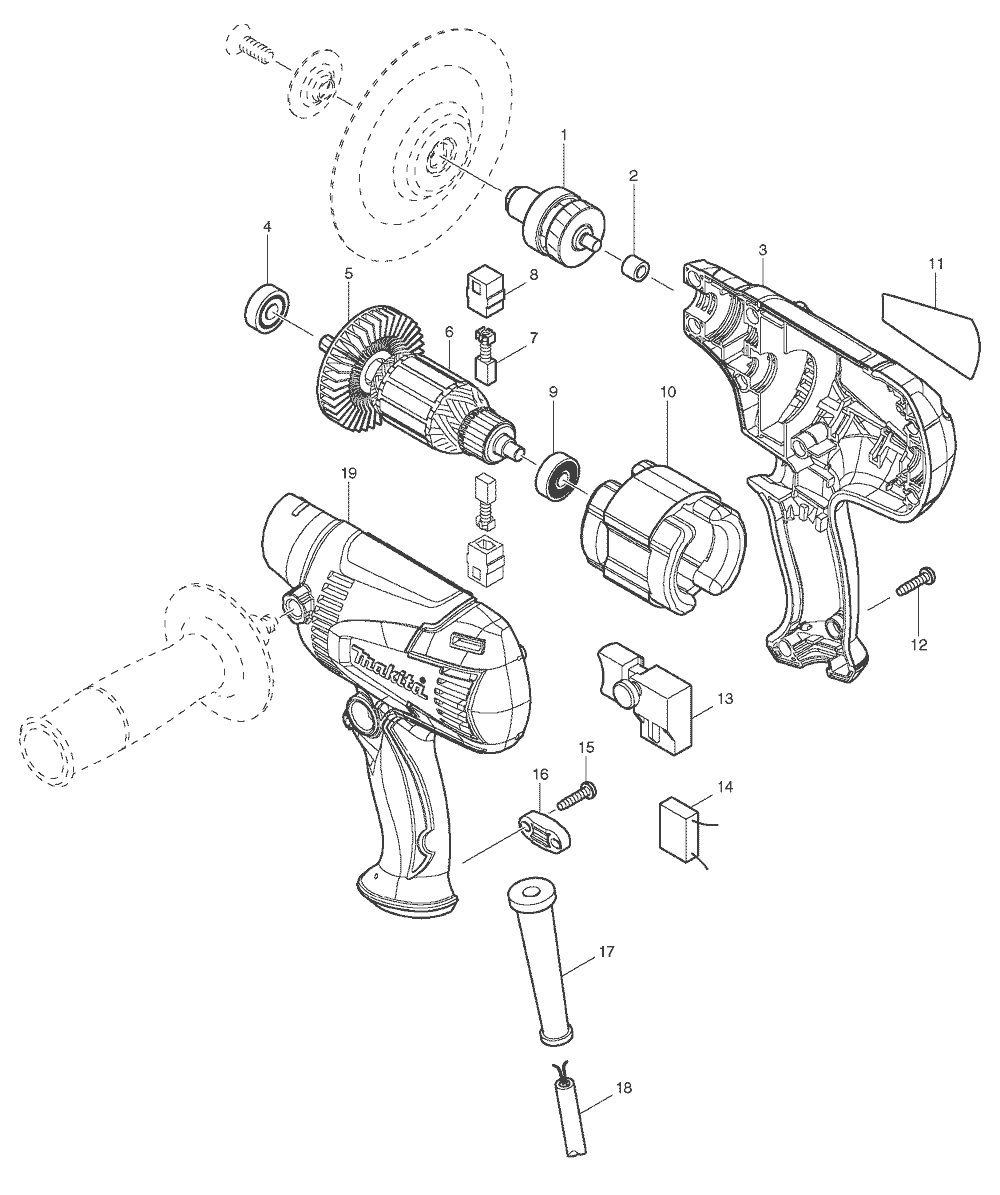

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	153119-5	GEAR, GV5000	$37.84

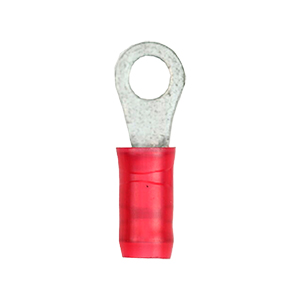

00	654183-4	INSULATED TERMINAL, GV5010	$0.66
2	214004-8	P. BEARING 6, GV5010	$1.26
3	188564-5	HOUSING SET, GV5010	$23.96
4	211031-6	BALL BEARING 608LLB, 9227C	$10.98
5	241884-9	FAN 60, TW0350	$4.16
6	515311-5	ARMATURE ASS'Y 115V, GV5010	$26.52
8	643563-9	BRUSH HOLDER 5X8, GV5010	$0.90
9	210023-2	BALL BEARING 627DDW, 9910	$6.69
10	520065-1	FIELD ASS'Y, GV5010	$16.04
11	865331-2	NAME PLATE, GV5010	$1.08
12	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
13	651285-7	SWITCH, 9910, GV5010	$10.43
15	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
16	687063-9	STRAIN RELIEF, 4323K	$1.26
17	682502-4	CORD GUARD 8-85, HP2010N	$2.51
17	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
18	664064-4	CORD (2X18X8 SJ), BO4556	$16.04
18	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
19	188564-5	HOUSING SET, GV5010	$23.96
1001	152491-2	GRIP, GV5000	$4.49
1002	743025-8	PLASTIC PAD GV5000	$8.00
1003	253951-8	WASHER 10, GV5010	$2.18
1004	265812-0	H.S.H. SCREW M8X20, GV5010	$1.48
1005	410047-0	WRENCH HOLDER, GV5000	$1.63
1007	783203-8	HEX WRENCH 5, 2708	$3.24
5001	810420-8	CAUTION LABEL, GV5010	$0.86
