Makita GE0600 Grinder Parts

Makita GE0600 Parts

1/4 Inch Die Grinder

Download Schematic

Time to buy a new tool?

Makita GE0600

1/4 Inch Die Grinder

$107.99

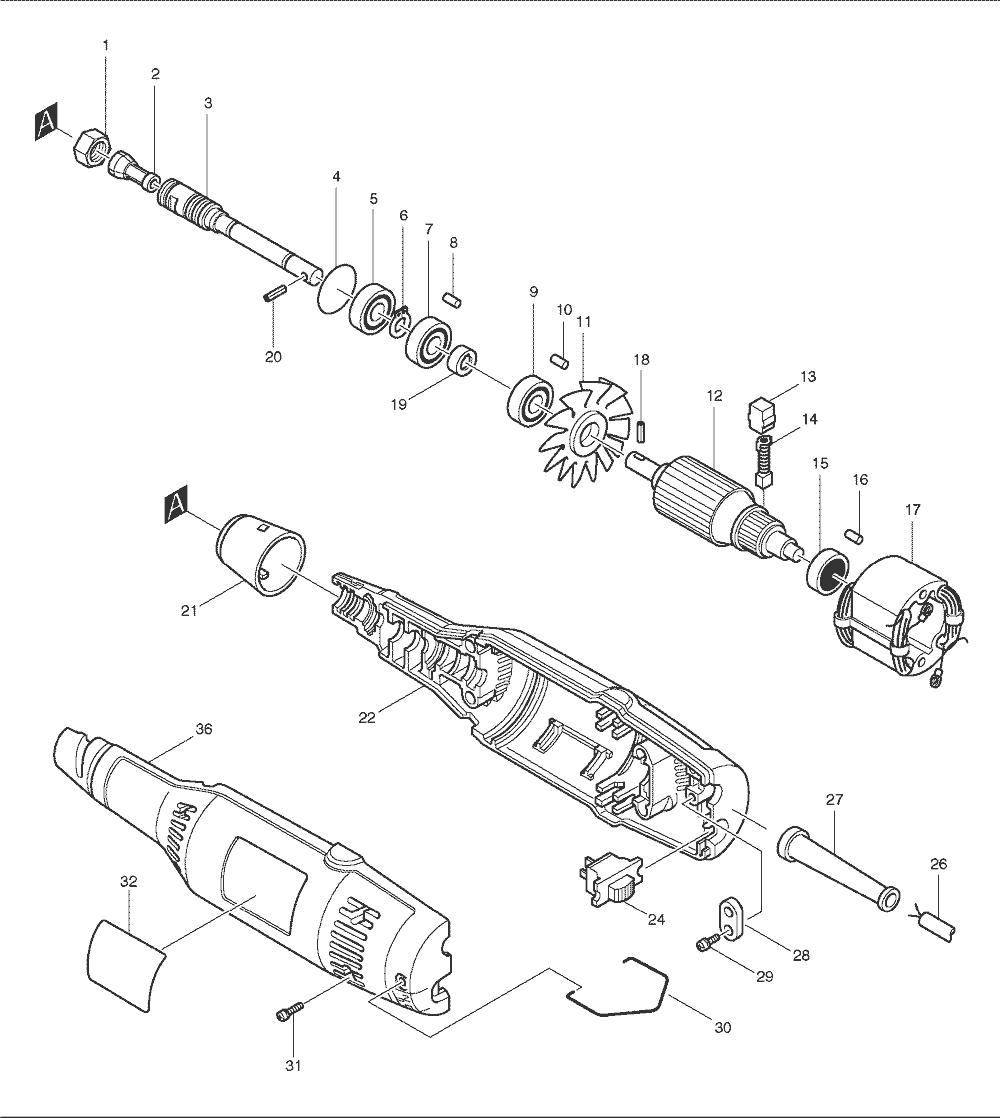

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	763606-2	COLLET NUT, 3707FC	$6.47
14	191956-9	CARBON BRUSH 75, JR3000V	$5.92
00	K29	Carbon Brush Set	$8.19
14	K28	Carbon Brush Set	$8.19
2	763625-8	1/4 COLLET CONE, GEO600	$16.60
17	528634-2	FIELD ASSEMBLY, GE0600	$42.33
3	321194-1	SPINDLE, GEO600	$36.21
00	664213-3	CORD (2X16X8 SJT), 5900B	$9.22
4	213373-4	O RING 22, GEO600	$1.19
5	211031-6	BALL BEARING 608LLB, 9227C	$10.98
5	211033-2	B. BEARING 608LB, 5091D	$8.78
6	961004-6	RETAINING RING S-8, DA391D	$0.53
7	211033-2	B. BEARING 608LB, 5091D	$8.78
8	263002-9	RUBBER PIN 4, 5007NK	$0.86
9	211031-6	BALL BEARING 608LLB, 9227C	$10.98
9	211033-2	B. BEARING 608LB, 5091D	$8.78
10	263002-9	RUBBER PIN 4, 5007NK	$0.86
11	241100-9	FAN 52, GE0600	$4.49
12	511401-2	ARMATURE, GE0600	$92.10
13	643552-4	BRUSH HOLDER, BO5012K	$1.63
15	211028-5	B. BEARING 627LB, 6510LVR	$8.78
16	263002-9	RUBBER PIN 4, 5007NK	$0.86
17	528634-2	FIELD ASSEMBLY, GE0600	$42.33
18	951060-4	SPRING PIN 3-14, 3707FC	$0.86
19	410986-4	COUPLING, GEO600 (TYPE 3)	$3.06
20	951060-4	SPRING PIN 3-14, 3707FC	$0.86
21	153549-0	CAP CPL., 906	$5.92
21	341553-3	CAP, GEO600	$7.46
27	682500-8	CORD GUARD, DA3000R	$2.51
27	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
28	687001-1	STRAIN RELIEF, 6013BR	$0.97
29	911133-5	P.H. SCREW M4X18, N9501B	$0.86
30	321193-3	HANGER, GEO600	$3.06
31	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
32	858253-3	NAME PLATE, GE0600	$2.74
35	953101-2	RIVET 0-3, 5201NA	$0.49
401	781003-0	SPANNER, 3700B	$4.40
402	781008-0	WRENCH 17, 9217SPC	$4.40
