Makita GD0600 Grinder Parts

Makita GD0600 Grinder Parts Image

Makita GD0600 Parts
1/4 Inch Paddle Switch Die Grinder

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita GD0600
1/4 Inch Paddle Swit...
$140.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

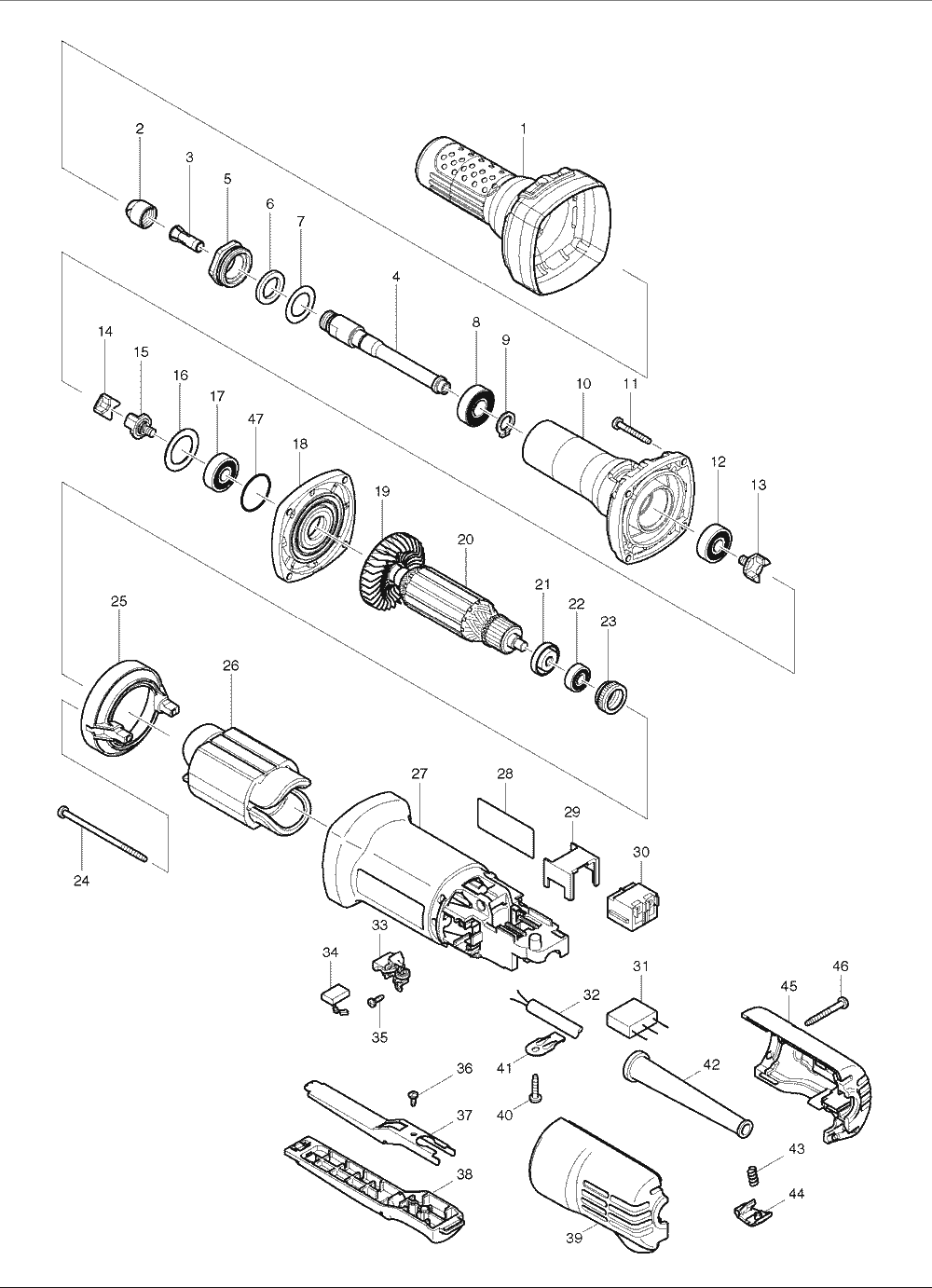

Makita GD0600 Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 421943-7 INSULATION COVER, GD0601 $4.27
00 810139-9 CAUTION LABEL, GD0600 $0.46
2 763664-8 COLLET NUT 6, GD0600 $3.06
3 763625-8 1/4 COLLET CONE, GEO600 $16.60
4 324638-0 SPINDLE, GD0600 $5.48
5 317999-5 BEARING RETAINER, GD0600 $2.95
6 443124-3 FELT RING 17, GD0600 $1.06
7 267329-9 FLAT WASHER 18, GD0600 $1.01
8 210106-8 BALL BEARING 6001LLB,GD0600 $3.50
9 961052-5 RETAINING RING S-12, 9218PBL $0.86
10 318000-9 BARREL, GD0601 $8.45
11 266361-0 TAPPING SCREW 4X30,9553NB $0.53
12 210042-8 BALL BEARING 629LLB, 5277NB $6.03
13 324639-8 COUPLING, GD0601 $4.16
14 421942-9 SPACER, GD0601 $0.49
15 324639-8 COUPLING, GD0601 $4.16
16 267126-3 FLAT WASHER 22, GD0601 $2.18
17 210042-8 BALL BEARING 629LLB, 5277NB $6.03
18 317821-6 GEAR HOUSING COVER, 9553NB $4.27
19 240076-7 FAN 56, 9557PB $1.52
20 515676-5 ARMATURE ASS'Y 115V, GD0600 $18.35
21 681636-0 INSULATION WASHER, GA4030 $3.72
22 210034-7 BALL BEARING 607LLB, BO4556 $4.16
23 421868-5 LABYRINTH RUBBER RING, GA4030 $1.52
24 266345-8 TAPPING SCREW 4X80, 9557NB $0.53
25 418770-1 BAFFLE PLATE, 9557NB $1.26
26 621721-7 FIELD 115V, GD0601 $14.28
27 158059-2 MOTOR HOUSING CPL.,GD0600 $7.02
28 862168-8 NAME PLATE, GD0600 $1.12
30 650561-6 SWITCH, 9557NB $10.43
32 664064-4 CORD (2X18X8 SJ), BO4556 $16.04
32 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
33 643760-7 BRUSH HOLDER, 9557NB $4.16
34 195001-2 CARBON BRUSH CB325,9553NB $4.71
35 266007-8 TAPPING SCREW 3X10, 9557NB $0.53
36 265954-0 TAPPING SCREW BIND PT3X8, GA4030 $0.53
36 266492-5 TAPPING SCREW 3X8, GA4534 $0.44
37 345504-8 PLATE, 9557PB $1.30
38 154583-3 SWITCH LEVER A CPL.,9557PB $2.84
39 183943-2 REAR COVER SET, 9557PB $4.16
40 266326-2 TAPPING SCREW PT 4X18, 5007MG $0.53
41 687169-3 STRAIN RELIEF, HP1621F $0.97
42 682559-5 CORD GUARD 8, 6824 $2.51
42 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
44 419057-4 CAP, GD0600 $1.26
45 183943-2 REAR COVER SET, 9557PB $4.16
46 266351-3 TAPPING SCREW 4X35, 9557PB $0.53
47 213445-5 O-RING 26,9557NB $0.86
1001 781039-9 WRENCH 13 GD0601 $4.40
