Makita GA9040S Grinder Parts

Makita GA9040S Parts

9 inch 15 AMP Soft Start Technology Angle Grinder

Download Schematic

Time to buy a new tool?

Makita GA9040S

9 inch 15 AMP Soft S...

$215.99

Free Shipping

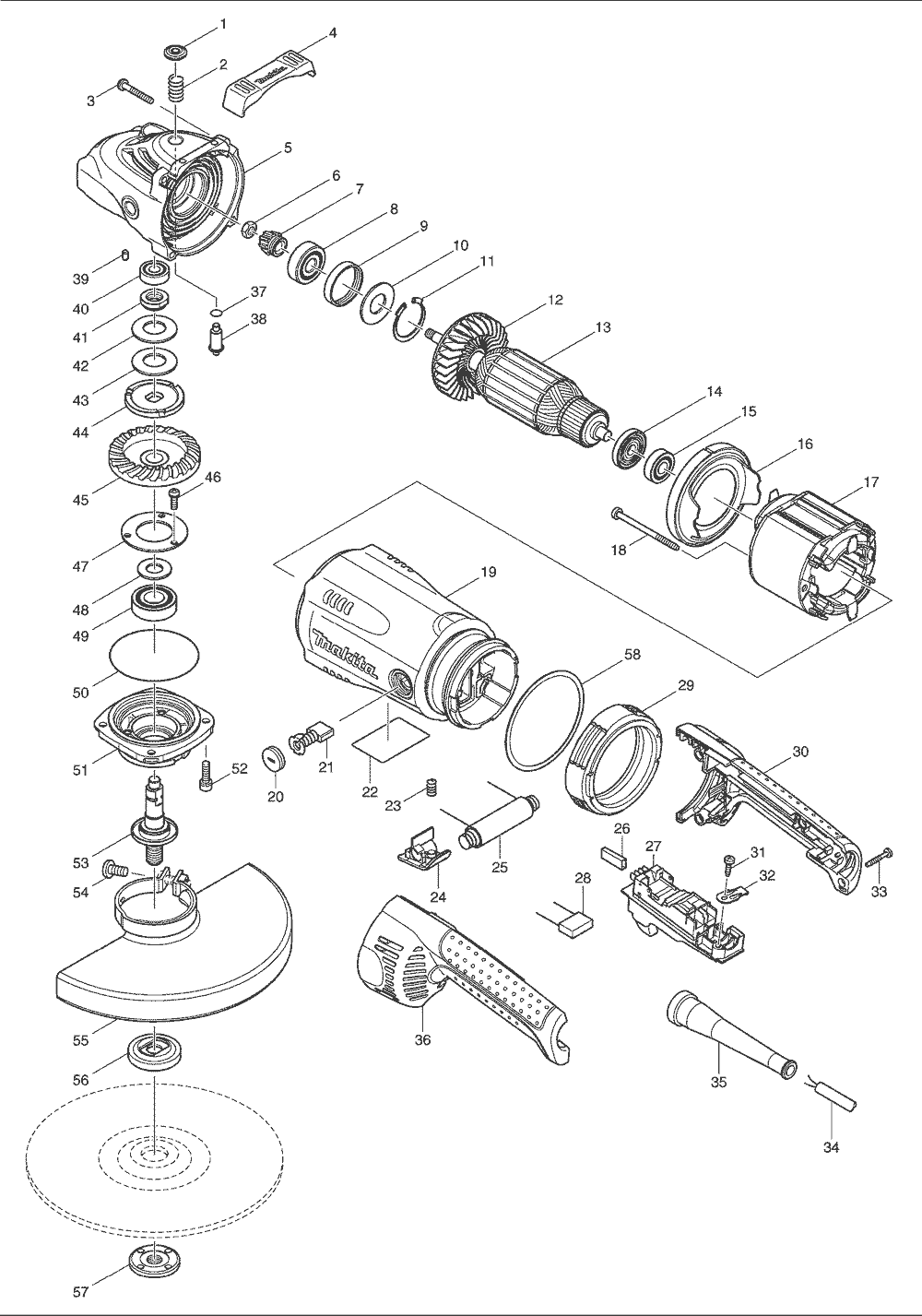

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	419133-4	PIN CAP, GA7021	$0.75
2	233292-8	COMPRESSION SPRING 12, 9060L	$0.86
3	266012-5	TAPPING SCREW 5X35, HR160DH	$1.48
3	266373-3	TAPPING SCREW 5X35, 5477NB	$0.53
4	419144-9	BUMPER, GA7021	$1.26
5	154685-5	GEAR HOUSING CPL.,GA7021	$12.52
6	252194-9	HEX. NUT M8, GA7021	$0.79
7	227490-4	SPIRAL BEVEL GEAR 12, GA7021	$4.27
8	211132-0	BALL BEARING 6301DDW, 9040L	$17.47
9	262085-6	RUBBER RING 38, GA7021	$1.48
10	267299-2	FLAT WASHER 20, GA7021	$1.34
11	962211-4	RETAINING RING R-42, GA7021	$3.28
12	240081-4	FAN 80, GA7021	$4.16
13	516956-2	ARMATURE ASS'Y 115V, GA9040S	$61.00
14	681630-2	INSULATION WASHER 10, GA7021	$3.72
16	419135-0	BAFFLE PLATE, GA7021	$1.26
17	520052-0	FIELD ASS'Y 110-115V, GA9040S	$51.40
18	266059-9	T. SCREW, FLANGE 5X75,2414B	$4.93
19	158083-5	MOTOR HOUSING CPL.,GA9040S	$21.10
20	643700-5	BRUSH HOLDER CAP, GA7021	$1.63
21	194992-4	A.C.CARBON BR.SET,CB-204,HM1800	$19.45
22	862128-0	NAME PLATE, GA9040S	$1.12
23	233375-4	COMPRESSION SPRING 7, GA7040S	$0.79
24	419260-7	LOCK BUTTON, GA9040S	$1.26
25	646787-6	RESISTOR, GA9040S	$3.94
26	686041-6	RECEPTACLE SLEEVE, GA9040S	$1.30
27	651191-6	SWITCH, GA9040S	$39.57
29	421936-4	VIBRATION PROOF RUBBER,GA9040S	$2.95
30	188123-5	HANDLE SET, GA9040S	$16.04
31	266385-6	TAPPING SCREW 4X14, GA7021	$0.53
32	687169-3	STRAIN RELIEF, HP1621F	$0.97
33	266374-1	TAPPING SCREW 4X25, GA7021	$0.53
34	664463-0	CORD (2X14X8 SJ), 5007NK	$21.76
34	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
35	682560-0	CORD GUARD 10, HM1202C	$4.16
35	Boot-B	Strain Relief fits 14/2 + 16/2 + 16/3	$4.19
36	188123-5	HANDLE SET, GA9040S	$16.04
37	213062-1	O RING 9, LS1211	$0.86
38	256491-5	SHOULDER PIN 5, GA7021	$1.48
39	263002-9	RUBBER PIN 4, 5007NK	$0.86
40	211062-5	B. BEARING 6000ZZ, LS1016L	$10.98
41	252429-8	NUT M15-23, GA9040S	$1.96
42	232163-6	CUP SPRING 20, 9040L	$5.37
43	232163-6	CUP SPRING 20, 9040L	$5.37
44	267798-4	LOCK WASHER, GA9040S	$5.26
45	227492-0	S. BEVEL GEAR 53C, GA9040S	$11.09
46	265120-9	PAN HEAD SCREW M5X16, GA7031Y	$0.53
47	285724-1	BEARING RETAINER 50, GA7021	$0.97
48	267167-9	FLAT WASHER 15, 9040L	$2.18
49	211278-2	BALL BEARING 6203DDW, 5077B (T2)	$10.98
50	213760-7	O RING 78, HR2010	$1.96
51	317988-0	BEARING BOX, GA7021	$4.16
52	265541-5	H.S.H. BOLT M6X22, GA7021	$1.08
53	154787-7	SPINDLE A CPL.,GA9040S	$7.02
55	122768-9	TOOLLESS WHEEL COVER GA9040S	$31.20
56	224317-9	INNER FLANGE 89, GA7021	$16.60
57	193465-4	LOCK NUT 5/8-45, 9005B REPLACES 224568-4	$12.60
58	261131-2	NYLON WASHER 89, GA9040S	$1.34
59	819357-6	CLEAR LABEL, GA7031Y	$0.64
1001	162264-5	VIBRATION PROOF GRIP, GA9040S	$13.29
1002	782412-6	LOCK NUT WRENCH 28, GA7911	$8.40
