Makita GA6010Z Grinder Parts

Makita GA6010Z Parts

6 Inch 10.5 AMP, 5/8 inch-11 Angle Grinder

Download Schematic

Time to buy a new tool?

Makita GA6010Z

6 Inch 10.5 AMP, 5/8...

$152.99

Free Shipping

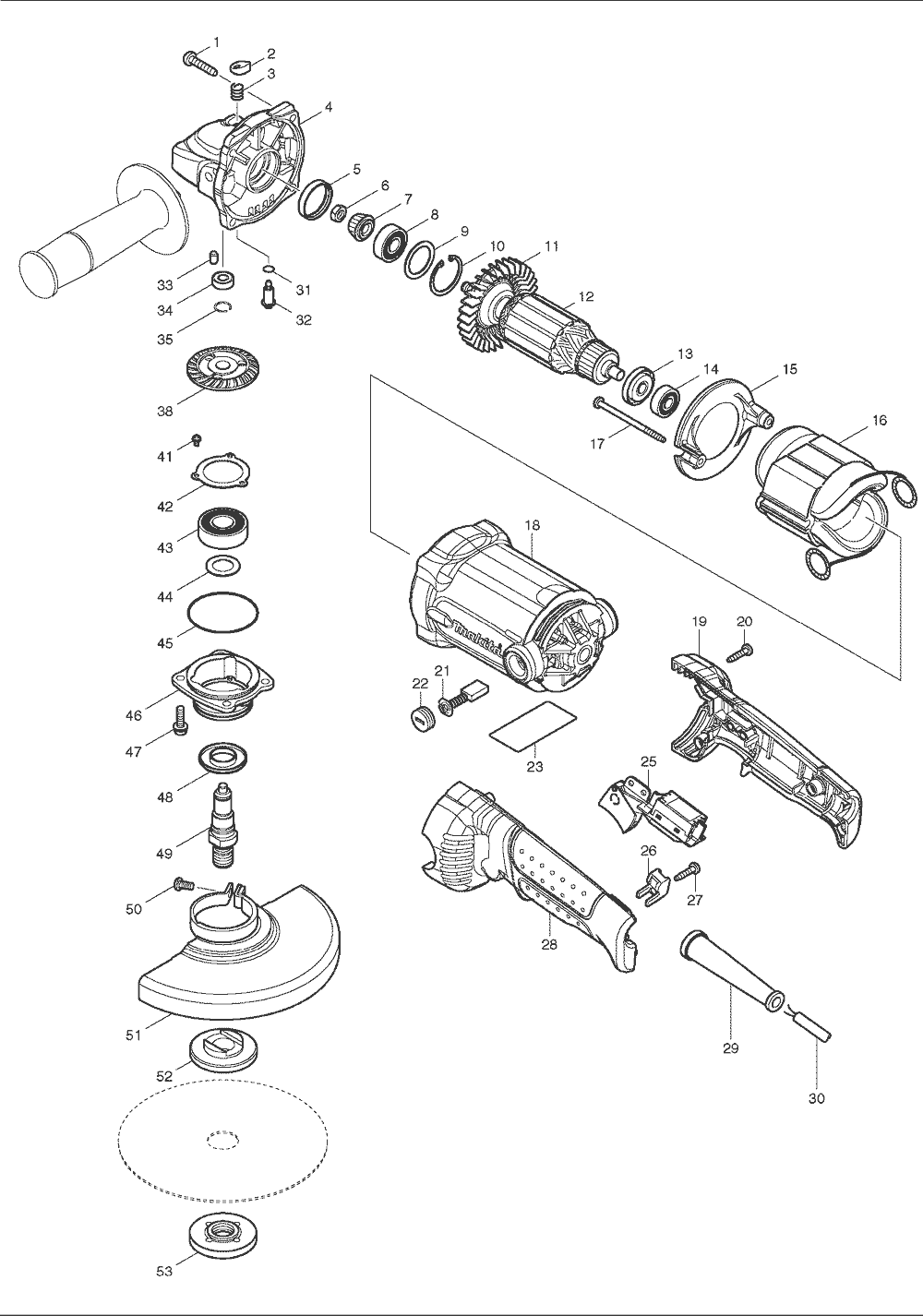

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	266041-8	TAPPING SCREW, FLANGE 5X25, 5177B	$1.96
00	810323-6	CAUTION LABEL, GA6010Z	$0.71
2	417771-6	PIN CAP, 9557NB	$0.75
3	234057-1	COMPRESSION SPRING 8, GA4030	$0.79
4	318158-4	GEAR HOUSING, GA5020	$7.02
5	262132-3	RUBBER RING 27, GA5020	$0.86
6	264010-3	HEX. NUT M7, GA5020	$0.79
7	227520-1	SPIRAL BEVEL GEAR 11, GA6010Z	$4.27
8	210059-1	BALL BEARING 6000DDW, HR4040C	$6.69
8	211088-7	BALL BEARING 6000DDW, 9005B	$13.07
9	267352-4	FLAT WASHER 22, GA5020	$1.01
10	962107-9	RET. RING (INT) R-30, GA5020	$1.48
11	240094-5	FAN 70, GA5020	$1.52
12	513701-6	ARMATURE ASS'Y 115V, GA5010Z	$26.31
13	681644-1	INSULATED WASHER, 9227C	$1.63
14	210005-4	BALL BEARING 608DDW, 9031	$13.07
15	419961-7	BAFFLE PLATE, GA5020	$1.26
16	520055-4	FIELD ASS'Y 115V, GA5010Z	$26.31
17	266340-8	TAPPING SCREW 4X65, GA5020	$0.53
18	158364-7	MOTOR HOUSING CPL., GA6010Z	$11.97
19	188292-2	HANDLE SET, GA5010Z	$14.94
20	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
21	194996-6	CARBON BRUSH CB-303 SET, 9227C	$8.12
22	643750-0	BRUSH HOLDER CAP, HM1100C	$1.63
25	651172-0	SWITCH, 5007FK	$14.94
26	687260-7	CORD CLAMP, GA5020	$0.75
27	266326-2	TAPPING SCREW PT 4X18, 5007MG	$0.53
28	188292-2	HANDLE SET, GA5010Z	$14.94
29	682505-8	CORD GUARD, 2711	$2.51
29	Boot-A	Strain Relief fits 14/3 AWG only	$4.19
31	213977-2	O RING 7, GA5020	$0.53
32	256505-0	SHOULDER PIN 5, GA5020	$1.19
33	263002-9	RUBBER PIN 4, 5007NK	$0.86
34	210026-6	BALL BEARING 696ZZ,DA3010F	$6.03
35	233950-6	RING SPRING 11, GA4030	$1.63
38	227521-9	SPIRAL BEVEL GEAR 35A, GA6010Z	$7.02
41	911003-8	P.H. SCREW M3X6, 6261DWPLE	$0.86
42	285728-3	BEARING RETAINER 39, GA5020	$0.75
43	211228-7	BALL BEARING 6202DDW, HM1303B	$15.27
44	253853-8	F. WASHER 15, LS1211	$1.63
45	213624-5	O RING 48, GA5020	$0.86
46	318300-7	BEARING BOX GA5010Z	$4.16
47	265131-4	P.H. SCREW M5X18, GA5020	$0.53
48	345464-4	LABYRINTH RING, GA4030	$0.75
49	324787-3	SPINDLE A, GA5010Z	$4.16
50	251391-4	P.H.SCREW M5X16,9523NB	$1.96
51	165486-6	COVER FOR CUT OFF WHEEL, 9566CV	$41.40
52	224390-9	INNER FLANGE 48, 9566CV	$10.60
53	224574-9	LOCK NUT 5/8-48, 9566CV	$10.60
1001	153504-2	GRIP 36, GA4030	$2.84
1002	782424-9	LOCK NUT WRENCH 28, BGA452	$8.40
