Makita G5500R Generator Parts

Makita G5500R Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

Page-8

Page-9

Page-10

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

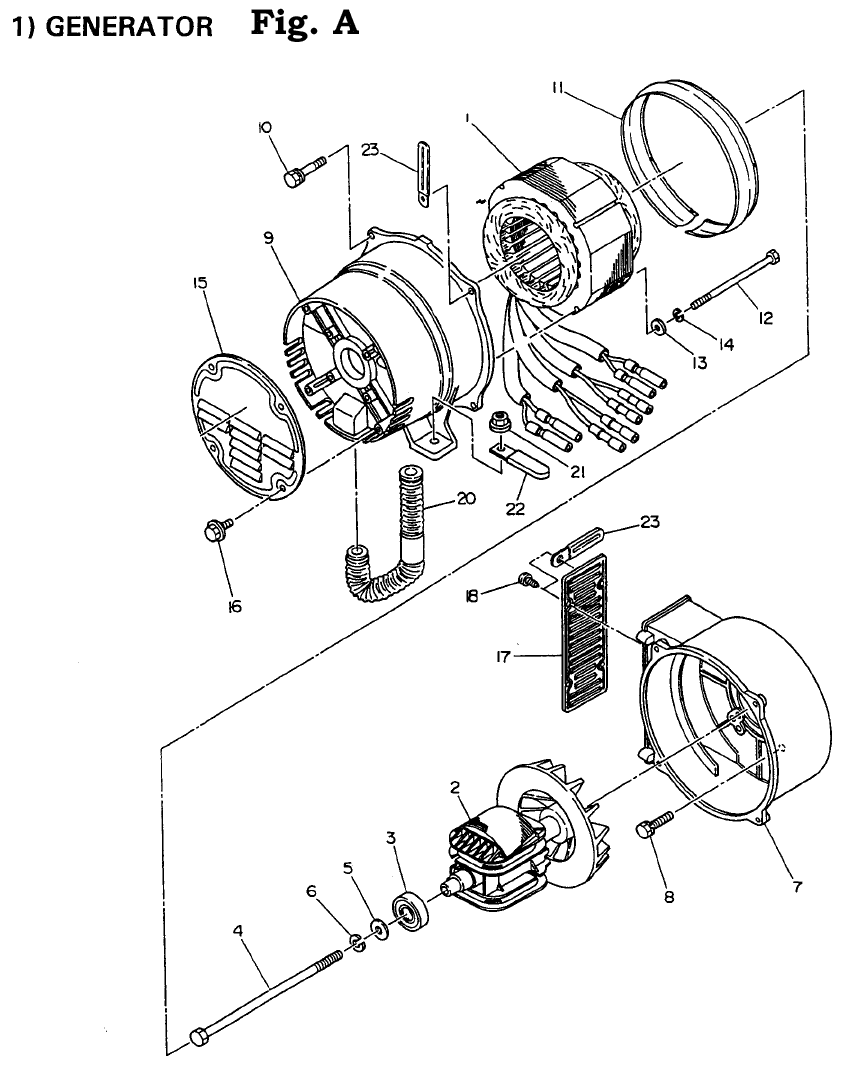

1-A	390-01400-01	STATOR, G5710R	$861.37
1-A	390-01300-11	STATOR, COMPL., G5500R	$918.40
2-A	390-01000-01	ROTOR, G5711R	$759.90
4-A	367-58008-08	THROUGH BOLT, G5711R	$20.88
5-A	003-12100-00	WASHER, G5710R	$3.72
6-A	003-20100-00	SPRING WASHER, G3510R	$1.34
7-A	390-54101-13	FRONT COVER, G5711R	$59.30
8-A	001-13082-00	BOLT & WASHER, G2410R .	$1.63
9-A	390-54001-01	REAR COVER, G5711R	$138.72
10-A	001-14062-50	BOLT & WASHER, G2800R	$1.34
11-A	385-54381-03	SUPPORT RING, G5711R	$10.65
12-A	386-59982-08	BOLT, G5711R	$3.50
13-A	003-10060-00	WASHER, G2410R	$0.90
14-A	003-20060-00	SPRING WASHER, G2800R	$1.34
15-A	388-55001-13	END COVER, G3511R	$6.69
16-A	011-00600-10	FLANGE BOLT, G6100R	$2.40
17-A	388-55101-03	FRONT PROTECTOR, G3511R	$8.12
18-A	015-20500-10	TAPPING SCREW, G3511R	$1.08
20-A	390-05001-03	BUSHING, G5711R	$18.13
21-A	002-38080-00	FLANGE NUT, G6100R	$2.40
22-A	056-60001-70	CLAMP, G2410R	$1.41
23-A	056-60002-50	CLAMP (ELEC STARTER),G2800R	$3.50

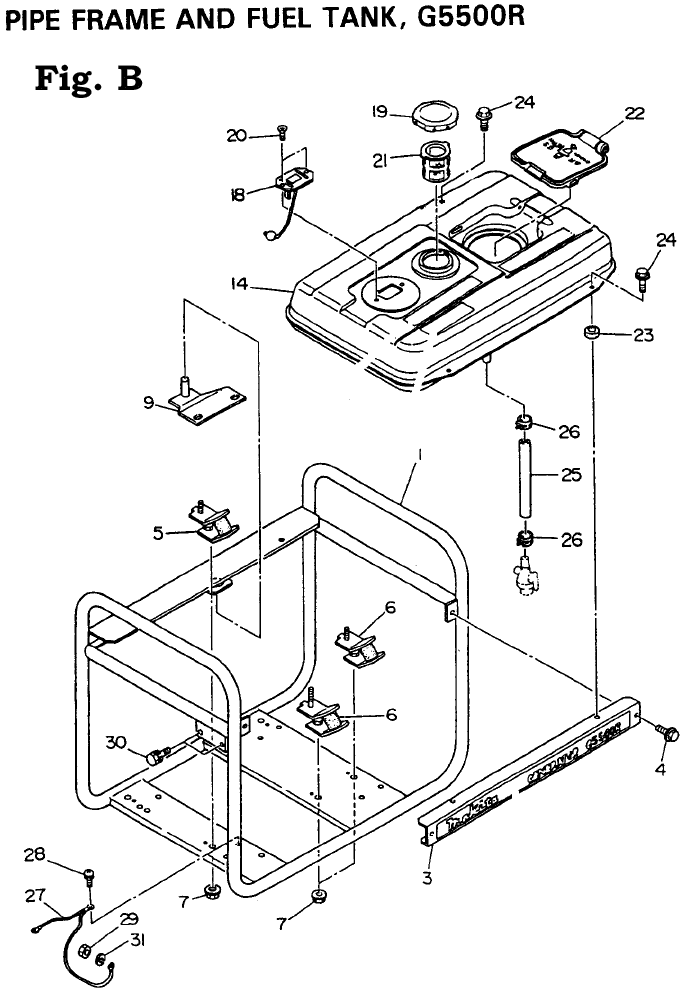

1-B	390-71101-01	PIPE FRAME COMPL., G5500R	$219.42
3-B	390-72101-01	SIDE PLATE, G5501R	$36.21
4-B	011-00600-80	FLANGE BOLT, G2400R	$1.41
5-B	377-37000-11	RUBBER MOUNT UNIT, G2800R	$36.21
5-B	377-37000-01	RUBBER MOUNT UNIT, G5500R,T2	$27.37
6-B	377-37001-01	RUBBER MOUNT UNIT, G5500R,T1	$27.37
7-B	002-38080-00	FLANGE NUT, G6100R	$2.40
9-B	390-54412-11	STOPPER PLATE, G5500R	$44.57
18-B	064-80003-00	FUEL GAUGE, G5501R	$30.70
20-B	014-50500-40	COUNTER HEAD SCREW, G2800R	$1.85
21-B	064-13600-10	FUEL FILTER, G2400R	$4.93
22-B	227-66101-03	PLUG COVER, G2400R	$9.00
23-B	391-39000-13	RUBBER WASHER, G2800R	$5.26
24-B	011-00602-20	FLANGE BOLT, G2800R	$3.50
26-B	056-11700-10	HOSE CLAMP, G5711R	$1.85
27-B	390-54416-01	EARTH CORD, G5710R	$11.42
27-B	390-54415-08	EARTH CORD, G5501R	$18.13
28-B	376-39100-01	SCREW & WASHER, G2800R	$1.34
29-B	002-19040-00	NUT, G5710R	$1.96
30-B	001-14061-60	BOLT & WASHER, G2800R	$1.34
31-B	003-20040-00	SPRING WASHER, G5711R	$1.34

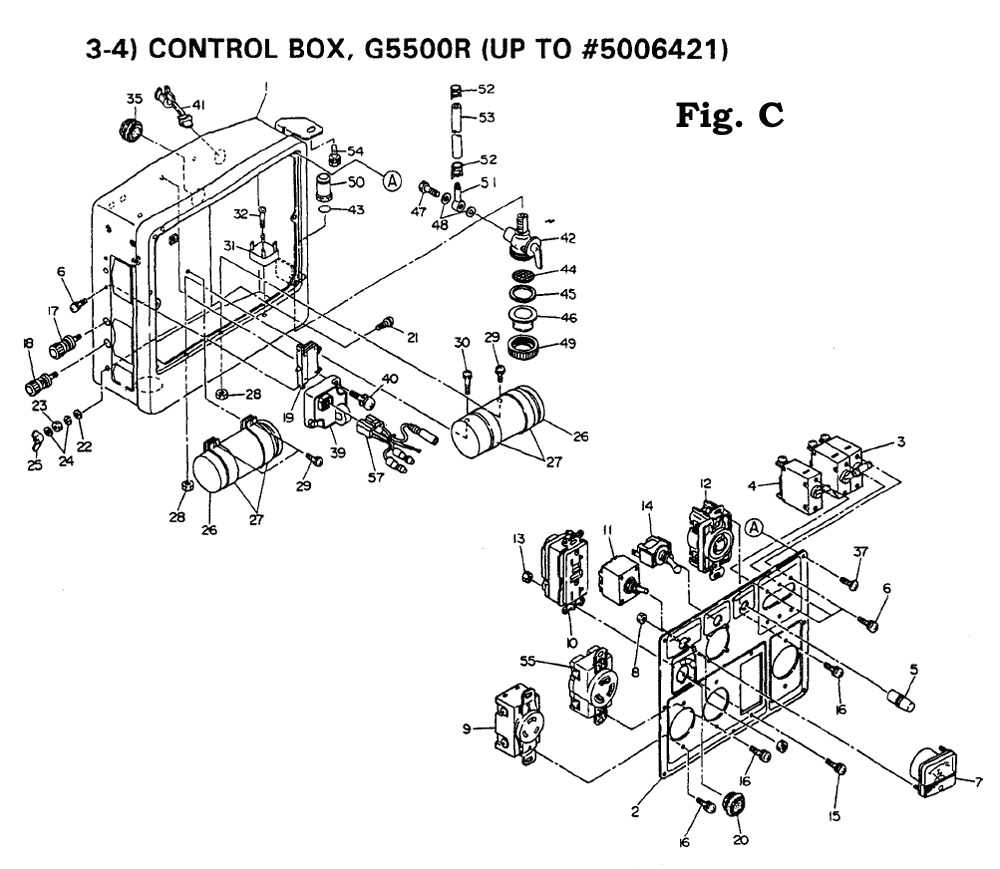

1-C	390-80002-11	CONTROL BOX, COMPL. G5500R	$77.50
2-C	390-81051-11	CONTROL PANEL, COMPL. G5500R	$57.90
3-C	390-45660-08	NO-FUSE BREAKER, G5501R	$200.99
5-C	320-75173-08	NEON LAMP (RED), G2800R	$16.70
6-C	004-35030-60	SCREW & WASHER, G2410R .	$0.90
8-C	002-17030-00	NUT, G2800R	$1.34
9-C	356-45711-08	AC RECEPTACLE, G3510R	$42.94
12-C	353-45724-08	AC RECEPTACLE, G3510R	$47.32
13-C	002-17040-00	NUT, G2800R	$1.34
14-C	344-45615-08	SWITCH, G6101R	$19.67
15-C	004-35041-00	SCREW & WASHER, G2800R	$0.90
16-C	356-59937-08	SCREW, G3510R	$1.08
17-C	363-45701-08	TERMINAL BOLT(RED), G2800R	$7.90
18-C	363-45700-08	TERMINAL BOLT (BLK),G2800R	$7.90
19-C	352-45620-08	CIRCUIT BREAKER (10A), G2400R	$23.96
20-C	389-47552-08	GROMMET, G3510R	$5.15
21-C	356-49907-08	SCREW, G2400R	$1.74
22-C	353-49903-08	WASHER, G2800R	$1.63
23-C	353-49902-08	NUT, G2800R	$1.96
24-C	332-00050-08	SPRING WASHER, G2800R	$1.34
25-C	353-49901-08	WING NUT, G2800R	$5.26
27-C	380-47531-08	CONDENSER BRACKET, G5711R	$6.14
28-C	002-17040-00	NUT, G2800R	$1.34
29-C	004-35041-00	SCREW & WASHER, G2800R	$0.90
30-C	389-59989-08	SCREW & WASHER, G5711R	$1.34
31-C	353-45804-08	DIODE STACK, G2800R	$35.90
32-C	015-00400-70	TAPPING SCREW, G2800R	$1.41
35-C	024-11500-10	GROMMET, G5500R	$1.85
37-C	353-49904-08	TAPPING SCREW, G2800R	$1.08
39-C	KU3-11015-01	IDLE CONTROL, G4101R	$97.68
40-C	004-35062-00	SCREW & WASHER,G5711R .	$0.90
41-C	363-56000-08	CORD BUSH, G3500R	$3.50
42-C	064-20023-11	FUEL STRAINER, G2400R	$26.72
43-C	064-20003-30	O RING, G2400R	$1.85
44-C	064-20002-20	FILTER, G2400R	$2.40
45-C	064-20002-30	PACKING, G2400R	$2.40
46-C	064-20019-10	CUP, G2400R	$4.93
47-C	064-20002-40	BANJO BOLT, G2400R	$3.50
48-C	064-20002-50	FIBER PACKING, G2400R	$1.08
49-C	064-20024-10	LOCK NUT, G2400R	$7.68
50-C	053-30900-20	NUT (JOINT), G2400R	$6.69
51-C	052-10700-42	BANJO, G3500R	$4.93
52-C	056-11100-20	HOSE CLAMP, G2800R	$1.41
53-C	085-10600-00	RUBBER PIPE, G2410R,1M	$23.30
54-C	001-14061-60	BOLT & WASHER, G2800R	$1.34
55-C	389-85001-01	AC RECEPTACLE, G5711R	$36.21
57-C	389-35001-01	WIRE, G3501R	$16.04

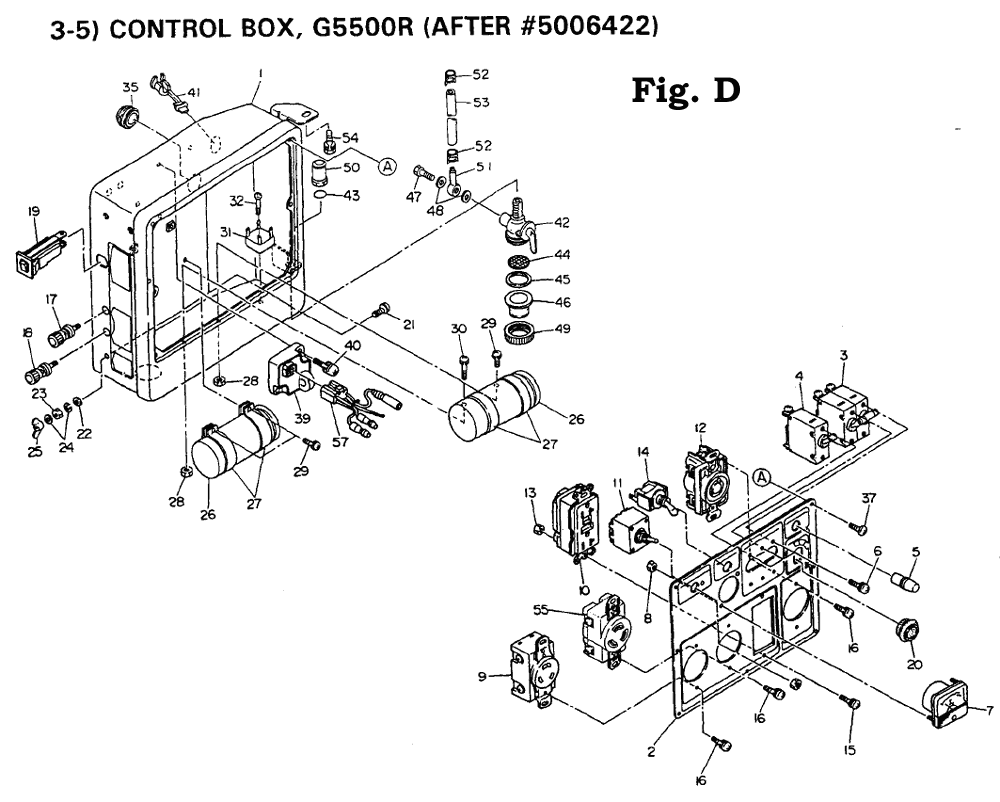

1-D	390-80002-11	CONTROL BOX, COMPL. G5500R	$77.50
2-D	390-81051-11	CONTROL PANEL, COMPL. G5500R	$57.90
3-D	390-45660-08	NO-FUSE BREAKER, G5501R	$200.99
5-D	320-75173-08	NEON LAMP (RED), G2800R	$16.70
6-D	004-35030-60	SCREW & WASHER, G2410R .	$0.90
8-D	002-17030-00	NUT, G2800R	$1.34
9-D	356-45711-08	AC RECEPTACLE, G3510R	$42.94
12-D	353-45724-08	AC RECEPTACLE, G3510R	$47.32
13-D	002-17040-00	NUT, G2800R	$1.34
14-D	344-45615-08	SWITCH, G6101R	$19.67
15-D	004-35041-00	SCREW & WASHER, G2800R	$0.90
16-D	356-59937-08	SCREW, G3510R	$1.08
17-D	363-45701-08	TERMINAL BOLT(RED), G2800R	$7.90
18-D	363-45700-08	TERMINAL BOLT (BLK),G2800R	$7.90
19-D	352-45620-08	CIRCUIT BREAKER (10A), G2400R	$23.96
20-D	389-47552-08	GROMMET, G3510R	$5.15
21-D	356-49907-08	SCREW, G2400R	$1.74
22-D	353-49903-08	WASHER, G2800R	$1.63
23-D	353-49902-08	NUT, G2800R	$1.96
24-D	332-00050-08	SPRING WASHER, G2800R	$1.34
25-D	353-49901-08	WING NUT, G2800R	$5.26
27-D	380-47531-08	CONDENSER BRACKET, G5711R	$6.14
28-D	002-17040-00	NUT, G2800R	$1.34
29-D	004-35041-00	SCREW & WASHER, G2800R	$0.90
30-D	389-59989-08	SCREW & WASHER, G5711R	$1.34
31-D	353-45804-08	DIODE STACK, G2800R	$35.90
32-D	015-00400-70	TAPPING SCREW, G2800R	$1.41
35-D	024-11500-10	GROMMET, G5500R	$1.85
37-D	353-49904-08	TAPPING SCREW, G2800R	$1.08
39-D	KU3-11015-01	IDLE CONTROL, G4101R	$97.68
40-D	004-35062-00	SCREW & WASHER,G5711R .	$0.90
41-D	363-56000-08	CORD BUSH, G3500R	$3.50
42-D	064-20023-11	FUEL STRAINER, G2400R	$26.72
43-D	064-20003-30	O RING, G2400R	$1.85
44-D	064-20002-20	FILTER, G2400R	$2.40
45-D	064-20002-30	PACKING, G2400R	$2.40
46-D	064-20019-10	CUP, G2400R	$4.93
47-D	064-20002-40	BANJO BOLT, G2400R	$3.50
48-D	064-20002-50	FIBER PACKING, G2400R	$1.08
49-D	064-20024-10	LOCK NUT, G2400R	$7.68
50-D	053-30900-20	NUT (JOINT), G2400R	$6.69
51-D	052-10700-42	BANJO, G3500R	$4.93
52-D	056-11100-20	HOSE CLAMP, G2800R	$1.41
53-D	085-10600-00	RUBBER PIPE, G2410R,1M	$23.30
54-D	001-14061-60	BOLT & WASHER, G2800R	$1.34
55-D	389-85001-01	AC RECEPTACLE, G5711R	$36.21
57-D	389-35001-01	WIRE, G3501R	$16.04

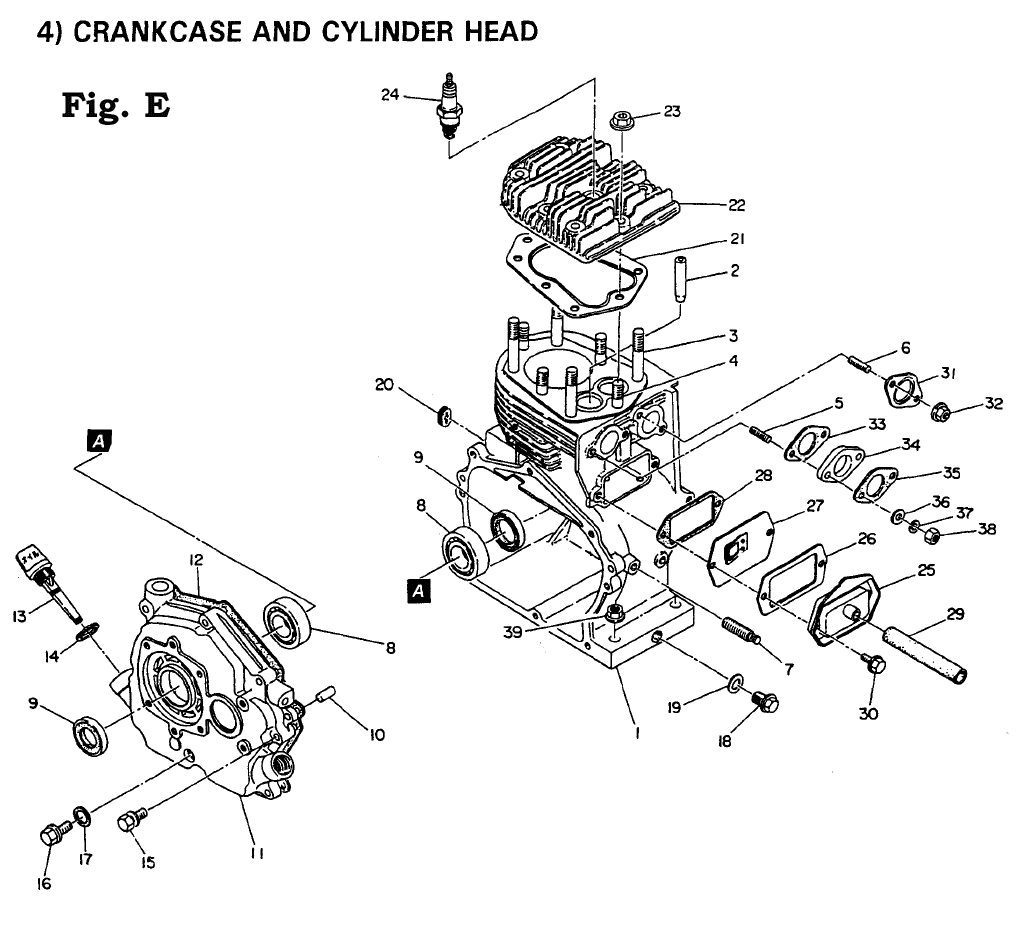

1-E	224-10201-11	CRANKCASE CPL., EW400TR	$469.78
1-E	224-10202-01	CRANKCASE, G5501R	$432.24
2-E	224-14202-03	VALVE GUIDE (OVERSIZE), G5501R	$17.69
3-E	010-51002-80	STUD, G5501R .	$3.50
4-E	010-51002-70	STUD, G5501R .	$3.50
5-E	010-50602-00	STUD, G5501R	$1.41
6-E	010-50802-90	STUD, G2800R	$1.85
7-E	010-50800-31	STUD G5501R	$5.26
8-E	060-03500-10	BEARING BB6207C3, G5711R	$18.90
9-E	044-03500-90	OIL SEAL, G5710R	$9.00
10-E	005-26081-80	DOWEL PIN, G5501R	$1.96
11-E	224-11004-01	MAIN BEARING COVER COMP., G5501R	$156.86
12-E	224-15201-03	GASKET MAIN BEARING COVER,G5501R	$4.93
13-E	224-63601-01	OIL GAUGE CPL., G5711R	$5.70
14-E	021-32000-50	GASKET, G4300L	$2.40
15-E	001-14083-50	BOLT + WASHER ASS'Y, G5501R	$1.63
16-E	001-65061-20	BOLT, EW400TR	$1.08
17-E	003-70060-00	ALUM. GASKET, G5501R	$0.82
18-E	040-11400-30	PLUG, G2800R	$3.50
19-E	021-11400-20	GASKET, G2800R	$1.08
20-E	224-75501-03	GROMMET, G5501R .	$4.93
21-E	224-15101-11	HEAD GASKET, G5501R	$11.20
22-E	224-13401-03	CYLINDER HEAD, G5501R	$102.24
23-E	002-38100-00	FLANGE NUT, G12010R	$1.96
24-E	065-01402-70	SPARK PLUG BPR4HS,G5501R	$4.93
25-E	224-14301-11	TAPPET COVER COMP., G5501R	$12.19
26-E	224-15301-13	GASKET (TAPPET COVER), G5500R	$3.17
27-E	224-14401-01	BREATHER PLATE COMP., G5501R	$20.88
28-E	224-15401-03	TAPPET COVER GASKET, G5501R .	$3.50
29-E	085-11200-00	RUBBER PIPE (12.5X16X100MM) G5501R	$16.04
30-E	011-00600-30	FLANGE BOLT, G2800R	$1.85
31-E	224-35101-03	EXHAUST GASKET COMP., G5501R	$4.93
32-E	018-00800-10	FLANGE NUT, G5711R	$4.71
33-E	224-35202-13	GASKET, INSULATOR, G5501R	$3.17
34-E	224-32901-03	INSULATOR, G5501R	$4.93
35-E	208-36003-03	INSULATOR GASKET 2, G5501R	$3.50
36-E	003-10060-00	WASHER, G2410R	$0.90
37-E	003-20060-00	SPRING WASHER, G2800R	$1.34
38-E	002-28060-00	NUT, G5501R	$1.34
39-E	002-38080-00	FLANGE NUT, G6100R	$2.40
39-E	224-99001-07	ENGINE GASKET SET, G5501R	$20.88

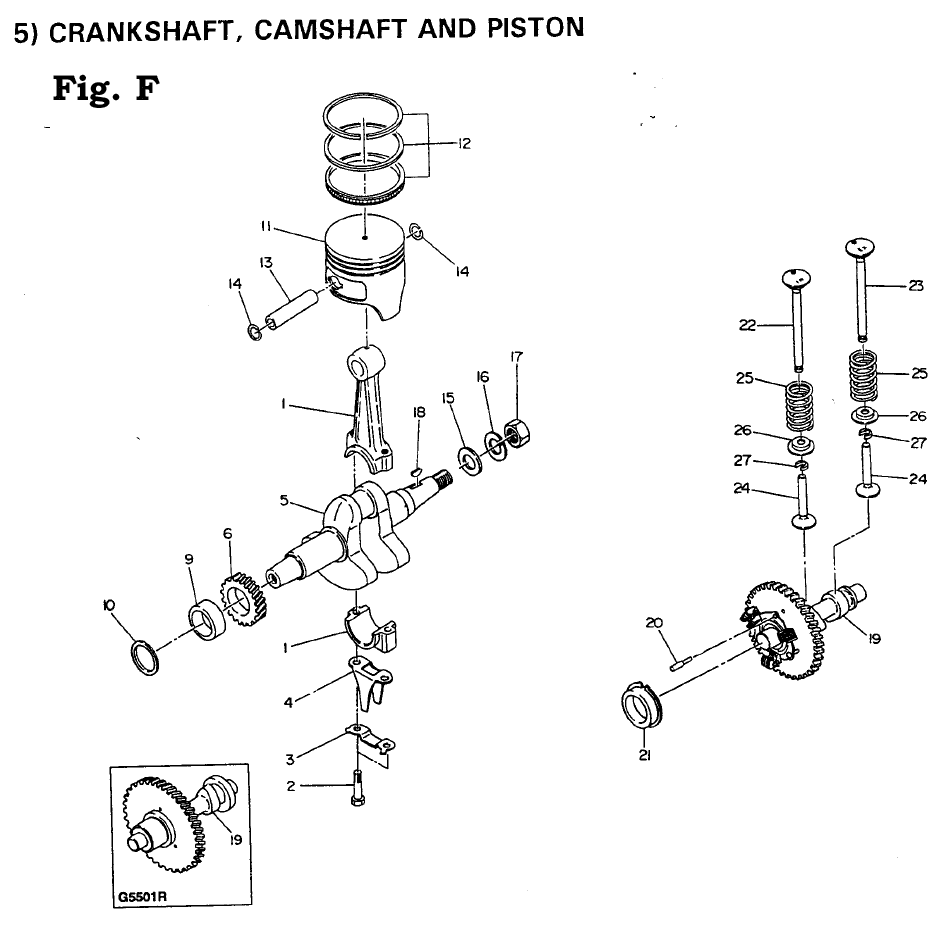

1-F	224-22501-10	CONNECTING ROD ASS'Y, G5501R	$106.51
2-F	217-23001-13	CONNECTING ROD BOLT, G5501R	$4.93
3-F	224-23201-13	LOCK WASHER, G5501R	$1.85
4-F	224-23102-03	OIL SCRAPER, G5501R	$4.93
5-F	224-20702-11	CRANKSHAFT COMP., G5501R	$346.78
9-F	224-25103-13	SPACER, G5500R	$11.42
9-F	224-25103-03	SPACER, G5501R .	$9.22
10-F	023-03500-10	SPACER (T=1.05), G5501R	$4.93
10-F	023-03500-60	SPACER (T=1.20), G5501R	$6.14
10-F	023-03500-70	SPACER (T=1.35), G5501R	$4.93
11-F	224-23401-23	PISTON (STD.), G5501R	$70.90
11-F	224-23402-23	PISTON (OVERSIZE .25MM) G5501R	$81.00
11-F	224-23403-23	PISTON (OVERSIZE .50MM) G5501R	$81.00
12-F	224-23501-17	PISTON RING SET, G5501R	$60.80
12-F	224-23502-17	PISTON RING SET, G5501R	$65.00
12-F	224-23503-17	PISTON RING SET, G5501R .	$65.00
13-F	224-23301-03	PISTON PIN, G5501R	$11.42
14-F	056-52200-11	CLIP, G5501R	$1.96
15-F	003-10180-00	WASHER, G5711R	$2.18
16-F	003-20180-00	SPRING WASHER, G3510R	$2.18
17-F	002-18180-00	FLYWHEEL NUT 18MM, G3510R	$5.26
18-F	005-32044-01	WOODRUFF KEY, G5501R	$4.93
19-F	224-31901-01	CAMSHAFT, COMPL., G5500R	$209.91
19-F	224-31701-01	CAMSHAFT COMP., G5501R	$209.91
20-F	030-94000-81	LOCK PIN, G5500R	$3.61
20-F	030-94000-61	LOCK PIN, G5501R	$3.50
21-F	224-41901-03	GOVENOR SLEEVE, G5501R	$45.79
22-F	224-33401-03	INTAKE VALVE, G5501R	$17.69
23-F	224-33501-03	EXHAUST VALVE, G5501R	$31.11
24-F	224-33301-03	TAPPET, G5501R	$12.96
25-F	208-33601-13	VALVE SPRING, G5501R	$5.26
26-F	208-33701-03	SPRING RETAINER VALVE, G5501R	$5.26
27-F	217-33801-03	RETAINER LOCK, G5501R	$4.93

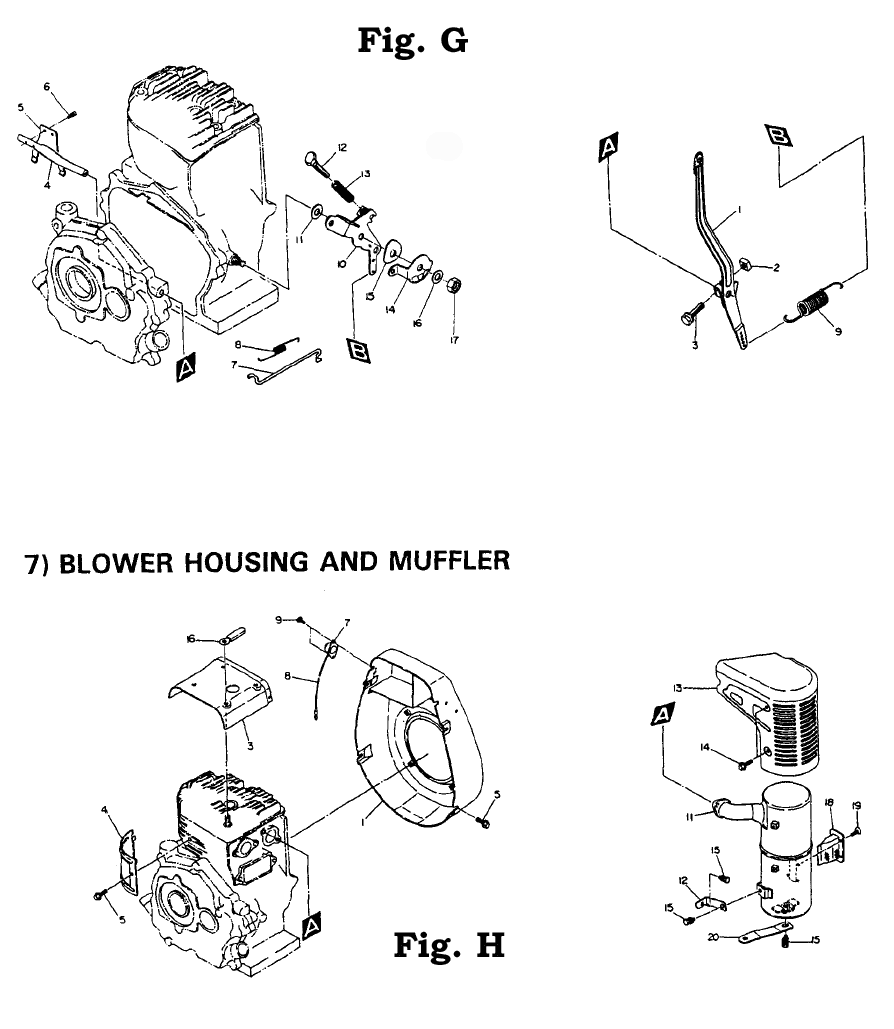

1-G	224-42306-11	GOVERNOR LEVER COMP., G5501R	$12.96
2-G	018-60600-20	NUT, G2800R .	$1.34
3-G	001-14062-50	BOLT & WASHER, G2800R	$1.34
4-G	224-42201-03	GOVERNOR SHAFT, G5501R	$9.77
5-G	224-42101-13	GOVERNOR YOKE, EW400TR	$5.26
5-G	224-42101-03	GOVERNOR YOKE, G5501R	$4.93
7-G	224-42701-11	GOVERNOR ROD, G5501R	$3.50
8-G	214-42801-01	ROD SPRING, G5501R	$3.61
9-G	224-42501-13	GOVERNOR SPRING, EW400TR	$5.26
10-G	224-43307-01	SPEED CONTROL COMP., G5501R	$12.19
11-G	021-70800-10	FRICTION WASHER, G5501R	$2.18
12-G	001-65065-50	BOLT, G5501R	$1.41
13-G	220-48001-13	CONTROL SPRING, G3511R	$3.61
13-G	220-48001-01	CONTROL SPRING, G2400R	$3.61
14-G	207-43505-11	STOP PLATE, G5501R	$4.93
15-G	020-00800-10	WASHER, G5501R	$1.85
16-G	003-11080-00	WASHER, G1300R	$1.34
17-G	017-00800-20	NUT, SELF LOCK, G5500R	$9.88
17-G	017-60800-20	NUT, SELF-LOCKING, G5501R	$6.69
1-H	224-51502-06	BLOWER HOUSING W/O LABEL, G5500R	$104.80
3-H	224-52611-01	HEAD COVER COMP., G5501R	$14.61
4-H	224-52701-03	CYLINDER BAFFLE, G5501R	$15.16
5-H	011-00600-10	FLANGE BOLT, G6100R	$2.40
8-H	214-73201-01	WIRE 1, G5710R	$3.50
9-H	015-00400-10	TAPPING SCREW (4X8), G2400R	$0.82
11-H	224-30133-01	MUFFLER COMP., G5501R	$165.20
12-H	224-35021-11	MUFFLER BRACKET, G5501R	$4.93
13-H	224-34221-01	MUFFLER COVER COMP., G5501R	$48.75
14-H	011-00600-10	FLANGE BOLT, G6100R	$2.40
15-H	001-11081-60	BOLT & WASHER ASSY, G5711R	$1.63
16-H	056-60002-20	CLAMP, G5501R	$3.50
18-H	224-36501-01	SPARK ARRESTER COMP., G5501R	$19.34
19-H	015-00400-40	TAPPING SCREW, G2800R	$0.82
20-H	224-35030-01	MUFFLER SUPPORT, G5501R	$17.69

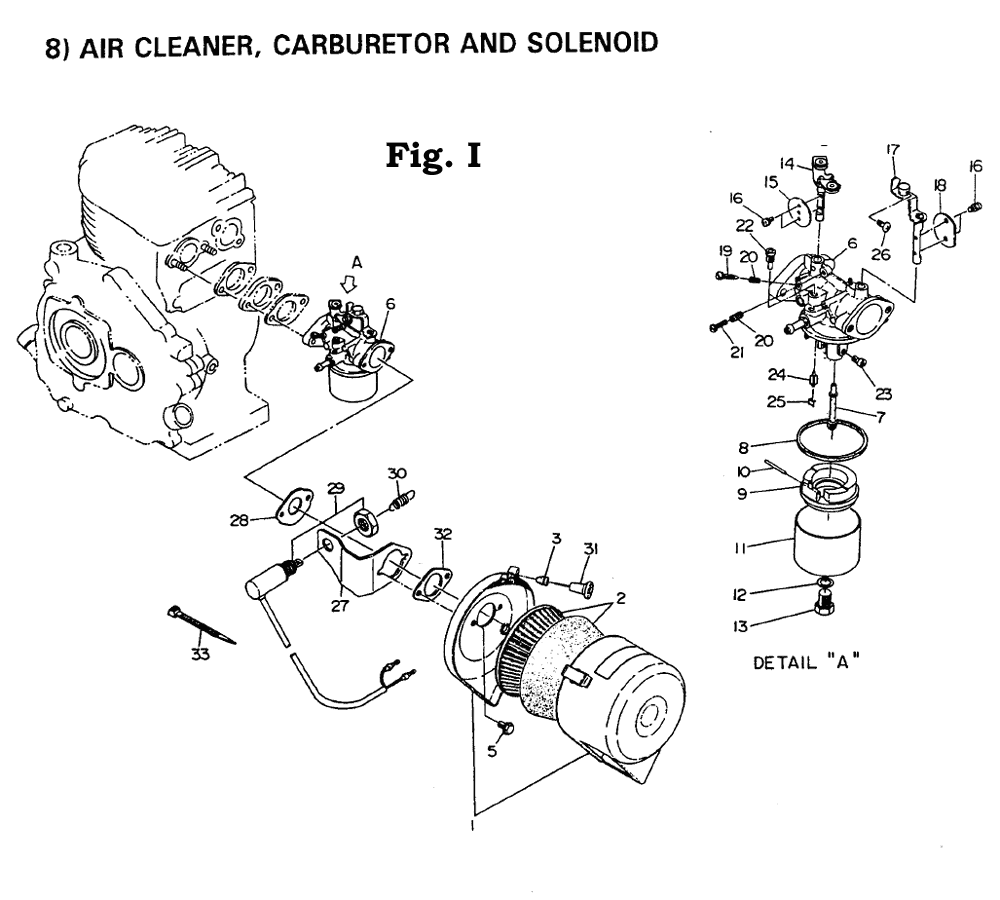

1-I	224-32609-00	AIR CLEANER ASS'Y, G5501R	$66.60
2-I	207-32606-18	CLEANER ELEMENT SET, G5501R	$28.25
3-I	207-32690-08	GROMMET, G2800R .	$3.50
5-I	001-10061-60	BOLT & WASHER, G5501R	$1.63
6-I	224-62345-10	CARBURETOR ASS'Y, G5501R	$179.17
7-I	224-62555-08	MAIN NOZZLE, G5501R	$23.96
8-I	206-62540-08	PACKING, G3510R	$4.93
9-I	224-62507-08	FLOAT ASS'Y, G5501R	$22.53
10-I	214-62515-08	FLOAT PIN, G3510R	$3.50
11-I	224-62552-08	FLOAT CHAMBER BODY, G3500R	$45.79
12-I	207-62345-08	PACKING, G3510R .	$1.08
13-I	224-62543-08	BOLT, G5501R .	$3.50
14-I	224-62572-08	THROTTLE SHAFT ASS'Y, G5501R	$45.08
15-I	224-62535-08	THROTTLE VALVE, G5501R	$22.53
16-I	209-62351-08	SCREW ASS'Y, G5711R	$1.41
17-I	224-62574-08	CHOKE SHAFT ASS'Y, G5501R	$26.72
18-I	224-62525-08	CHOKE VALVE, G5501R	$6.69
19-I	209-62305-08	PILOT SCREW, G5501R	$8.12
20-I	206-62446-08	PILOT SPRING, G3500R	$3.61
21-I	224-62452-08	SCREW, G3500R	$3.50
22-I	224-62420-08	PILOT JET, G5501R	$13.62
27-I	224-77109-01	BRACKET, SOLENOID, G5501R	$14.61
28-I	207-32721-08	PACKING, G5501R	$1.85
29-I	227-75501-00	SOLENOID, G5711R	$78.20
29-I	227-75503-00	SOLENOID, G5501R	$104.96
30-I	234-78202-01	SOLENOID SPRING, G3500R	$3.61
31-I	207-43904-01	KNOB COMP., G5501R	$3.50
32-I	207-32721-08	PACKING, G5501R	$1.85
33-I	056-30000-20	WIRE BAND, G2400R	$3.50
0	224-62345-17	CARBURETOR REPAIR KIT, G5501R	$66.20

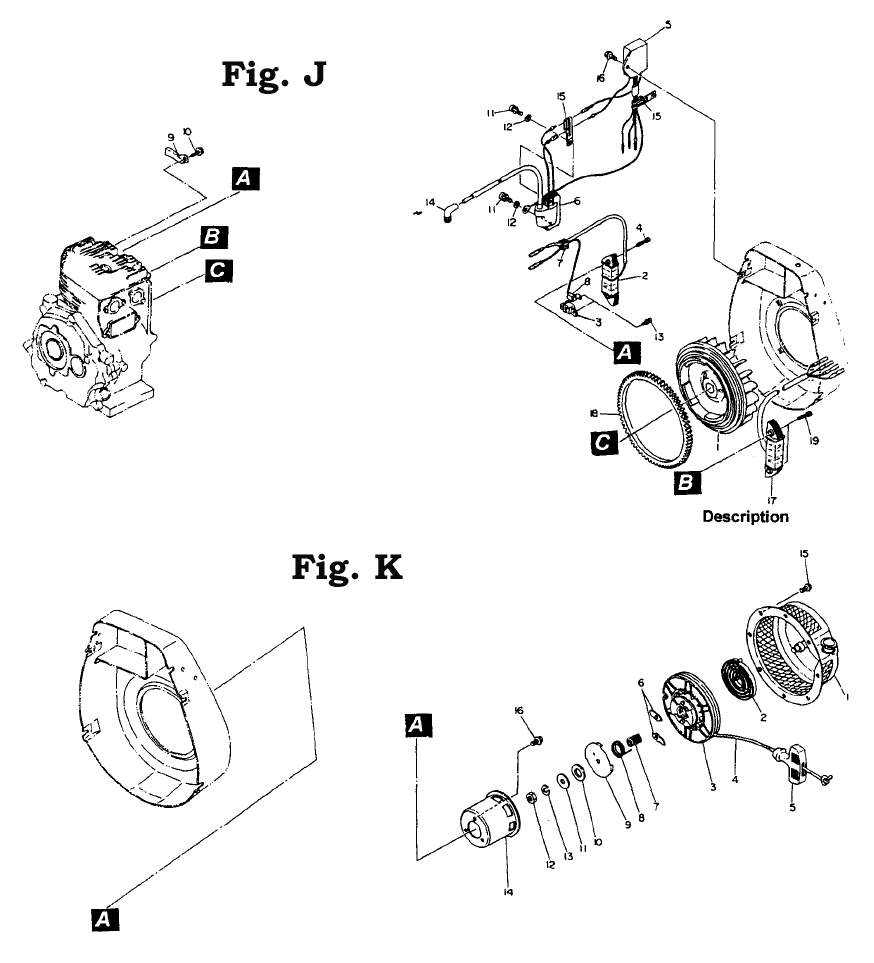

1-J	224-70123-08	FLYWHEEL, G5501R	$260.26
2-J	224-70135-08	EXCITER COIL, G5501R	$36.92
4-J	004-35062-50	SCREW & WASHER ASSY. G3510R	$0.90
5-J	224-72250-01	K T R UNIT, G5501R	$62.70
6-J	224-72205-11	IGNITION COIL UNIT, G5501R	$141.43
7-J	024-10900-50	GROMMET, G5501R	$3.50
8-J	205-78201-01	CLAMP, COMPLETE G5501R	$9.22
9-J	224-77002-01	WIRE CLAMP, COMPLETE, G5501R	$4.93
10-J	011-00600-20	FLANGE BOLT, G6100R	$2.40
11-J	004-35062-00	SCREW & WASHER,G5711R .	$0.90
12-J	003-10060-00	WASHER, G2410R	$0.90
13-J	004-35041-20	SCREW & WASHER ASSY, G5501R	$0.90
14-J	065-50001-10	SPARK PLUG CAP, G2400R	$14.61
15-J	056-60002-50	CLAMP (ELEC STARTER),G2800R	$3.50
16-J	011-00600-50	FLANGE BOLT, G5501R	$1.85
18-J	224-71002-03	RING GEAR, G5501R	$136.19
19-J	004-35063-00	SCREW AND WASHER ASSY, G5501R	$0.90
3-K	224-50120-08	REEL, G5501R	$27.94
4-K	207-50110-08	STARTER ROPE, G5501R	$12.96
6-K	224-50125-08	RATCHET, G5501R	$4.93
7-K	209-50130-08	FRICTION SPRING , G5501R	$3.61
8-K	224-50135-08	RETURN SPRING, G5501R .	$5.26
9-K	209-50140-08	FRICTION PLATE, G5501R	$9.77
10-K	224-50155-08	THRUST WASHER; G5501R	$3.72
11-K	209-50150-08	THRUST WASHER, G5501R	$1.85
12-K	149-50152-08	NUT, G5501R .	$3.61
14-K	224-50145-08	STARTING PULLEY, G5501R	$19.34
15-K	011-00600-10	FLANGE BOLT, G6100R	$2.40
16-K	001-65081-20	HEX BOLT, G5711R	$1.34
0	224-50103-07	RECOIL HARDWARE KIT, G5501R	$26.72

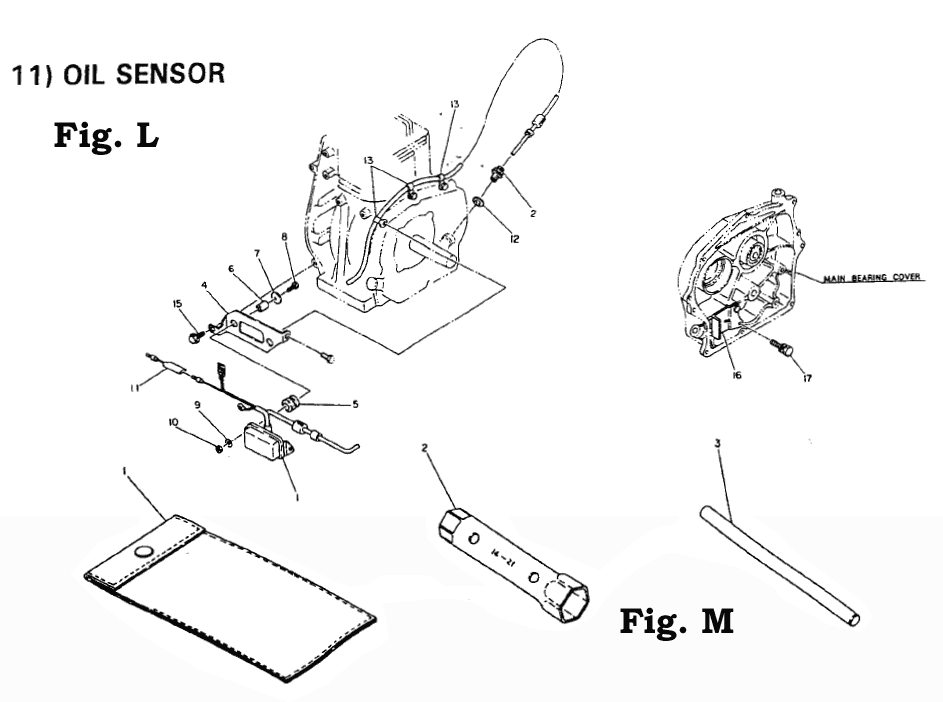

1-L	224-76204-11	OIL LEVEL SENSOR COMP., G5501R,T1	$56.90
2-L	224-76064-03	S A F JOINT, G5501R	$8.12
4-L	224-77104-01	BRACKET, OIL SENSOR, G5501R	$15.16
5-L	964-21080-20	GROMMET, G5501R .	$8.12
6-L	023-00601-80	SPACER, G5501R	$1.85
7-L	020-00800-50	WASHER, G5501R	$3.72
8-L	001-65063-00	BOLT, G5501R	$12.19
9-L	003-20060-00	SPRING WASHER, G2800R	$1.34
10-L	002-17060-00	NUT, G3511R	$1.34
11-L	224-73113-01	WIRE 13 COMP., G5501R	$3.50
13-L	056-60001-70	CLAMP, G2410R	$1.41
15-L	011-00600-20	FLANGE BOLT, G6100R	$2.40
16-L	224-76302-03	OIL GUIDE PLATE, G5501R	$3.61
17-L	001-13081-60	BOLT & WASHER ASS'Y, G5501R .	$1.63
1-M	224-90303-00	TOOL KIT, G5501R	$18.13
