Makita G4300L Generator Parts

Makita G4300L Generator Parts Image

Makita G4300L Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Page-13

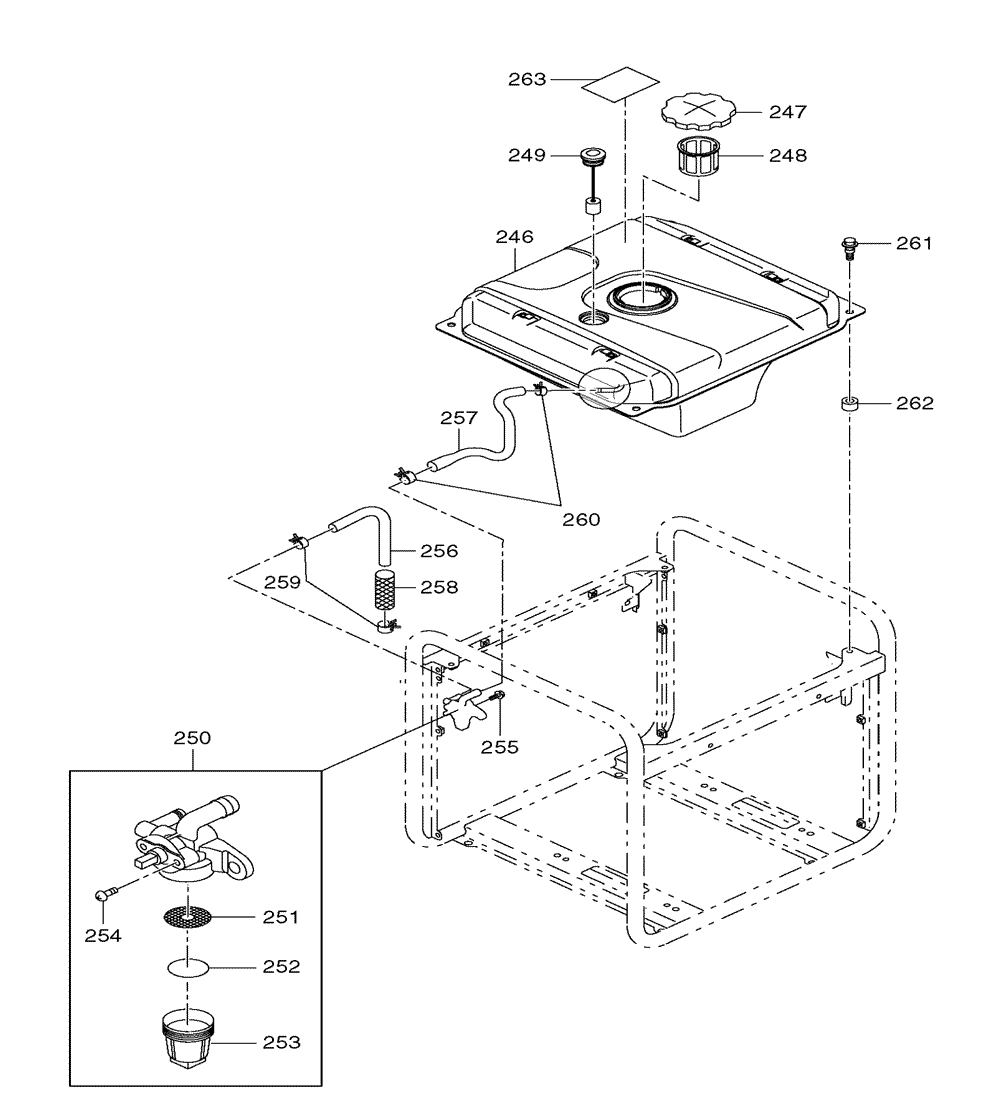

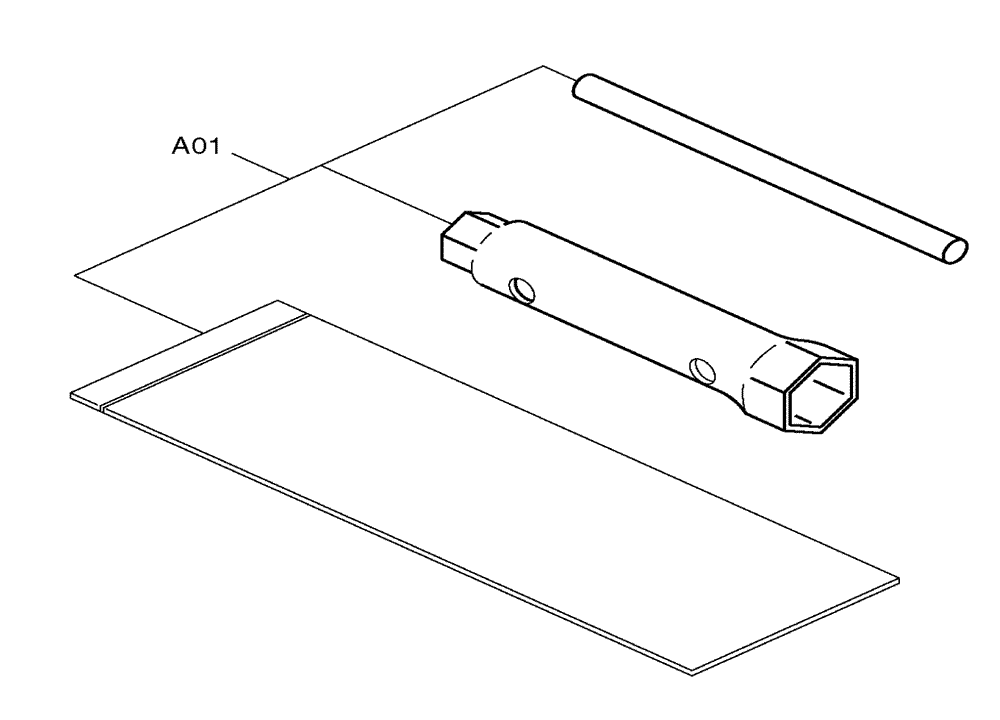

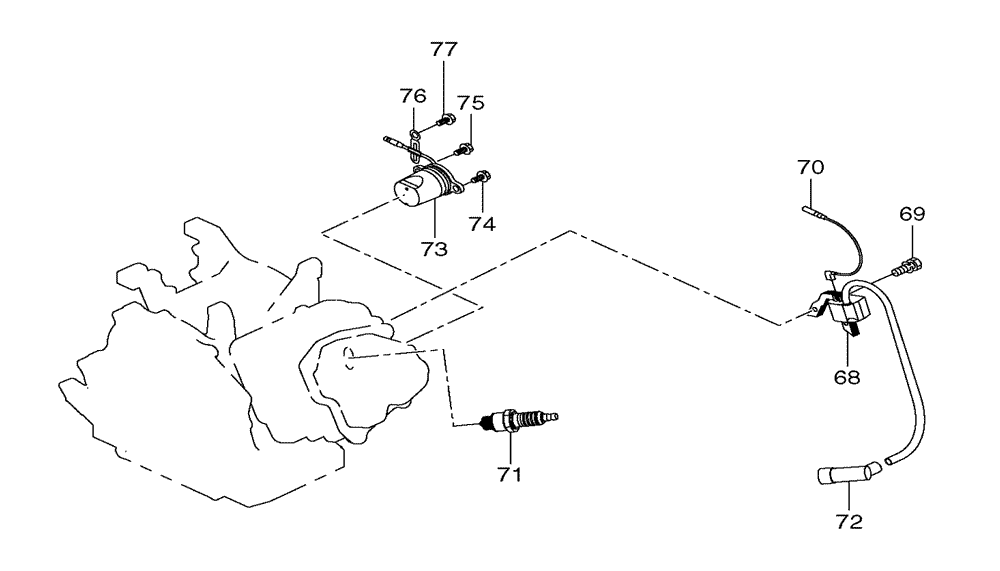

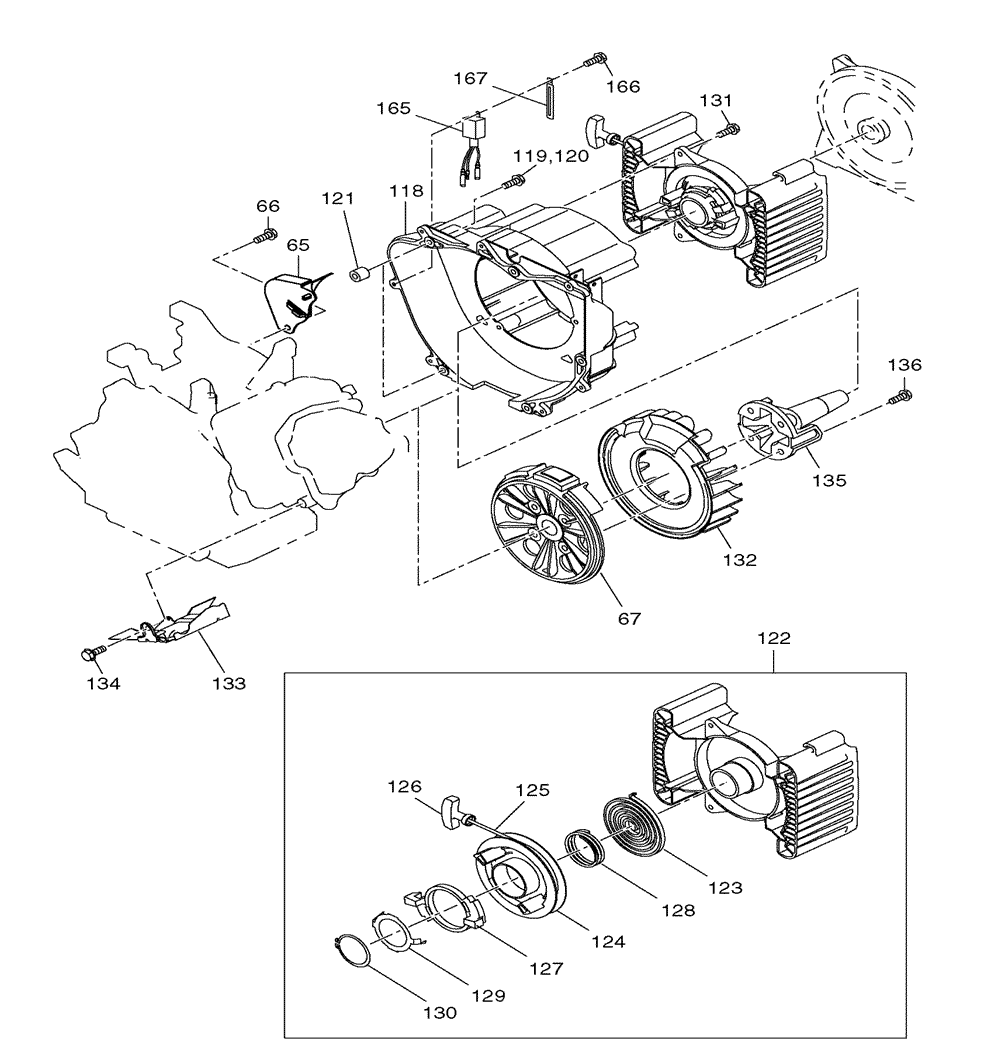

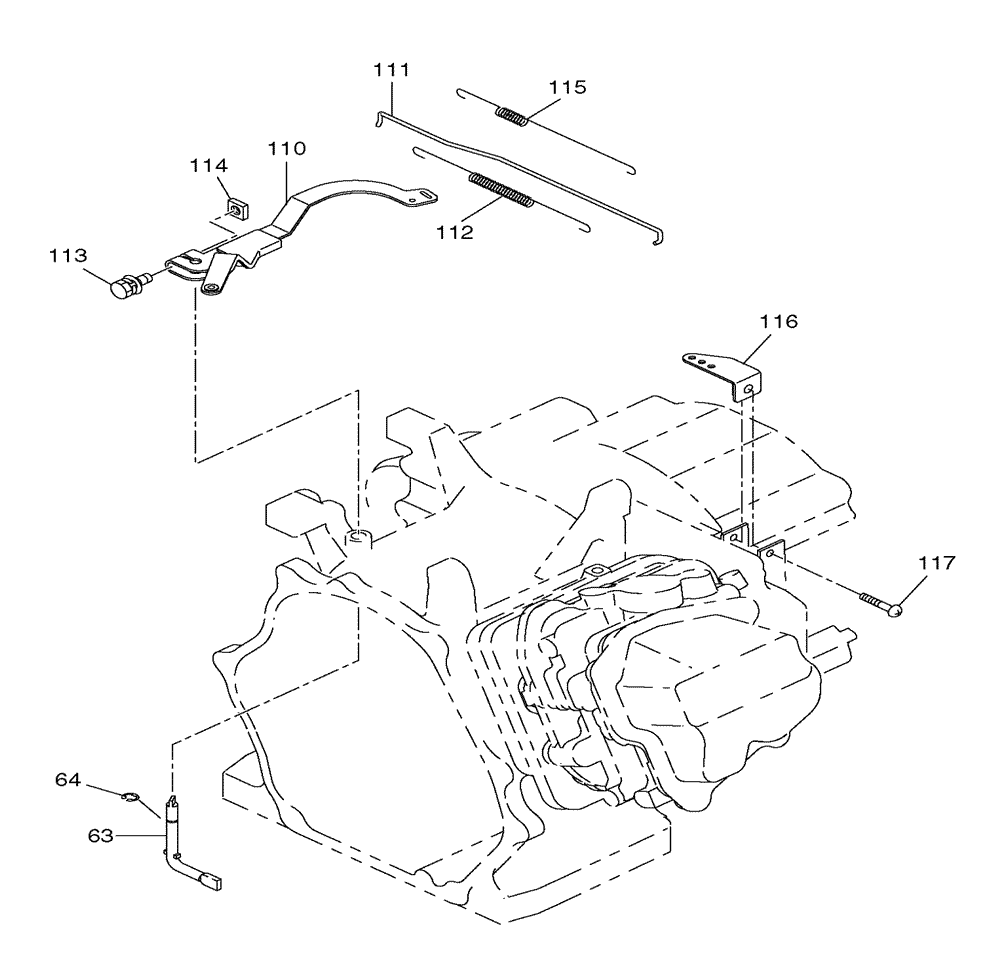

Tool Diagram    (Click image to Zoom in) View larger Image
Makita G4300L Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.

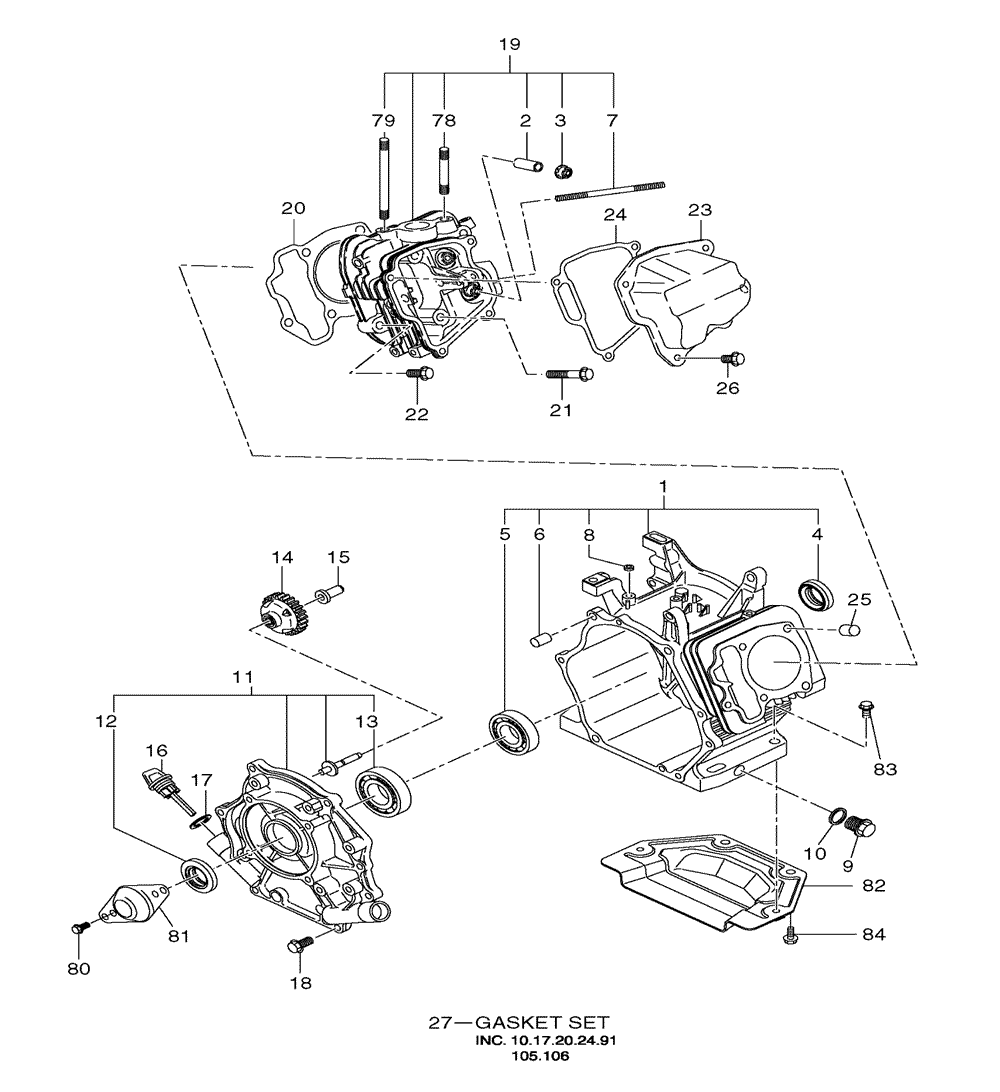

1 279-10102-51 CRANKCASE CP.,G4300L $310.41
105 279-99001-07 GASKET SET, G4300L $13.62
2 237-14202-03 VALVE GUIDE(OVER SIZE), G2800R $9.77
3 277-16010-01 STEM SEAL, G1100 $4.60
4 044-03001-60 OIL SEAL. G4300L $10.10
5 060-03003-41 BALL BEARING, G4300L $12.19
6 277-15011-03 PIPE KNOCK, G1100 $1.41
7 010-50604-10 STUD, G4300L $3.17
8 044-00600-20 OIL SEAL, G1100 $4.71
9 040-11400-30 PLUG, G2800R $3.50
10 021-11400-20 GASKET, G2800R $1.08
11 279-11001-11 MAIN BEARING COVER, G4300L $88.60
12 044-03001-60 OIL SEAL. G4300L $10.10
13 060-03003-70 BALL BEARING, G4300L $13.62
14 277-45004-H1 GOVERNOR GEAR CP.,G2800L $15.82
15 277-41901-03 GOVERNOR SLEEVE, G2800L $10.65
16 279-63601-23 OIL GAUGE, G4300L $4.71
17 021-32000-50 GASKET, G4300L $2.40
18 001-04083-50 FLANGE BOLT, G2800L $1.74
19 279-13005-01 CYLINDER HEAD CP.,G4300L $121.55
21 011-00802-40 FLANGE BOLT, G2800L $3.17
22 011-00803-10 FLANGE BOLT, G2800L $3.17
23 277-15501-01 ROCKER COVER CP.,G2800L $19.67
24 277-16001-03 GASKET (ROCKER COVER),G2800L $4.71
25 277-15011-03 PIPE KNOCK, G1100 $1.41
26 011-00600-20 FLANGE BOLT, G6100R $2.40

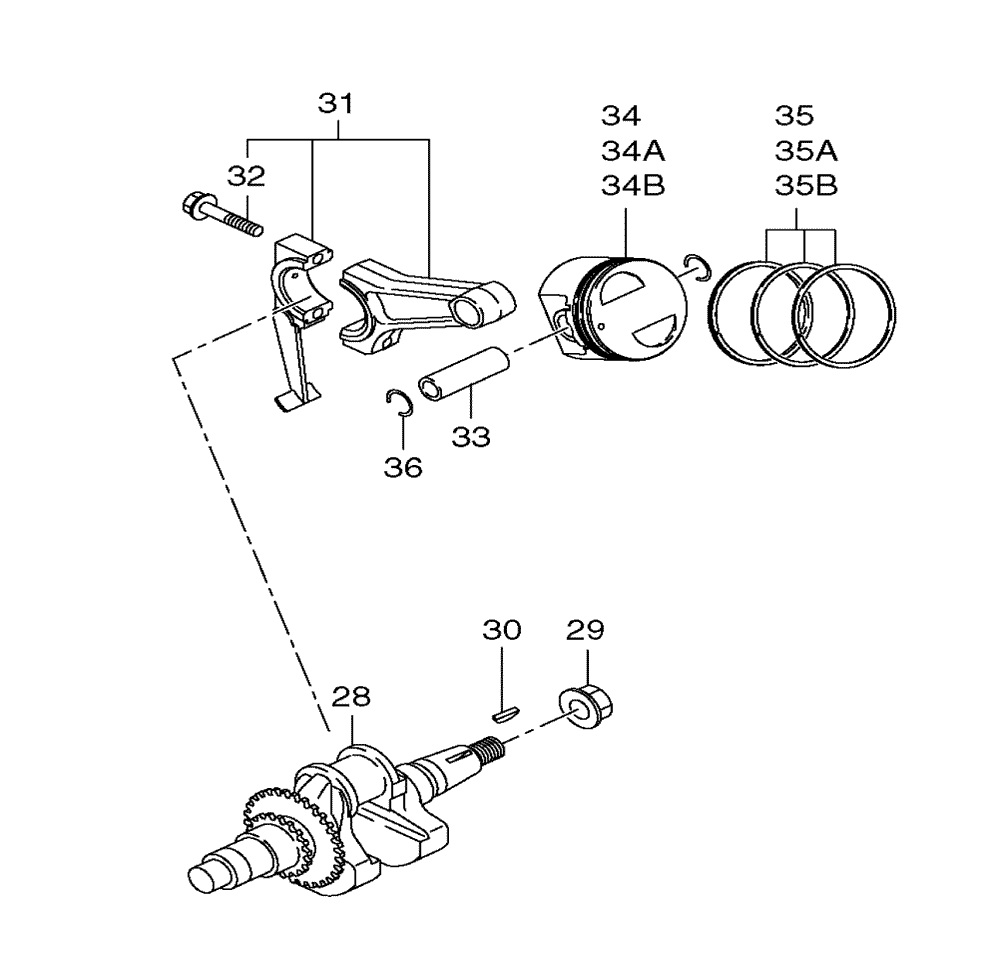

28 279-20501-01 CRANKSHAFT CP.,G4300L $153.17
29 018-01800-10 FLANGE NUT, G4300L $4.71
30 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
31 279-22501-20 CONNECTING ROD AY, G4300L $64.10
32 279-23001-03 CONNECTING ROD BOLT, G4300L $4.71
33 279-23301-03 PISTON PIN, G4300L $7.68
34 279-23401-03 PISTON STD., G4300L $30.70
34 279-23403-03 PISTON 0.25 O.S, G4300L $32.13
34 279-23404-03 PISTON 0.50 O.S, G4300L $32.13
35 279-23511-07 PISTON RING SET, G4300L $27.15
35 279-23512-17 PISTON RING SET 0.25, G4300L $37.63
35 279-23513-17 PISTON RING SET 0.50,G4300L $37.63
36 056-51800-10 CLIP, G3510R $1.96
37 279-31602-11 CAM SHAFT CP., G4300L $69.50
38 277-35101-03 PIN (CAM SHAFT), G2800L $7.68
39 024-00600-10 O RING , G2800L $3.17
40 277-38601-03 PIN (SPRING), G2800L $1.96
41 279-36401-03 RELEASE LEVER, G4300L $10.65
42 277-36501-03 CLIP, G2800L $1.96
43 279-38701-13 RETURN SPRING, G2800L $3.61
44 279-33601-03 VALVE SPRING, G2800L $3.61
45 269-33701-03 SPRING RETAINER, G2800L $4.71
46 279-33401-13 INTAKE VALVE, G4300L $13.62
47 279-33501-H3 EXHAUST VALVE, G4300L $26.60
48 132-10KA0-31 COLLET VALVE, G2800R $1.85
49 279-35601-11 TIMING CHAIN CP., G4300L $22.64
50 277-36911-03 TENSIONER, G2800L $4.71
51 277-37101-03 SPRING (TENSIONER), G2800L $3.61
52 277-36902-03 PIN (TENSIONER), G2800L $3.17
53 277-36913-13 CHAIN GUIDE, G2800L $3.17
54 277-35002-01 PIN (ROCKER)CP., G2800L $3.17
55 003-13050-00 CLIP, G1100 $1.34
56 277-36201-00 ROCKER ARM (IN)AY, G4300L $18.13
57 277-36202-00 ROCKER ARM (EX) AY, G2800L $16.70
58 014-90500-20 ADJUST SCREW M5, G2800L $3.17
59 014-90500-20 ADJUST SCREW M5, G2800L $3.17
60 017-00500-30 NUT, G2800L $1.85
61 017-00500-30 NUT, G2800L $1.85
62 011-00600-20 FLANGE BOLT, G6100R $2.40
63 277-42201-33 GOVERNOR SHAFT, G2800L $7.68
64 003-13050-00 CLIP, G1100 $1.34
65 279-52711-11 BAFFLE 1 (CASE) CP.,G4300L $7.68
66 001-65081-20 HEX BOLT, G5711R $1.34
67 279-79262-01 FLYWHEEL CP.,G4300L $122.81
68 279-79430-01 IGNITION COIL CP.,G4300L $68.20
69 001-14062-50 BOLT & WASHER, G2800R $1.34
70 277-73102-H1 WIRE 2 CP., G2800L $4.71
71 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
72 065-50002-70 SPARK PLUG CAP, G2800L $4.71
73 279-76301-41 OIL LEVEL SENSOR, G4300L $27.59
74 001-14061-60 BOLT & WASHER, G2800R $1.34
75 013-00602-60 BOLT & WASHER AY, G2800L $1.34
76 279-75501-03 WIRE CLAMP, G4300L $3.17
77 015-20600-50 TAPPING BOLT, G5710R $1.34
78 010-50802-90 STUD, G2800R $1.85
79 010-50804-40 STUD, G4300L $6.14
80 011-00801-50 FLANGE BOLT, G2800L $3.17
81 277-87001-03 COVER (CRANKSHAFT), G2800L $6.14
82 33D-35001-01 BOTTOM EXT. PLATE, G4300L $15.16
83 011-00802-70 FLANGE BOLT M8X33L, G4300L $1.74
84 011-00801-50 FLANGE BOLT, G2800L $3.17

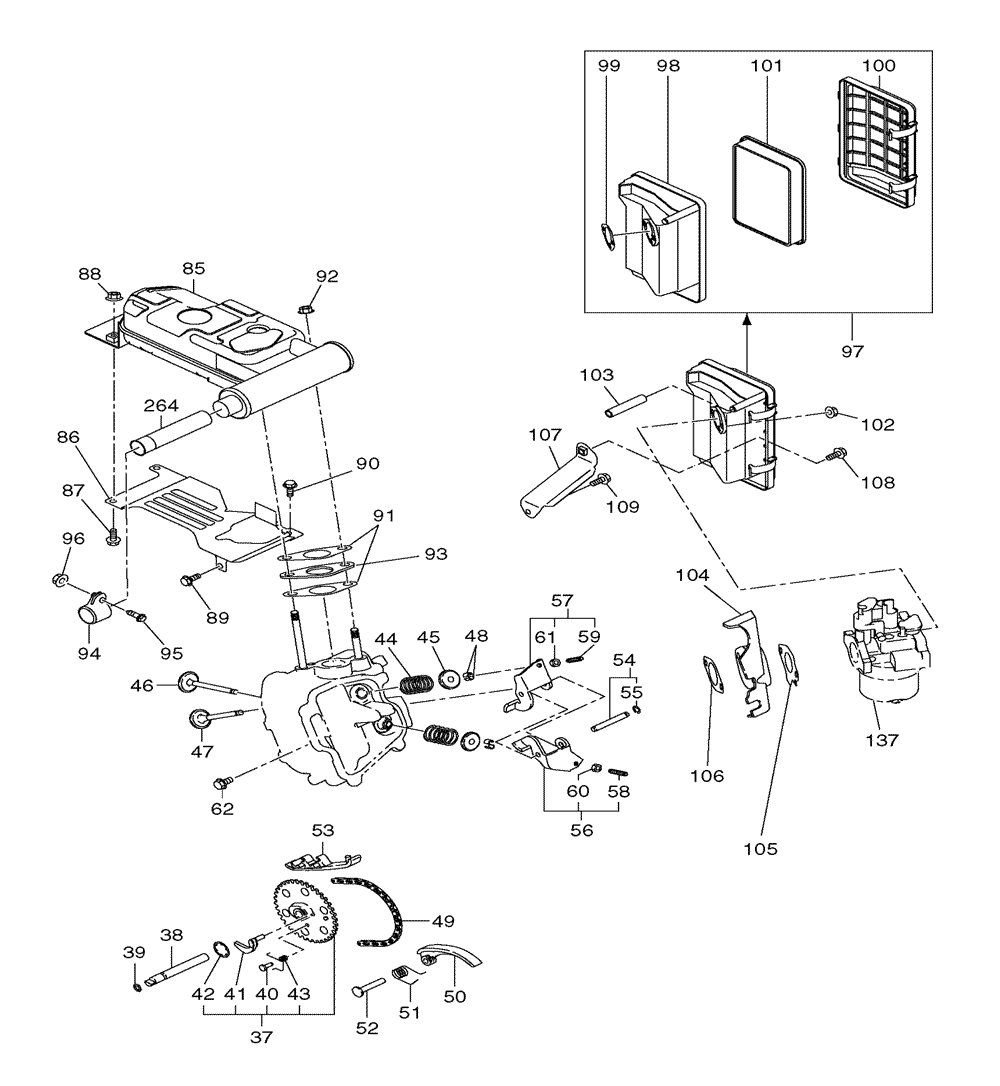

85 279-30401-21 MUFFLER CP., G4300L $114.95
86 33D-52601-03 BAFFLE, G4300L $39.06
87 011-00802-70 FLANGE BOLT M8X33L, G4300L $1.74
88 002-38080-00 FLANGE NUT, G6100R $2.40
89 011-00803-20 FLANGE BOLT, G4300L $1.74
90 011-00600-10 FLANGE BOLT, G6100R $2.40
91 277-35201-13 GASKET (MUFFLER), G2800L $3.17
92 980-20082-80 FLANGE NUT, G2800L $3.61
93 279-39201-03 FLANGE, G4300L $4.71
94 27737210-03 TAIL SCREEN, G2800L $6.14
95 004-35051-60 SCREW, EH760 $1.41
96 002-18050-00 NUT, EM4250 $1.34
97 279-32622-00 AIR CLEANER AY., G4300L $75.00
98 279-32635-18 BASE CP., G4300L $29.07
99 279-32650-08 GASKET, G4300L $4.71
100 279-32646-08 COVER CP., G4300L $27.94
101 279-32612-08 FILTER, G4300L $29.37
102 002-38060-00 FLANGE NUT, G6101R $2.40
103 085-10800-00 RUBBER PIPE, G2800R $11.42
105 279-35902-H3 GASKET 1 (INSULATOR),G4300L $2.40
107 279-39004-01 BRACKET (A/C) CP.,G4300L $7.68
108 011-00601-50 FLANGE BOLT, G2800L $1.74
109 011-00600-50 FLANGE BOLT, G5501R $1.85
110 279-42301-13 GOVERNOR LEVER CP., G4300L $9.22
111 279-42701-01 GOVERNOR ROD CP.,G4300L $3.17
112 277-42801-23 ROD SPRING, G2800L $3.06
113 013-00602-40 BOLT & WASHER AY, G2800L $1.30
114 018-60600-20 NUT, G2800R . $1.34
115 277-42520-03 GOVERNOR SPRING, G4300L $3.61
116 277-48001-01 PLATE CP.(S.ADJUST), G2800L $3.17
117 004-31055-50 SCREW, G2800L $1.08
118 279-52001-13 BLOWER HOUSING, G4300L $114.95
119 001-14063-00 BOLT & WASHER ASS'Y, G5710R $1.34
120 001-14066-00 BOLT & WASHER AY, G4300L $1.63
121 980-40081-10 STR PIN 8X10, G2800L $1.74
122 277-50401-20 RECOIL STARTER ASS'Y, G2800L $145.70
123 277-50402-08 SPIRAL SPRING, G2800L $18.13
124 277-50403-08 REEL, G2800L $21.10
125 277-50408-08 STARTER ROPE, G2800L $13.62
126 277-50409-08 STARTER KNOB, G2800L $6.14
127 277-50404-08 RATCHET, G2800L $4.71
128 277-50405-08 FRICTION SPRING, G2800L $15.16
129 277-50407-08 FRICTION PLATE, G2800L $6.14
130 277-50406-08 RETAINING RING, G2800L $7.68
131 011-00601-40 FLANGE BOLT, G2410R $1.85
132 279-54110-03 COOLING BLOWER, G4300L $18.13
133 279-52702-13 BAFFLE 2 (HEAD) CP.,G4300L $15.16
134 011-00600-20 FLANGE BOLT, G6100R $2.40
135 277-24401-03 DRIVING SHAFT, G2800L $57.30
136 011-01001-10 FLANGE BOLT, G2800L $3.17

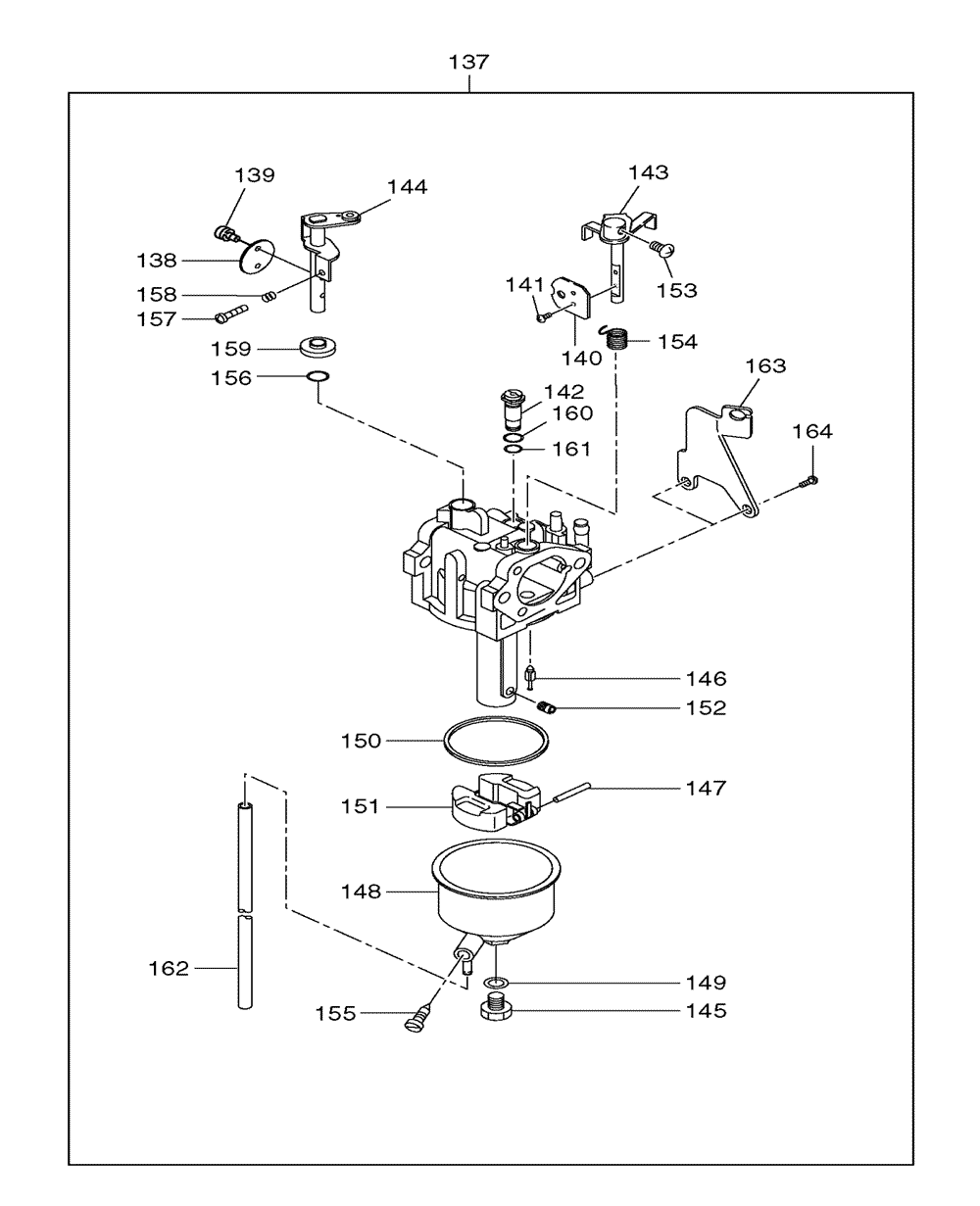

137 279-62331-00 CARBURETOR AY.,G4300L $116.60
138 279-62535-08 THROTTLE VALVE, G4300L $4.71
139 251-62450-08 SCREW, G4300L $3.17
140 279-62526-08 CHOKE VALVE, G4300L $4.71
141 251-62450-08 SCREW, G4300L $3.17
142 279-62420-08 PILOT JET, G4300L $9.22
143 279-62521-08 CHOKE LEVER, G4300L $9.22
144 279-62530-08 THROTTLE SHAFT-A, G4300L $22.64
145 251-62453-08 BOLT, G4300L $4.71
146 279-62500-08 VALVE ASS'Y, G1100 $19.67
147 279-62515-08 PIN, G4300L $2.51
148 279-62553-08 FLOAT BODY, G4300L $18.13
149 251-62350-08 GASKET, G1100 $3.17
151 279-62505-08 FLOAT AY, G4300L $21.10
152 279-62400-08 MAIN JET, G4300L $7.68
153 284-62456-08 SCREW, G1100 $1.74
154 279-62447-08 SPRING (CHOKE), G4300L $4.71
155 279-62581-08 SCREW, G4300L $7.68
156 279-62561-08 BUSH, G4300L $4.71
157 279-62353-18 ADJUST SCREW, G4300L $4.71
158 279-62445-08 SPRING, G1100 $4.71
159 279-62562-08 COLLAR, G4300L $4.71
160 279-62452-08 O RING, G4300L $4.71
161 279-62451-08 O RING, G4300L $4.71
162 279-62590-08 VINYL PIPE, G4300L $3.17
163 279-62576-08 BRACKET, G4300L $12.74
164 279-62580-08 SCREW, G4300L $3.17
165 KU3-11043-11 FLOAT C/U CP3, G2800L $41.82
166 011-00600-20 FLANGE BOLT, G6100R $2.40
167 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50

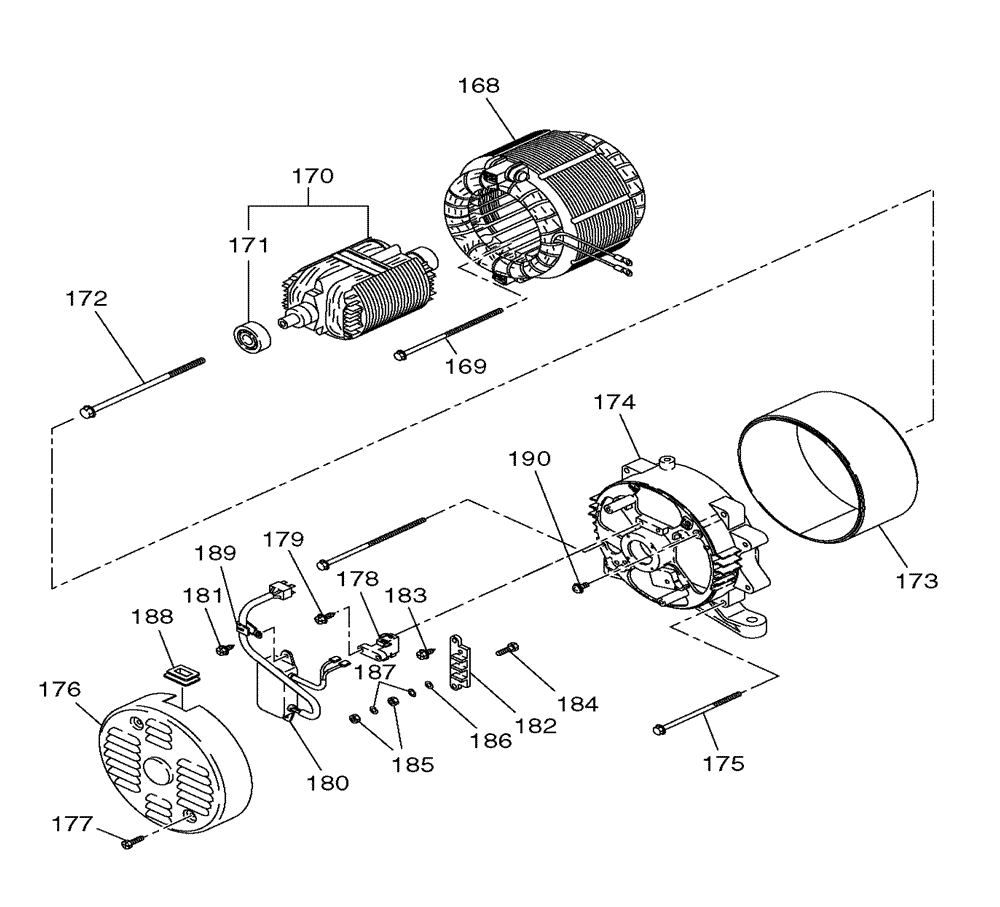

168 33D-22352-01 STATOR AY, G4300L $448.63
169 33C-21052-08 BOLT M5X135L, G4300L $4.71
170 33D-21161-01 ROTOR, G4300L $295.66
171 32D-21001-08 BALL BEARING, G2800L $19.67
172 33D-21053-08 ROTOR BOLT M10X185L, G4300L $12.19
173 33D-23061-01 STATOR COVER, G4300L $24.18
174 32D-23071-01 REAR COVER, G2800L $126.78
175 33D-21051-08 STARTOR BOLT, G4300L $4.71
176 33B-23051-01 END COVER, G2800L $26.52
177 33B-21052-08 BOLT M5X10L, G2800L $3.17
178 32D-23101-01 BRUSH CP., G2800L $29.37
179 32D-21062-08 SCREW, G2800L $1.74
180 33B-23001-00 AVR AY., G2800L $126.78
181 32D-21055-08 SCREW M5X14L, G2800L $1.74
182 32D-21052-08 BASE, G2800L $15.16
183 32D-21055-08 SCREW M5X14L, G2800L $1.74
184 32D-21061-08 BOLT, G2800L $3.17
185 32D-21051-08 NUT M5, G2800L $1.96
186 32D-21053-08 WASHER, G2800L $1.63
187 32D-21054-08 SPRING WASHER, G2800L $1.96
188 32B-45002-03 GROMMET, G2800L $6.14
189 32D-21060-08 CLAMP, G1100 $3.17
190 32B-21053-08 SCREW, G1100 $1.74
190 32D-21063-08 SCREW M5X12L, G4300L $1.74

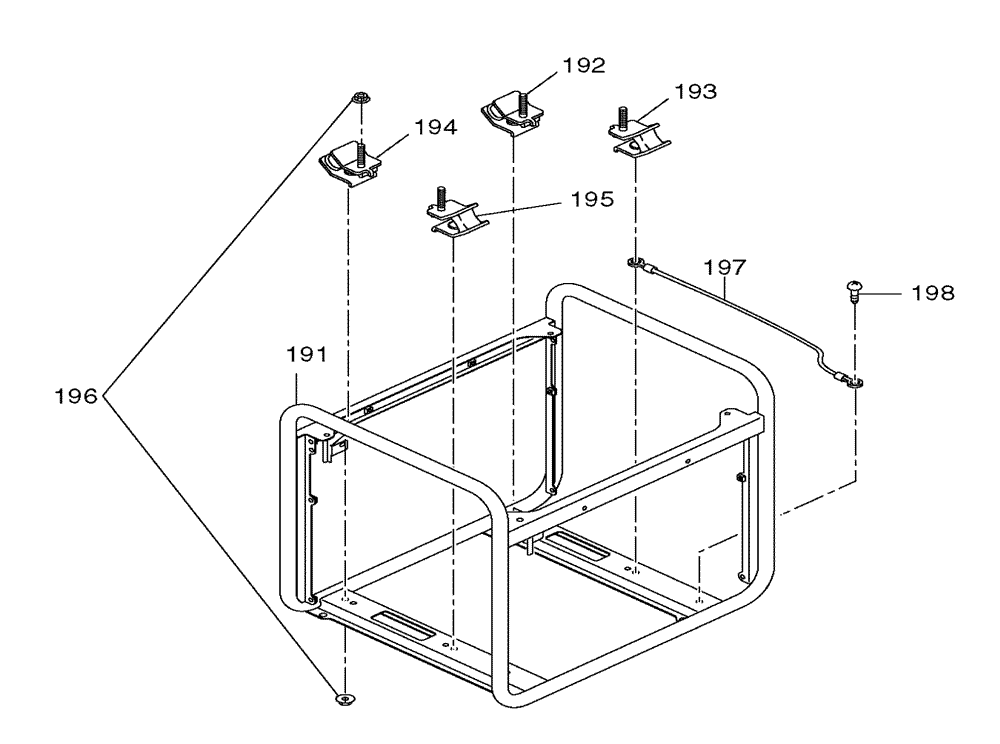

191 33D-30101-01 FRAME, G4300L $159.76
192 32B-30213-01 MOUNT CP.(R), G4300L $16.70
193 32B-30214-01 MOUNT CP.(L), G4300L $16.70
194 32B-30203-01 MOUNT CP.(R), G4300L $16.70
195 32B-30204-01 MOUNT CP.(L), G4300L $16.70
196 002-38080-00 FLANGE NUT, G6100R $2.40
197 33B-48091-01 EARTH WIRE CP.,G2800L $6.14
198 014-00601-21 SCREW, G2800L $1.08
199 33B-50002-01 FRONT COVER CP. (UPPER), G4300L $36.21
200 015-00400-70 TAPPING SCREW, G2800R $1.41
201 33B-46001-03 COVER (COCK), G2800L $4.71
202 003-10040-00 WASHER, G6101R $0.97
203 33B-4601211 BRACKET (COCK), G2800L $6.14
204 34B-57311-03 SEAL SPONGE FC2, G2800L $3.17
205 353-49904-08 TAPPING SCREW, G2800R $1.08

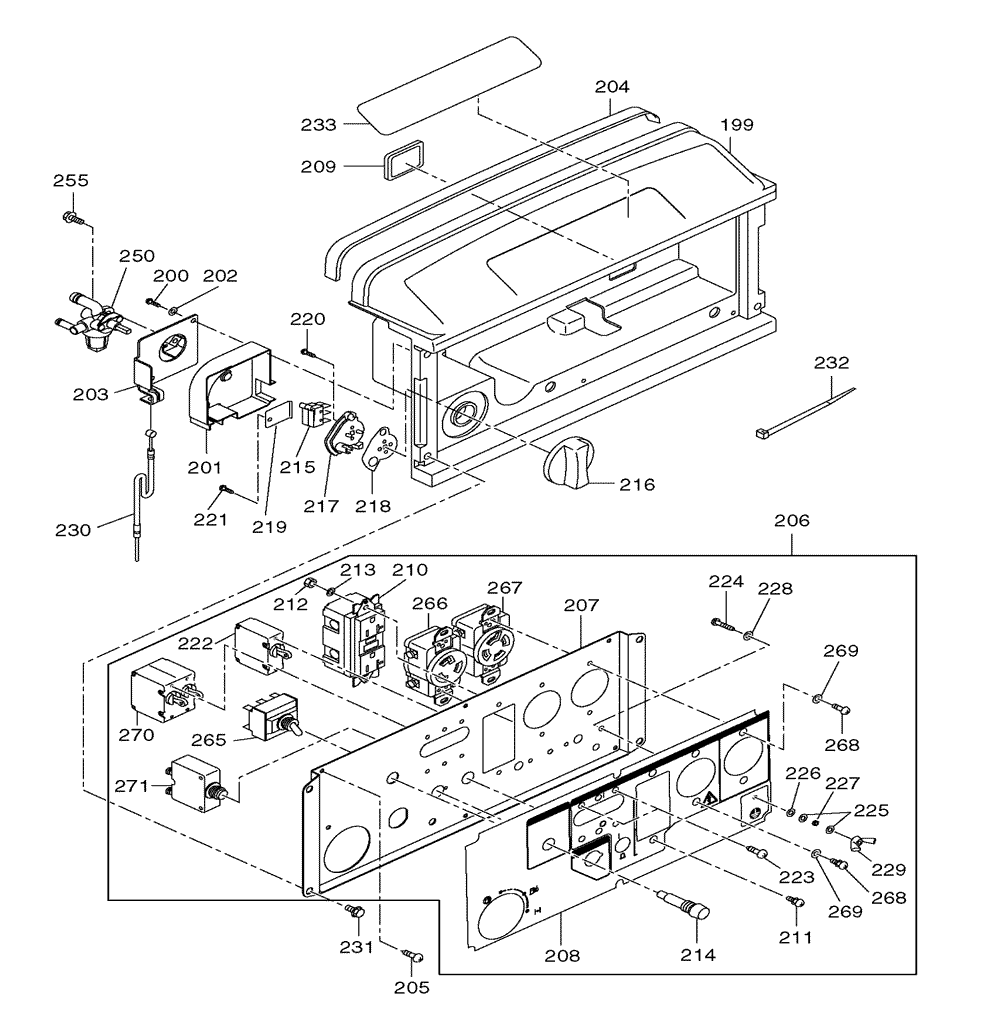

206 33D-43975-00 CONTROL PANEL AY.,G4300L $591.03
207 33B-45114-01 PANEL PLATE CP.,G4300L $53.20
208 33B-49264-03 SHEET (PANEL AR)2, G4300L $27.94
209 227-75001-03 GROMMET, G2800L $1.74
210 33K-49951-01 AC RECEPTACLE GFCI (125V-20A),G6101R $98.20
211 004-35041-00 SCREW & WASHER, G2800R $0.90
212 002-27040-00 NUT, G2800L $1.34
213 003-10040-00 WASHER, G6101R $0.97
214 393-40665-08 NEON LAMP (GR.), G2800L $4.71
215 33K-41811-03 MICRO SWITCH, G1100 $6.14
216 33K-42010-03 CONTROL DIAL, G1100 $4.71
217 33K-42020-03 CHOKE REEL, G1100 $3.50
218 33K-42030-23 PLATE, G2800L $1.74
219 33B-46015-01 BRACKET (MICRO), G2800L $8.01
220 33K-41814-08 TAPPING SCREW, G2800L $1.41
221 015-00400-70 TAPPING SCREW, G2800R $1.41
222 32B-43166-01 CIRCUIT BREAKER 30A, G4300L $110.78
223 31B-79011-03 SCREW & WASHER ASSY(M3X5MM)G12000R $2.18
224 388-88001-03 SCREW (M5), G5711R $1.41
225 332-00050-08 SPRING WASHER, G2800R $1.34
226 353-49903-08 WASHER, G2800R $1.63
227 353-49902-08 NUT, G2800R $1.96
228 003-30050-00 LOCK WASHER, G2800R $0.90
229 353-49901-08 WING NUT, G2800R $5.26
230 33B-46021-01 CHOKE WIRE CP.,G2800L $9.22
231 014-00601-90 SCREW, G2800L $0.82
232 056-30000-20 WIRE BAND, G2400R $3.50

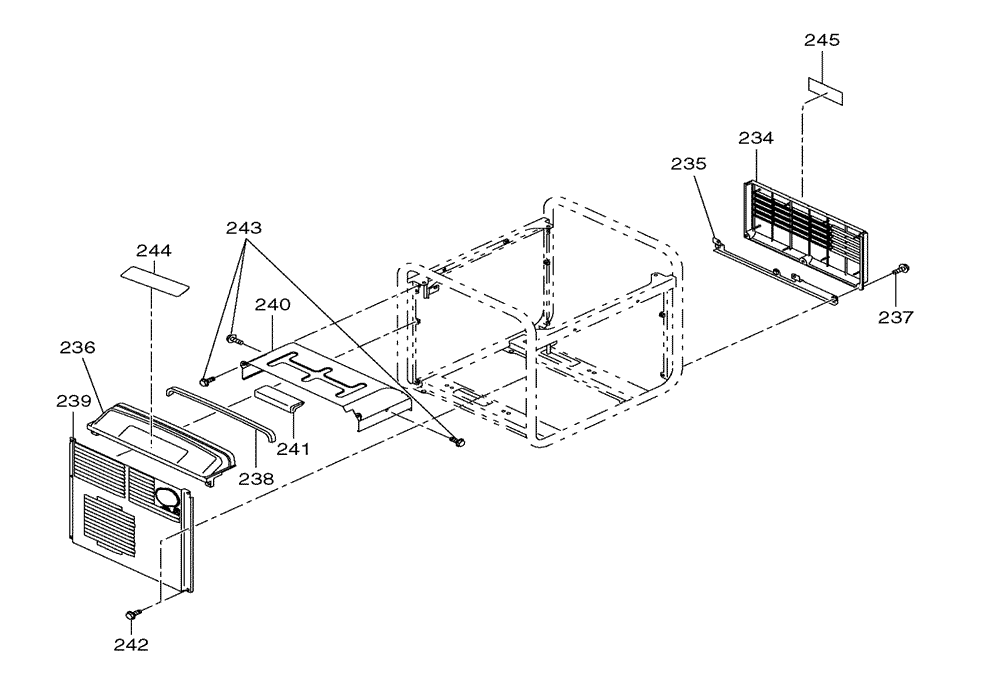

233 33D-90011-13 LABEL (TRADE MARK),G4300L $6.01
234 33B-50101-01 FRONT COVER CP.,G2800L $24.18
235 33B-35501-01 BRACKET (COVER) CP.,G2800L $25.61
236 33B-50501-01 REAR COVER CP.,G2800L $24.18
237 011-00601-40 FLANGE BOLT, G2410R $1.85
238 34B-57311-03 SEAL SPONGE FC2, G2800L $3.17
239 33B-56201-01 MUFFLER COVER CP.,G2800L $85.90
240 33D-56051-01 MUFFLER COVER(L)CP.,G4300L $65.50
241 33B-57005-03 SEAL RUBBER,G2800L $3.17
242 011-00601-40 FLANGE BOLT, G2410R $1.85
243 011-00600-80 FLANGE BOLT, G2400R $1.41
244 33B-97132-13 LABEL (TM-RC), G2800L $6.01
245 33D-95154-13 SPEC LABEL, G4300L $4.75
246 33D-60102-11 FUEL TANK CP.,G4300L $159.76
247 043-05900-11 FUEL TANK CAP COMPL., G2800R $28.76
248 064-15400-11 FUEL FILTER, G6101R $9.00
249 064-80015-00 FUEL GAUGE COMPL. G12000R $31.82
250 064-20103-00 FUEL STRAINER, G2800L $22.64
251 064-20093-20 FILTER, G2800L $3.17
252 064-20064-10 RUBBER PACKING, G2800R $2.40
253 064-20078-10 CUP, G2800R $4.93
254 064-20047-90 P.H. SCREW, G2800R $1.41
255 011-00600-20 FLANGE BOLT, G6100R $2.40
256 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
257 085-10700-40 RUBBER PIPE, G4300L $4.71
258 251-17302-03 MESH PROTECTOR, G2800L $7.68
259 056-11100-20 HOSE CLAMP, G2800R $1.41
260 056-11300-10 HOSE CLAMP, G1100 $1.74
261 011-00602-20 FLANGE BOLT, G2800R $3.50
262 391-39000-13 RUBBER WASHER, G2800R $5.26
263 33B-97102-13 LABEL (CAUTION),G2800L $7.46
264 279-37601-01 SPARK ARRESTER CP.,G2800L $24.18
266 356-45711-08 AC RECEPTACLE, G3510R $42.94
267 353-45724-08 AC RECEPTACLE, G3510R $47.32
268 356-59937-08 SCREW, G3510R $1.08
269 326-00335-08 SPRING WASHER, G3510R $1.63
270 32B-43196-01 CIRCUIT BREAKER 16A, G4300L $116.60
271 31C-73008-03 CIRCUIT BREAKER 20A, G4300L $98.10
272 277-37220-03 SCREEN, G2800L $3.17
