Tool Diagram    (Click image to Zoom in) View larger Image

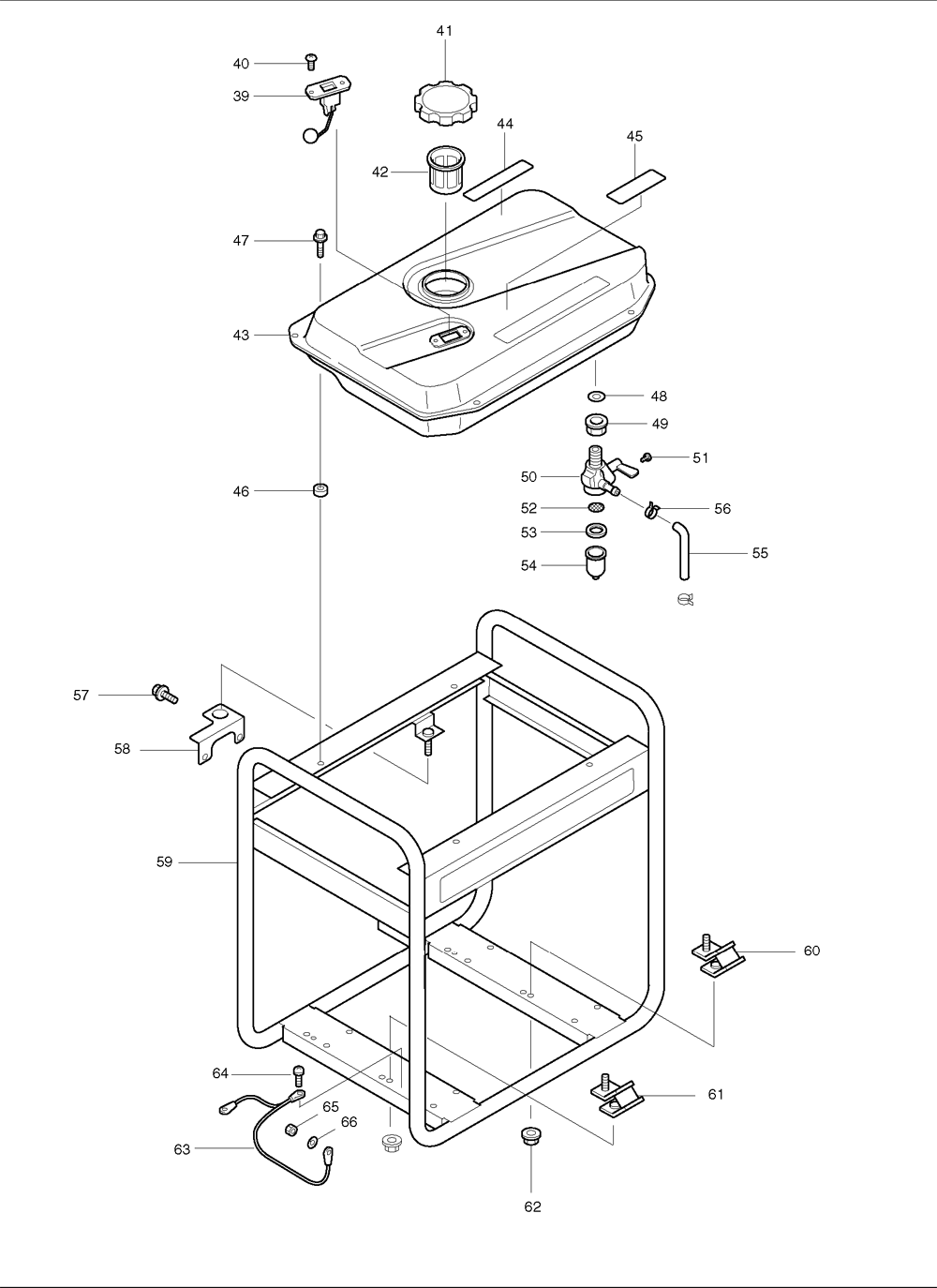

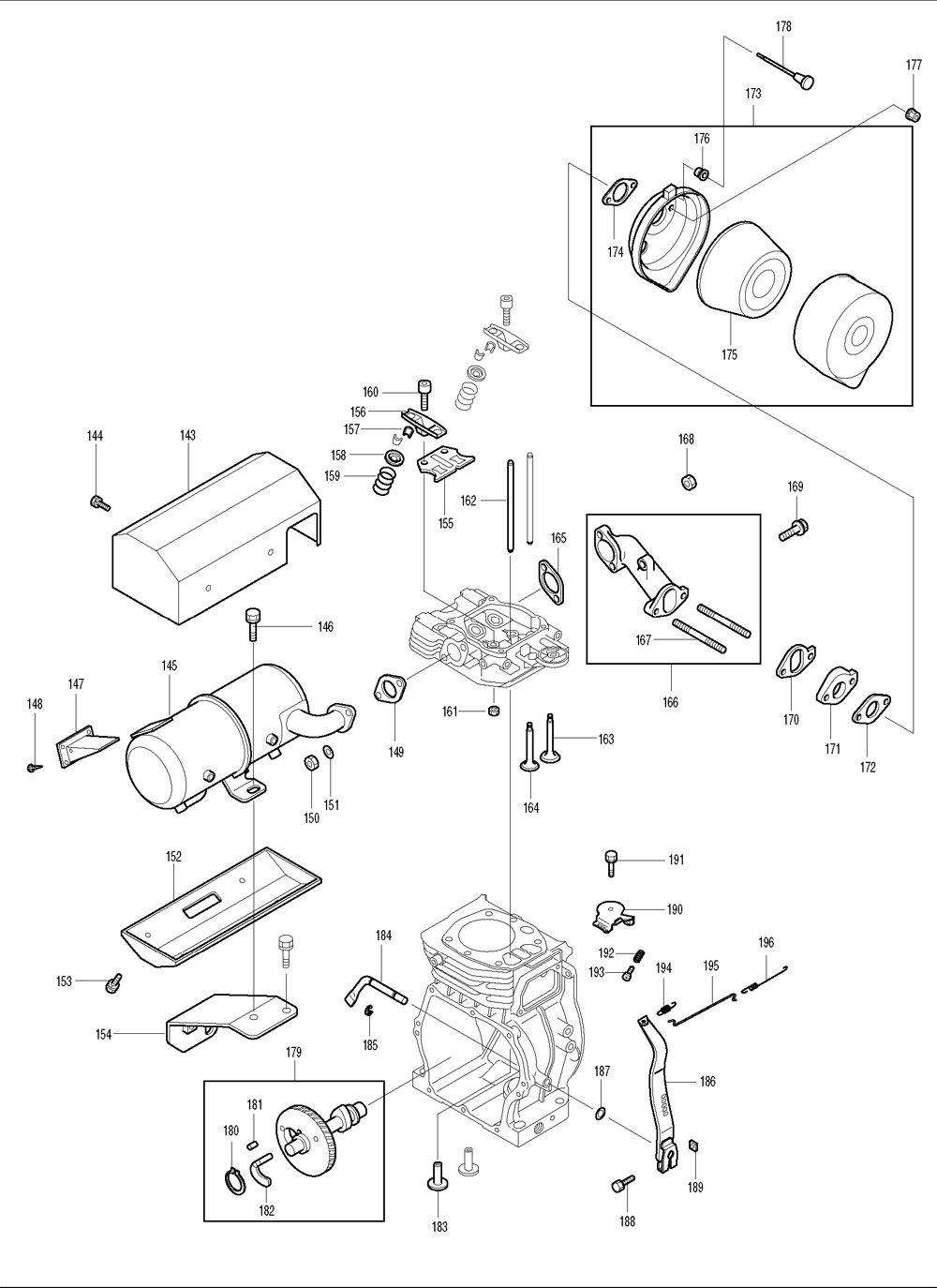

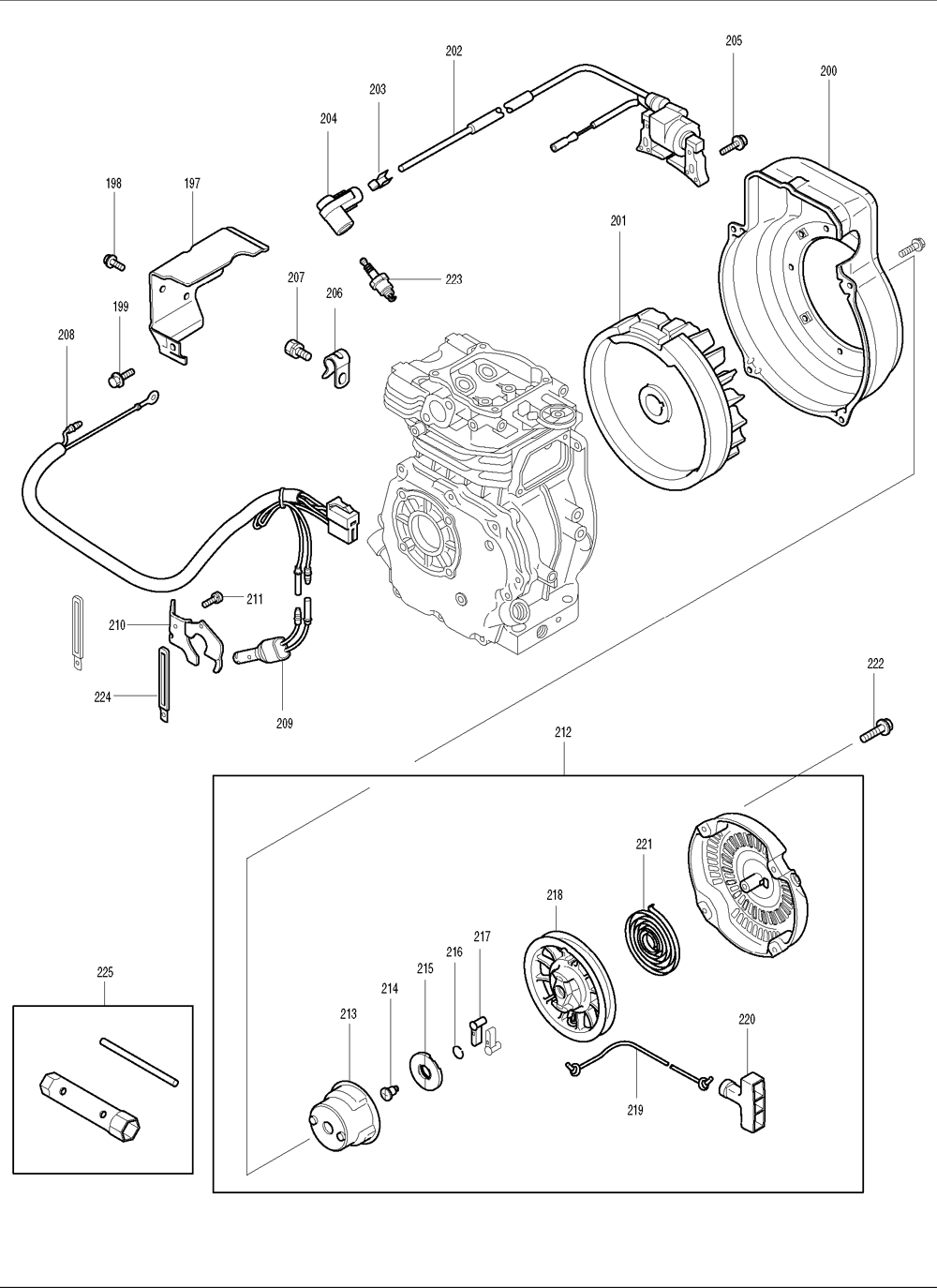

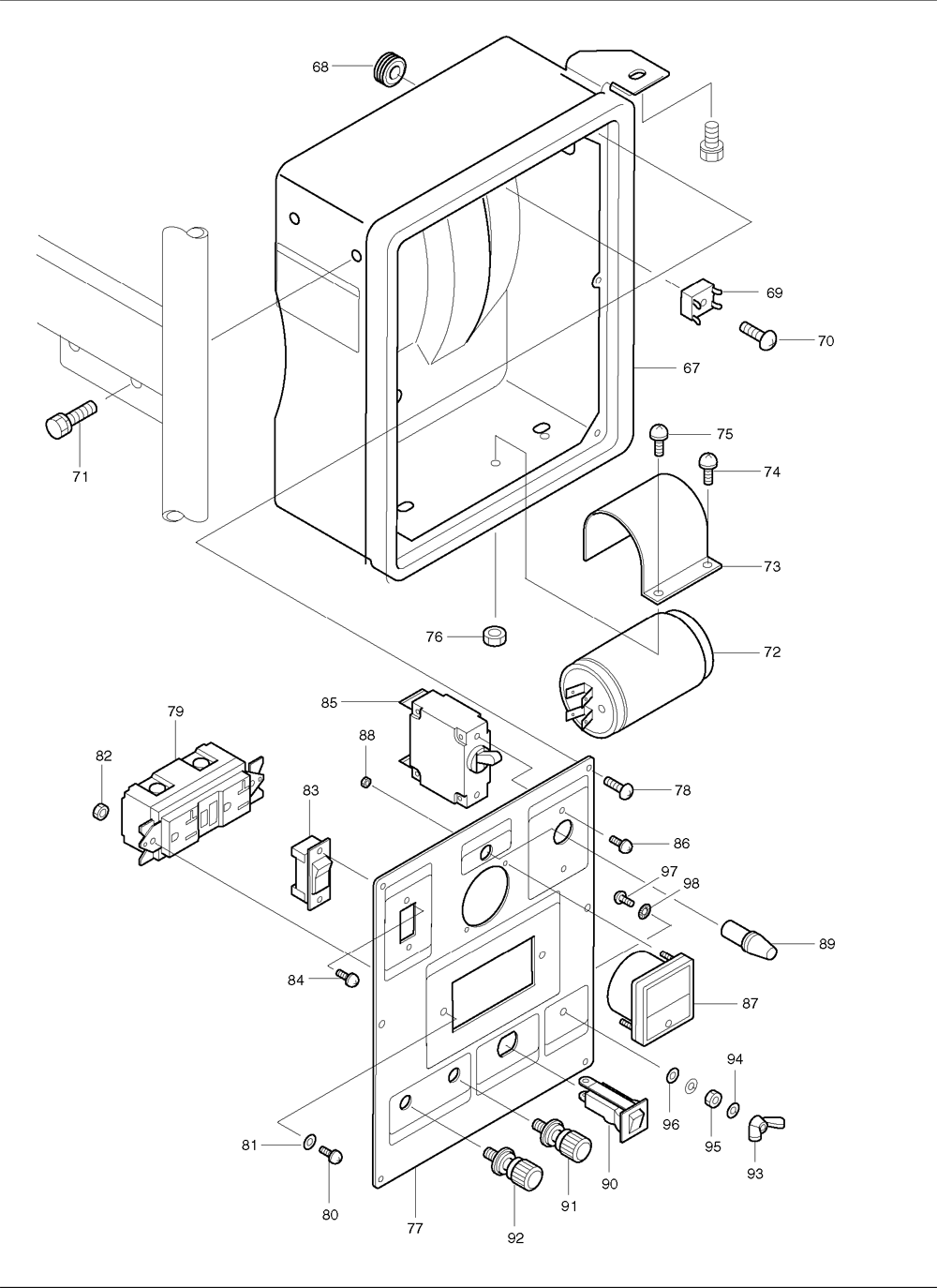

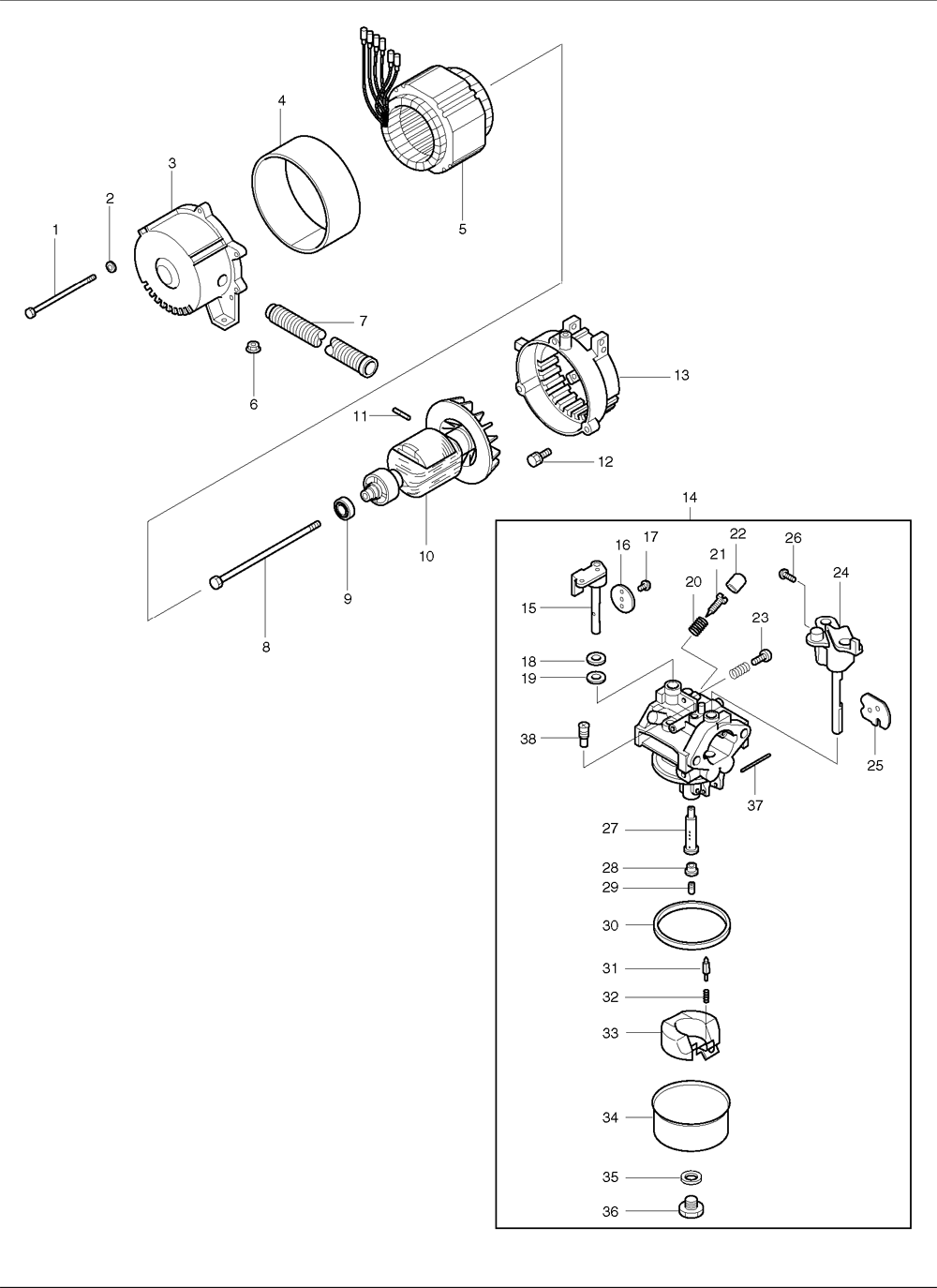

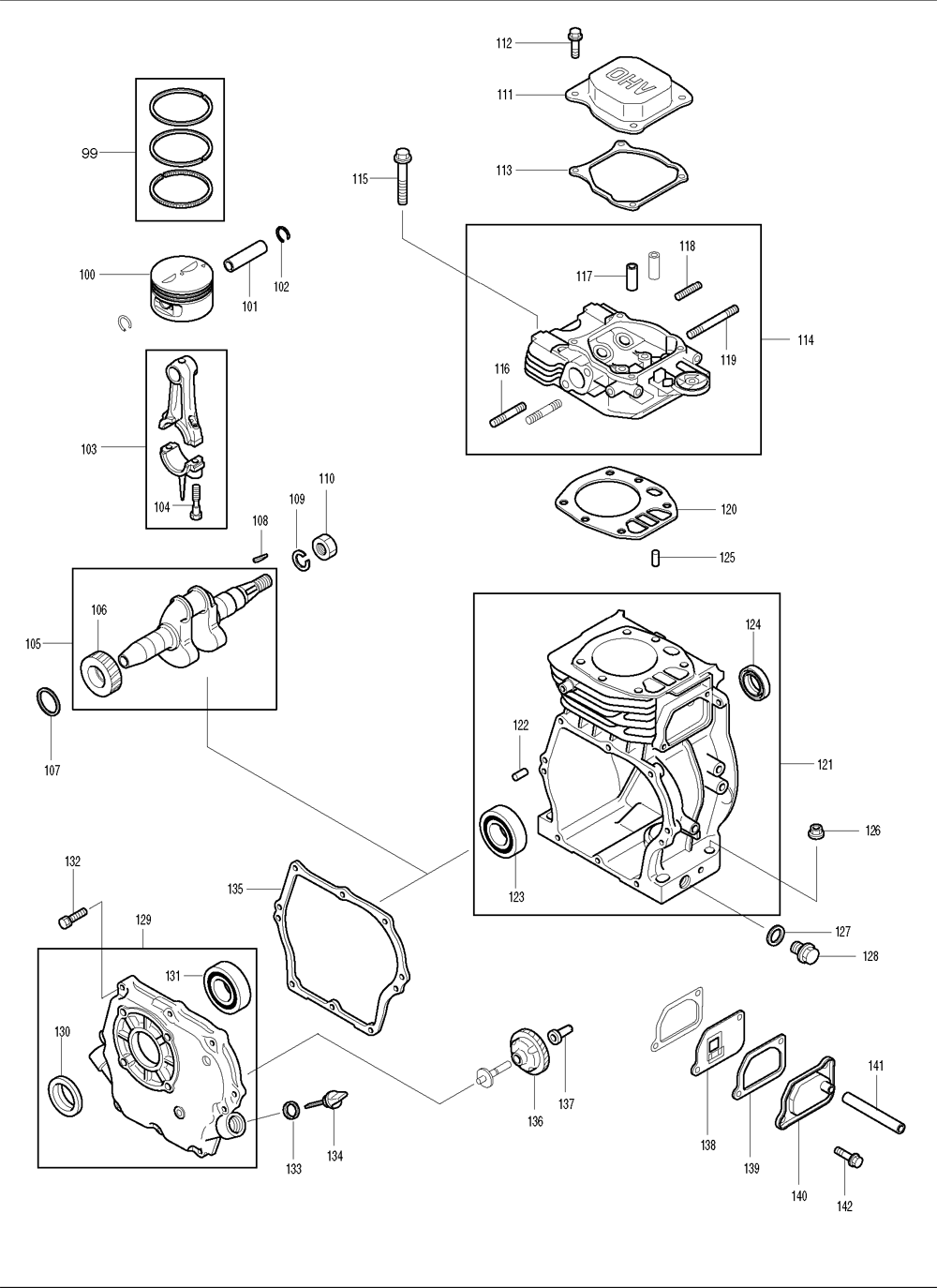

Makita G2800R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 366-58305-08 COVER BOLT (M6X110MM), G2800R $3.50
202 269-79430-21 IGNITION COIL, G2800R $122.42
2 003-20060-00 SPRING WASHER, G2800R $1.34
3 31B-51022-01 REAR COVER, G2800R $104.38
4 31B-51023-01 STATOR COVER, G2800R $19.67
5 31B-51123-01 STATOR COMPL. (60HZ - 120V), G2800R $539.62
6 002-38080-00 FLANGE NUT, G6100R $2.40
7 391-29000-13 BUSHING, G2800R $12.96
8 31E-53000-01 THROUGH BOLT (M8X250MM), G2800R $13.62
9 353-58208-08 BALL BEARING G2800R $16.04
10 31E-51000-01 ROTOR COMPL., G2800R $471.04
11 380-54374-08 DIODE, G2800R $6.69
12 001-14082-00 BOLT & WASHER, G2800R $1.34
13 31B-51021-01 FRONT COVER,G2800R $161.51
14 253-62457-20 CARBURETOR ASSY, G2800R $142.79
15 253-62533-08 SHAFT ASS'Y (THROTTLE), G2800R $24.18
16 220-62536-08 THROTTLE VALVE (#160), G2800R $11.42
17 253-62352-08 SCREW, EW210TR $1.85
18 253-62355-08 RING, EW210TR $3.17
19 106-62392-18 SEAL, G6100R $3.50
20 209-62445-08 SPRING, G2800R $3.61
21 246-62436-08 PILOT SCREW, G5710R $20.88
22 246-62551-08 CAP, G5710R $4.93
23 246-62435-08 SCREW, G5710R $3.50
24 253-62524-08 CHOKE LEVER, G2800R $27.26
25 253-62525-08 VALVE(CHOKE), EW210TR $6.69
26 242-62323-08 SCREW, G2800R $1.85
27 238-62440-08 MAIN NOZZLE, G2800R $14.61
28 235-62425-08 GUIDE HOLDER, G2800R $8.12
29 253-62401-08 MAIN JET (#73.8), G2800R $9.77
30 236-62540-08 PACKING (CHAMBER), G2800R $4.93
31 161-62352-08 NEEDLE VALVE, G2800R $45.08
32 236-62445-08 SPRING, G2800R $3.61
33 236-62505-08 FLOAT, G2800R $19.34
34 236-62551-08 FLOAT CHAMBER, G2800R $29.58
35 236-62450-08 PACKING, G2800R $1.85
36 236-62551-08 FLOAT CHAMBER, G2800R $29.58
37 236-62510-08 FLOAT PIN, G2800R $3.50
38 253-62420-08 PILOT JET (#52.5),G2800R $6.69
39 064-80005-00 FUEL GAUGE COMPLETE, G2800R $29.58
40 014-50500-40 COUNTER HEAD SCREW, G2800R $1.85
41 043-05900-11 FUEL TANK CAP COMPL., G2800R $28.76
42 064-15400-11 FUEL FILTER, G6101R $9.00
43 31B-36005-01 FUEL TANK, G2800R $170.82
44 377-92500-03 LABEL (CAUTION), G2800R $4.84
45 388-93002-03 LABEL (STOPPING), G2800R $3.39
46 391-39000-13 RUBBER WASHER, G2800R $5.26
47 011-00602-20 FLANGE BOLT, G2800R $3.50
48 064-20003-30 O RING, G2400R $1.85
48 243-66506-08 PACKING, G2800R $2.40
49 064-20042-60 NUT, G2800R $2.40
50 064-20100-01 FUEL STRAINER, G2800R $17.80
51 064-20047-90 P.H. SCREW, G2800R $1.41
51 064-20027-90 LOCK BOLT, EW310TR $1.34
52 064-20042-20 FILTER, G2800R $4.71
53 064-20064-10 RUBBER PACKING, G2800R $2.40
53 064-20014-30 PACKING, EW310TR $1.85
54 064-20078-10 CUP, G2800R $4.93
54 064-20014-10 CUP, EW310TR $3.50
55 269-62603-01 FUEL PIPE 2 COMPL., G2800R $7.68
56 056-11100-20 HOSE CLAMP, G2800R $1.41
57 011-00600-30 FLANGE BOLT, G2800R $1.85
58 31B-39101-13 STOPPER PLATE, G2800R $22.64
59 31B-31301-01 PIPE FRAME, G2800R $204.29
60 31C-35002-01 RUBBER MOUNT UNIT, G2800R $36.21
61 377-37000-11 RUBBER MOUNT UNIT, G2800R $36.21
62 002-38080-00 FLANGE NUT, G6100R $2.40
63 390-54416-01 EARTH CORD, G5710R $11.42
64 390-54416-01 EARTH CORD, G5710R $11.42
65 002-19040-00 NUT, G5710R $1.96
66 003-20040-00 SPRING WASHER, G5711R $1.34
67 31B-42101-01 CONTROL BOX, G2800R $60.00
68 391-49003-03 GROMMET, G2800R $3.50
69 353-45804-08 DIODE STACK, G2800R $35.90
70 015-00400-70 TAPPING SCREW, G2800R $1.41
71 001-14061-60 BOLT & WASHER, G2800R $1.34
72 31B-77504-01 CONDENSER, G2800R $65.00
73 388-86001-01 CONDENSER BRACKET, G2800R $4.93
74 004-35041-00 SCREW & WASHER, G2800R $0.90
75 389-59989-08 SCREW & WASHER, G5711R $1.34
76 002-17040-00 NUT, G2800R $1.34
77 31B-42301-01 CONTROL PANEL COMPL. G2800R $43.14
78 353-49904-08 TAPPING SCREW, G2800R $1.08
79 33K-49951-01 AC RECEPTACLE GFCI (125V-20A),G6101R $98.20
80 004-35041-00 SCREW & WASHER, G2800R $0.90
81 003-10040-00 WASHER, G6101R $0.97
82 002-17040-00 NUT, G2800R $1.34
83 31D-44001-03 SWITCH, G6100R $15.60
85 31B-43002-03 CIRCUIT BREAKER (20A), G2800R $126.78
86 31B-79011-03 SCREW & WASHER ASSY(M3X5MM)G12000R $2.18
87 391-47802-01 AC VOLTMETER CPL.,G1300R $99.20
88 002-17030-00 NUT, G2800R $1.34
89 320-75173-08 NEON LAMP (RED), G2800R $16.70
90 388-87002-01 CIRCUIT BREAKER (10A), G5710R $65.50
91 363-45701-08 TERMINAL BOLT(RED), G2800R $7.90
92 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
93 353-49901-08 WING NUT, G2800R $5.26
94 332-00050-08 SPRING WASHER, G2800R $1.34
95 353-49902-08 NUT, G2800R $1.96
96 353-49903-08 WASHER, G2800R $1.63
97 388-88001-03 SCREW (M5), G5711R $1.41
98 003-30050-00 LOCK WASHER, G2800R $0.90
99 253-23501-17 PISTON RING SET (STD), G2800R $21.87
99 253-23501-27 PISTON RING SET (STD), G2800R $21.87
99 253-23502-17 PISTON RING SET (0.25MM),G2800R $23.08
99 253-23502-27 PISTON RING SET (.25MM OS), G2800R $23.08
99 253-23503-17 PISTON RING SET (0.50MM), G2800R $23.08
99 253-23503-27 PISTON RING SET (.50MM OS), G2800R $23.08
100 269-23401-03 PISTON(FOR STD.) EW210TR $26.72
100 269-23402-03 PISTON (OVER SIZE 0.25MM) EW210TR $29.58
100 269-23403-03 PISTON (OVER SIZE 0.50MM), EW210TR $29.58
101 269-23301-03 PISTON PIN, EW210TR $5.04
101 269-23301-13 PISTON PIN, EW210TR $5.04
102 056-51600-10 CLIP, G2800R $1.96
103 253-22501-20 CONNECTING ROD, EW210TR $55.00
104 238-23001-03 CONNECTNG ROD BOLT, G2410R $3.50
105 253-20701-01 CRANKSHAFT, COMPL., G2800R $151.23
107 023-02501-10 SPACER, (T=0.6), G2800R $3.50
107 023-02501-20 SPACER (T=0.8), G2800R $3.50
107 023-02501-30 SPACER, (T=1.0), G2800R $3.50
108 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
109 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
110 002-18140-00 NUT, 14MM, G2800R $3.61
111 253-15501-03 ROCKER COVER, G2800R $6.69
112 011-00600-20 FLANGE BOLT, G6100R $2.40
113 269-16004-03 GASKET (ROCKER COVER), EW210TR $6.69
114 269-13001-21 CYLINDER HEAD, EW210TR $116.21
115 011-00801-00 FLANGE BOLT, G2800R $4.93
116 010-50802-90 STUD, G2800R $1.85
117 237-14202-03 VALVE GUIDE(OVER SIZE), G2800R $9.77
118 010-50601-31 STUD, G2800R $1.85
119 001-39066-00 STUD, G2800R $3.50
120 253-15001-33 HEAD GASKET, G2800R $4.71
121 269-10101-01 CRANKCASE COMPL., EW210TR $274.22
122 031-00600-20 DOWEL PIN, G2800R $1.08
123 060-02500-10 BALL BEARING, G2800R $11.42
124 044-02500-70 OIL SEAL, G2800R $6.69
125 031-00600-20 DOWEL PIN, G2800R $1.08
126 002-38080-00 FLANGE NUT, G6100R $2.40
127 021-11400-20 GASKET, G2800R $1.08
128 040-11400-30 PLUG, G2800R $3.50
129 253-11013-01 MAIN BEARING COVER COMPL., G2800R $64.10
130 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
131 060-02500-10 BALL BEARING, G2800R $11.42
132 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
133 021-31600-20 GASKET, G2800R $1.08
134 282-63601-H1 OIL GAUGE, G2800R $5.70
136 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
137 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
138 253-14401-11 BREATHER PLATE, G2800R $4.93
139 253-16006-33 GASKET(BREATHER COVER),EW210TR $1.85
140 253-14301-11 BREATHER COVER CPL., EW210TR $4.93
141 085-10800-00 RUBBER PIPE, G2800R $11.42
142 011-00600-30 FLANGE BOLT, G2800R $1.85
143 31B-12001-01 MUFFLER COVER 1, COMPL., G2800R $60.80
144 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
145 31B-11002-01 MUFFLER COMPL., G2800R $243.48
146 001-15082-00 BOLT & WASHER, G2800R $1.34
147 227-37602-11 SPARK ARRESTER, G2800R $20.88
148 015-00400-40 TAPPING SCREW, G2800R $0.82
149 236-35201-01 GASKET(EXHAUST), G2800R $4.93
150 017-00800-30 NUT, STAINLESS STEEL, G2800R $1.96
151 003-20080-00 SPRING WASHER, G2800R $1.34
152 377-92500-03 LABEL (CAUTION), G2800R $4.84
153 001-11061-20 BOLT & WASHER ASS'Y, G2400R $1.63
154 31B-61125-01 MUFFLER STAY, G2800R $21.10
155 269-36501-03 GUIDE PLATE, EW210TR $1.85
156 269-36002-13 ROCKER ARM, G4100R $10.10
157 132-10KA0-31 COLLET VALVE, G2800R $1.85
158 132-09KA0-40 SPRING RETAINER, G2800R $5.26
159 253-33601-03 VALVE SPRING, G2800R $3.61
160 269-35801-03 BOLT (PIVOT), G4100R $4.93
161 017-00800-90 NUT, G5710R $5.26
162 269-35301-03 PUSH ROD, EW210TR $6.69
163 269-33401-03 INTAKE VALVE, EW210TR $15.60
164 269-33501-03 EXHAUST VALVE, EW210TR $25.50
165 282-35901-03 GASKET, G1100 $1.41
166 253-33001-01 INTAKE PIPE, G2800R $17.69
167 010-50602-30 STUD, G5710R $3.50
168 002-38060-00 FLANGE NUT, G6101R $2.40
169 011-00601-30 FLANGE BOLT, G2800R $1.85
170 253-35901-03 GASKET 3 (INSULATOR), G2800R $1.08
171 253-32901-03 INSULATOR, G2800R $3.50
174 236-32630-08 PACKING, G2800R $1.41
175 282-35901-03 GASKET, G1100 $1.41
176 207-32690-08 GROMMET, G2800R . $3.50
177 226-39212-00 NUT & WASHER ASS'Y, G2800R $1.34
178 206-43901-01 KNOB CPL. G2800R $3.50
179 253-31701-11 CAMSHAFT COMPLETE, G2800R $75.50
180 003-15220-00 SNAP RING, G2800R $1.85
181 005-19041-00 SPRING PIN, G5710R $1.34
182 005-19041-00 SPRING PIN, G5710R $1.34
183 239-33301-13 TAPPET, G4100R $9.77
184 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
185 003-13060-00 CLIP, G2800R $1.34
186 253-42301-23 GOVERNOR LEVER, EW210TR $9.77
187 003-11080-00 WASHER, G1300R $1.34
188 001-14063-00 BOLT & WASHER ASS'Y, G5710R $1.34
189 018-60600-20 NUT, G2800R . $1.34
190 227-43310-13 SPEED CONTROL, G4100R $6.69
191 001-13061-20 BOLT ASS'Y M6X12, G2800R $1.41
192 237-45004-23 SPRING (ADJUSTER), G2800R $1.96
193 004-31063-00 SCREW, EW210R $0.82
194 253-42501-23 GOVERNOR SPRING, G2800R $3.61
195 253-42701-01 GOVERNOR ROD, G2800R $4.93
196 253-42801-03 ROD SPRING, G2800R $5.26
197 253-52702-03 HEAD COVER, G2800R $10.43
198 011-00600-30 FLANGE BOLT, G2800R $1.85
199 011-00600-20 FLANGE BOLT, G6100R $2.40
200 253-51291-01 BLOWER HOUSING, G2800R $50.60
201 269-79330-01 FLYWHEEL COMPL., EW210TR $124.65
202 269-79430-21 IGNITION COIL, G2800R $122.42
203 065-90000-10 PLUG TERMINAL, G5710R $3.50
204 065-50001-40 SPARK PLUG CAP, G5710R $4.93
205 001-14062-50 BOLT & WASHER, G2800R $1.34
206 056-60001-90 CLAMP, G4100R $3.50
207 001-10081-60 BOLT & WASHER, G2800R $1.63
208 254-73104-01 WIRE 4 COMPL., G2800R $8.12
209 KS3-11010-01 OIL SENSOR CPL., G2800R $136.00
210 253-17501-13 SHELTER PLATE, G2800R $4.93
211 004-35051-00 SCREW & WASHER, G2800R $1.01
212 269-50201-30 RECOIL STARTER ASSY,EW210TR $81.00
213 269-50145-08 STARTER PULLEY, EW210TR $18.13
214 227-50152-08 SET SCREW, G2800R $4.93
215 270-50261-08 RATCHET GUIDE, G4100R $6.69
216 227-50131-08 FRICTION SPRING, G2800R $5.26
217 270-50125-08 RATCHET, G4100R $4.93
218 269-50120-08 REEL, EW210TR $26.72
219 269-50110-08 STARTER ROPE, EW210TR $12.19
220 261-50100-08 STARTER KNOB, G4100R $9.22
221 270-50115-08 SPIRAL SPRING, G4100R $16.04
222 011-00600-10 FLANGE BOLT, G6100R $2.40
223 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
224 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50
226 064-20032-30 SPRING, EW310TR $1.96
