Makita G2800L Generator Parts

Makita G2800L Generator Parts Image

Makita G2800L Parts
2,800W Portable Generator

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita G2800L
2,800W Portable Gene...
$969.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Page-13
Tool Diagram    (Click image to Zoom in) View larger Image

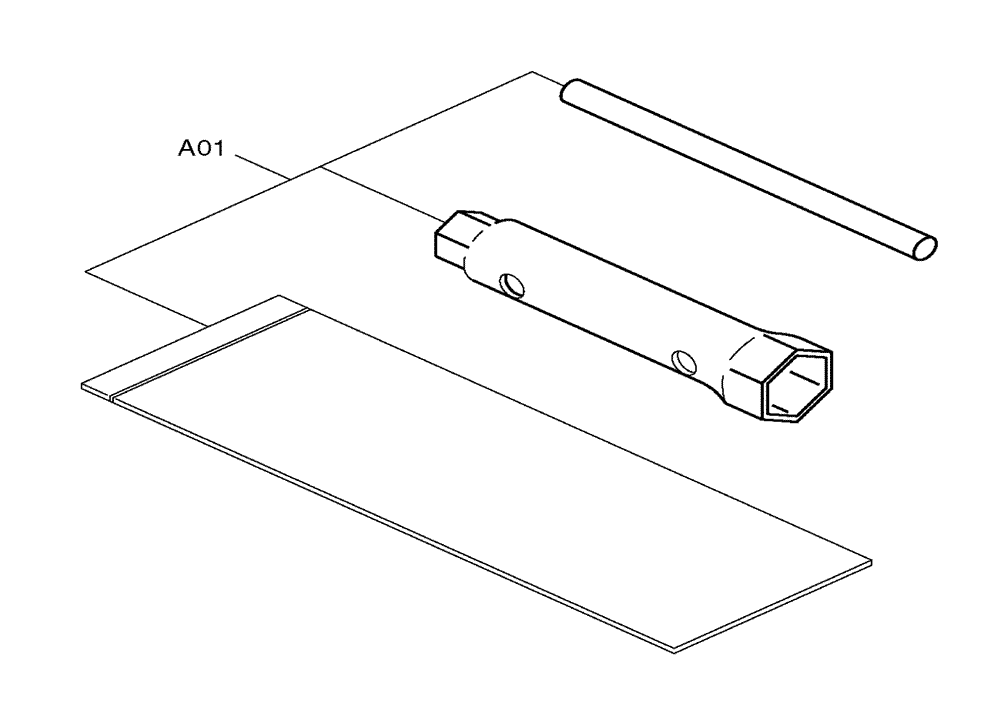

Makita G2800L Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
109 277-42801-23 ROD SPRING, G2800L $3.06

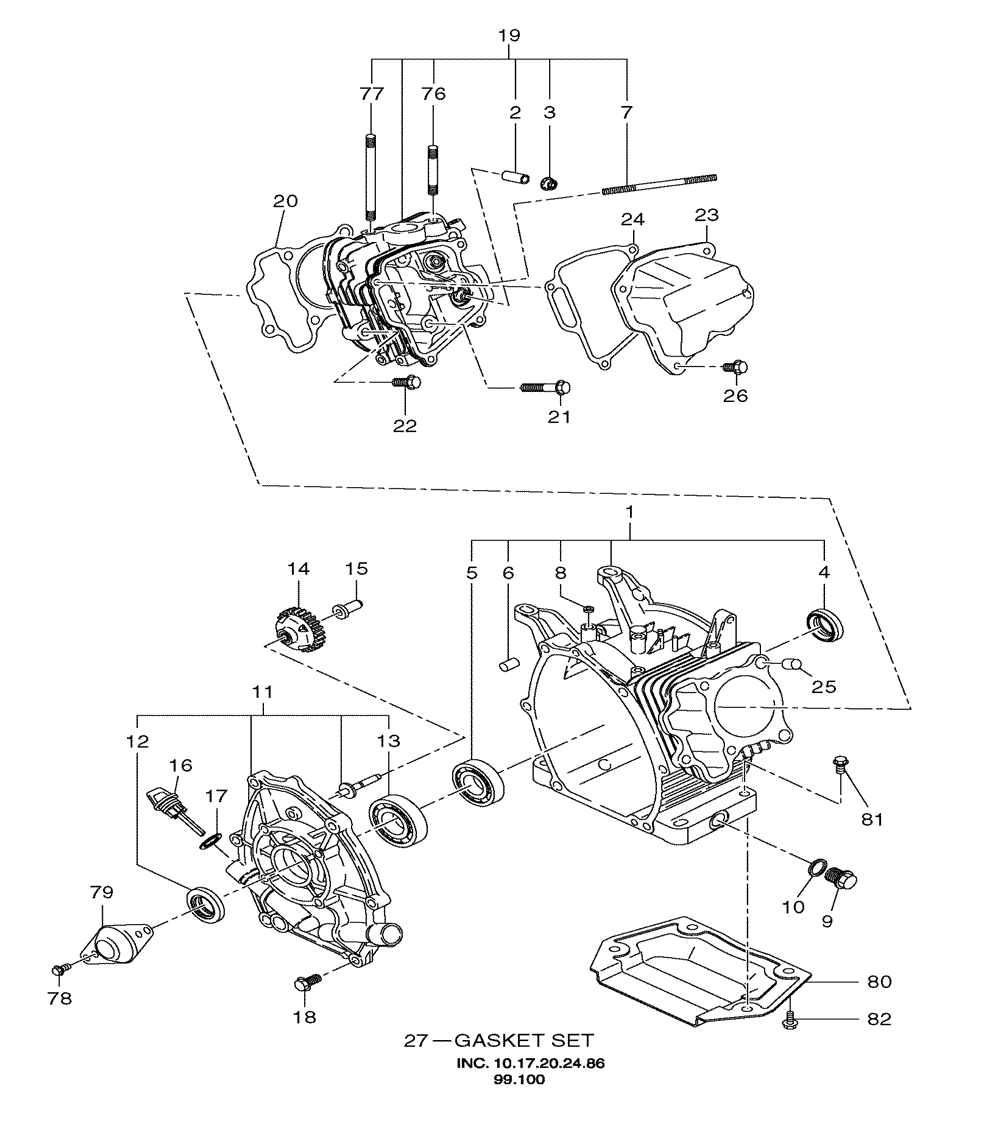

1 277-10102-41 CRANKCASE CP., G2800L $259.97
2 237-14202-03 VALVE GUIDE(OVER SIZE), G2800R $9.77
3 277-16010-01 STEM SEAL, G1100 $4.60
56 277-36201-00 ROCKER ARM (IN)AY, G4300L $18.13
67 277-79232-01 FLYWHEEL CP, G2800L $89.90
188 32B-30201-11 MOUNT CPLT. (R), G2800L $17.36
5 060-02800-21 BALL BEARING, G2800L $10.87
6 277-15011-03 PIPE KNOCK, G1100 $1.41
7 010-50603-51 STUD, G2800L $4.71
8 044-00600-20 OIL SEAL, G1100 $4.71
9 040-11400-30 PLUG, G2800R $3.50
10 021-11400-20 GASKET, G2800R $1.08
11 277-11001-31 MAIN BEARING COVER, G2800L $73.60
12 044-02502-10 OIL SEAL, G2800L $9.00
13 060-02501-40 BALL BEARING, G2800L $9.22
14 277-45004-H1 GOVERNOR GEAR CP.,G2800L $15.82
15 277-41901-03 GOVERNOR SLEEVE, G2800L $10.65
16 277-63601-13 OIL GAUGE, G2800L $4.71
17 021-31600-20 GASKET, G2800R $1.08
18 001-04083-50 FLANGE BOLT, G2800L $1.74
19 277-13005-01 CYLINDER HEAD CP.,G2800L $97.78
20 277-15001-23 GASKET (HEAD), G2800L $4.71
21 011-00802-40 FLANGE BOLT, G2800L $3.17
22 011-00803-10 FLANGE BOLT, G2800L $3.17
23 277-15501-01 ROCKER COVER CP.,G2800L $19.67
24 277-16001-03 GASKET (ROCKER COVER),G2800L $4.71
25 277-15011-03 PIPE KNOCK, G1100 $1.41
26 011-00600-20 FLANGE BOLT, G6100R $2.40
27 277-99001-07 GASKET SET, G2800L $10.65

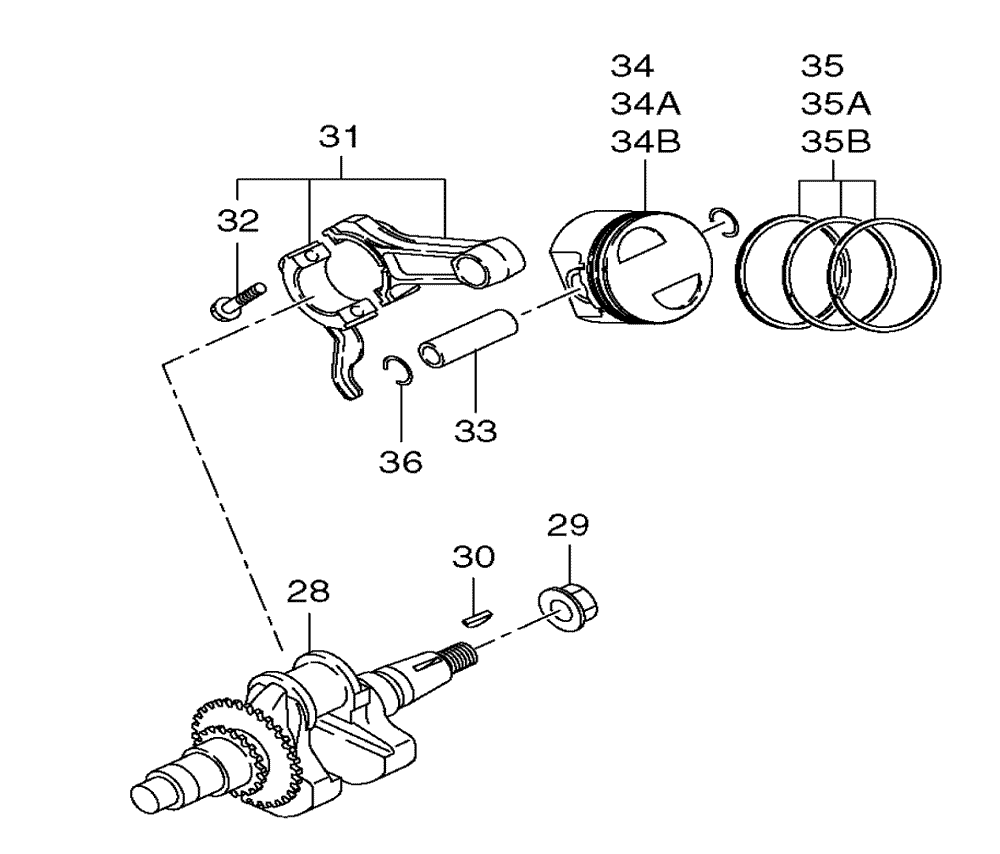

28 277-20501-01 CRANKSHAFT CP.,G2800L $134.74
29 018-01400-20 FLANGE NUT, G2800L $3.06
30 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
31 277-22501-10 CONNECTING ROD AY, G2800L $51.90
32 277-23001-03 CONNECTING ROD BOLT, G2800L $3.61
33 277-23301-03 PISTON PIN, G2800L $6.14
34 277-23401-03 PISTON, G2800L $27.15
34 277-23403-03 PISTON 0.25,O.S.,G2800L $26.52
34 277-23404-03 PISTON 0.50,O.S.,G2800L $26.52
35 277-23501-17 PISTON RING SET STD.,G2800L $26.52
35 277-23502-17 PISTON RING SET 0.25,G2800L $26.52
35 277-23503-17 PISTON RING SET 0.50,G2800L $27.94
36 056-51600-10 CLIP, G2800R $1.96
37 278-31601-11 CAM SHAFT CP., G2800L $64.10
38 277-35101-03 PIN (CAM SHAFT), G2800L $7.68
39 024-00600-10 O RING , G2800L $3.17
40 277-38601-03 PIN (SPRING), G2800L $1.96
41 277-36401-03 RELEASE LEVER, G2800L $10.65
42 277-36501-03 CLIP, G2800L $1.96
43 279-38701-13 RETURN SPRING, G2800L $3.61
44 279-33601-03 VALVE SPRING, G2800L $3.61
45 269-33701-03 SPRING RETAINER, G2800L $4.71
46 277-33401-H3 INTAKE VALVE, G2800L $11.42
47 277-33501-13 EXHAUST VALVE, G2800L $19.67
48 132-10KA0-31 COLLET VALVE, G2800R $1.85
49 277-35601-11 TIMING CHAIN CP.,G2800L $21.10
50 277-36911-03 TENSIONER, G2800L $4.71
51 277-37101-03 SPRING (TENSIONER), G2800L $3.61
52 277-36902-03 PIN (TENSIONER), G2800L $3.17
53 277-36913-13 CHAIN GUIDE, G2800L $3.17
54 277-35002-01 PIN (ROCKER)CP., G2800L $3.17
55 003-13050-00 CLIP, G1100 $1.34
56 277-36201-00 ROCKER ARM (IN)AY, G4300L $18.13
57 277-36202-00 ROCKER ARM (EX) AY, G2800L $16.70
58 014-90500-20 ADJUST SCREW M5, G2800L $3.17
59 014-90500-20 ADJUST SCREW M5, G2800L $3.17
60 017-00500-30 NUT, G2800L $1.85
61 017-00500-30 NUT, G2800L $1.85
62 011-00600-20 FLANGE BOLT, G6100R $2.40
63 277-42201-33 GOVERNOR SHAFT, G2800L $7.68
64 003-13050-00 CLIP, G1100 $1.34
65 277-52711-11 BAFFLE 1 CP.(CASE), G2800L $7.68
66 001-04061-60 FLANGE BOLT, G2800L $1.41
67 277-79232-01 FLYWHEEL CP, G2800L $89.90

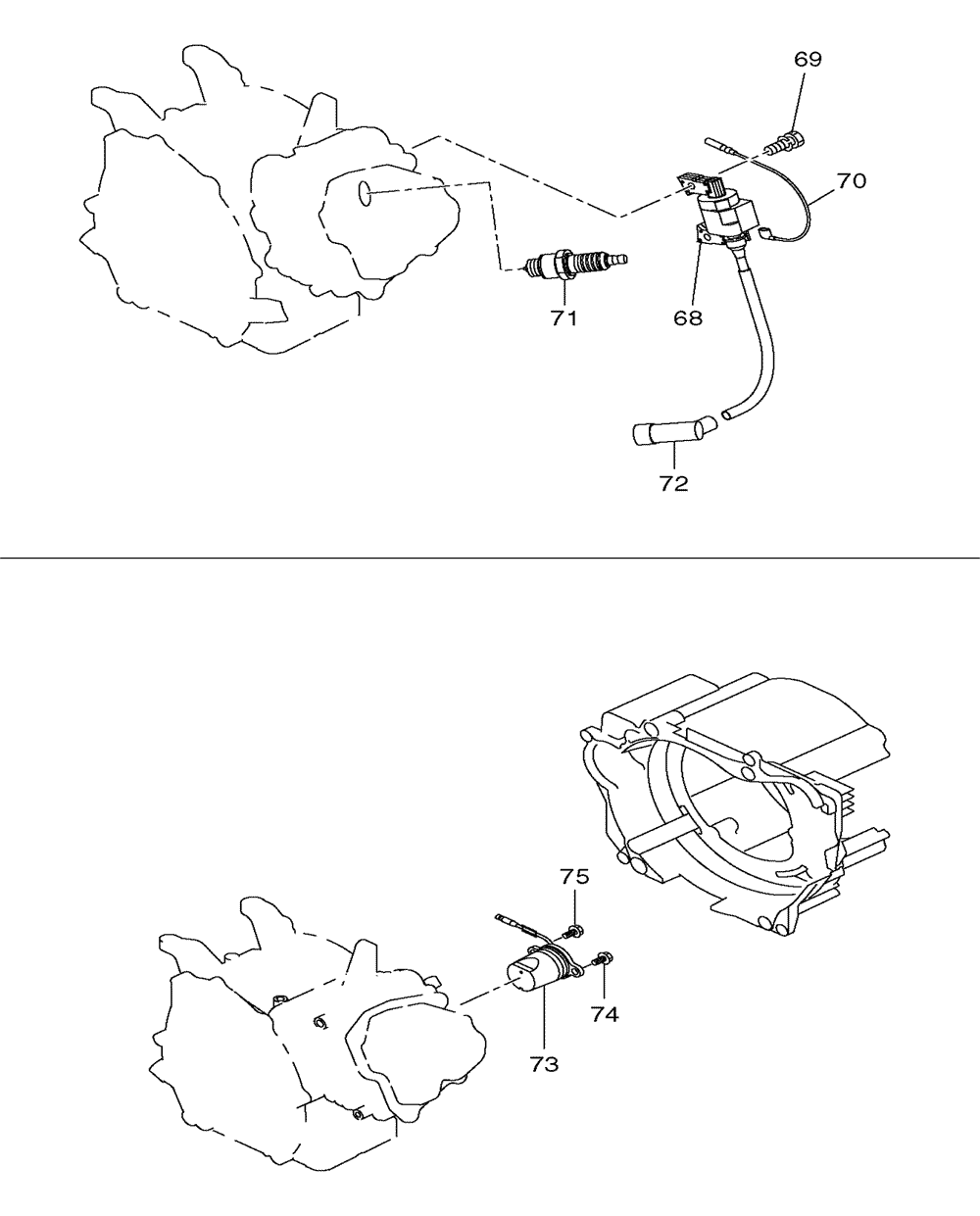

68 277-79431-01 IGNITION COIL CP., G2800L $135.51
69 001-14062-50 BOLT & WASHER, G2800R $1.34
70 277-73102-H1 WIRE 2 CP., G2800L $4.71
71 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
72 065-50002-70 SPARK PLUG CAP, G2800L $4.71
73 277-76301-11 OIL SENSOR CP.,G2800L $27.94
74 001-14061-60 BOLT & WASHER, G2800R $1.34
75 013-00602-60 BOLT & WASHER AY, G2800L $1.34
76 010-50802-90 STUD, G2800R $1.85
77 010-50805-10 STUD, G2800L $4.71
78 011-00801-50 FLANGE BOLT, G2800L $3.17
79 277-87001-03 COVER (CRANKSHAFT), G2800L $6.14
80 33B-35001-01 BOTTOM EXT. PLATE CP.,G2800L $13.62
81 011-00802-70 FLANGE BOLT M8X33L, G4300L $1.74
82 011-00801-50 FLANGE BOLT, G2800L $3.17
83 277-30401-21 MUFFLER CP., G2800L $91.30
84 33B-52601-03 BAFFLE, G2800L $4.71
85 011-00601-60 FLANGE BOLT, G2800L $1.74
86 277-35201-13 GASKET (MUFFLER), G2800L $3.17
87 980-20082-80 FLANGE NUT, G2800L $3.61
88 27737210-03 TAIL SCREEN, G2800L $6.14
89 004-35051-60 SCREW, EH760 $1.41
90 002-18050-00 NUT, EM4250 $1.34

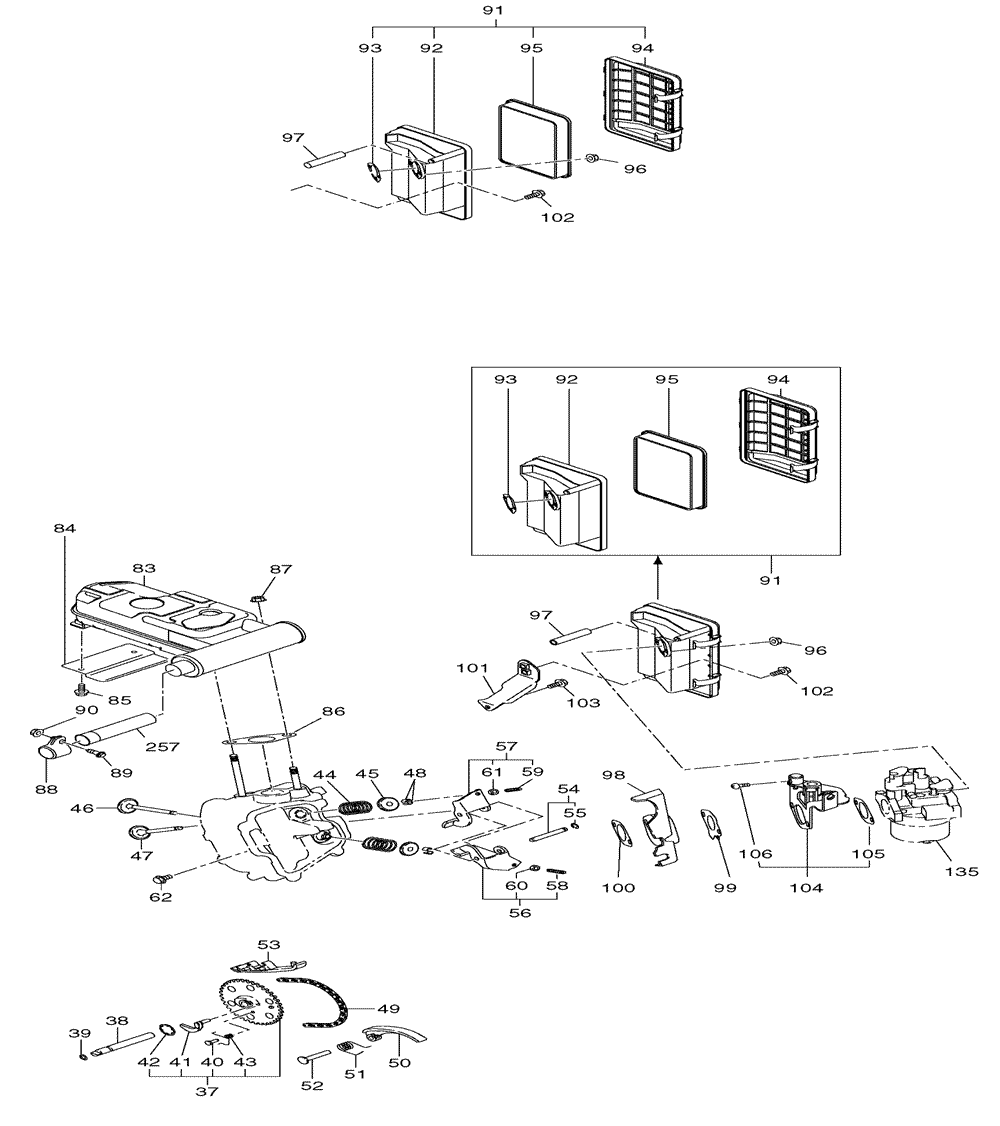

91 277-32622-20 AIR CLEANER ASS'Y, G2800L $49.57
92 277-32632-08 BASE CP.,G2800L $26.52
93 277-32604-08 PACKING, G2800L $4.71
94 277-32643-08 COVER CP., G2800L $26.52
95 277-32661-17 ELEMENT SET, G2800L $27.94
96 002-38060-00 FLANGE NUT, G6101R $2.40
97 085-10800-00 RUBBER PIPE, G2800R $11.42
99 277-35902-J3 GASKET 1 (INSULATOR), G2800L $2.40
100 277-35903-J3 GASKET 2 (INSULATOR), G2800L $2.40
101 277-39004-01 BRACKET(A/C) 1 CP.,G2800L $7.68
102 011-00600-50 FLANGE BOLT, G5501R $1.85
103 011-00601-50 FLANGE BOLT, G2800L $1.74
104 277-47101-10 CHOKE BRACKET AY, G2800L $21.10
105 277-46701-03 GASKET (CHOKE), G2800L $1.41
106 004-31040-80 P.H. SCREW, MAC6000 $0.82

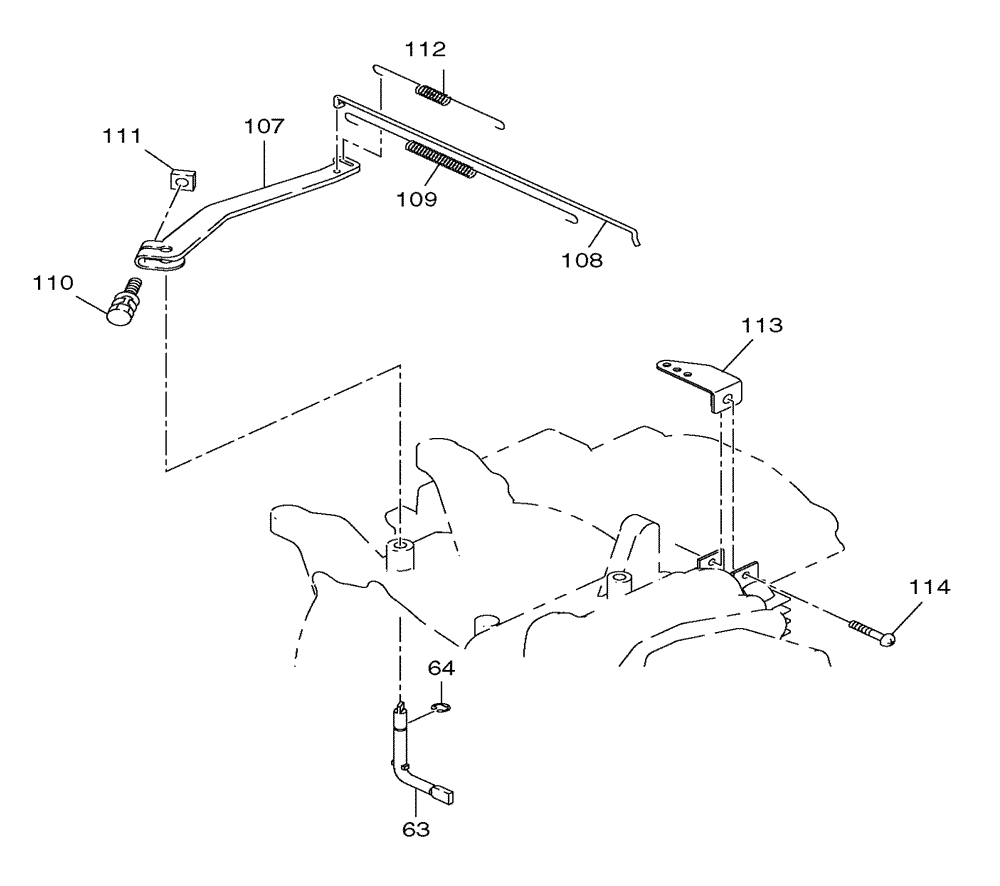

107 277-42301-23 GOVERNOR LEVER, G2800L $9.22
108 277-42701-01 GOVERNOR ROD CP.,G2800L $1.74
109 277-42801-23 ROD SPRING, G2800L $3.06
110 013-00602-40 BOLT & WASHER AY, G2800L $1.30
111 018-60600-20 NUT, G2800R . $1.34
112 277-42521-03 GOVERNOR SPRING, G2800L $3.61
113 277-48001-01 PLATE CP.(S.ADJUST), G2800L $3.17
114 004-31055-50 SCREW, G2800L $1.08

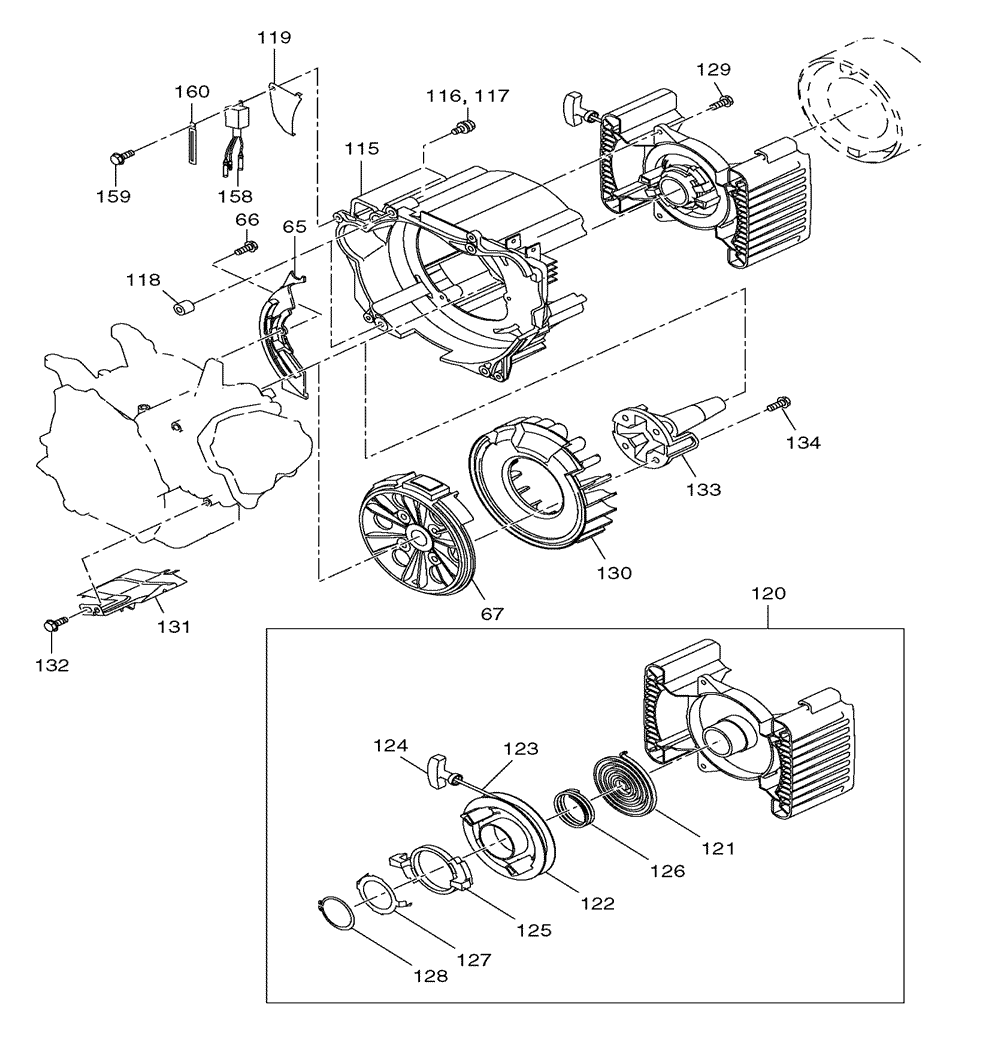

115 277-52001-13 BLOWER HOUSING, G2800L $103.02
116 001-14063-50 BOLT & WASHER AY, G2800L $1.30
117 001-14064-50 BOLT & WASHER ASS'Y, G1100 $2.18
118 980-40081-10 STR PIN 8X10, G2800L $1.74
119 277-56001-03 PLATE 3, G2800L $3.17
120 277-50401-20 RECOIL STARTER ASS'Y, G2800L $145.70
121 277-50402-08 SPIRAL SPRING, G2800L $18.13
122 277-50403-08 REEL, G2800L $21.10
123 277-50408-08 STARTER ROPE, G2800L $13.62
124 277-50409-08 STARTER KNOB, G2800L $6.14
125 277-50404-08 RATCHET, G2800L $4.71
126 277-50405-08 FRICTION SPRING, G2800L $15.16
127 277-50407-08 FRICTION PLATE, G2800L $6.14
128 277-50406-08 RETAINING RING, G2800L $7.68
129 011-00601-40 FLANGE BOLT, G2410R $1.85
130 277-54101-13 COOLING BLOWER, G2800L $15.16
131 277-52702-03 BAFFLE 2 (HEAD), G2800L $13.62
132 011-00600-20 FLANGE BOLT, G6100R $2.40
133 277-24401-03 DRIVING SHAFT, G2800L $57.30
134 011-01001-10 FLANGE BOLT, G2800L $3.17

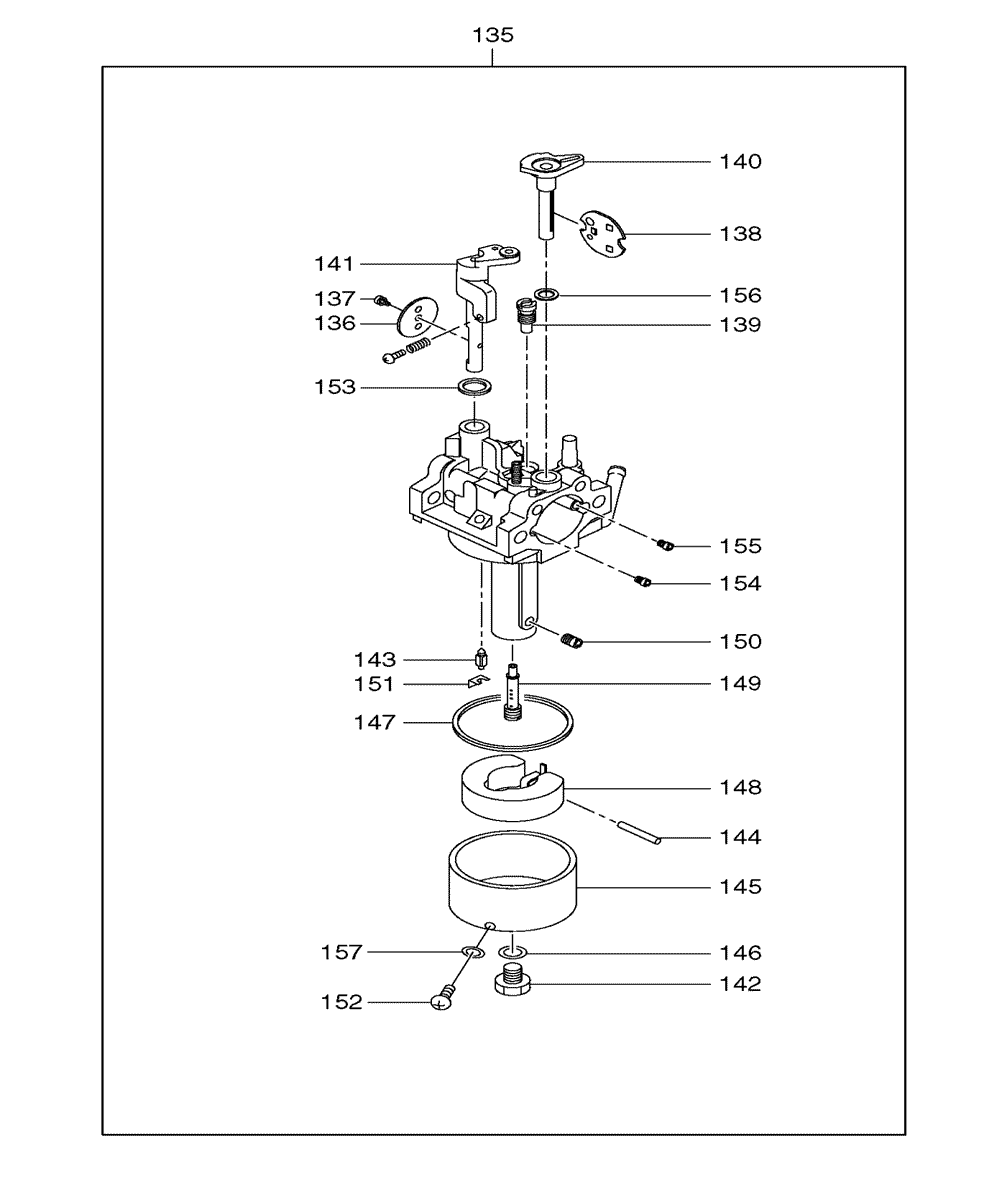

135 277-62309-00 CARBURETOR AY, G2800L $106.90
136 277-62535-08 THROTTLE VALVE, G2800L $10.65
137 209-62351-08 SCREW ASS'Y, G5711R $1.41
138 277-62525-08 CHOKE VALVE, G2800L $9.22
139 246-62420-08 PILOT JET (#40), G1300R $9.22
140 277-62520-08 CHOKE LEVER, G2800L $15.16
141 277-62531-18 THROTTLE SHAFT-A, G2800L $24.18
143 277-62500-08 NEEDLE, G2800L $24.18
144 277-62515-08 PIN, G2800L $3.17
145 277-62506-08 FLOAT BODY, G2800L $32.84
146 214-62450-08 PACKING, G2400R $1.85
147 214-62540-08 FLOAT CHAMBER PACKING, G2400R $4.93
148 226-62506-08 FLOAT ASSEMBLY, G1200R $29.78
149 277-62440-08 MINE NOZZLE, G2800L $19.67
150 277-62402-08 MAIN JET, G2800L $10.65
152 277-62360-08 BOLT, G2800L $6.14
153 246-62390-08 SEAL, G2800L $3.17
154 248-62410-08 AIR JET, G2800L $10.65
155 106-62410-08 AIR JET, G2800L $10.65
156 236-62680-08 SEAL, G5710R $4.93
157 236-62541-08 PACKING, MAC6000 $5.26
158 KU3-11043-11 FLOAT C/U CP3, G2800L $41.82
159 011-00600-20 FLANGE BOLT, G6100R $2.40
160 056-60002-50 CLAMP (ELEC STARTER),G2800R $3.50

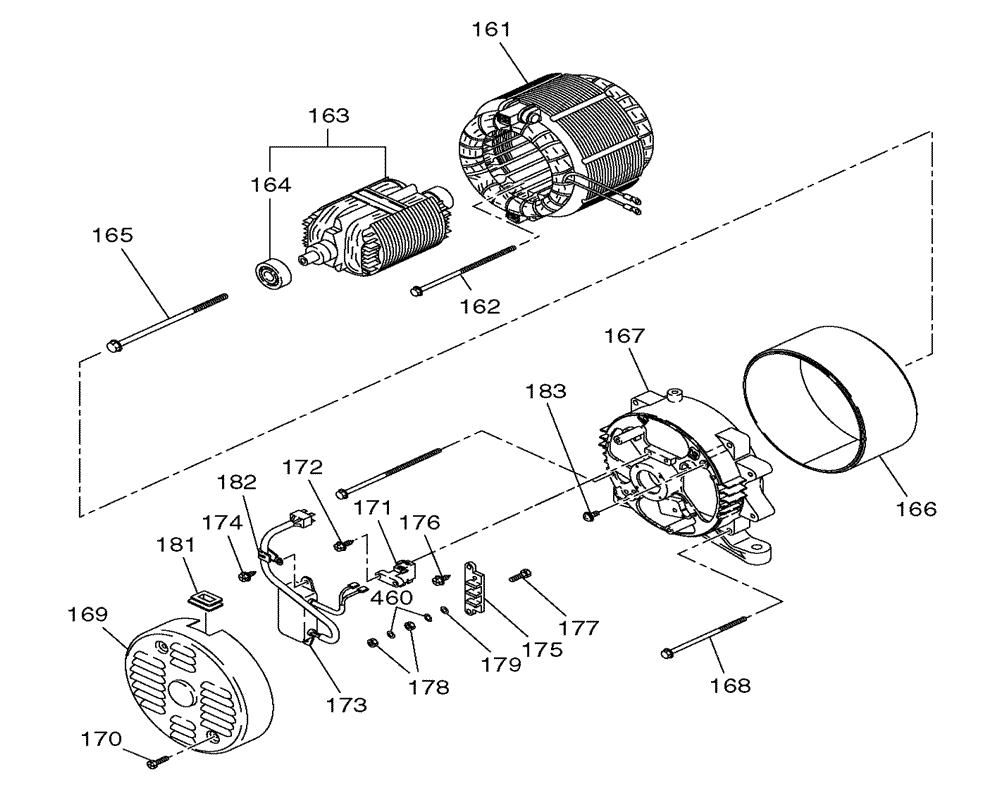

161 33B-22352-01 STATOR AY., G2800L $390.53
162 33B-21053-08 BOLT, G2800L $4.71
163 33B-21161-01 ROTOR, G2800L $266.56
164 32D-21001-08 BALL BEARING, G2800L $19.67
165 33B-21055-08 ROTOR BOLT, G2800L $10.65
166 33B-23061-01 STATOR COVER, G2800L $21.10
167 32D-23071-01 REAR COVER, G2800L $126.78
168 33B-21051-08 STATOR BOLT, G2800L $4.71
169 33B-23051-01 END COVER, G2800L $26.52
170 33B-21052-08 BOLT M5X10L, G2800L $3.17
171 32D-23101-01 BRUSH CP., G2800L $29.37
172 32D-21062-08 SCREW, G2800L $1.74
173 33B-23001-00 AVR AY., G2800L $126.78
174 32D-21055-08 SCREW M5X14L, G2800L $1.74
175 32D-21052-08 BASE, G2800L $15.16
176 32D-21055-08 SCREW M5X14L, G2800L $1.74
177 32D-21061-08 BOLT, G2800L $3.17
178 32D-21051-08 NUT M5, G2800L $1.96
179 32D-21053-08 WASHER, G2800L $1.63
180 32D-21054-08 SPRING WASHER, G2800L $1.96
181 32B-45002-03 GROMMET, G2800L $6.14
182 32D-21060-08 CLAMP, G1100 $3.17
183 32B-21053-08 SCREW, G1100 $1.74
183 32D-21063-08 SCREW M5X12L, G4300L $1.74

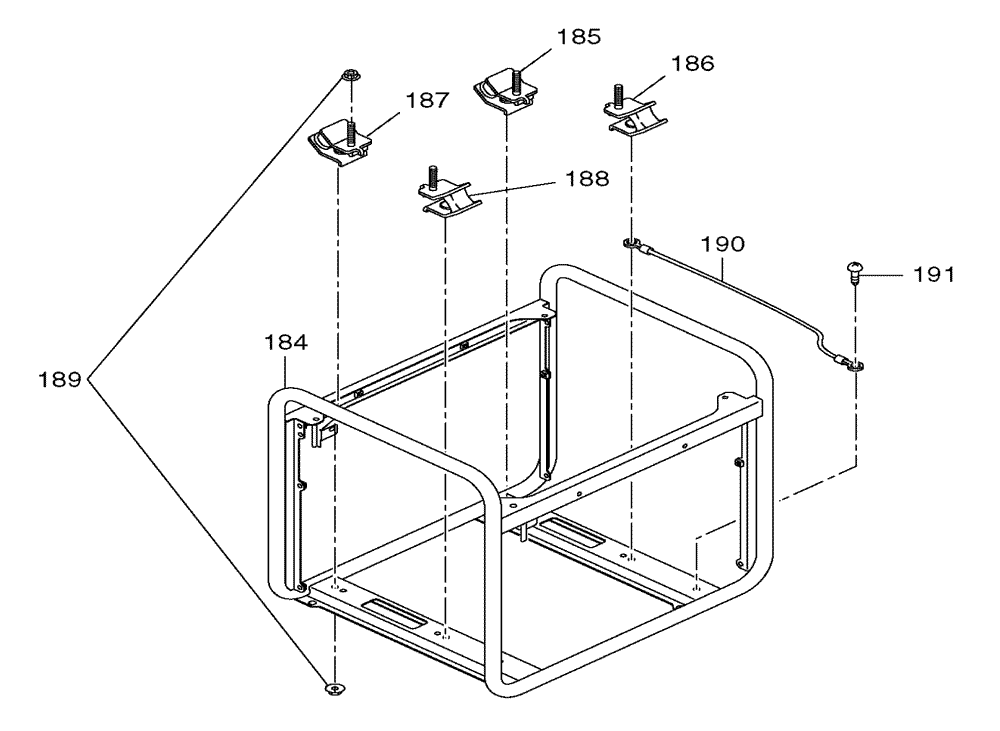

184 33B-30101-01 FRAME CPL., G2800L $182.17
188 32B-30201-11 MOUNT CPLT. (R), G2800L $17.36
189 002-38080-00 FLANGE NUT, G6100R $2.40
190 33B-48091-01 EARTH WIRE CP.,G2800L $6.14
191 014-00601-21 SCREW, G2800L $1.08
192 33B-50002-01 FRONT COVER CP. (UPPER), G4300L $36.21
193 015-00400-70 TAPPING SCREW, G2800R $1.41
194 33B-46001-03 COVER (COCK), G2800L $4.71
195 003-10040-00 WASHER, G6101R $0.97
196 33B-4601211 BRACKET (COCK), G2800L $6.14
197 34B-57311-03 SEAL SPONGE FC2, G2800L $3.17
198 353-49904-08 TAPPING SCREW, G2800R $1.08

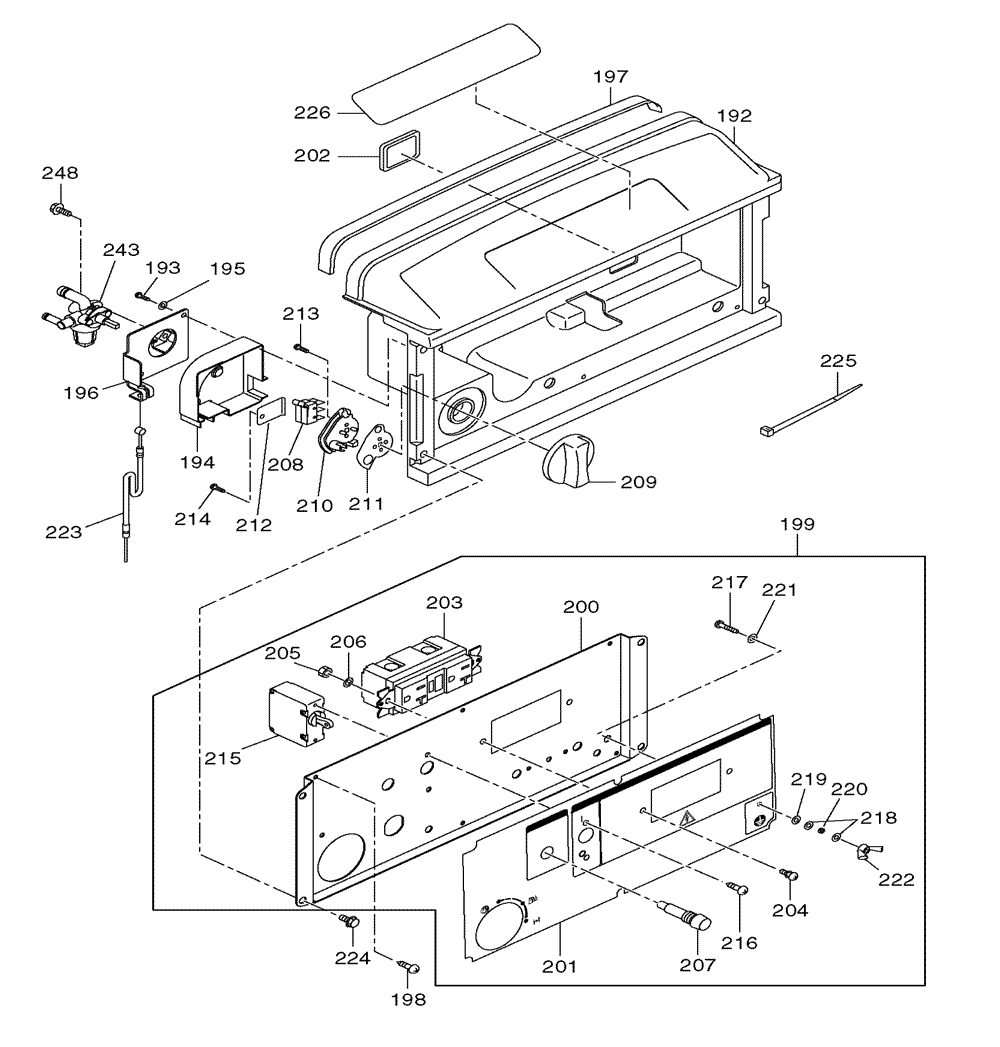

199 33B-43955-00 CONTROL PANEL AY.,G2800L $270.54
200 33B-45112-01 PANEL PLATE CP.,G2800L $53.20
201 33B-49262-13 SHEET PANEL AR, G2800L $22.64
202 227-75001-03 GROMMET, G2800L $1.74
203 33K-49951-01 AC RECEPTACLE GFCI (125V-20A),G6101R $98.20
204 004-35041-00 SCREW & WASHER, G2800R $0.90
205 002-27040-00 NUT, G2800L $1.34
206 003-10040-00 WASHER, G6101R $0.97
207 393-40665-08 NEON LAMP (GR.), G2800L $4.71
208 33K-41811-03 MICRO SWITCH, G1100 $6.14
209 33K-42010-03 CONTROL DIAL, G1100 $4.71
210 33K-42020-03 CHOKE REEL, G1100 $3.50
211 33K-42030-23 PLATE, G2800L $1.74
212 33B-46015-01 BRACKET (MICRO), G2800L $8.01
213 33K-41814-08 TAPPING SCREW, G2800L $1.41
214 015-00400-70 TAPPING SCREW, G2800R $1.41
215 32B-43161-01 CIRCUIT BREAKER, G2800L $53.20
216 31B-79011-03 SCREW & WASHER ASSY(M3X5MM)G12000R $2.18
217 388-88001-03 SCREW (M5), G5711R $1.41
218 332-00050-08 SPRING WASHER, G2800R $1.34
219 353-49903-08 WASHER, G2800R $1.63
220 353-49902-08 NUT, G2800R $1.96
221 003-30050-00 LOCK WASHER, G2800R $0.90
222 353-49901-08 WING NUT, G2800R $5.26
223 33B-46021-01 CHOKE WIRE CP.,G2800L $9.22
224 014-00601-90 SCREW, G2800L $0.82
225 056-30000-20 WIRE BAND, G2400R $3.50
226 33B-90011-13 LABEL (TRADE MARK),G2800L $6.01

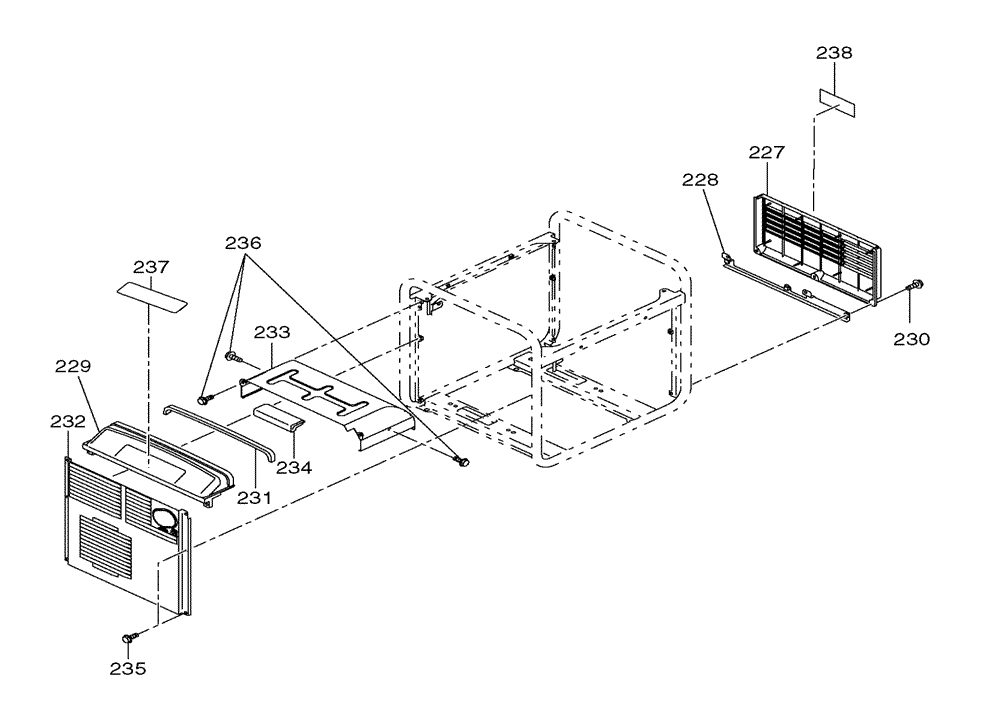

227 33B-50101-01 FRONT COVER CP.,G2800L $24.18
228 33B-35501-01 BRACKET (COVER) CP.,G2800L $25.61
229 33B-50501-01 REAR COVER CP.,G2800L $24.18
230 011-00601-40 FLANGE BOLT, G2410R $1.85
231 34B-57311-03 SEAL SPONGE FC2, G2800L $3.17
232 33B-56201-01 MUFFLER COVER CP.,G2800L $85.90
233 33B-56051-01 MUFFLER COVER(S)CP.,G2800L $64.10
234 33B-57005-03 SEAL RUBBER,G2800L $3.17
235 011-00601-40 FLANGE BOLT, G2410R $1.85
236 011-00600-80 FLANGE BOLT, G2400R $1.41
237 33B-97132-13 LABEL (TM-RC), G2800L $6.01
238 33B-95154-03 LABEL (SPEC), G2800L $4.56

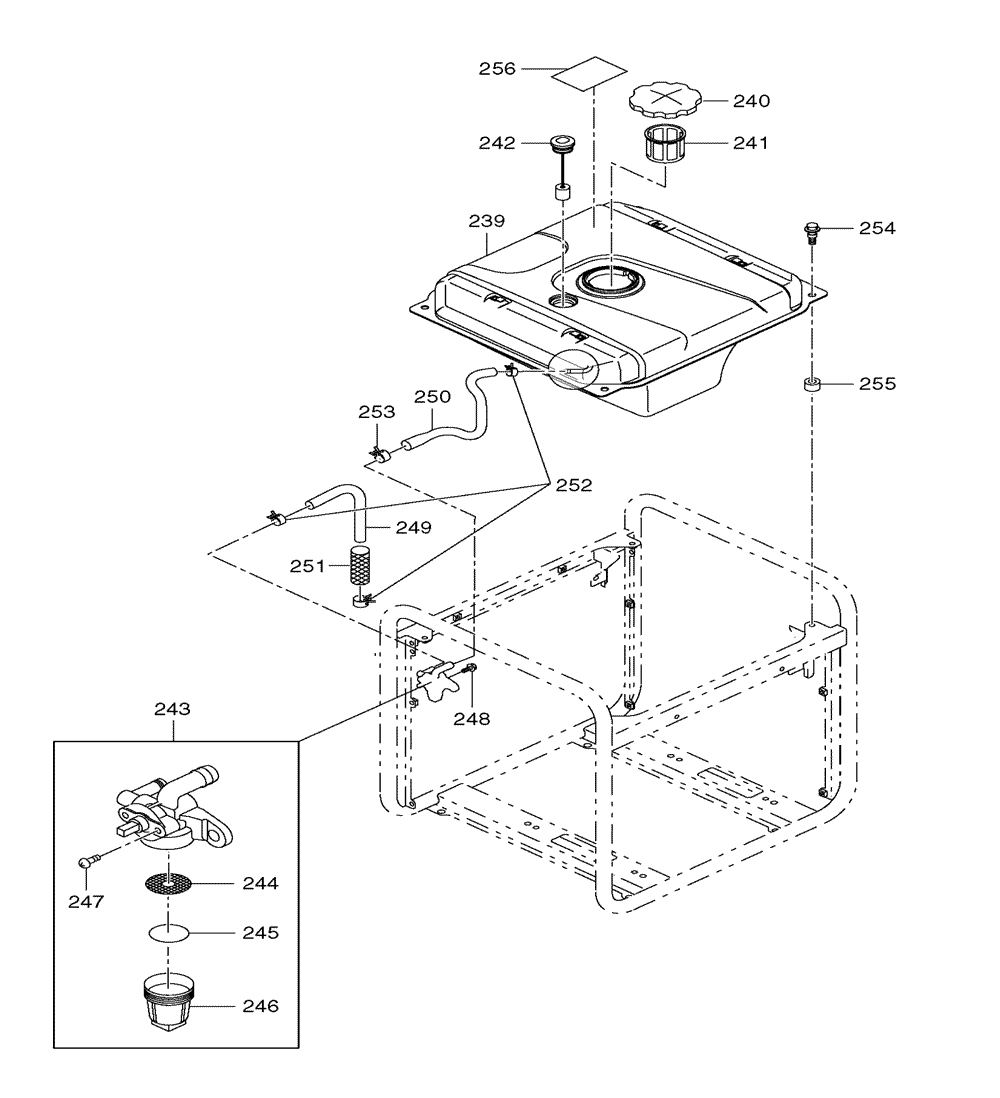

239 33B-60102-01 FUEL TANK CP.,G2800L $146.57
240 043-05900-11 FUEL TANK CAP COMPL., G2800R $28.76
241 064-15400-11 FUEL FILTER, G6101R $9.00
242 064-80015-00 FUEL GAUGE COMPL. G12000R $31.82
243 064-20103-00 FUEL STRAINER, G2800L $22.64
244 064-20093-20 FILTER, G2800L $3.17
245 064-20064-10 RUBBER PACKING, G2800R $2.40
246 064-20078-10 CUP, G2800R $4.93
247 064-20047-90 P.H. SCREW, G2800R $1.41
248 011-00600-20 FLANGE BOLT, G6100R $2.40
249 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
250 33B-66001-03 RUBBER PIPE, G2800L $6.14
251 251-17302-03 MESH PROTECTOR, G2800L $7.68
252 056-11100-20 HOSE CLAMP, G2800R $1.41
253 056-11300-10 HOSE CLAMP, G1100 $1.74
254 011-00602-20 FLANGE BOLT, G2800R $3.50
255 391-39000-13 RUBBER WASHER, G2800R $5.26
256 33B-97102-13 LABEL (CAUTION),G2800L $7.46
257 279-37601-01 SPARK ARRESTER CP.,G2800L $24.18
258 277-37220-03 SCREEN, G2800L $3.17
