Makita G1200R Generator Parts

Makita G1200R Generator Parts Image

Makita G1200R Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8
Page-9
Page-10
Page-11
Page-12
Tool Diagram    (Click image to Zoom in) View larger Image
Makita G1200R Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.

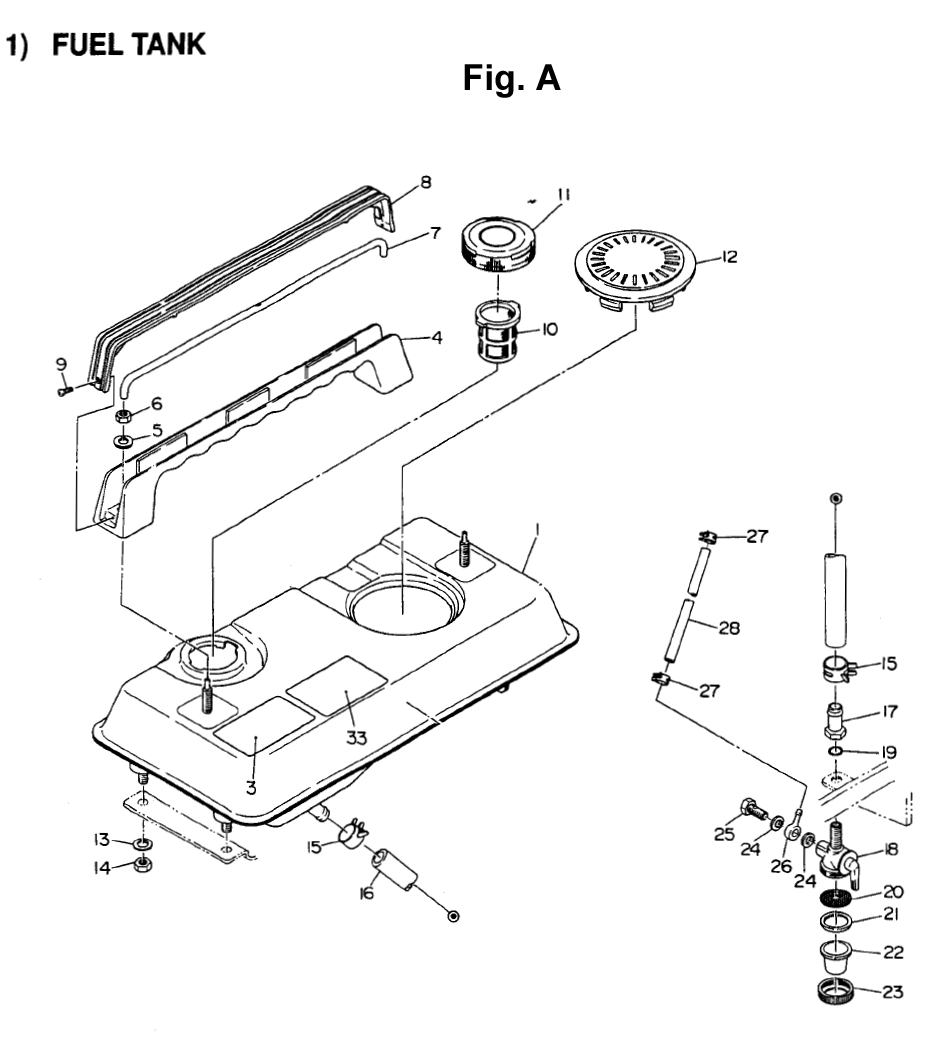

1-A 350-60103-71 FUEL TANK COMPL., G1200R $183.53
3-A 073-20026-31 CAUTION LABEL, G1300R $4.84
4-A 350-65201-01 HANDLE, G1300R $31.11
5-A 003-20080-00 SPRING WASHER, G2800R $1.34
6-A 002-18080-00 NUT, G1300R $1.34
7-A 350-65501-03 BREATHER PIPE, G1300R $4.93
8-A 350-65401-13 HANDLE COVER, G1300R $6.69
9-A 004-31031-00 PAN HEAD SCREW, G1300R . $0.82
10-A 064-13600-20 FUEL FILTER COMPL., G1300R $4.93
11-A 043-04300-41 FUEL TANK CAP COMPL., G1300R $6.69
12-A 227-66001-03 PLUG COVER, G1300R $7.68
13-A 003-20080-00 SPRING WASHER, G2800R $1.34
14-A 002-18080-00 NUT, G1300R $1.34
15-A 056-11700-10 HOSE CLAMP, G5711R $1.85
17-A 053-30900-20 NUT (JOINT), G2400R $6.69
18-A 064-20049-02 FUEL STRAINER ASS'Y, G1300R $26.72
19-A 064-20003-30 O RING, G2400R $1.85
20-A 064-20002-20 FILTER, G2400R $2.40
21-A 064-20002-30 PACKING, G2400R $2.40
22-A 064-20019-10 CUP, G2400R $4.93
23-A 064-20024-10 LOCK NUT, G2400R $7.68
24-A 064-20002-50 FIBER PACKING, G2400R $1.08
25-A 064-20002-40 BANJO BOLT, G2400R $3.50
26-A 052-10700-42 BANJO, G3500R $4.93
27-A 056-11100-20 HOSE CLAMP, G2800R $1.41
28-A 085-10600-00 RUBBER PIPE, G2410R,1M $23.30

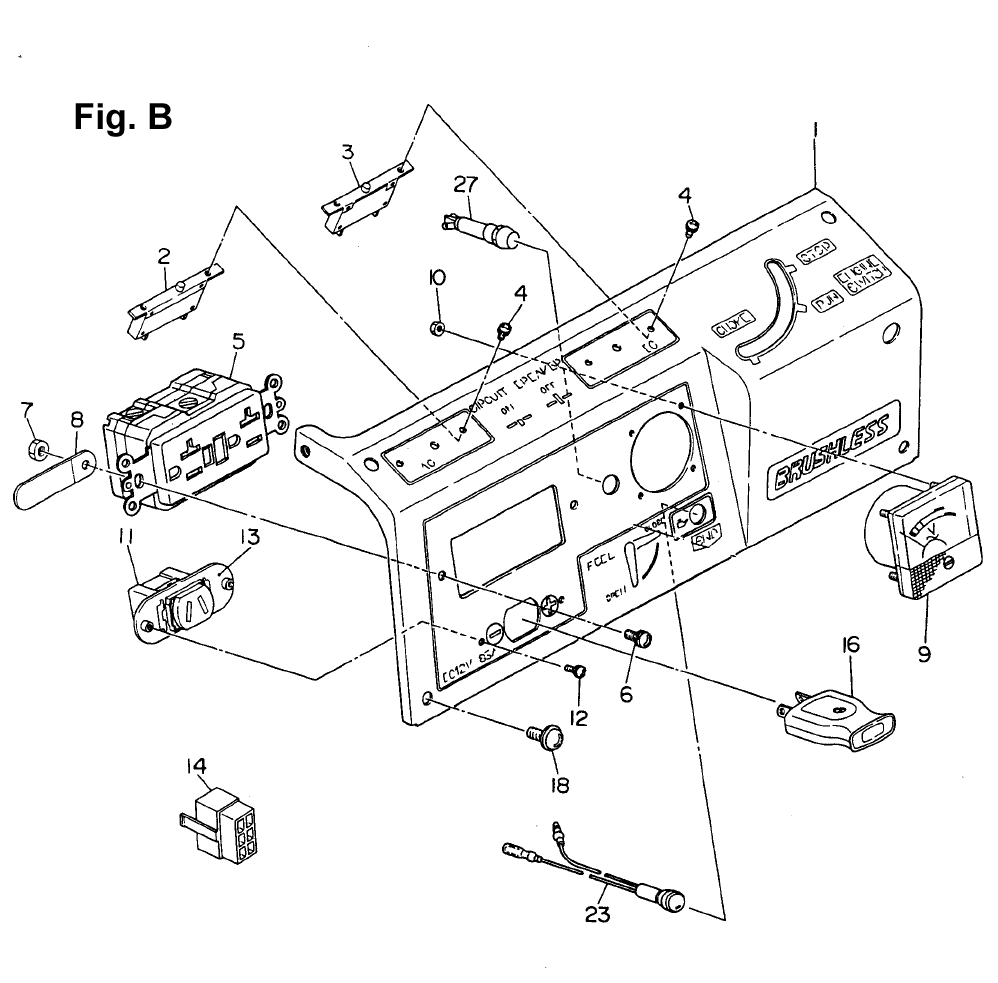

1-B 350-41803-01 CONTROL PANEL COMPL., G1200R $32.13
2-B 351-45624-08 CIRCUIT BREAKER AC, G1300R $24.18
3-B 352-45620-08 CIRCUIT BREAKER (10A), G2400R $23.96
4-B 004-35030-60 SCREW & WASHER, G2410R . $0.90
6-B 004-35041-00 SCREW & WASHER, G2800R $0.90
7-B 002-17040-00 NUT, G2800R $1.34
8-B 350-21053-08 CLAMP, G1200R $3.61
9-B 391-47800-01 AC VOLT METER, G2400R $44.77
10-B 002-17030-00 NUT, G2800R $1.34
11-B 350-40602-08 DC RECEPTACLE, G1200R $11.42
12-B 004-35030-80 SCREW & WASHER ASS'Y, G1200R $1.01
13-B 350-40603-08 DC RECEPTACLE BASE, G1200R $4.71
14-B 353-54300-08 CONNECTOR(6P), G1300R $3.50
16-B 358-95003-03 DC PLUG, G1200R $7.68
18-B 013-10500-20 SCREW & WASHER ASS'Y, G1300R $1.34
23-B 227-77002-00 LED LAMP ASSEMBLY, G1300R $15.60
27-B 320-75173-08 NEON LAMP (RED), G2800R $16.70

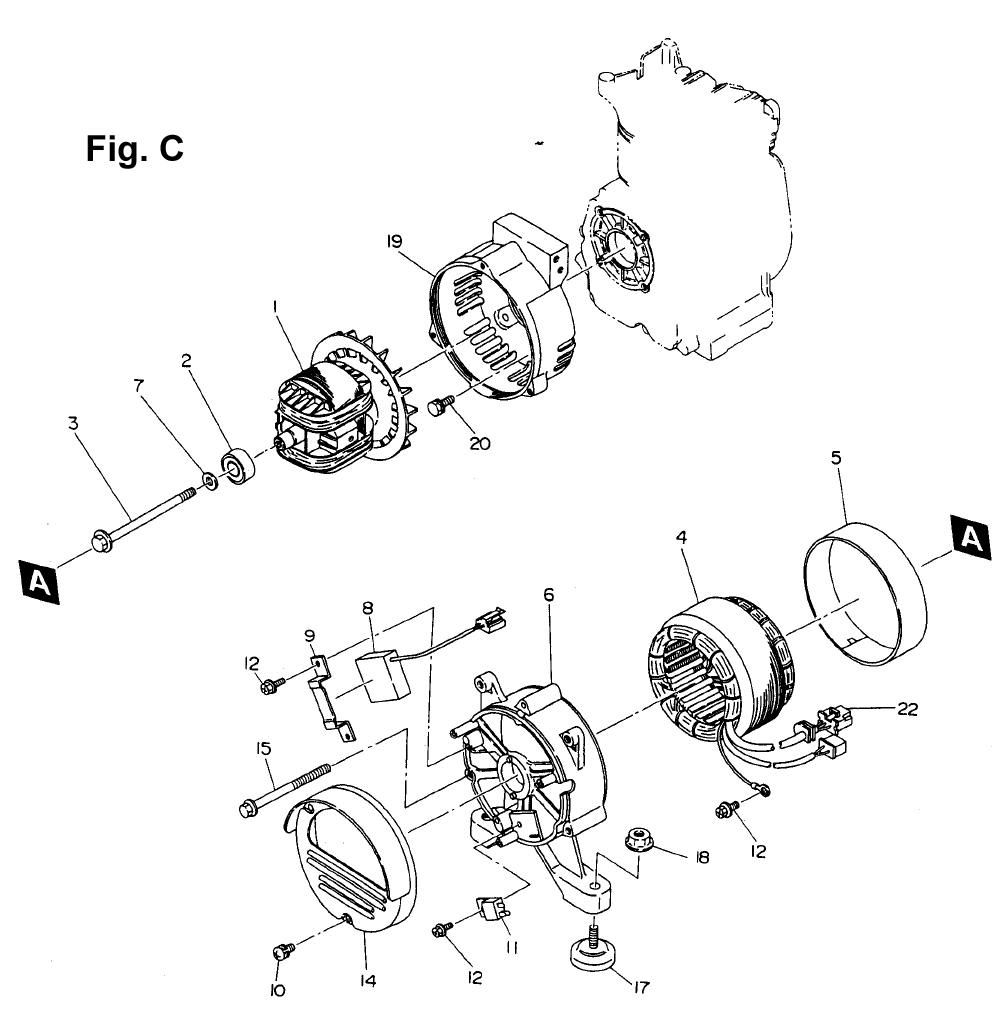

1-C 377-21000-01 ROTOR COMPLETE, G1200R $200.02
2-C 358-21015-08 BALL BEARING, G1300R $10.65
3-C 377-25100-03 THROUGH BOLT, G1300R $5.26
4-C 350-22808-01 STATOR COMPL., G1200R $440.68
5-C 377-24000-13 STATOR COVER, G1300R $11.09
6-C 350-21300-08 REAR BRACKET, G1300R $74.40
7-C 003-11080-00 WASHER, G1300R $1.34
8-C 350-21320-08 CONDENSER, G1300R $26.72
9-C 376-22100-03 CONDENCER BRACKET, G1300R $3.17
10-C 004-36040-80 SCREW & WASHER ASS'Y, G1300R $1.01
11-C 358-21006-08 RECTIFIER, G1300R $31.11
12-C 383-21051-08 SCREW, G1300R $6.91
14-C 350-23501-01 END COVER COMPLETE, G1300R $37.63
15-C 377-25200-03 COVER BOLT, G1300R $1.85
17-C 350-30103-01 MOUNT COMPLETE, G1300R $11.42
18-C 002-38080-00 FLANGE NUT, G6100R $2.40
19-C 376-23000-03 FRONT COVER, G1300R $49.47
20-C 001-13082-00 BOLT & WASHER, G2410R . $1.63
22-C 358-21020-08 CONNECTOR(6P), G1300R . $6.14

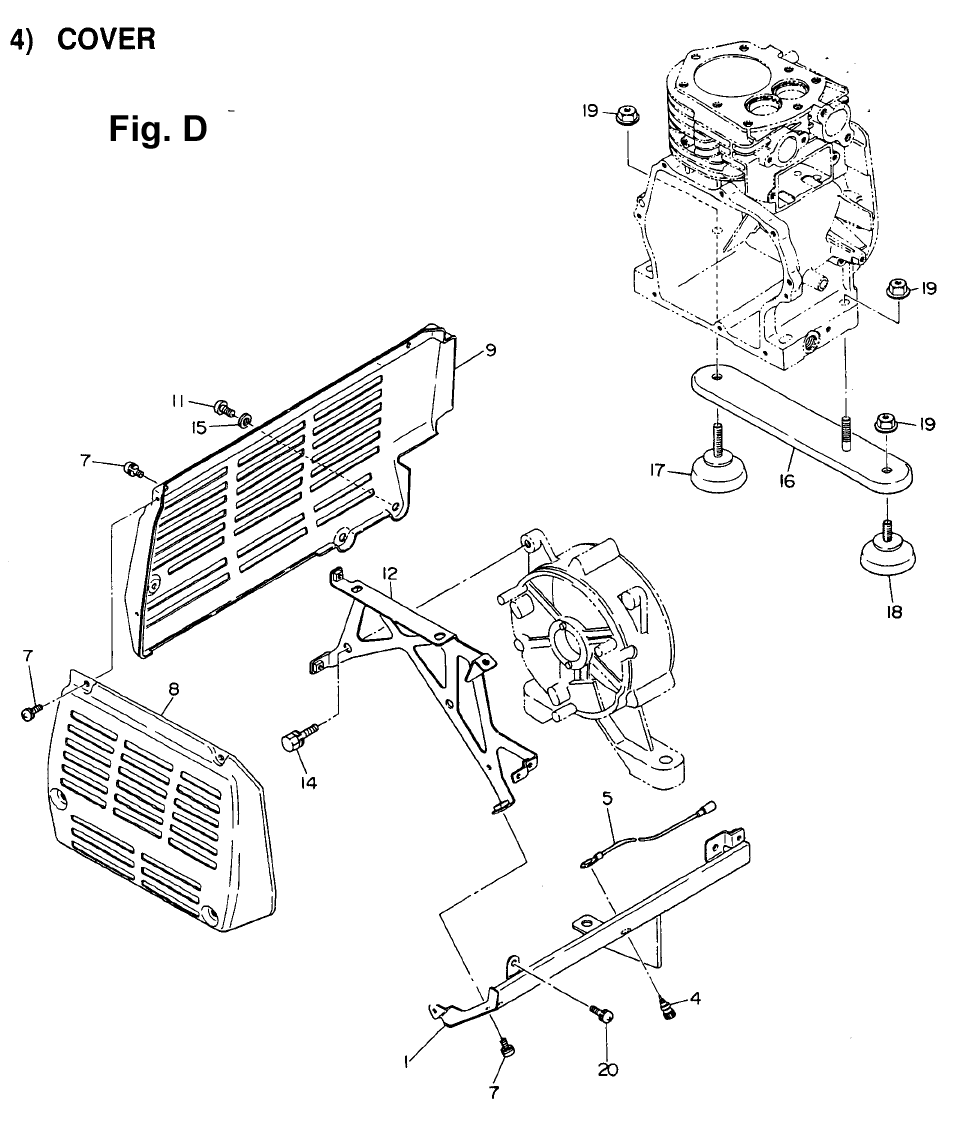

1-D 350-50106-01 FRONT COVER COMPLETE, G1200R $24.18
4-D 363-45700-08 TERMINAL BOLT (BLK),G2800R $7.90
5-D 350-54002-01 EARTH WIRE COMPLETE, G1200R $5.26
7-D 013-10500-20 SCREW & WASHER ASS'Y, G1300R $1.34
8-D 350-51707-01 SIDE COVER, G1300R $12.96
9-D 350-50627-01 REAR COVER COMPLETE, G1200R $18.13
11-D 004-31081-00 PAN HEAD SCREW, G1300R $1.08
12-D 350-35101-11 BRACKET COMPLETE, G1300R $27.94
14-D 001-13082-00 BOLT & WASHER, G2410R . $1.63
15-D 003-11080-00 WASHER, G1300R $1.34
16-D 350-30701-21 MOUNT BRACKET COMPL. G1300R $9.77
17-D 350-30103-01 MOUNT COMPLETE, G1300R $11.42
18-D 350-30104-01 MOUNT COMPL. G1300R $11.42
19-D 002-38080-00 FLANGE NUT, G6100R $2.40
20-D 004-34051-00 SCREW & WASHER ASS'Y, G1300R $1.01

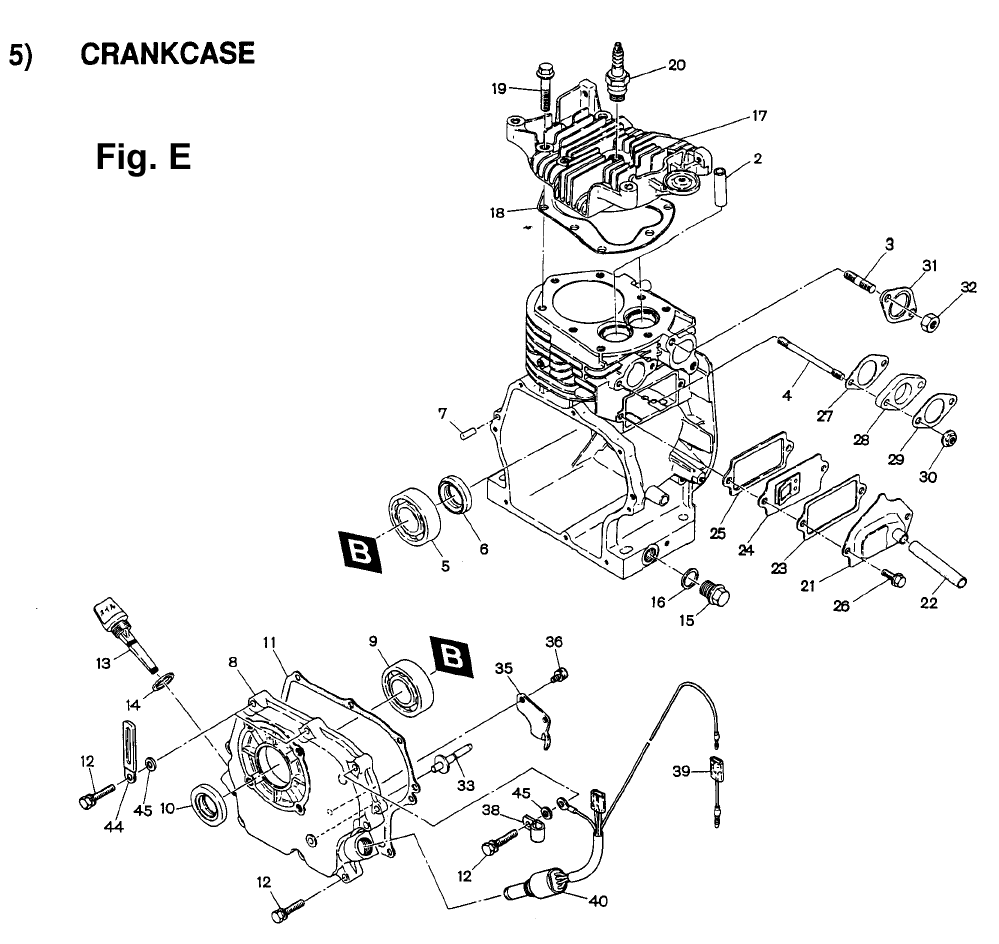

2-E 227-14202-03 VALVE GUIDE, OVERSIZE, G2400R $9.77
3-E 010-50802-50 STUD G2410R $1.85
4-E 010-50601-20 STUD, G2400R $1.85
5-E 060-02500-10 BALL BEARING, G2800R $11.42
6-E 044-02501-50 OIL SEAL 25X38X7MM, G2400R $6.69
7-E 031-00600-20 DOWEL PIN, G2800R $1.08
8-E 227-11006-01 MAIN BEARING COVER, G2400R $93.90
9-E 060-02500-10 BALL BEARING, G2800R $11.42
10-E 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
11-E 227-16001-03 GASKET, BEARING COVER, G2400R $3.50
12-E 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
14-E 021-31600-10 GASKET, G2400R,T1 $0.90
15-E 040-11400-30 PLUG, G2800R $3.50
16-E 021-11400-20 GASKET, G2800R $1.08
17-E 226-13101-13 CYLINDER HEAD, G1300R $44.26
19-E 011-00800-10 FLANGE BOLT, G2400R $3.50
20-E 065-01401-50 SPARK PLUG BR6HS, G2800R $4.93
21-E 227-14301-01 TAPPET COVER, COMPLETE, G2400R $8.12
22-E 085-10800-00 RUBBER PIPE, G2800R $11.42
24-E 227-14401-01 BREATHER PLATE, COMPLETE, G2400R $12.96
26-E 011-00600-20 FLANGE BOLT, G6100R $2.40
28-E 227-32901-13 INSULATOR, G2400R $4.93
29-E 227-35904-03 INSULATOR GASKET 2, G2400R $2.29
30-E 002-38060-00 FLANGE NUT, G6101R $2.40
31-E 226-35201-01 GASKET COMPLETE, G1300R $4.93
32-E 002-19080-00 NUT, G2400R $4.16
35-E 227-17501-03 OIL SHELTER, SENSOR G2400R $3.61
36-E 004-35040-80 SCREW & WASHER ASSY, G2400R $0.90
38-E 206-75501-01 CLAMP COMP., G2410R $3.50
39-E 214-73122-01 WIRE 22, G2410R $3.50
40-E 227-76035-01 OIL LEVEL SENSOR COMP. G1200R $83.60
44-E 214-79006-01 CLAMP COMP., G2410R . $5.26
45-E 003-10060-00 WASHER, G2410R $0.90
. 226-99001-07 GASKET SET, G1300R $12.96

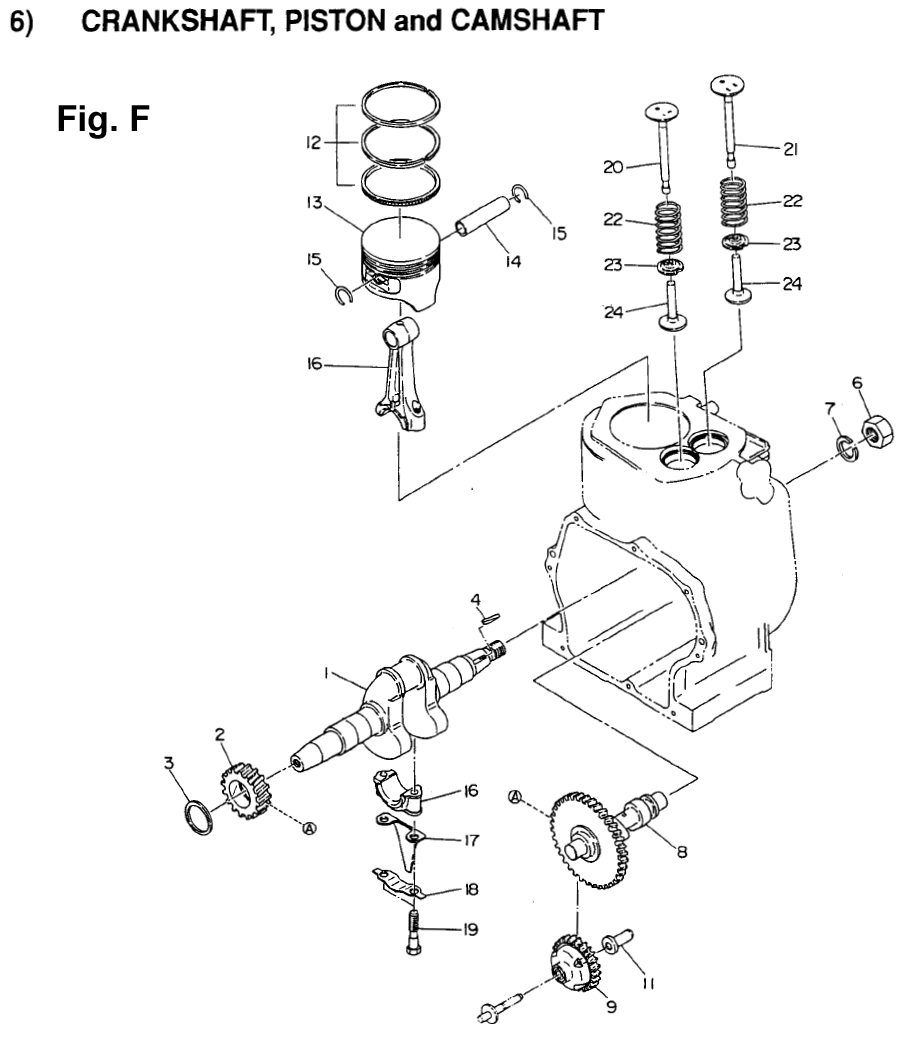

1-F 226-20208-01 CRANKSHAFT COMP., G1200R $169.76
3-F 023-02501-10 SPACER, (T=0.6), G2800R $3.50
3-F 023-02501-20 SPACER (T=0.8), G2800R $3.50
3-F 023-02501-30 SPACER, (T=1.0), G2800R $3.50
4-F 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
6-F 002-18140-00 NUT, 14MM, G2800R $3.61
7-F 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
8-F 226-31701-13 CAMSHAFT, G1200R $81.60
9-F 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
11-F 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
12-F 226-23501-07 PISTON RING SET, G1200R $60.00
12-F 226-23502-07 PISTON RING SET, G1200R . $30.70
12-F 226-23503-07 PISTON RING SET, G1200R .. $27.94
13-F 226-23401-03 PISTON (S.T.D.), G1200R $26.72
13-F 226-23402-03 PISTON 0.25MM, G1200R $28.25
13-F 226-23403-03 PISTON 0.50MM, G1200R $28.25
14-F 214-23301-13 PISTON PIN, G2400R $8.12
15-F 056-51400-10 CLIP, G2400R . $1.34
16-F 226-22511-00 CONNECTING ROD, G1200R $56.50
17-F 226-23101-03 OIL SCRAPER, G1300R $3.50
18-F 205-23201-03 RED LOCK WASHER, G1200R $3.72
19-F 226-23001-03 CONNECT ROD BOLT, G1200R $3.50
20-F 226-33401-03 INTAKE VALVE, G1300R $11.42
21-F 226-33501-13 EXHAUST VALVE, G1300R $17.69
22-F 227-33601-03 VALVE SPRING, G2400R $3.61
23-F 227-33701-03 SPRING RETAINER, G2400R $2.29
24-F 226-33301-03 TAPPET, G1300R $9.77

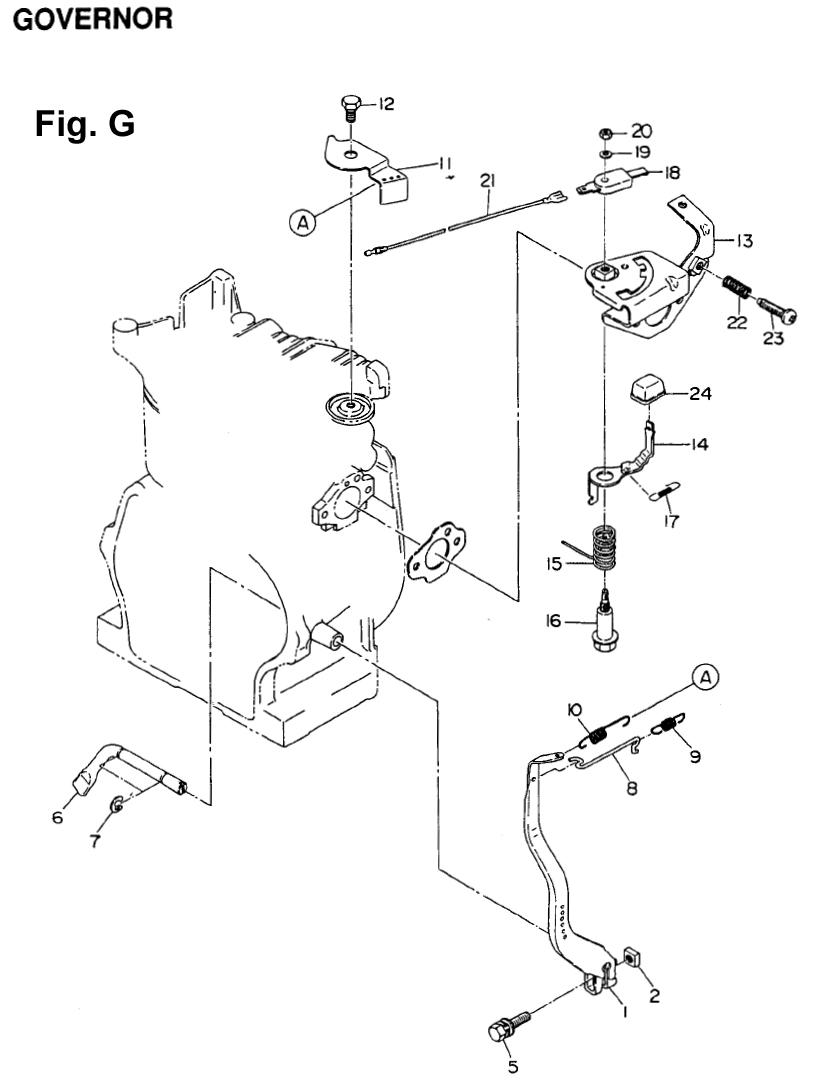

1-G 226-42304-01 GOVERNOR LEVER, G1200R $13.51
2-G 018-60600-20 NUT, G2800R . $1.34
5-G 001-14062-50 BOLT & WASHER, G2800R $1.34
6-G 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
7-G 003-13060-00 CLIP, G2800R $1.34
8-G 227-42701-01 GOVERNOR ROD, G2400R $3.50
10-G 226-42501-13 GOVERNOR SPRING, G1300R $3.61
11-G 226-43304-01 SPEED CONTROL, G1300R $11.42
12-G 226-48003-01 BOLT, G1300R . $4.93
13-G 226-47101-11 CONTROL BRACKET, G1300R $9.77
14-G 226-45301-11 CONTROL LEVER, G1300R $4.93
15-G 226-45004-01 SPRING, G1300R $5.26
16-G 226-48001-01 BOLT, G1200R $8.12
17-G 226-48005-13 SPRING, G1300R . $3.61
18-G 226-72702-01 STOP SWITCH COMP., G1300R $4.93
19-G 003-10040-00 WASHER, G6101R $0.97
20-G 002-17040-00 NUT, G2800R $1.34
21-G 226-73110-01 WIRE 10 COMP. G1300R $3.17
22-G 226-48006-03 SPRING, G1300R $4.16
23-G 226-48004-01 SCREW, G1300R $3.61
24-G 226-43901-13 KNOB, G1300R $3.50

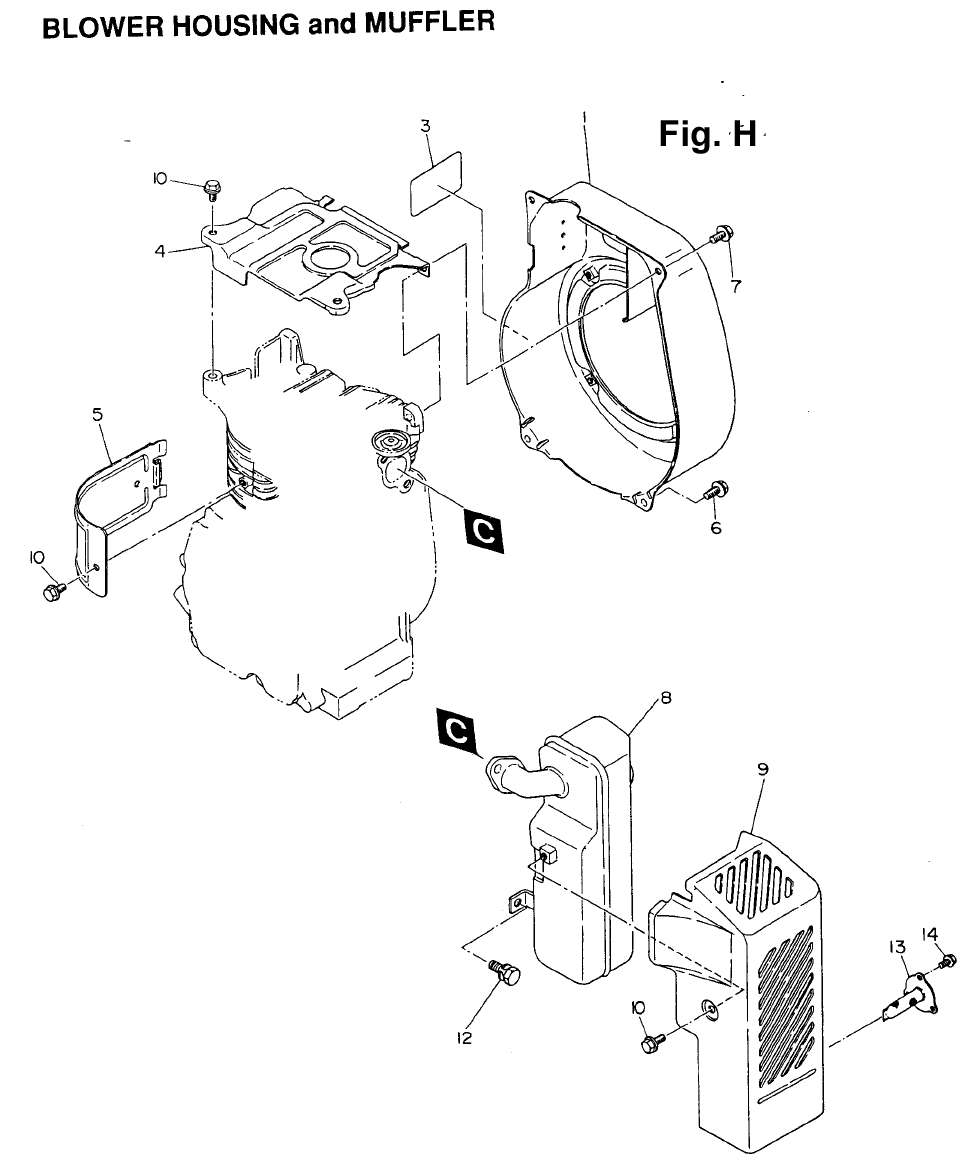

1-H 226-51240-06 BLOWER HOUSING, G1300R . $41.41
3-H 073-20025-90 LABEL, G1200R $3.54
5-H 226-52602-03 CYLINDER BAFFLE, G1300R $16.81
6-H 011-00600-20 FLANGE BOLT, G6100R $2.40
7-H 011-00600-30 FLANGE BOLT, G2800R $1.85
8-H 226-30302-01 MUFFLER COMPL, G1200R $73.80
9-H 226-34206-11 MUFFLER COVER, G1300R $40.39
10-H 011-00600-10 FLANGE BOLT, G6100R $2.40
12-H 013-50600-10 BOLT & WASHER, G1300R $1.34
13-H 226-36502-01 SPARK ARRESTER, G1300R $17.69
14-H 015-20500-20 TAPPING SCREW, G1300R $1.08

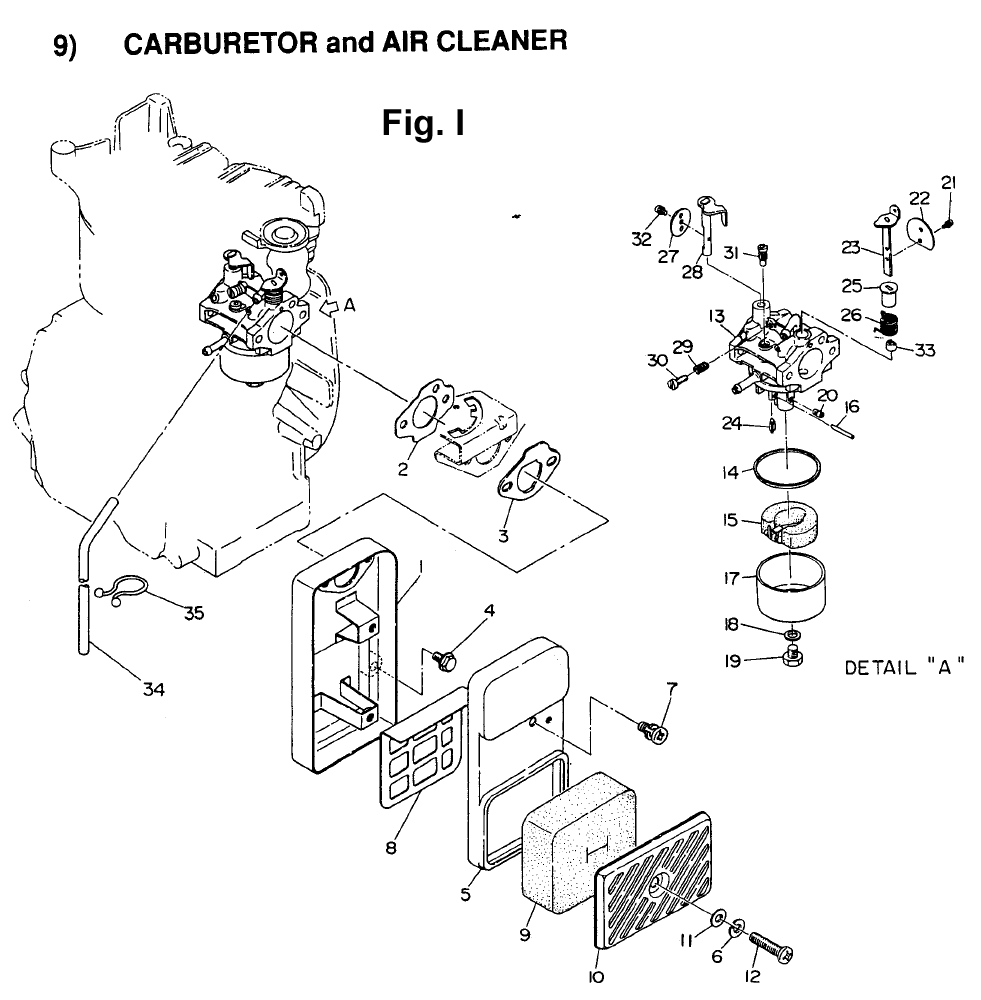

2-I 227-36003-13 GASKET, AIR CLEANER G2400R $1.41
3-I 227-36004-13 GASKET, G1300R $1.41
4-I 011-00600-30 FLANGE BOLT, G2800R $1.85
6-I 003-20060-00 SPRING WASHER, G2800R $1.34
7-I 004-35061-00 SCREW & WASHER, G1300R $0.90
8-I 226-36003-03 ELEMENT RETAINER, G1300R $4.93
9-I 226-36004-03 ELEMENT, G1300R $5.70
11-I 003-10060-00 WASHER, G2410R $0.90
12-I 014-10600-30 SCREW, G1300R $1.08
13-I 226-62307-20 CARBURETOR ASS'Y, G1200R $135.51
14-I 214-62540-08 FLOAT CHAMBER PACKING, G2400R $4.93
17-I 227-62558-08 FLOAT CHAMBER BODY, G1300R $29.58
15-I 226-62506-08 FLOAT ASSEMBLY, G1200R $29.78
16-I 214-62515-08 FLOAT PIN, G3510R $3.50
18-I 214-62450-08 PACKING, G2400R $1.85
19-I 227-62451-08 BOLT, G1300R . $6.69
20-I 226-62525-08 CHOKE VALVE, G2400R $6.69
22-I 226-62540-08 SPRING, G1300R $4.16
23-I 226-62403-08 MAIN JET (#70), G1200R $11.42
24-I 237-62451-08 SCREW, G6101R $1.41
25-I 226-62522-08 CHOKE LEVER, G1300R $26.41
26-I 226-62553-08 RING, G1300R $5.26
27-I 214-62535-08 THROTTLE VALVE, G1300R $9.77
28-I 226-62530-08 SHAFT ASS'Y, THROTTLE, G2400R $27.26
29-I 209-62445-08 SPRING, G2800R $3.61
30-I 209-62352-08 SCREW, G1300R $1.41
31-I 207-62420-08 PILOT JET (#40), G1200R $11.42
32-I 150-62356-08 SCREW, G2400R . $1.41
33-I 226-62550-08 RING, G2410R $3.50
34-I 085-10400-00 RUBBER PIPE, G2400R $18.13
35-I 217-75002-03 PURSE LOCK (B), G1300R $1.96

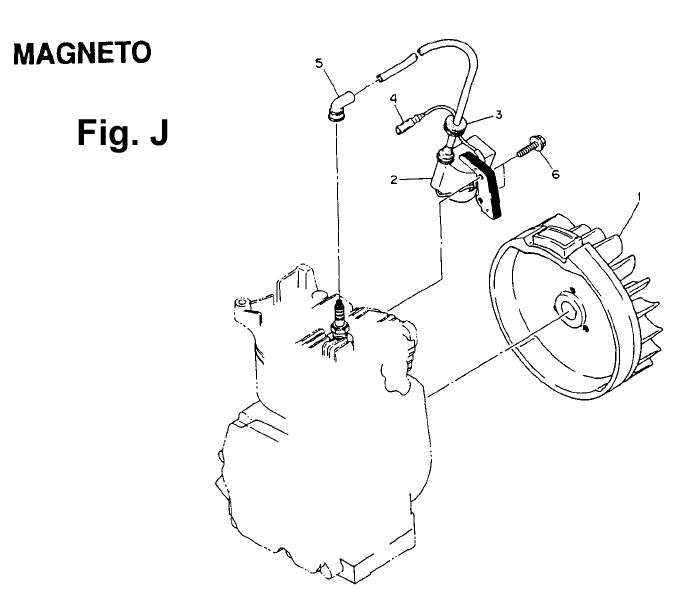

1-J 226-70201-20 MAGNETO ASS'Y, G1200R $176.06
1-J 226-70120-18 FLYWHEEL, G1300R $131.64
3-J 226-70245-08 GROMMET, G2400R $3.61
4-J 226-70236-08 CORD COMP., G1200R $8.12
5-J 065-50001-10 SPARK PLUG CAP, G2400R $14.61
6-J 011-00601-21 FLANGE BOLT, G2400R $2.40

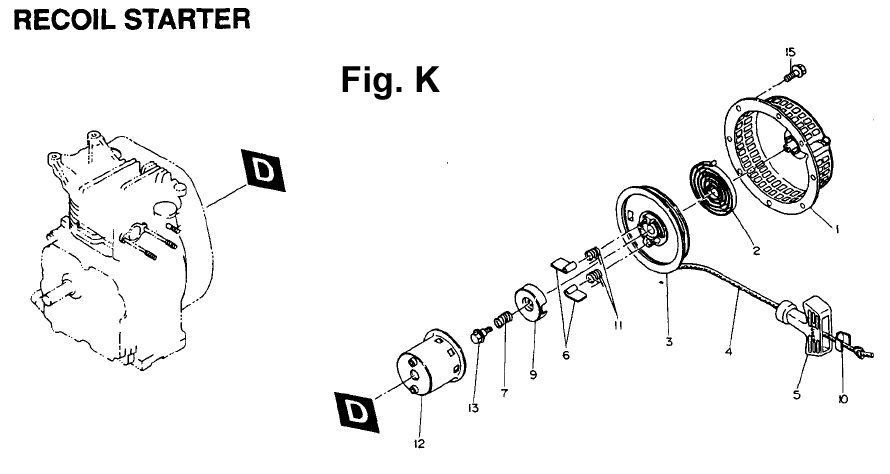

2-K 226-50715-08 SPIRAL SPRING, G1200R $23.96
3-K 226-50720-08 REEL, G1200R $28.25
4-K 226-50710-18 STARTER ROPE, G1300R . $12.96
5-K 226-50700-08 STARTER KNOB, G1200R $9.77
6-K 226-50725-08 RATCHET, G1200R $4.93
7-K 226-50730-08 FRICTION SPRING, G1200R $3.61
9-K 226-50740-08 FRICTION PLATE, G1200R $9.77
10-K 226-50750-08 KNOB CAP, G1200R $4.93
11-K 226-50752-08 RATCHET SPRING, G1200R $3.61
12-K 226-50745-08 STARTING PULLEY, G1300R $19.34
13-K 226-50751-08 CENTER SCREW, G1200R $4.93
15-K 011-00600-10 FLANGE BOLT, G6100R $2.40

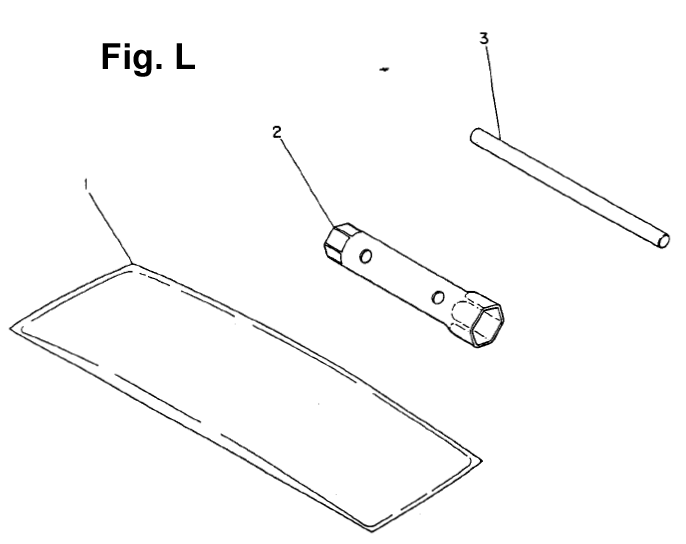

1-L 227-90304-00 TOOL KIT, G2400R $19.34
