Makita FS4200A Electric Screwdriver Parts

Makita FS4200A Electric Screwdriver Parts Image

Makita FS4200A Parts
Drywall Screwdriver, 6 AMP, 0-4,000 RPM

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita FS4200A
Drywall Screwdriver,...
$128.99
Tool Diagram    (Click image to Zoom in) View larger Image

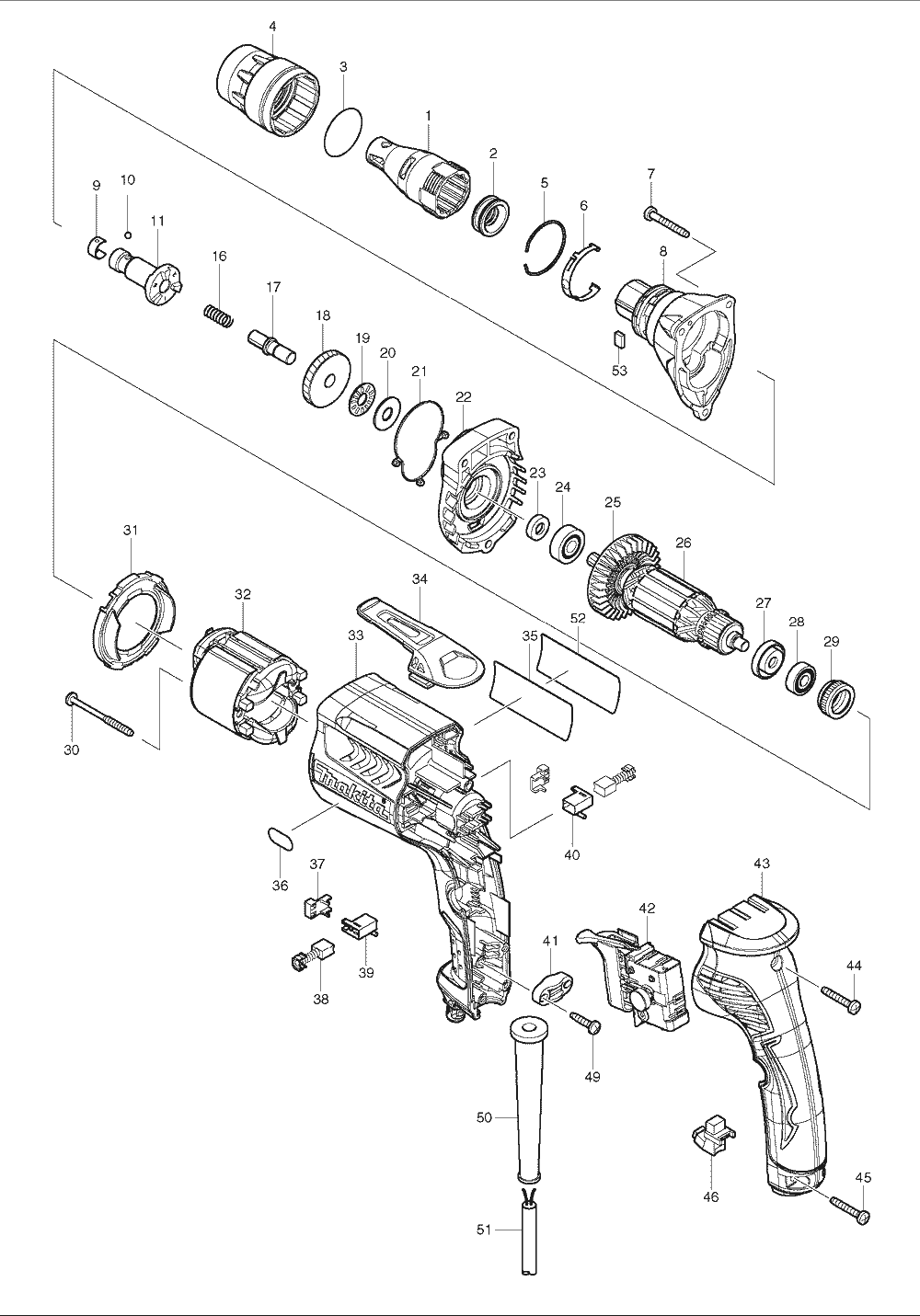

Makita FS4200A Electric Screwdriver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 158876-0 LOCATOR FS4200 $16.60
2 424163-2 DUST SEAL SLEEVE, FS4200 $0.66
3 424235-3 SEAL RING 30, FS4200 $0.66
4 450881-6 LOCK RING, FS4200 $2.51
6 232245-4 LEAF SPRING, BFS450Z $4.16
7 266361-0 TAPPING SCREW 4X30,9553NB $0.53
8 158880-9 GEAR HOUSING CPL., FS4200 $11.53
9 232050-9 LEAF SPRING, 6820V $1.48
10 216001-0 STEEL BALL 3.5, 6800DBV $0.53
11 324983-3 SPINDLE 125N, FS4200 $10.43
16 233126-5 COMP. SPRING 6, FS4200 $1.48
17 268229-6 COLLARED PIN 8, FS4200 $1.34
19 216415-3 THRUST NEEDLE GAUGE 821, 6824 $4.49
20 216212-7 WASHER 821, FS4200 $2.18
21 424162-4 SEAL RING, FS4200 $0.90
22 158874-4 GEAR HOUSING COVER CPL., FS4200 $3.61
23 451099-2 RING 7, FS4200 $0.90
24 210007-0 BALL BEARING 608VV, 6825 $13.07
25 240083-0 FAN 52, HR1830F $2.84
26 515756-7 ARMATURE ASS'Y, FS4200 $17.25
27 681636-0 INSULATION WASHER, GA4030 $3.72
28 210062-2 BALL BEARING 607ZZ, 9550H $4.16
29 421868-5 LABYRINTH RUBBER RING, GA4030 $1.52
30 266467-4 TAPPING SCREW 4X50, FS4200 $0.66
31 450880-8 BAFFLE PLATE, FS4200 $0.66
32 633691-8 FIELD, FS4200 $8.12
33 450877-7 MOTOR HOUSING S, FS4200 $5.92
34 162272-6 HOOK, FS4200 $2.51
35 867324-5 NAME PLATE, FS4200A $1.08
36 808575-1 INDICATION LABEL, FS4200 $0.42
37 689111-0 SPACER, HP2050F $1.26
38 195007-0 CARBON BRUSH SET CB-407, BO5030K $8.99
38 K38 This item will be shipped Free Carbon Brush Set Replaces Makita (CB407), CB-419... $8.50
39 643948-9 BRUSH HOLDER, 6823 $2.84
40 643951-0 BRUSH HOLDER, 6824 $3.06
41 687123-7 STRAIN RELIEF, JV0600K $0.75
42 650614-1 SWITCH, FS4200 $13.84
43 158877-8 HANDLE COVER S CPL., FS4200 $4.71
44 266374-1 TAPPING SCREW 4X25, GA7021 $0.53
45 266374-1 TAPPING SCREW 4X25, GA7021 $0.53
46 631938-4 LIGHT CIRCUIT, FS6200 $5.92
49 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
50 682559-5 CORD GUARD 8, 6824 $2.51
50 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
51 664899-3 POWER SUPPLY CORD, 6824NA $30.60
52 819349-5 CLEAR LABEL, FS4200 $0.64
53 423413-2 RUBBER PLATE, FS4200 $0.66
1002 784801-1 MAGNETIC BIT HOLDER, 6801DBV $9.20
