Makita EW400TR Water Pump Parts

Makita EW400TR Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

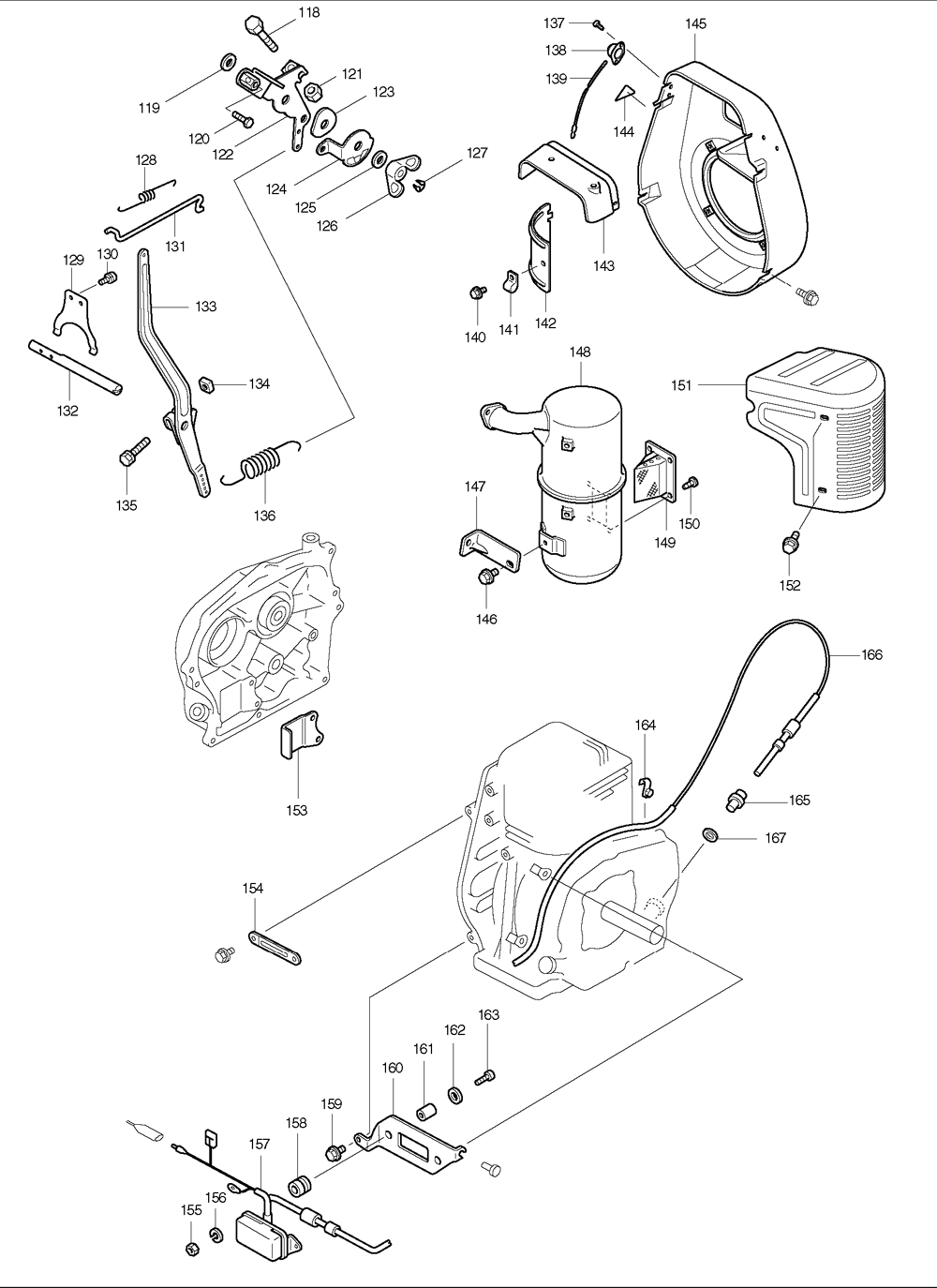

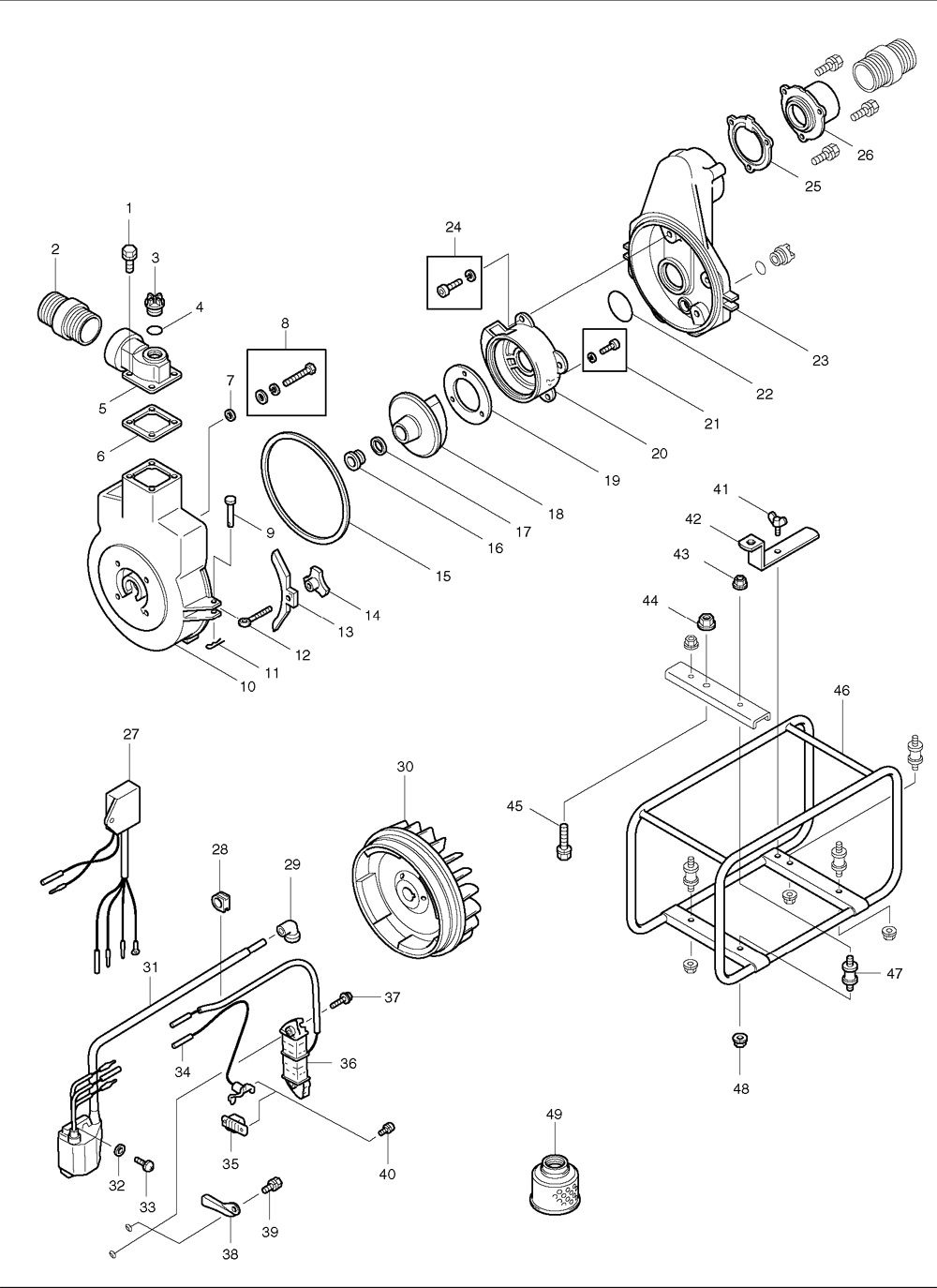

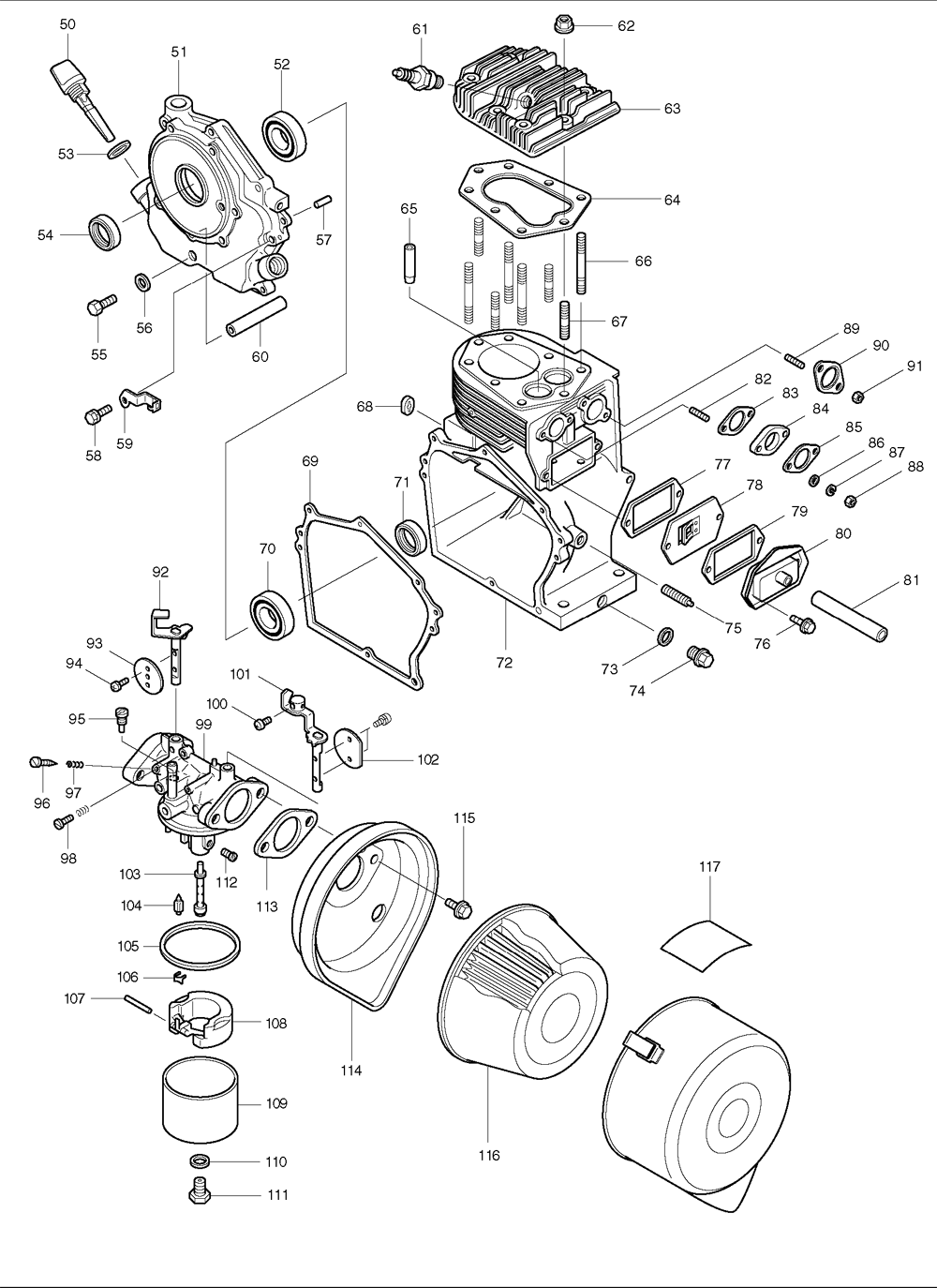

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	480-05010-03	BOLT & WASHER ASSY, EW210R	$3.72
00	224-60198-11	FUEL TANK, EW400TR	$128.14
2	481-00000-82	NIPPLE, EW400TR	$47.32
3	480-08210-12	PLUG, EW400TR	$12.19
4	480-08210-18	O RING, EW400TR	$4.93
5	481-00000-78	DELIVERY FLANGE (NPT)EW400TR	$68.00
6	480-10010-20	PACKING, DELIVERY FLANGE, EW400TR	$8.12
7	480-10210-26	SEAL PACKING, EW400TR	$3.50
8	480-10210-27	BOLT, EW400TR .	$3.50
9	480-08210-14	RIVET, EW400TR	$5.26
10	480-10210-02	CASING COVER, EW400TR	$275.68
11	480-08210-34	SPING PIN, EW400TR	$6.47
12	480-08210-13	COVER BOLT, EW400TR	$13.62
13	480-08210-16	CASING COVER HOLDER, EW400TR	$47.32
14	480-08210-15	KNOB, EW400TR	$20.88
15	480-08210-17	PACKING, CASING, EW400TR	$21.10
16	480-08210-08	MECHANICAL SEAL, EW400TR	$136.00
17	480-10210-40	SHIM, EW400TR	$3.50
17	480-10210-41	SHIM, EW400TR	$3.50
17	480-10210-42	SHIM, EW400TR	$3.50
17	480-10210-43	SHIM,. EW400TR	$3.50
18	480-10210-04	IMPELLER, EW400TR	$411.29
19	480-10210-07	LINER, EW400TR	$69.40
20	481-00000-75	INNER CASING, EW400TR	$110.97
21	480-10210-29	SOCKET BOLT M5X14, EW400TR	$3.50
22	480-10210-20	PACKING, INNER CASING, EW400TR	$9.77
23	481-00000-74	CASING, EW400TR	$453.19
24	480-08210-39	SOCKET BOLT M8X30, EW400TR	$5.92
25	481-00000-79	CHECK VALVE, EW400TR	$28.25
26	481-00000-77	SUCTION FLANGE (NPT), EW400TR	$48.75
27	224-72250-01	K T R UNIT, G5501R	$62.70
28	024-10900-50	GROMMET, G5501R	$3.50
29	065-50000-51	SPARK PLUG CAP, EW310TR	$4.93
30	224-70173-08	FLYWHEEL, EW400TR	$272.09
31	224-72203-11	IGNITION COIL, EW400TR	$141.43
32	003-10060-00	WASHER, G2410R	$0.90
33	004-35062-00	SCREW & WASHER,G5711R .	$0.90
34	205-78201-01	CLAMP, COMPLETE G5501R	$9.22
36	224-70135-08	EXCITER COIL, G5501R	$36.92
37	004-35062-50	SCREW & WASHER ASSY. G3510R	$0.90
38	224-77002-01	WIRE CLAMP, COMPLETE, G5501R	$4.93
39	011-00600-20	FLANGE BOLT, G6100R	$2.40
40	004-35041-20	SCREW & WASHER ASSY, G5501R	$0.90
41	480-05210-36	WING BOLT M6X15, EW400TR	$3.50
42	480-05210-35	SUPPORT, EW400TR	$12.96
43	480-10010-24	NUT & WASHER ASS'Y M8, EW300TR	$1.96
44	480-10010-25	FLANGE NUT M10, EW300TR	$1.96
45	480-08210-30	BOLT & WASHER ASS'Y M10X45,EW300TR	$3.72
46	481-00001-25	FRAME, EW400TR	$261.71
47	480-08210-19	CUSHION RUBBER, EW400TR	$26.72
48	480-10010-24	NUT & WASHER ASS'Y M8, EW300TR	$1.96
50	224-63601-01	OIL GAUGE CPL., G5711R	$5.70
51	224-11102-01	MAIN BEARING COVER COMP., EW400TR	$138.72
52	060-03500-10	BEARING BB6207C3, G5711R	$18.90
53	021-32000-50	GASKET, G4300L	$2.40
54	044-03500-90	OIL SEAL, G5710R	$9.00
55	001-65061-20	BOLT, EW400TR	$1.08
56	003-70060-00	ALUM. GASKET, G5501R	$0.82
57	005-26081-80	DOWEL PIN, G5501R	$1.96
58	001-14083-50	BOLT + WASHER ASS'Y, G5501R	$1.63
59	224-44201-01	WIRE BRACKET COMP., EW400TR	$6.91
60	224-99001-07	ENGINE GASKET SET, G5501R	$20.88
61	065-01401-90	SPARK PLUG BP-4HS, EW400TR	$4.93
62	002-38100-00	FLANGE NUT, G12010R	$1.96
63	224-13301-03	CYLINDER HEAD, EW400TR	$98.20
64	224-15101-11	HEAD GASKET, G5501R	$11.20
65	224-14202-03	VALVE GUIDE (OVERSIZE), G5501R	$17.69
66	010-51002-80	STUD, G5501R .	$3.50
67	010-51002-70	STUD, G5501R .	$3.50
68	224-75501-03	GROMMET, G5501R .	$4.93
69	224-15201-03	GASKET MAIN BEARING COVER,G5501R	$4.93
70	060-03500-10	BEARING BB6207C3, G5711R	$18.90
71	044-03500-90	OIL SEAL, G5710R	$9.00
72	224-10201-11	CRANKCASE CPL., EW400TR	$469.78
73	021-11400-20	GASKET, G2800R	$1.08
74	040-11400-30	PLUG, G2800R	$3.50
75	010-50800-31	STUD G5501R	$5.26
76	011-00600-30	FLANGE BOLT, G2800R	$1.85
77	224-15401-03	TAPPET COVER GASKET, G5501R .	$3.50
78	224-14401-01	BREATHER PLATE COMP., G5501R	$20.88
79	224-15301-13	GASKET (TAPPET COVER), G5500R	$3.17
80	224-14301-11	TAPPET COVER COMP., G5501R	$12.19
81	085-11200-00	RUBBER PIPE (12.5X16X100MM) G5501R	$16.04
82	010-50602-00	STUD, G5501R	$1.41
83	224-35202-13	GASKET, INSULATOR, G5501R	$3.17
84	224-32901-03	INSULATOR, G5501R	$4.93
85	208-36003-03	INSULATOR GASKET 2, G5501R	$3.50
86	003-10060-00	WASHER, G2410R	$0.90
87	003-20060-00	SPRING WASHER, G2800R	$1.34
88	002-28060-00	NUT, G5501R	$1.34
89	010-50802-90	STUD, G2800R	$1.85
90	224-35101-03	EXHAUST GASKET COMP., G5501R	$4.93
91	017-00800-30	NUT, STAINLESS STEEL, G2800R	$1.96
92	224-62530-08	SHAFT ASS'Y, THROTTLE, EW400TR	$26.72
93	224-62535-08	THROTTLE VALVE, G5501R	$22.53
94	130-62250-08	SCREW ASSEMBLY, EW400TR	$1.41
95	224-62420-08	PILOT JET, G5501R	$13.62
96	209-62305-08	PILOT SCREW, G5501R	$8.12
97	206-62446-08	PILOT SPRING, G3500R	$3.61
98	224-62452-08	SCREW, G3500R	$3.50
99	224-62342-10	CARBURETOR, EW400TR	$219.90
100	209-62354-08	SCREW, G2400R .	$1.41
101	224-62520-08	SHAFT ASS'Y, EW400TR	$26.72
102	224-62525-08	CHOKE VALVE, G5501R	$6.69
103	224-62555-08	MAIN NOZZLE, G5501R	$23.96
104	224-62306-08	NEEDLE ASS'Y, EW400TR	$26.72
105	206-62540-08	PACKING, G3510R	$4.93
106	224-62330-08	CLIP, EW400TR	$3.61
107	214-62515-08	FLOAT PIN, G3510R	$3.50
108	224-62507-08	FLOAT ASS'Y, G5501R	$22.53
109	224-62550-08	FLOAT CHAMBER BODY, EW400TR	$45.79
110	207-62345-08	PACKING, G3510R .	$1.08
111	150-62358-08	BOLT, EW400TR .	$3.50
112	109-62404-08	MAIN JET (#112.5), G5501R	$12.19
113	207-32721-08	PACKING, G5501R	$1.85
114	224-32611-20	AIR CLEANER ASS'Y, EW400TR	$57.30
115	011-00600-20	FLANGE BOLT, G6100R	$2.40
116	207-32606-18	CLEANER ELEMENT SET, G5501R	$28.25
117	107-32733-08	LABEL, EW400TR	$3.39
118	001-65064-00	BOLT, EW400TR .	$2.40
119	021-70800-10	FRICTION WASHER, G5501R	$2.18
120	011-60400-10	BOLT M4X14, EW400TR	$1.48
121	002-27060-00	NUT, EM4251	$1.34
122	224-43304-01	SPEED CONTROL COMP., EW400TR	$11.42
123	020-00800-10	WASHER, G5501R	$1.85
124	207-43505-11	STOP PLATE, G5501R	$4.93
125	003-11080-00	WASHER, G1300R	$1.34
126	017-90800-12	WING NUT, EW400TR	$4.16
127	056-50400-10	CLIP, EW400TR .	$2.51
128	214-42801-01	ROD SPRING, G5501R	$3.61
129	224-42101-13	GOVERNOR YOKE, EW400TR	$5.26
130	004-35040-80	SCREW & WASHER ASSY, G2400R	$0.90
131	214-42701-01	GOVERNOR ROD, EW400TR	$3.50
132	224-42201-03	GOVERNOR SHAFT, G5501R	$9.77
133	224-42301-01	GOVERNOR LEVER, COMP., EW400TR	$13.51
134	018-60600-20	NUT, G2800R .	$1.34
135	001-14062-50	BOLT & WASHER, G2800R	$1.34
136	224-42501-13	GOVERNOR SPRING, EW400TR	$5.26
137	015-00400-10	TAPPING SCREW (4X8), G2400R	$0.82
139	214-73201-01	WIRE 1, G5710R	$3.50
140	011-00600-10	FLANGE BOLT, G6100R	$2.40
141	056-61000-21	CLAMP, EW400TR	$3.50
142	224-52701-03	CYLINDER BAFFLE, G5501R	$15.16
143	224-52601-01	HEAD COVER COMP, EW400TR	$15.16
144	073-20035-50	LABEL, STOP SWITCH (RECOIL) G3500R	$4.84
146	001-11081-60	BOLT & WASHER ASSY, G5711R	$1.63
147	224-35021-11	MUFFLER BRACKET, G5501R	$4.93
148	224-30131-01	MUFFLER COMP., EW400TR	$162.38
149	224-36501-01	SPARK ARRESTER COMP., G5501R	$19.34
150	015-00400-40	TAPPING SCREW, G2800R	$0.82
151	224-34221-01	MUFFLER COVER COMP., G5501R	$48.75
152	011-00600-10	FLANGE BOLT, G6100R	$2.40
153	224-76301-03	OIL GUIDE PLATE, EW400TR	$3.61
154	056-60002-50	CLAMP (ELEC STARTER),G2800R	$3.50
155	002-17060-00	NUT, G3511R	$1.34
156	003-20060-00	SPRING WASHER, G2800R	$1.34
157	224-76204-11	OIL LEVEL SENSOR COMP., G5501R,T1	$56.90
158	964-21080-20	GROMMET, G5501R .	$8.12
159	011-00600-10	FLANGE BOLT, G6100R	$2.40
159	011-00600-20	FLANGE BOLT, G6100R	$2.40
160	224-77104-01	BRACKET, OIL SENSOR, G5501R	$15.16
161	023-00601-80	SPACER, G5501R	$1.85
162	020-00800-50	WASHER, G5501R	$3.72
163	001-65063-00	BOLT, G5501R	$12.19
164	056-60001-70	CLAMP, G2410R	$1.41
164	056-60002-60	CLAMP, G5710R	$3.50
165	224-76064-03	S A F JOINT, G5501R	$8.12
166	224-73113-01	WIRE 13 COMP., G5501R	$3.50
167	021-32000-50	GASKET, G4300L	$2.40
168	224-73121-01	WIRE 21 CP, G5501R	$9.55
169	001-10081-60	BOLT & WASHER, G2800R	$1.63
