Tool Diagram    (Click image to Zoom in) View larger Image

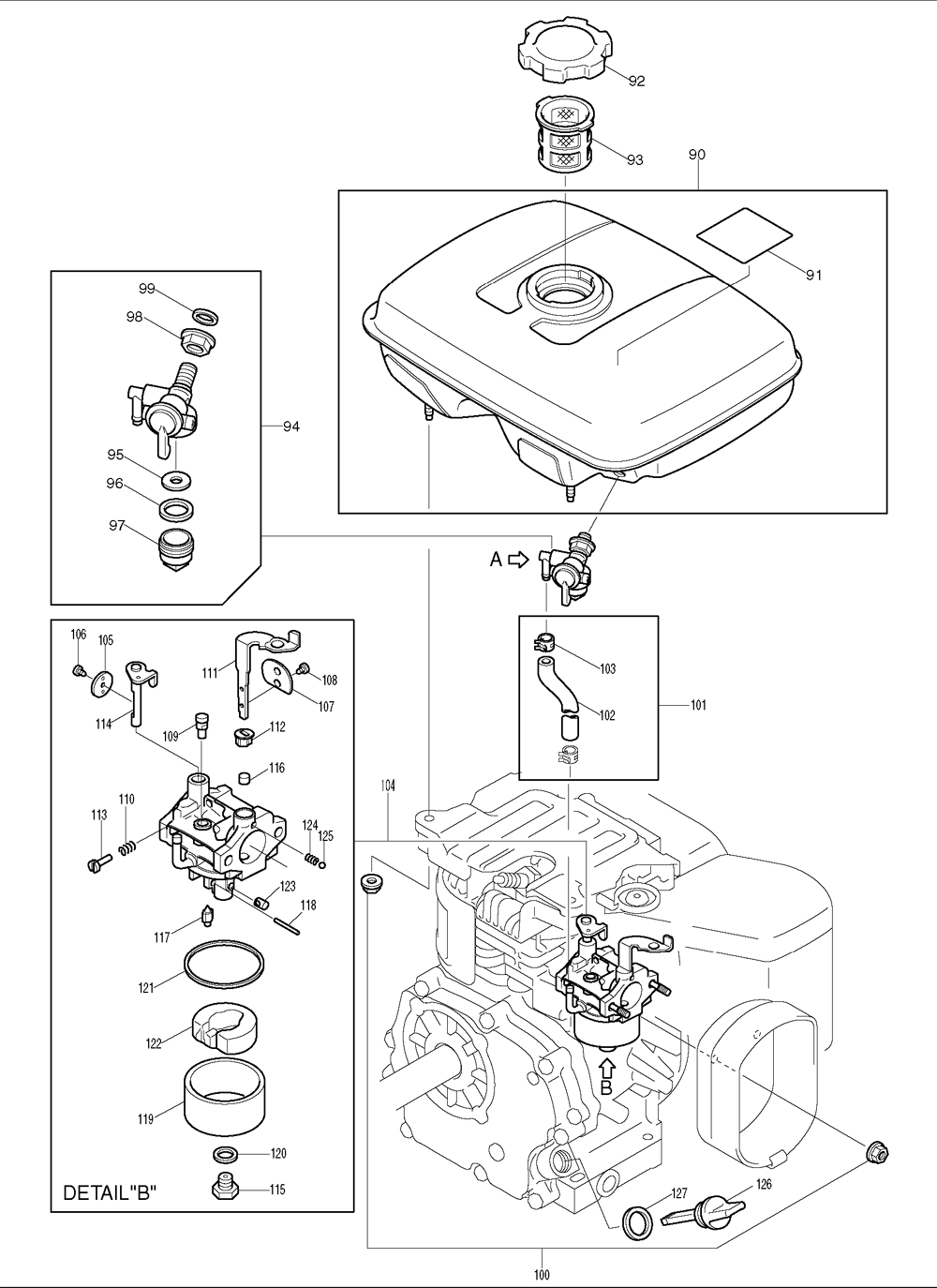

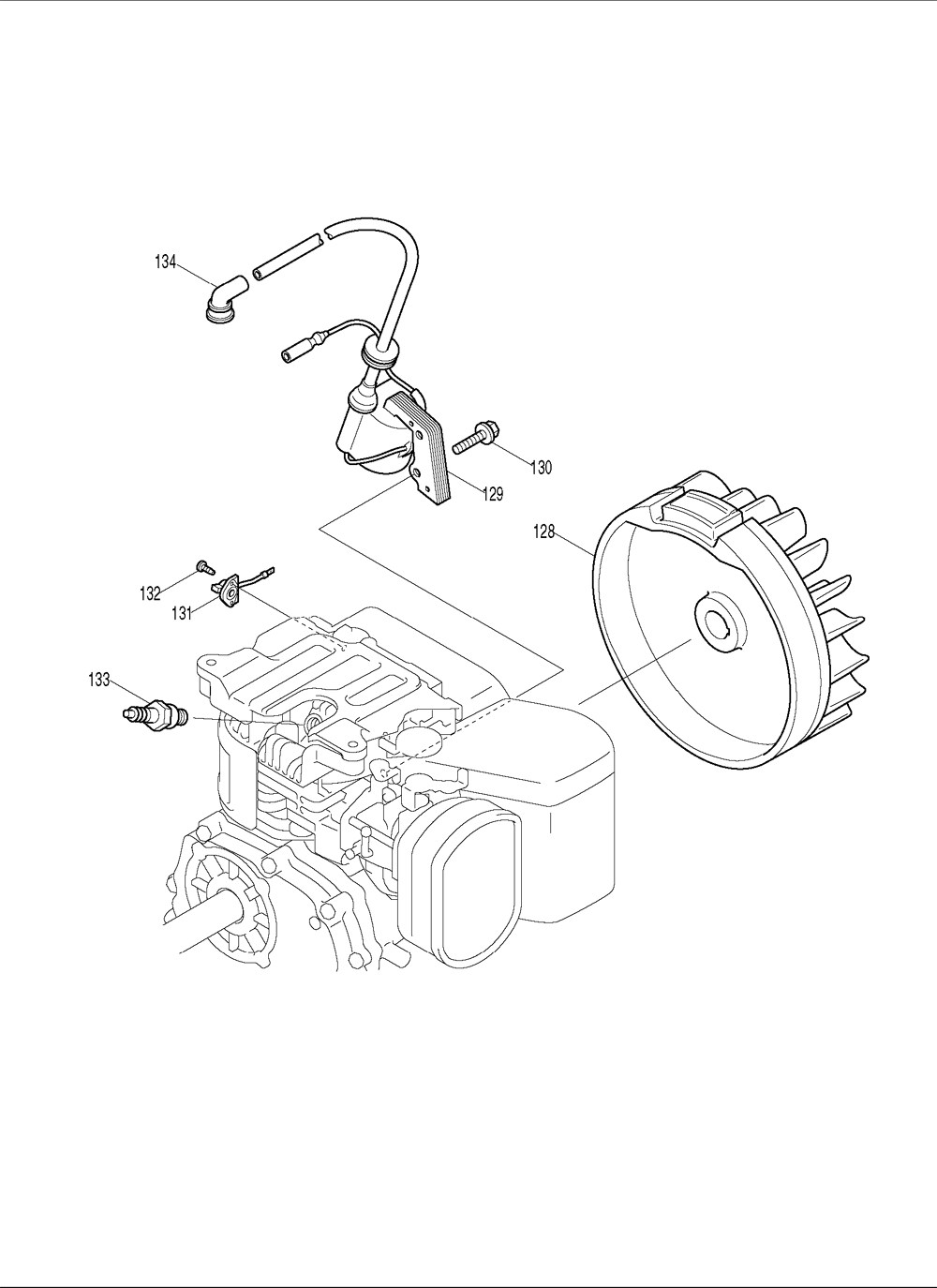

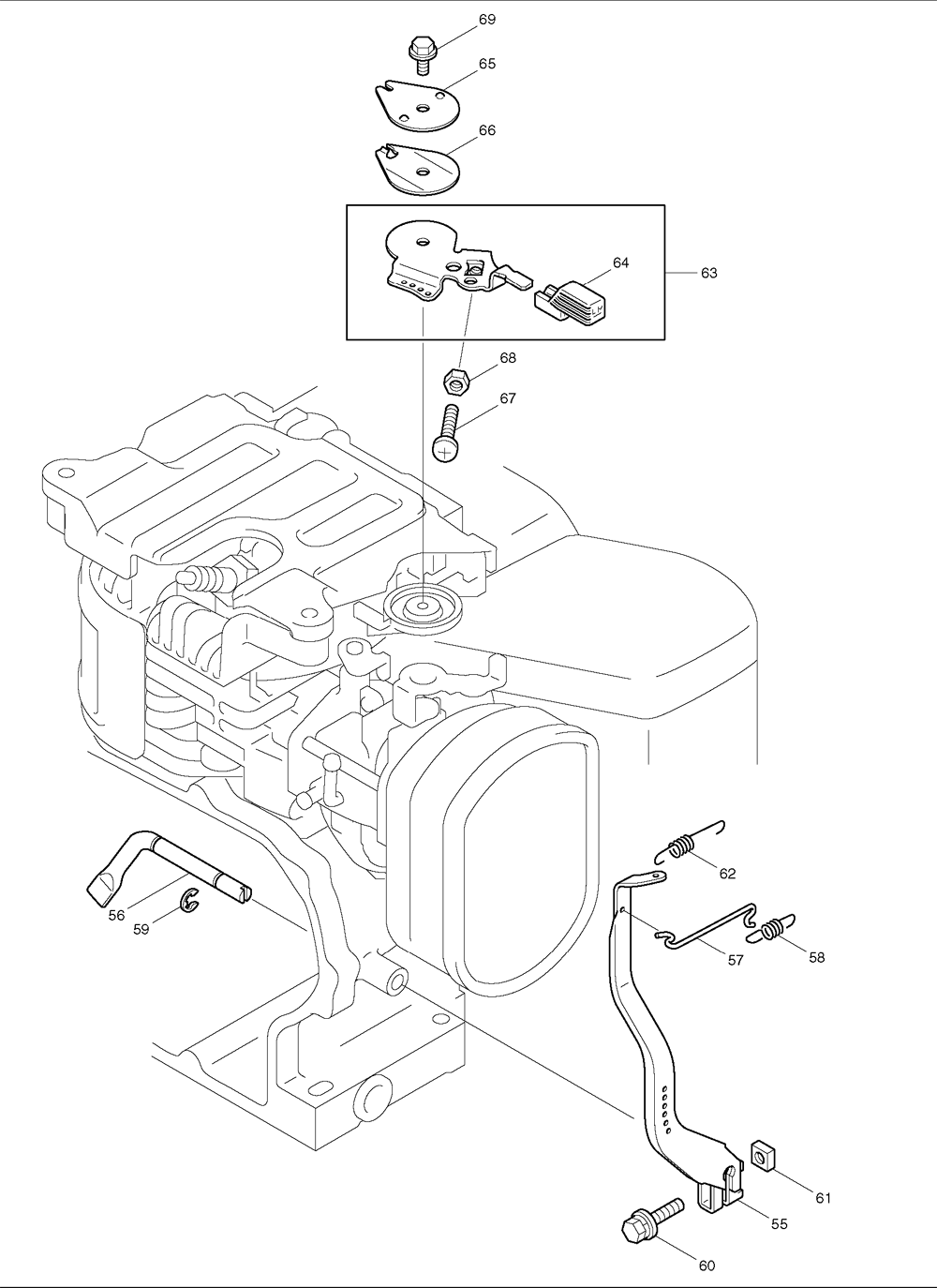

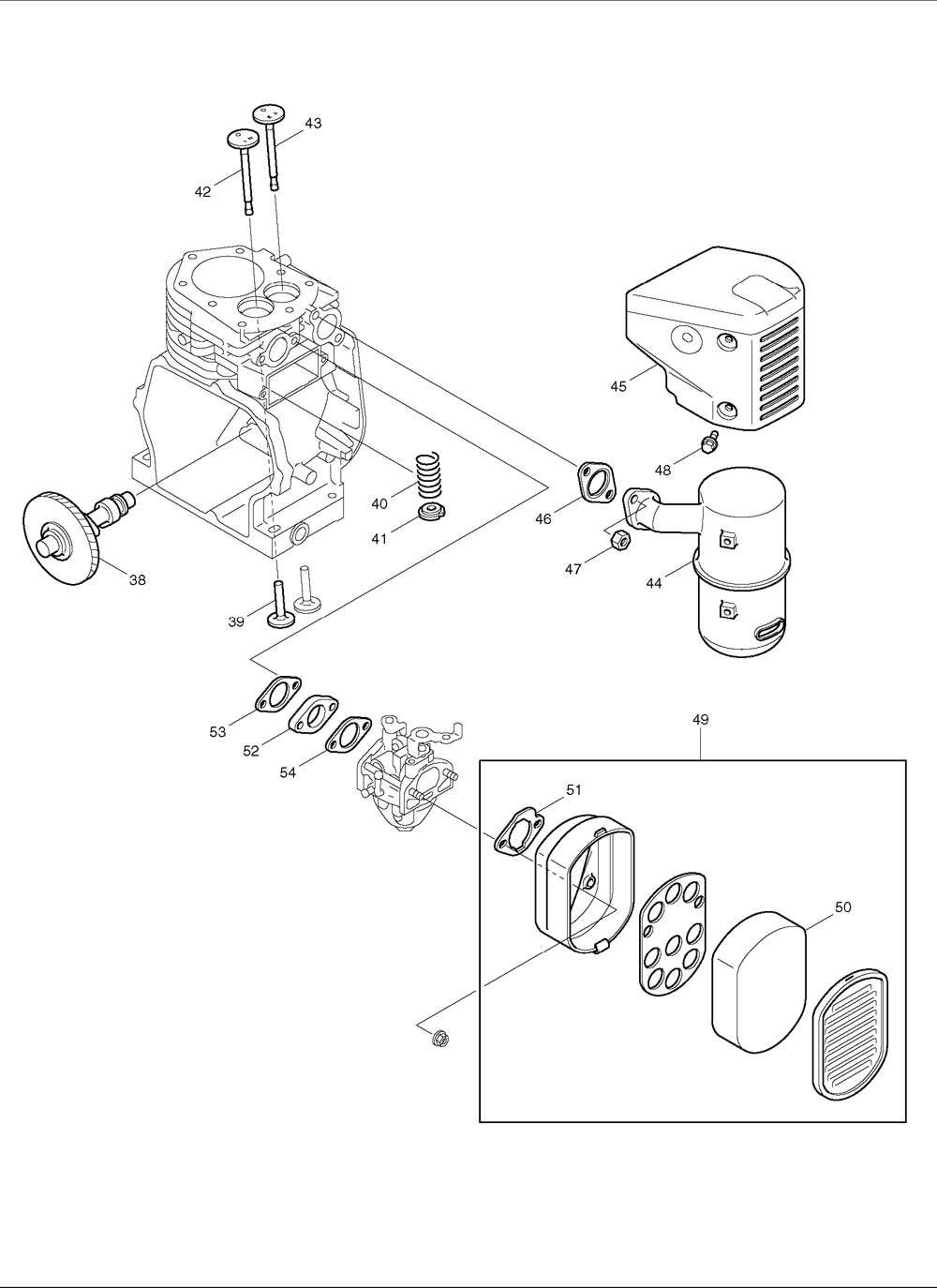

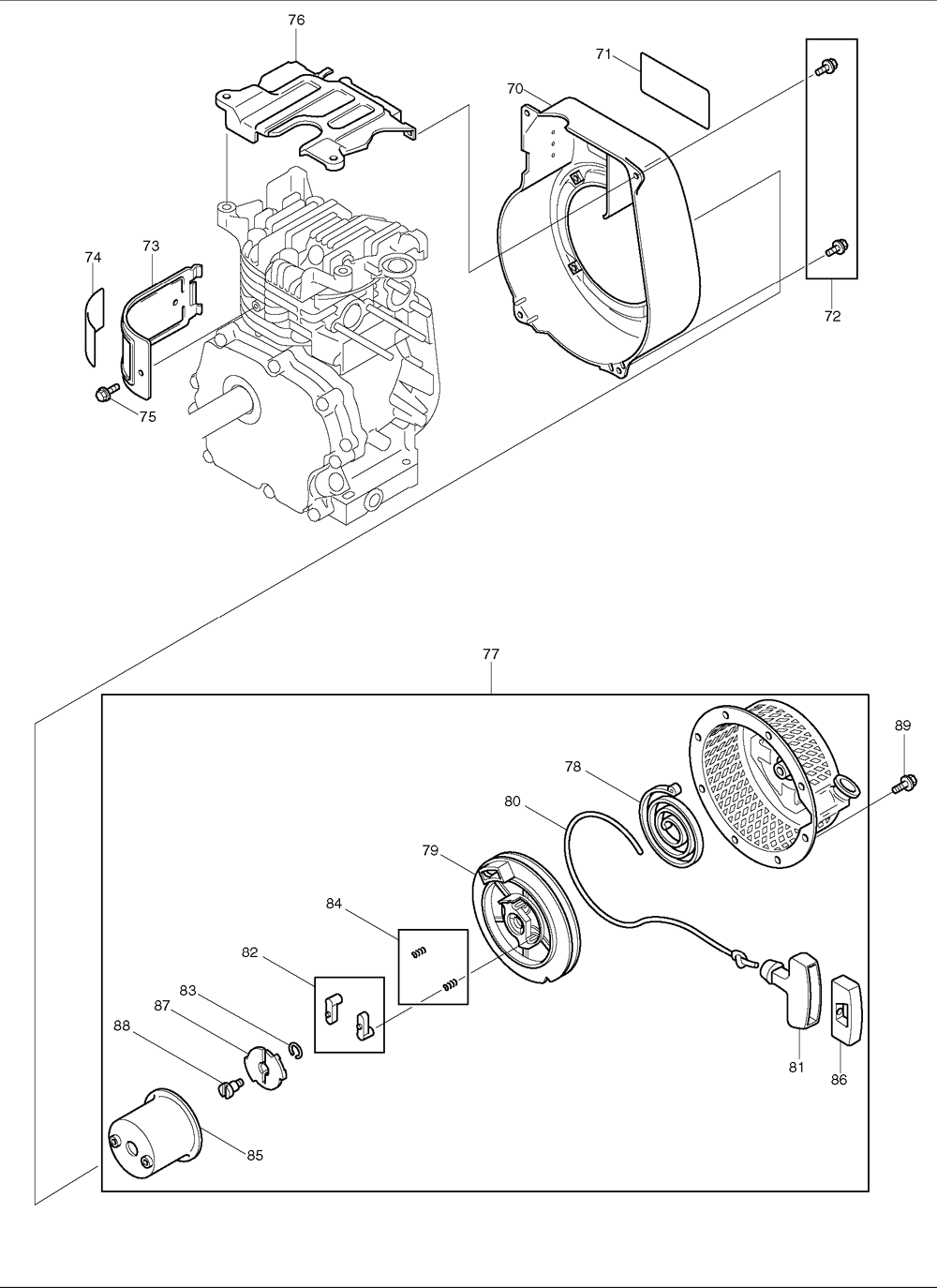

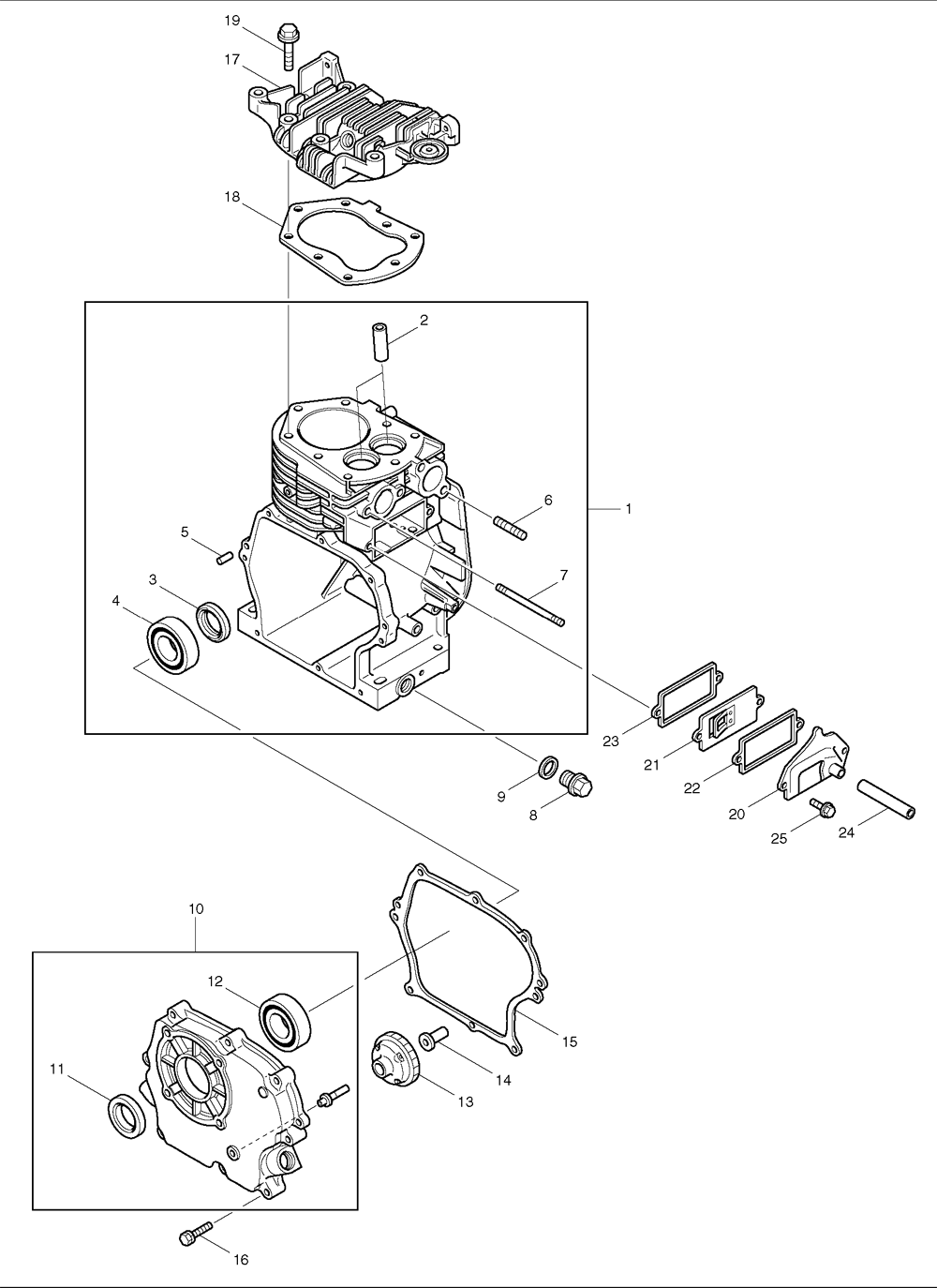

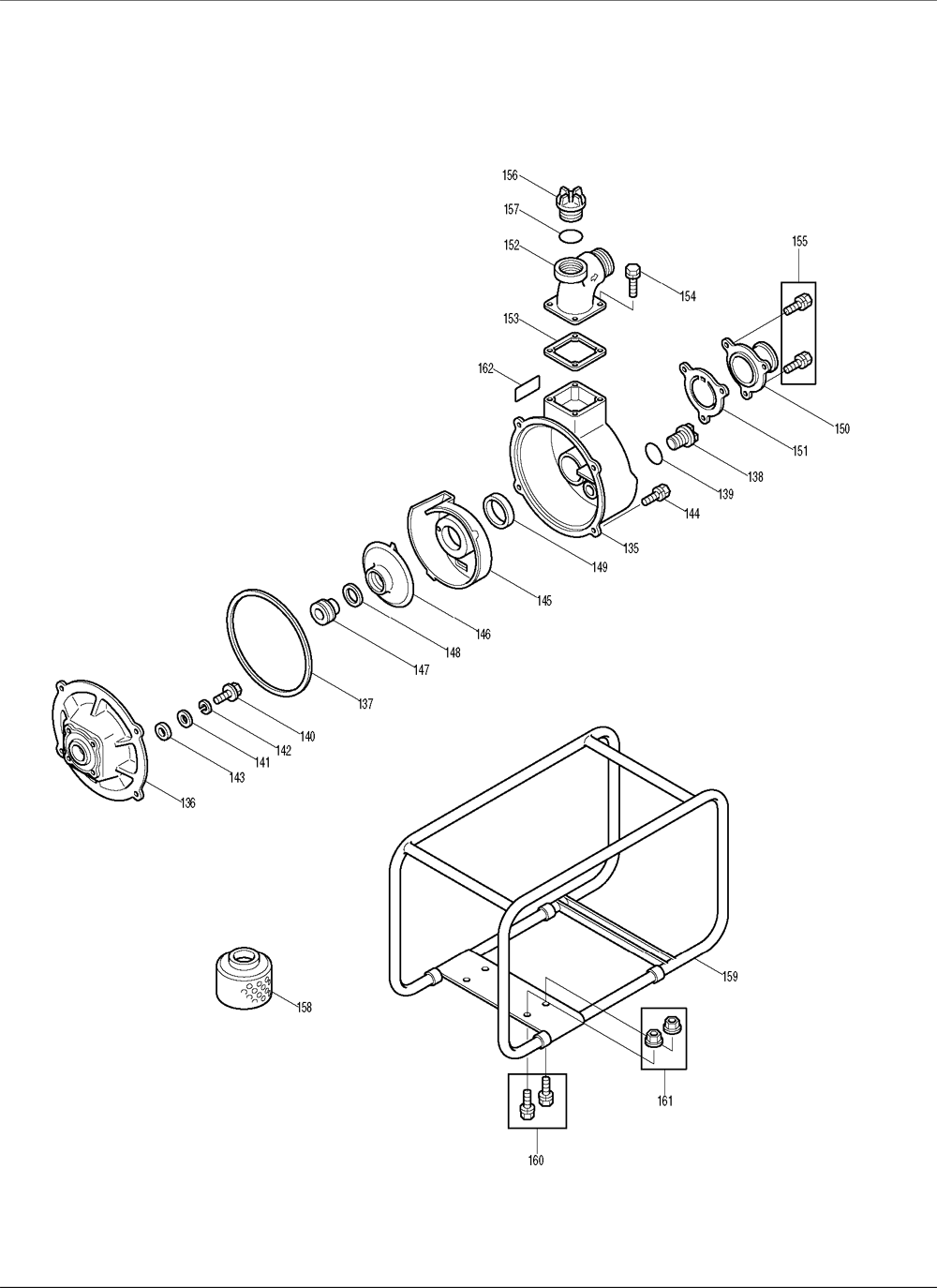

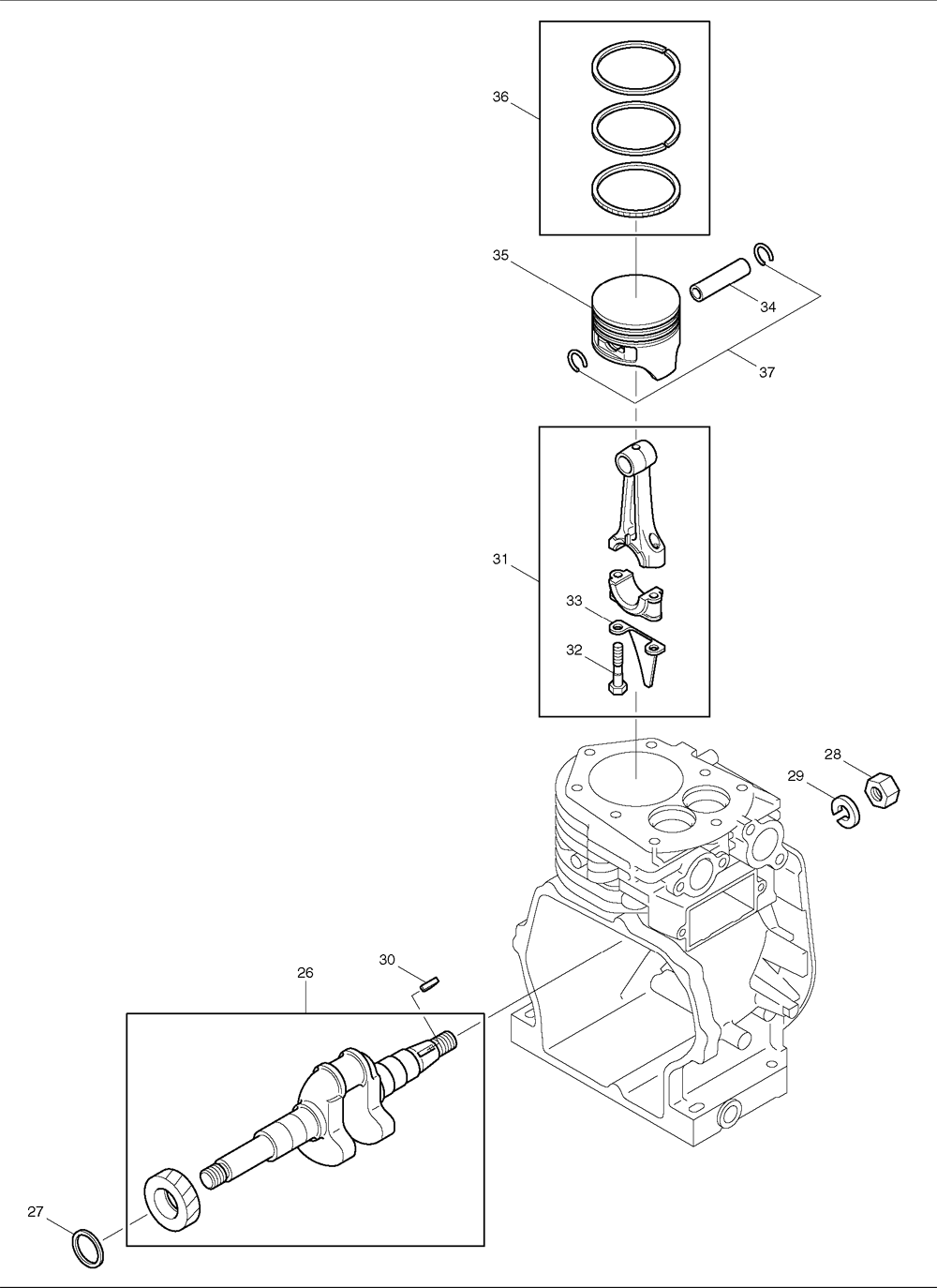

Makita EW300R Water Pump Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 227-10101-21 CRANKCASE, COMPLETE, G2400R $341.35
00 227-51718-06 BLOWER HOUSING CP, EW300R $50.28
2 227-14202-03 VALVE GUIDE, OVERSIZE, G2400R $9.77
3 044-02501-50 OIL SEAL 25X38X7MM, G2400R $6.69
4 060-02500-10 BALL BEARING, G2800R $11.42
5 031-00600-20 DOWEL PIN, G2800R $1.08
6 010-50802-50 STUD G2410R $1.85
7 010-50601-20 STUD, G2400R $1.85
8 040-11400-30 PLUG, G2800R $3.50
9 021-11400-20 GASKET, G2800R $1.08
11 044-02501-60 OIL SEAL 25X41.24X7MM, G2800R $8.12
12 060-02500-10 BALL BEARING, G2800R $11.42
13 227-45003-01 GOVERNOR GEAR COMPLETE, G2800R $18.46
14 205-41901-03 GOVERNOR SLEEVE, G2800R $4.71
15 227-16001-03 GASKET, BEARING COVER, G2400R $3.50
16 013-00600-40 BOLT & WASHER ASSY, G2800R $1.63
17 227-13001-13 CYLINDER HEAD, EW200TR, EW300R $55.00
18 282-15001-01 GASKET CPL. FOR CYL., EW200TR $8.01
19 011-00800-10 FLANGE BOLT, G2400R $3.50
20 227-14301-01 TAPPET COVER, COMPLETE, G2400R $8.12
21 227-14401-01 BREATHER PLATE, COMPLETE, G2400R $12.96
22 282-16006-03 GASKET FOR TAPE COVER, G1300R $3.28
23 282-16007-23 GASKET FOR BREATHER PLATE, G1300R $3.17
24 085-10800-00 RUBBER PIPE, G2800R $11.42
25 011-00600-20 FLANGE BOLT, G6100R $2.40
26 227-20301-51 CRANKSHAFT, EW300R $176.35
27 023-02501-10 SPACER, (T=0.6), G2800R $3.50
27 023-02501-20 SPACER (T=0.8), G2800R $3.50
27 023-02501-30 SPACER, (T=1.0), G2800R $3.50
28 002-18140-00 NUT, 14MM, G2800R $3.61
29 003-20140-00 SPRING WASHER, 14MM, G2800R $1.63
30 032-30300-10 WOODRUFF KEY, 3X6MM, G2800R $3.50
31 227-22501-10 CONNECTING ROD ASS'Y, G2400R $62.00
32 227-23001-13 CONNECTING ROD BOLT, G2400R $4.93
33 227-23101-03 OIL SCRAPER, G2400R $4.93
34 214-23301-13 PISTON PIN, G2400R $8.12
35 282-23401-03 PISTON (STD), EW200TR $26.27
35 282-23403-03 PISTON ORVER SIZE .5MM, EW200TR $36.41
35 282-23412-H3 PISTON OVER SIZE .25MM, EW200TR $22.64
35 282-23411-H3 PISTON (STD), EW200TR $26.27
36 227-23511-07 PISTON RING SET(STD) G2400R $28.25
37 056-51400-10 CLIP, G2400R . $1.34
38 227-31701-03 CAMSHAFT, EW300R, EW200TR $81.60
39 227-33301-03 TAPPET, VALVE, G2400R $12.19
40 227-33601-03 VALVE SPRING, G2400R $3.61
41 227-33701-03 SPRING RETAINER, G2400R $2.29
42 282-33401-03 INTAKE VALVE, G2400R $11.09
43 227-33501-13 EXHAUST VALVE, G2400R $19.34
45 227-34201-11 MUFFLER COVER, EW200TR, EW300R $27.26
46 282-35201-01 GASKET CPL. FOR EXHAUST, G2400R $4.93
47 002-19080-00 NUT, G2400R $4.16
48 011-00600-10 FLANGE BOLT, G6100R $2.40
50 226-32610-07 CLEAN ELEMENT SET, EW200R $25.61
51 227-36004-13 GASKET, G1300R $1.41
52 227-32901-13 INSULATOR, G2400R $4.93
53 282-35901-03 GASKET, G1100 $1.41
54 227-35904-03 INSULATOR GASKET 2, G2400R $2.29
56 227-42201-03 GOVERNOR SHAFT, G2800R $9.77
57 227-42701-01 GOVERNOR ROD, G2400R $3.50
58 227-42801-03 ROD SPRING, G1100 $3.61
59 003-13060-00 CLIP, G2800R $1.34
60 001-14062-50 BOLT & WASHER, G2800R $1.34
61 018-60600-20 NUT, G2800R . $1.34
62 227-42501-13 GOVERNOR SPRING, EW300R $5.26
64 227-43601-03 KNOB, EW210R $6.69
67 004-31063-00 SCREW, EW210R $0.82
68 002-27060-00 NUT, EM4251 $1.34
69 011-00600-30 FLANGE BOLT, G2800R $1.85
71 073-20050-00 LABEL, G6101R $1.26
72 011-00600-30 FLANGE BOLT, G2800R $1.85
73 227-52601-03 CYLINDER BAFFLE, G2400R $16.81
74 227-91860-03 ENGINE NAME LABEL $3.50
75 011-00600-10 FLANGE BOLT, G6100R $2.40
76 227-52701-03 HEAD COVER, EW200TR, EW300R $11.97
77 227-50811-10 RECOIL STARTER ASSY G2400R $93.90
78 261-50115-08 SPIRAL SPRING, G6100R $26.72
79 252-50121-08 REEL, G2410R $28.25
80 226-50113-08 STARTER ROPE, G3510R $12.96
81 227-50100-08 STARTER KNOB, G2400R $7.02
82 161-50125-08 RATCHET, EW300TR $4.93
83 227-50131-08 FRICTION SPRING, G2800R $5.26
84 227-50135-08 RETURN SPRING, G2410R $5.26
85 227-50149-18 STARTER PULLEY, G2410R $17.69
86 227-50150-08 STARTER KNOB CAP, G3510R $4.93
87 161-50150-08 RACHET GUIDE, G3511R $6.69
88 227-50152-08 SET SCREW, G2800R $4.93
89 011-00600-10 FLANGE BOLT, G6100R $2.40
91 073-20045-20 LABEL(OIL CAUTION), EW210TR $3.54
92 043-04300-60 FUEL TANK CAP, G5711R $16.70
93 064-13600-10 FUEL FILTER, G2400R $4.93
94 064-20064-00 FUEL STRAINER ASS'Y,EW200R $18.90
95 064-20064-20 SCREEN, EW200R, EW300TR $1.85
96 064-20064-10 RUBBER PACKING, G2800R $2.40
97 064-20042-10 CUP, EW200R, EW300TR $4.93
98 064-20064-30 NUT, EW200R $2.40
99 064-20064-40 RUBBER PACKING, EW200R, EW300TR . $1.08
100 002-38060-00 FLANGE NUT, G6101R $2.40
101 227-62640-01 FUEL PIPE COMPLETE,EW200TR,EW300R $4.93
102 085-10600-00 RUBBER PIPE, G2410R,1M $23.30
103 056-11100-20 HOSE CLAMP, G2800R $1.41
105 220-62535-08 THROTTLE VALVE, #170, EW210R $11.42
106 209-62351-08 SCREW ASS'Y, G5711R $1.41
107 226-62525-08 CHOKE VALVE, G2400R $6.69
109 209-62420-08 PILOT JET, G2400R $11.42
110 209-62445-08 SPRING, G2800R $3.61
111 226-62520-18 CHOKE LEVER, EW200R $31.11
112 226-62551-08 RING, G2400R $4.93
113 209-62352-08 SCREW, G1300R $1.41
114 226-62530-08 SHAFT ASS'Y, THROTTLE, G2400R $27.26
116 226-62550-08 RING, G2410R $3.50
117 226-62502-08 NEEDLE VALVE ASS'Y, G1300R $33.45
118 214-62515-08 FLOAT PIN, G3510R $3.50
119 227-62558-08 FLOAT CHAMBER BODY, G1300R $29.58
120 214-62450-08 PACKING, G2400R $1.85
121 214-62540-08 FLOAT CHAMBER PACKING, G2400R $4.93
122 226-62506-08 FLOAT ASSEMBLY, G1200R $29.78
123 227-62400-08 MAIN JET, G2400R $11.42
124 209-62446-08 SPRING, G2400R . $3.61
125 209-62353-08 STEEL BALL, G2400R $1.85
126 282-63601-H1 OIL GAUGE, G2800R $5.70
127 021-31600-20 GASKET, G2800R $1.08
128 227-70120-08 FLYWHEEL, G2400R $130.28
130 011-00601-21 FLANGE BOLT, G2400R $2.40
132 015-00400-90 TAPPING SCREW, G3510R $1.41
133 065-01400-31 SPARK PLUG B6HS, EW310TR $4.93
134 065-50000-51 SPARK PLUG CAP, EW310TR $4.93
135 480-08010-01 CASING, EW300R $123.29
136 480-05010-04 CASING COVER,EW210R $73.60
137 480-05010-02 PACKING (CASING), EW210R $8.12
138 480-05010-21 PLUG, EW210R $4.93
139 480-05010-22 PACKING, PLUG, EW210R $2.40
140 480-05010-05 BOLT M8X48, EW210R $1.85
141 480-05010-07 SPRING WASHER, EW210R $1.34
142 480-05010-08 WASHER, EW210R $0.90
143 480-05010-06 SEAL PACKING, EW310TR $3.50
144 480-05010-03 BOLT & WASHER ASSY, EW210R $3.72
145 480-08010-11 INNER CASING, EW300R $79.50
146 480-08010-09 IMPELLER ,EW300R $43.14
147 480-05010-10 MECHANICAL SEAL, EW210R $51.20
148 480-08010-37 SHIM, EW200TR, EW300R $3.50
148 480-08010-38 SHIM EW200TR, EW300R $3.50
149 480-08010-12 PACKING,INNER CASING, EW300R $6.14
150 481-00000-06 SUCTION FLANGE, EW300R $41.00
151 480-08010-15 CHECK VALVE, EW300R $22.53
152 481-00000-08 DELIVERY FLANGE, EW300R $62.20
153 480-08010-20 PACKING, FLANGE, EW310TR $4.93
154 480-05010-14 BOLT & WASHER ASSEMBLY, EW210R $1.85
155 480-08010-14 BOLT & WASHER ASS'Y 8X30, EW300R $3.72
156 480-05010-21 PLUG, EW210R $4.93
157 480-05010-22 PACKING, PLUG, EW210R $2.40
159 481-00001-24 FRAME, EW210R $113.50
160 480-05010-23 BOLT & WASHER ASSEMBLY, EW210R $1.85
161 480-05010-24 FLANGE NUT (M8), EW210R $1.96
162 482-00221-03 PUMP NAME LABEL $3.50
